KGR_YG88_PL - 第27页
1 8 Multi Camera & Light Assy. Camera KGR-1 103 2 1 3 2 3 4 No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati. 1 KGR-M73CS-30X C+L W35-H271-F-SP ARE 1 35mm-Front KGR-M73CS-31X C+L W35-H271-R…
7
7
Main Conveyor 2
Conveyor Unit
KGR-1011
9
11
OLD
OLD
20
21
20
20
21
7
8
20
21
20
20
20
20
20
21
20
21
20
21
1
20
21
20
19
24
24
25
25
20
21
17
28
28
28
28
28
28
27
29
27
29
26
26
30
30
26
26
26
26
30
28
5
17
4
17
5
17
11
10
18
4
9
3
3
31
6
8
8
7
7
3
20
20
20
23
22
22
22
22
16
23
23
2
7
6
3
12
12
13
13
13
13
14
14
14
14
19
20
11
18
9
21
21
15
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGS-M9124-00X PLATE 1,GUIDE 1
1-1 KGS-M9124-01X PLATE 1,GUIDE 1 2006/5/11 MC30020 NG
1-2 KGS-M9124-02X PLATE 1,GUIDE 1 (2006/9/15) MC90032 OK
2 KGS-M9124-50X PLATE 1,GUIDE 1
2-1 KGS-M9124-51X PLATE 1,GUIDE 1 2006/5/11 MC30020 NG
2-2 KGS-M9124-52X PLATE 1,GUIDE 1 (2006/9/15) MC90032 OK
3 KGS-M9123-00X GUIDE 1 4
3-1 KGS-M9123-01X GUIDE 1 4 2007/8/28 MD30001 NG
4 KGA-M9113-00X GUIDE 1,END 2
5 KGA-M9114-00X GUIDE 2,END 2
6 KGS-M9125-00X PLATE 2,GUIDE 2
6-1 KGS-M9125-01X PLATE 2,GUIDE 2 2006/5/11 MC30020 NG
6-2 KGS-M9125-02X PLATE 2,GUIDE 2 (2006/7/10) MC70001 OK
7 KGS-M9126-00X GUIDE 1-1 4
8 KGS-M9126-50X GUIDE 1-2 4
8-1 KGS-M9126-51X GUIDE 1-2 4 2006/5/11 MC30020 NG
8-2 KGS-M9126-51X GUIDE 1-2 3 (2007/3/16) MD30028 OK
8-3 KGS-M9126-51X GUIDE 1-2 3 (2007/7/12) MD70017 OK
9 KGS-M9144-00X BRACKET 3,SENSOR 1
9-1 KGS-M9144-01X BRACKET 3,SENSOR 1 2007/6/27 MC90079 NG
10 KGS-M911A-00X SENSOR,ENT. 1
11 KG7-M912A-00X BRACKET,SENSOR 1
11-1 KGS-M912A-00X BRKT.,SENSOR 1 2007/6/27 MC90079 NG
12 KGS-M928A-01X SENSOR,SUB POS. 1
12-1 KGS-M928A-02X SENSOR,SUB 1 2006/8/24 MC30079 NG
12-2 KGS-M928A-03X SENSOR,SUB 1 (2006/11/6) MC00096 OK
12-3 KGS-M928A-04X SENSOR,SUB 1 with AMP (2007/5/11) MD50014 OK
13 KGS-M911D-B1X SENSOR,SET POS.2 1
13-1 KGS-M911D-B2X SENSOR POS.2 1 2006/8/24 MC30079 NG
13-2 KGS-M911D-B3X SENSOR POS.2 1 (2006/11/6) MC00096 OK
13-3 KGS-M911D-B4X SENSOR POS.2 1 with AMP (2007/5/11) MD50014 OK
14 KGS-M911D-A1X SENSOR,SET POS.1 1
14-1 KGS-M911D-A2X SENSOR POS.1 1 2006/8/24 MC30079 NG
14-2 KGS-M911D-A3X SENSOR POS.1 1 (2006/11/6) MC00096 OK
14-3 KGS-M911D-A4X SENSOR POS.1 1 with AMP (2007/5/11) MD50014 OK
15 KGS-M911D-C1X SENSOR,WORK OUT 1 1
15-1 Delete (2006/3/16) MC30079
16 KGS-M927A-00X SENSOR EXIT 1
17 91314-04015 BOLT HEX.SOCKET HEAD 8
17-1 91312-04015 BOLT HEX.SOCKET HEAD 8 (2006/2/16) MBY0202 OK
17-2 91312-04014 BOLT HEX.SOCKET HEAD 24 (2008/2/1) ME10057 OK
18 91317-04008 BOLT HEX.SOCKET HEAD 2
19 91317-03010 BOLT HEX.SOCKET HEAD 2
20 91317-03006 BOLT HEX.SOCKET HEAD 75
20-1 91317-03006 BOLT HEX.SOCKET HEAD 37 (2007/3/16) MD30028 OK
21 92903-03200 WASHER PLAIN 27
22 91314-03005 BOLT HEX.SOCKET HEAD 10
22-1 91314-03004 BOLT HEX.SOCKET HEAD 10 (2005/6/15) MB60046 OK
22-2 91312-03004 BOLT HEX.SOCKET HEAD 10 (2006/1/16) MBY0158 OK
22-3 91312-03004 BOLT HEX.SOCKET HEAD 14 (2006/9/15) MC90032 OK
23 92A08-03303 SET SCREW 5
24 KGS-M9129-00X BELT 1,CONVEYOR 2
25 KGS-M9129-50X BELT 2,CONVEYOR 2
26 KV7-M9140-A0X PULLEY,CONV. ASSY 14
27 91317-05025 BOLT HEX.SOCKET HEAD 6
28 91317-05020 BOLT HEX.SOCKET HEAD 30
28-1 91317-05020 BOLT HEX.SOCKET HEAD 28 (2006/1/13) MC10008 OK
28-2 91317-05020 BOLT HEX.SOCKET HEAD 32 (2007/3/7 MD20084 OK
29 92907-05200 WASHER PLAIN 10
29-1 92907-05200 WASHER PLAIN 12 (2006/1/13) MC10008 OK
30 KGS-M9140-A0X PULLEY CONV. ASSY 8
31 KGS-M9126-60X GUIDE 1-3 1
1
8

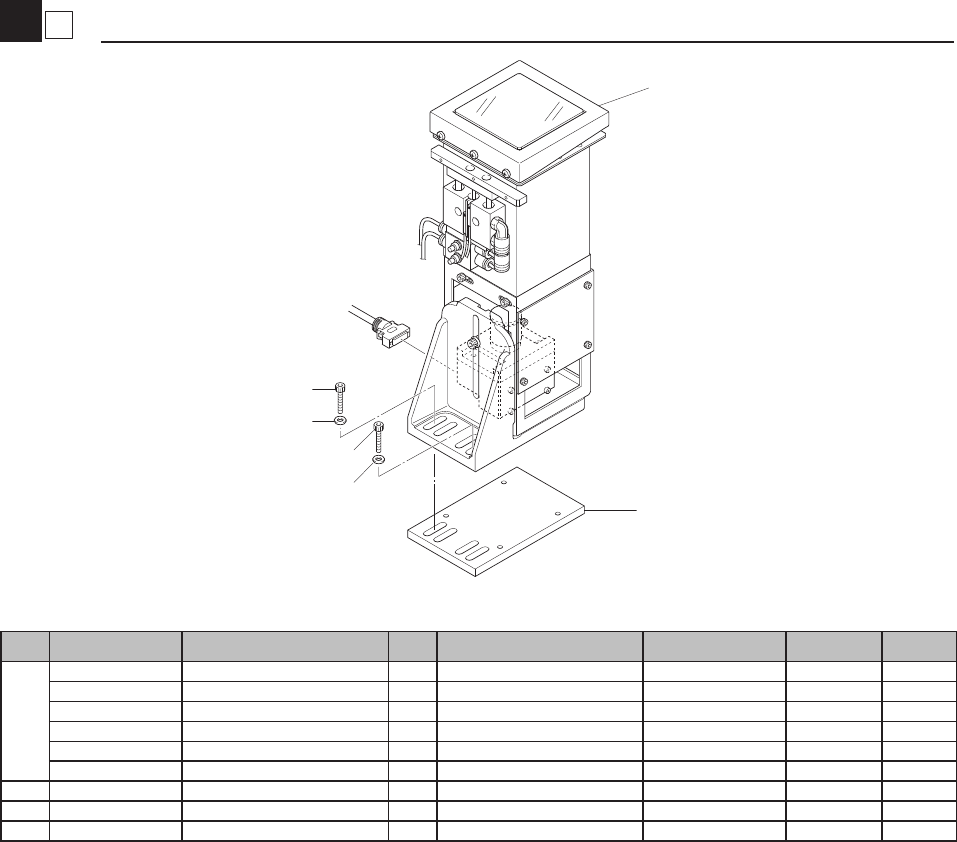

Multi Camera & Light Assy.
Camera
KGR-1103
2
1
3
2
3
4
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1
KGR-M73CS-30X C+L W35-H271-F-SPARE 1 35mm-Front
KGR-M73CS-31X C+L W35-H271-R-SPARE 1 35mm-Rear
KGR-M73C0-35X C+L W35-H277.5-RF 1
W-ATS 35mm-Rear Multi Front Stand
KGR-M73CS-40X C+L W50-H271-F-SPARE 1 50mm-Front
KGR-M73CS-41X C+L W50-H271-R-SPARE 1 50mm-Rear
KGR-M73C0-45X C+L W50-H277.5-RF 1
W-ATS 50mm-Rear Multi Front Stand
2 91317-06020 BOLT HEX. SOCKET HEAD 4
3 92907-06200 WASHER, PLAIN 4
4 KGR-M7302-00X SPACER 1
2
8
Single Camera & Light Assy.
Camera
KGR-081112
4
5
6
7
8
2
11
1
9
10
3
4
3
12
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGR-M72A0-50X SINGLE CAM. SUB ASSY 1 Can not be sold.
2 KGR-M7301-10X STAND, CAMERA 1 Can not be sold.
3 91317-06020 BOLT HEX. SOCKET HEAD 4
4 92907-06200 WASHER PLAIN 4
5 KV1-M7303-00X HOLDER, CAMERA 1 1 Can not be sold.
6 91317-05045 BOLT HEX. SOCKET HEAD 2 Can not be sold.
7 KGA-M66F0-01X C. CABLE ASSY 1
8 KGR-M7400-00X SINGLE LIGHT ASSY 1
9 91317-04005 BOLT HEX. SOCKET HEAD 4
10 92907-04200 WASHER PLAIN 4
11 KGR-M7200-50X SINGLE CAMERA ASSY 1
12 KGR-M72C0-50X C+L FOV60-RF 1
