3.10.10 Inline Component Analysis
Collects inspection results and displays results on the system.
Figure 166: Inline Component Analysis
3.10.10.1 Enable Cpk Data Collection

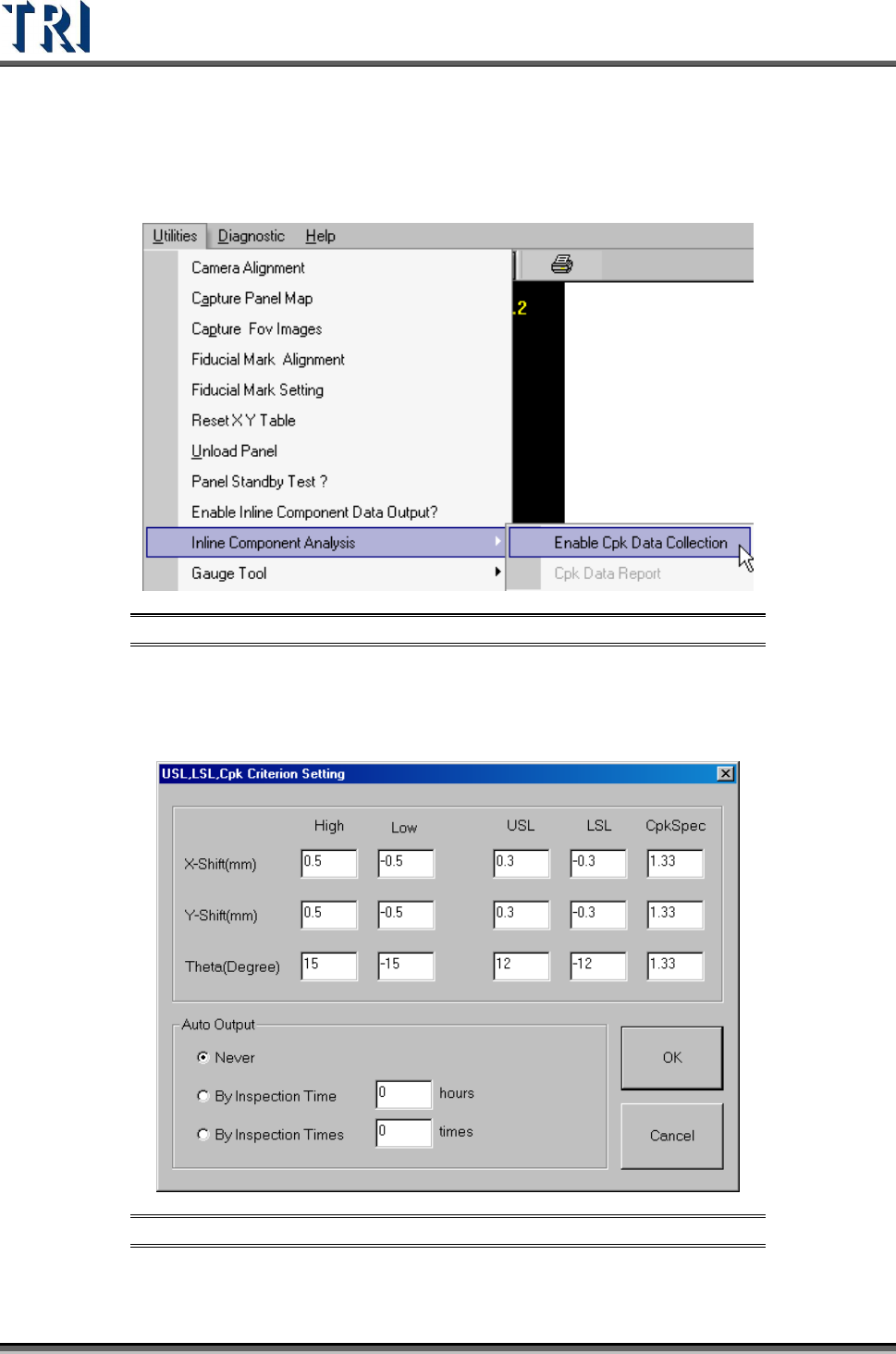

Selecting this item presents the following window. Select the collection rules here.
Figure 167: Cpk Criterion Setting Dialog
Test Research Inc.
TR7500 Series User Guide –Software v.2.9.0 101
[X-Shift]、[Y-Shift], [Theta]– Presents the horizontal shift and vertical shift and
the rotated angle separately.
[High], [Low] – The upper and lower limit for the testing result. When the result is
within this range, it can be included in calculating.
[USL]–The upper spec limit for calculating Cpk index.
[LSL]–The lower spec limit for calculating Cpk index.
[CpkSpec]–The tolerance for Cpk. It is normal when Cpk is greater than this value;
it’s abnormal when Cpk is smaller than this value.
[AutoOutput]
[Never]–Do not output automatically.
[By Inspection Time]–Outputs data according to the assigned time interval.(unit:
hours)
[By Inspection Times]–Outputs data according to the assigned number of
inspected counts.
3.10.10.2 Cpk Data Report
Review the collected data.
Change to
enable

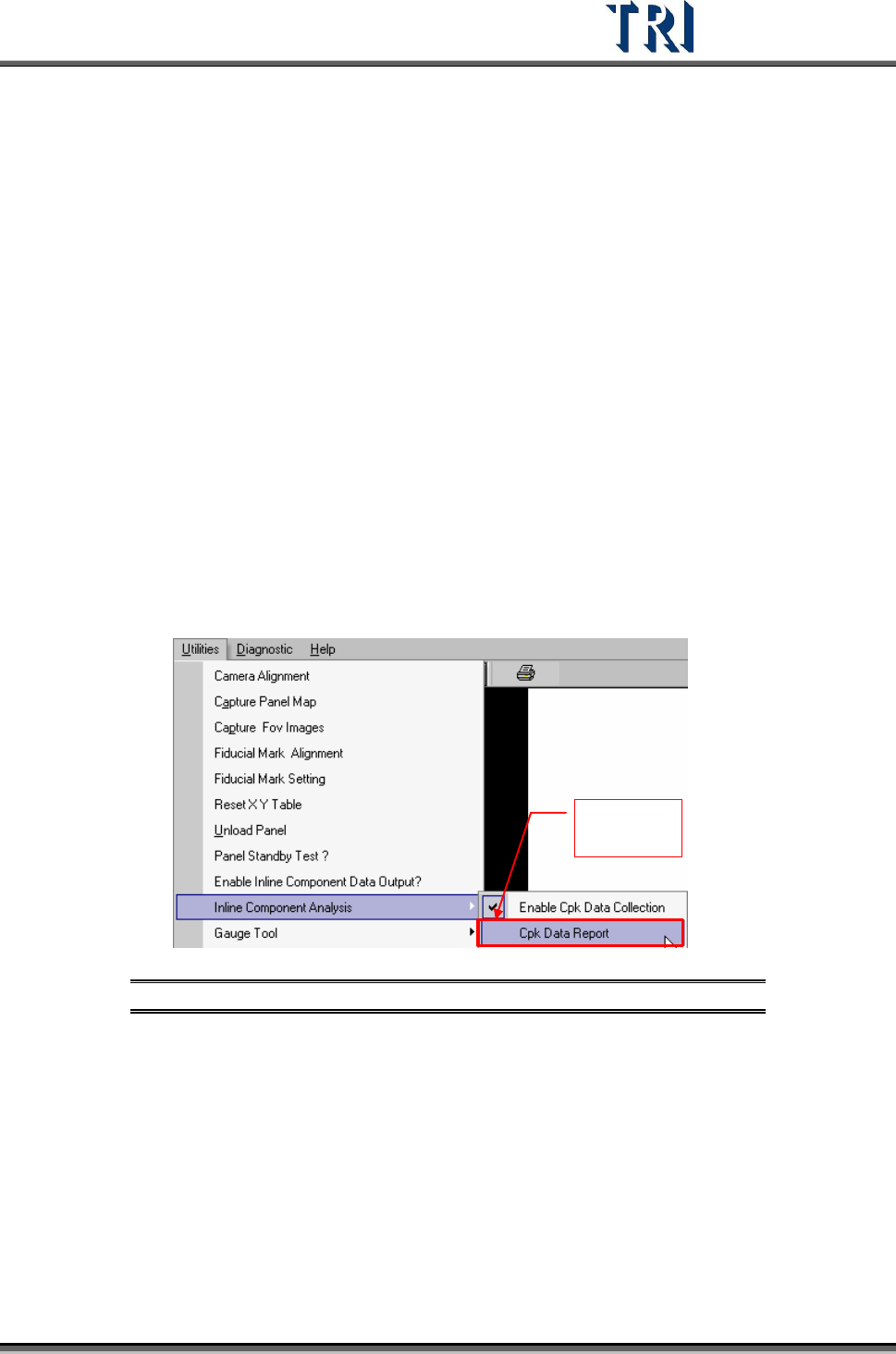

Figure 168: Cpk Data Report
Cpk format is shown below.
Test Research Inc.
102 TR7500 Series User Guide –Software v.2.9.0

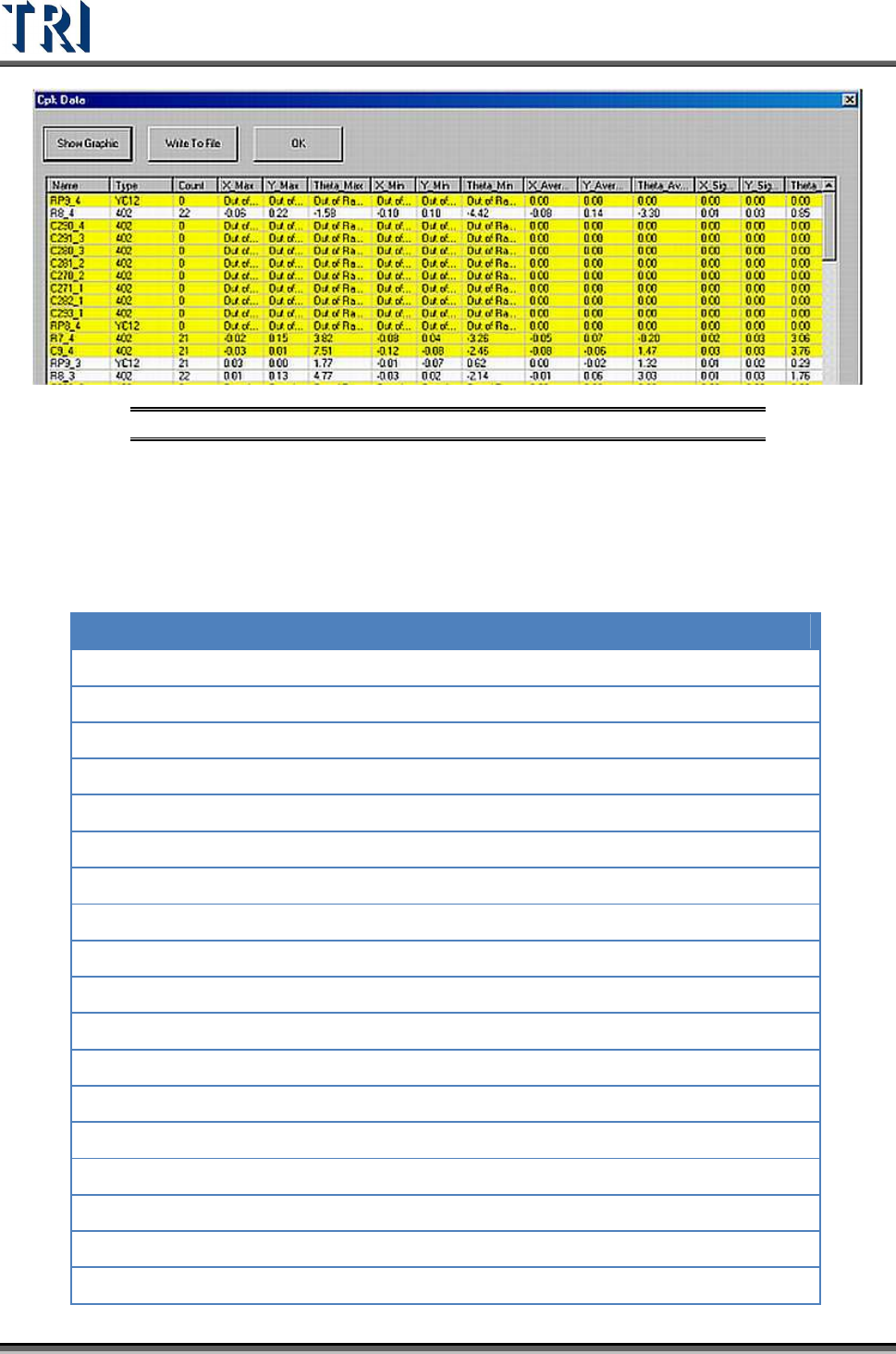

Figure 169: Cpk Data Table
Clicking on a field title will sequence the data according to that value.
The yellow means that the component is ‘abnormal’: The Cpk Value is lower than
CpkSpc.
Each field is explained in the table below:
Name Component Name
Type
Component type
Count
The number of data calculated.
X_Max
The maximum for X-shift (unit: mm)
Y_Max
The maximum for Y-shift (unit: mm)
Theta_Max
The maximum for Theta (unit: mm)
X_Min
The minimum for X-shift (unit: mm)
Y_Min
The minimum for Y-shift (unit: mm)
Theta_Min
The minimum for Theta (unit: mm)
X_Average
The average for X-shift (unit: mm)
Y_Average
The average for Y-shift (unit: mm)
Theta_Average
The average for Theta (unit: mm)
X_Sigma
The sigma for X-shift (unit: mm)
Y_Sigma
The sigma for Y-shift (unit: mm)
Theta_Sigma
The sigma for Theta (unit: mm)
X_CpkSpec
CpkSpec for X-shift
X_Cpk
Cpk for X-shift
Y_CpkSpec
CpkSpec for Y-shift
Y_Cpk
Cpk for Y-shift
