Test Research Inc. TR7500 Series User Guide – Software v.2.9.0 137 Figure 222 : Merge Multipl e Name By Ty pe Process & Result
Test Research Inc.
136 TR7500 Series User Guide –Software v.2.9.0
Figure 221: Merge Name By Type Process & Result
Merge several types: Select more than one component by holding down the [Ctrl] key to
merge names.
Test Research Inc.
TR7500 Series User Guide –Software v.2.9.0 137

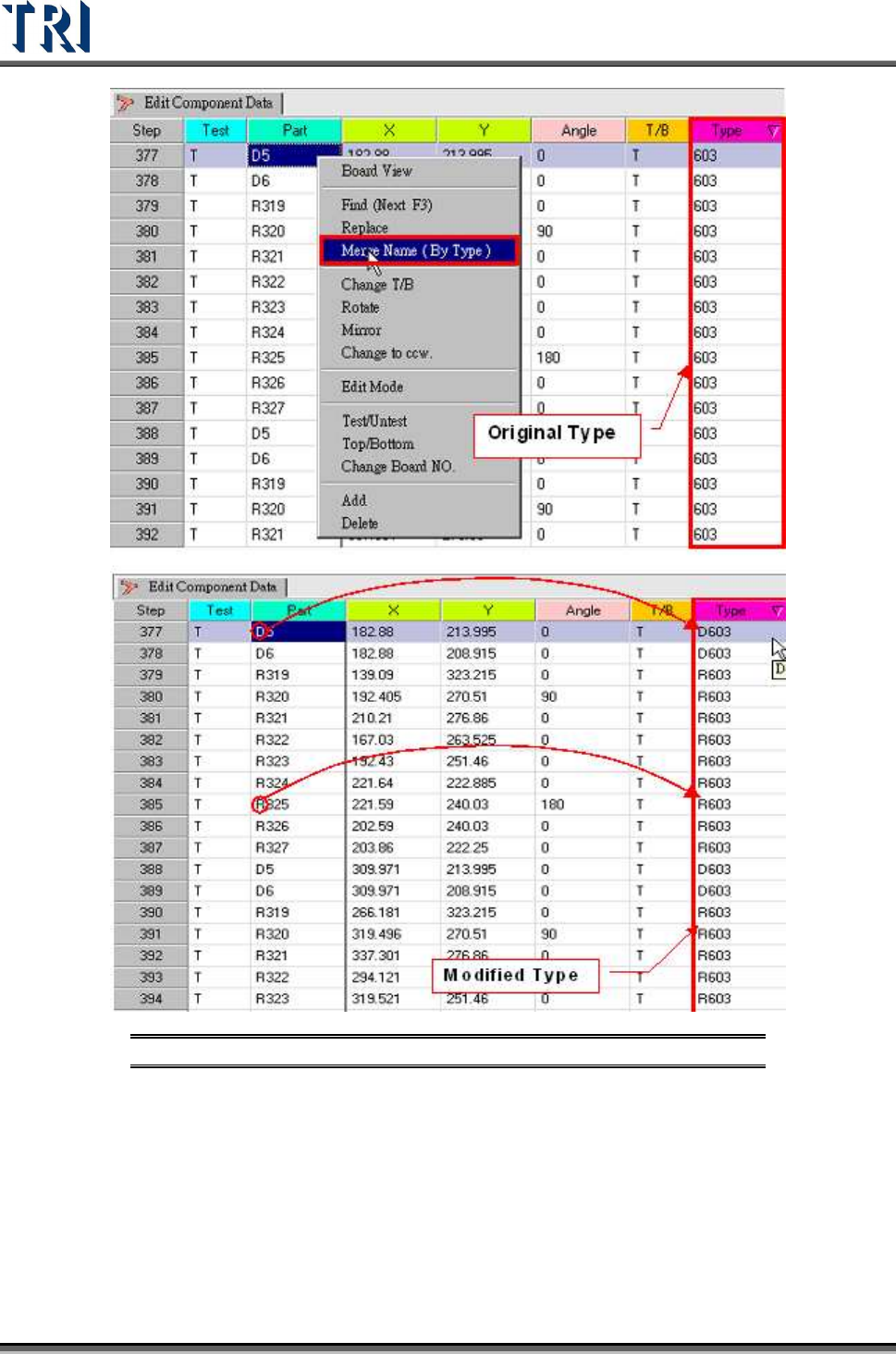

Figure 222: Merge Multiple Name By Type Process & Result
Test Research Inc.
138 TR7500 Series User Guide –Software v.2.9.0
5.6 Change T/B (Top/Bottom)
Change the entire component list of a board from the top side to bottom side and from the
bottom side to the top side.

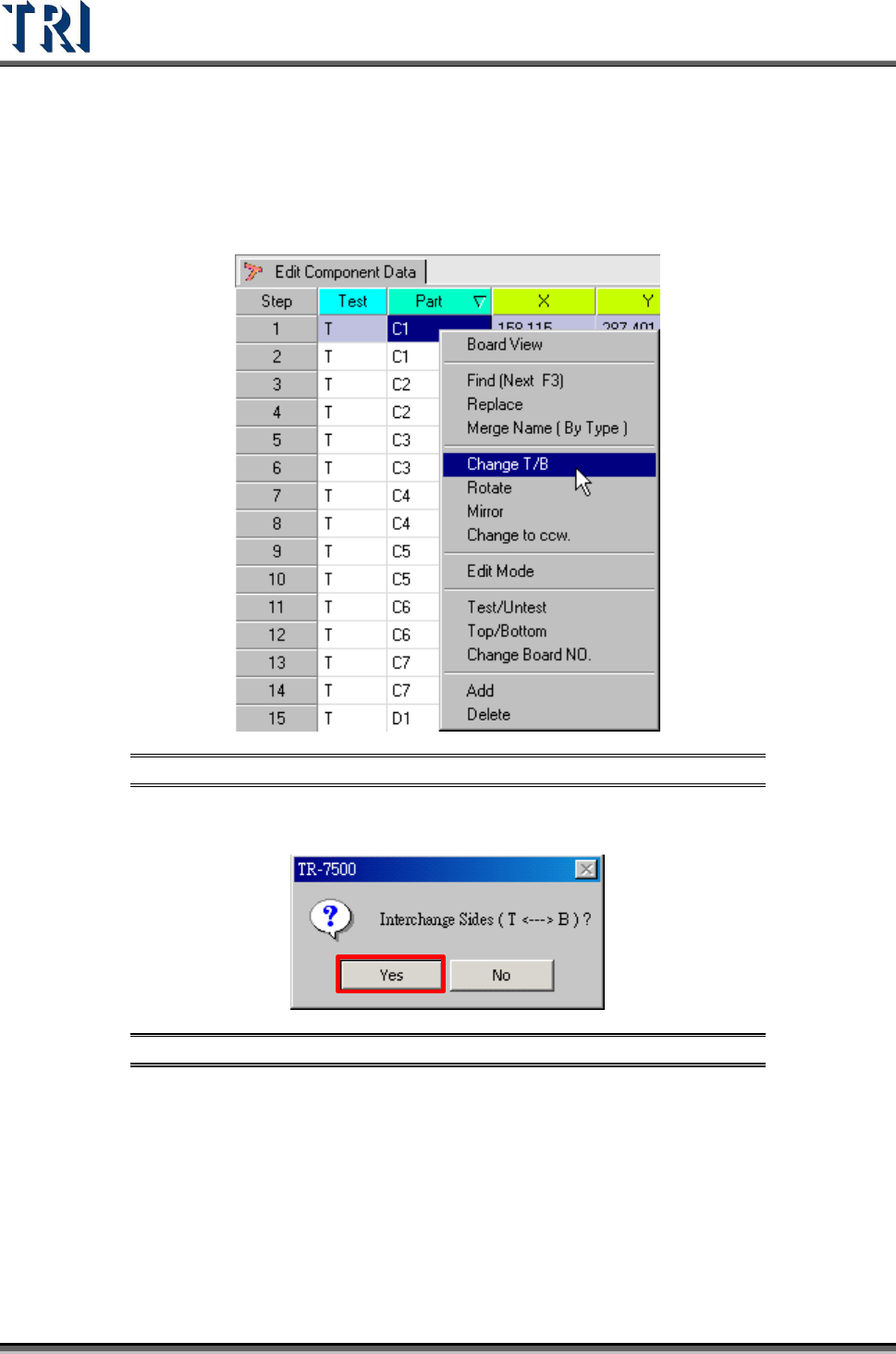

Figure 223: Select Change T/B Command
A confirmation message window will be displayed. Click [YES] to change all components.
Figure 224: Change Top/Bottom Confirm Window
