Test Research Inc. 142 TR7500 Series User Guid e –Softwa re v.2.9.0 Figure 231 : Change to CCW Confirm Win dow 5.10 Edit/ View Mode Change the [Compone nt Data] table f rom [View] mode to [Edit] mode. T he information o …
Test Research Inc.
TR7500 Series User Guide –Software v.2.9.0 141

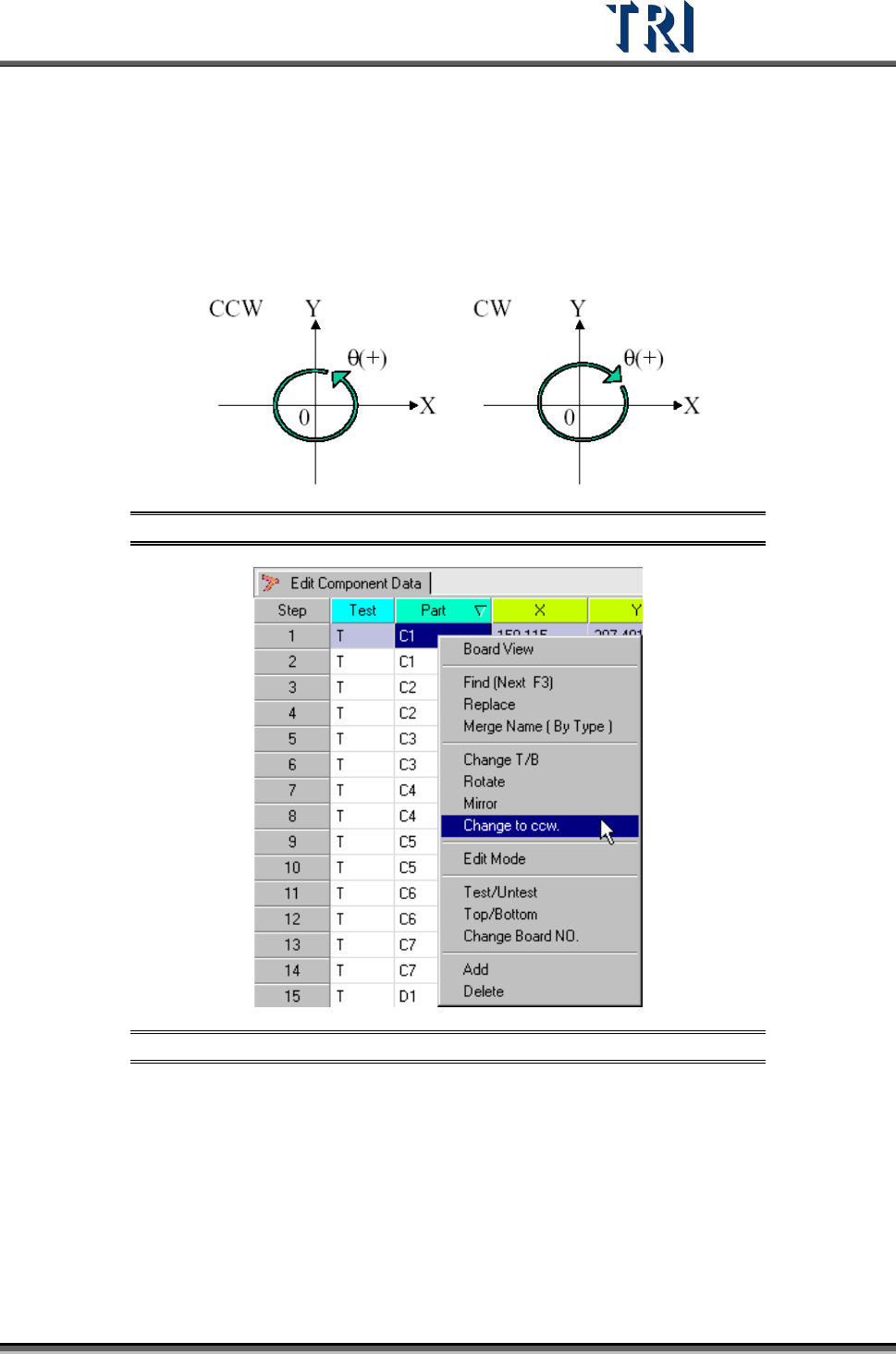

5.9 Change to CCW (Counterclockwise)
The default rotate direction used by the TR7500 system is counterclockwise (CCW). If the
definition of angles in the original CAD is clockwise (CW), the directions must be changed by
using this function.
Figure 229: Counterclockwise & Clockwise Rotation
Figure 230: Select Change to CCW Command
Display the double confirm message window.
Test Research Inc.
142 TR7500 Series User Guide –Software v.2.9.0

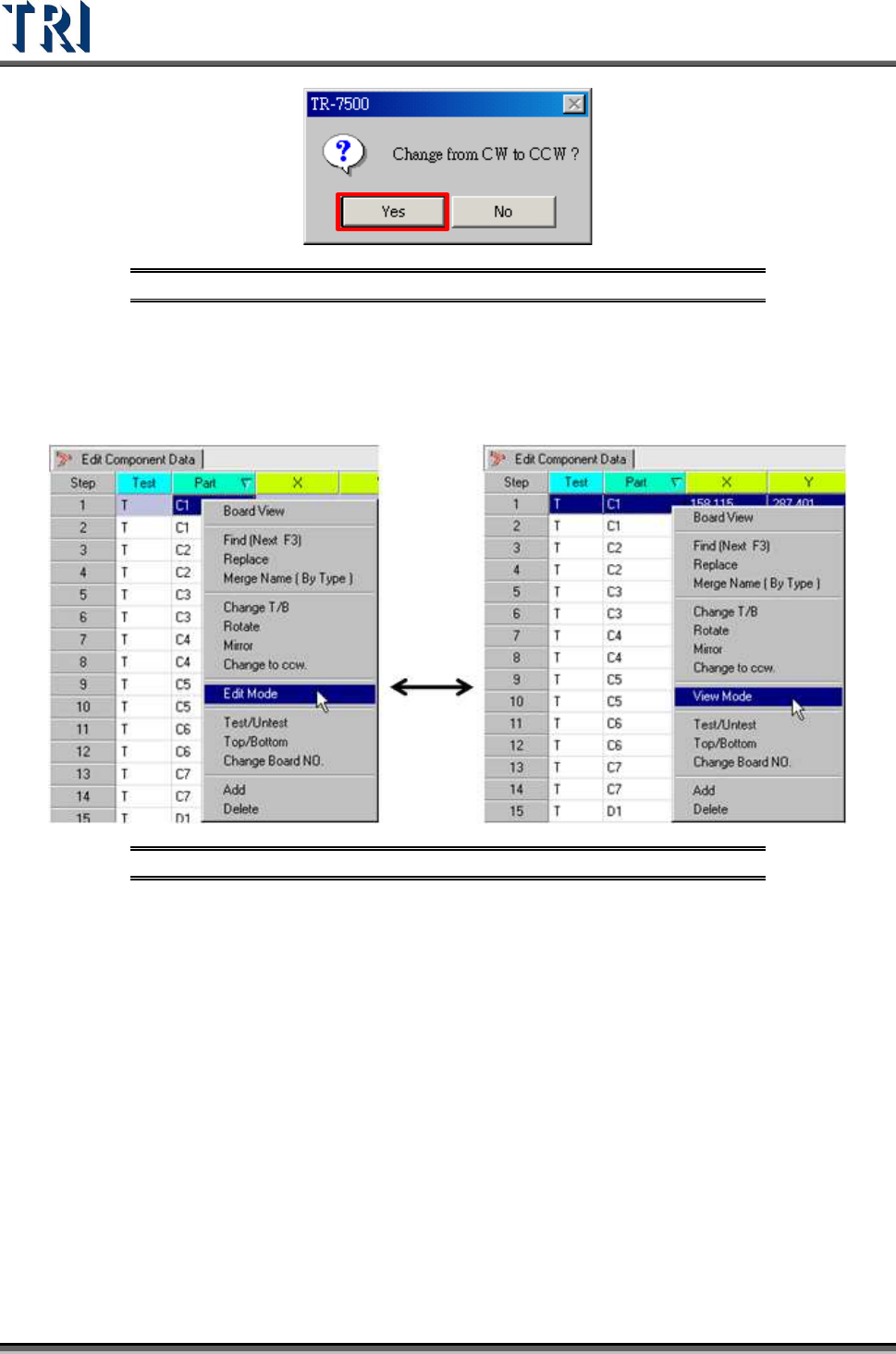

Figure 231: Change to CCW Confirm Window
5.10 Edit/View Mode
Change the [Component Data] table from [View] mode to [Edit] mode. The information of
components can be changed except [Test], [Part], [T/B] or [Board NO].
Figure 232: Select Edit/View Command
Click the [View Mode] and return to the view mode so that the data is not changed.
Test Research Inc.
TR7500 Series User Guide –Software v.2.9.0 143
5.11 Test/Untest
Set whether specified components should be inspected or not.
Figure 233: Select Test/Untest Command
Display the component status as T [Test] or X [Do Not Test] in the [AOI Component Data]
table.
Figure 234: Change Component Test Status
