Test Research Inc.
TR7500 Series User Guide –Software v.2.9.0 167

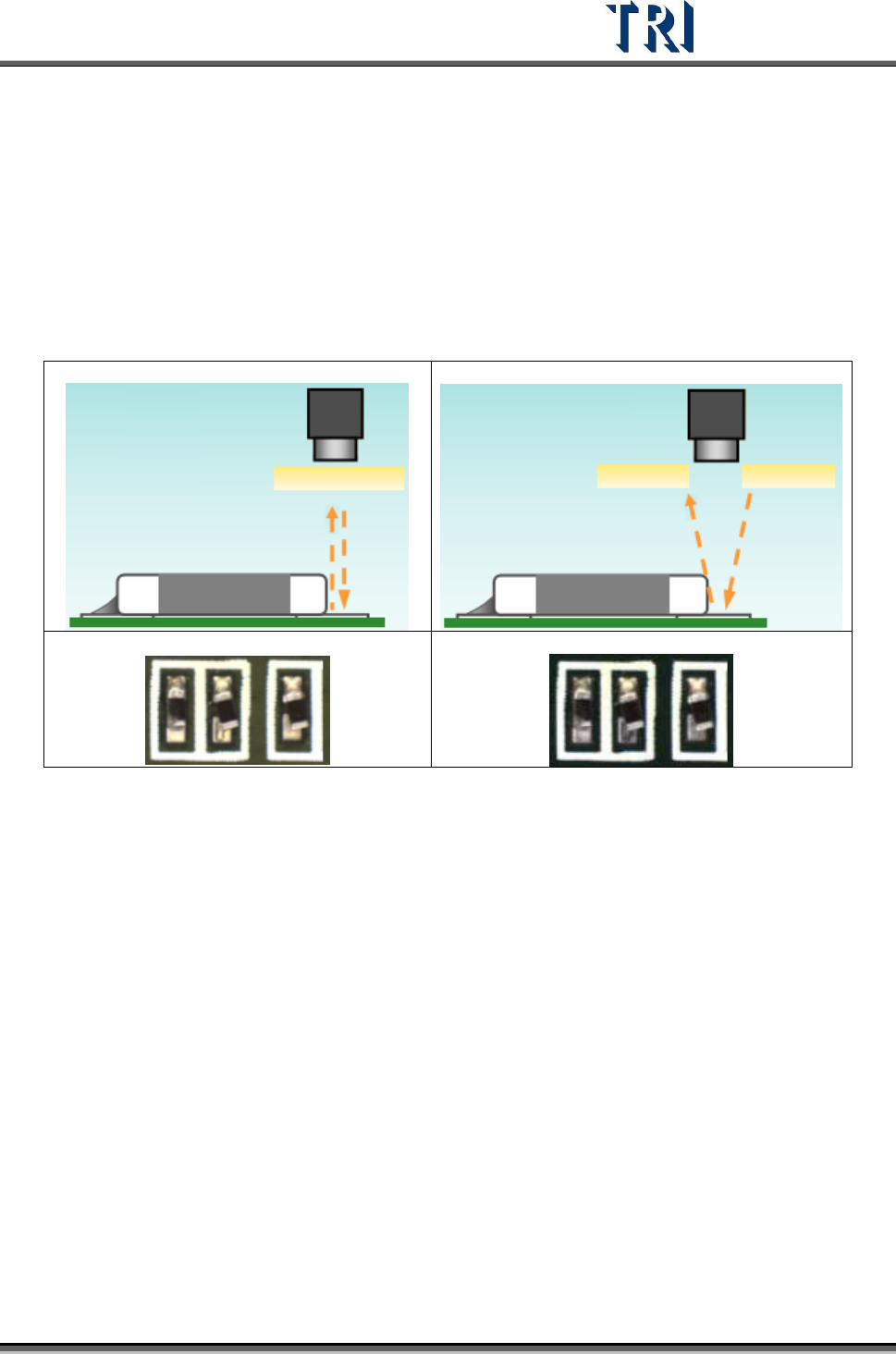

7.2 Set Specific Lighting
There are 13 kinds of lighting sources that will be used while doing a project. The 13 kinds of
lighting are also shown when the [Normal] button is pressed. These 13 types are: two fiducial
lighting types [Fiducial0/1], one lighting [Maplight] for capturing the panel map, two top
camera default lighting types [ToplightA/B], two front camera lighting types [FrontlightA/B],
two rear camera types [RearlightA/B], and two each for left and right cameras [LeftlightA/B]
and [RightlightA/B].
The setting of the lighting looks at the states, such as board color of the circuit, solder joints,
and so on.
Test Research Inc.
168 TR7500 Series User Guide –Software v.2.9.0
8 E
DIT
C
OMPONENT
L
IBRARY
C
OMMANDS
The main screen used for editing the component library Is shown below. All commands and
icons are explained in this chapter.
Figure 277: ATPG Component Main Screen
(1). Toolbar – All tools/commands needed to create a library. The tools are explained
below in this chapter.
(2). Type List – Lists all types of components on this PCB. The icons mean the
following.
ICON DESCRIPTION
The type has at least one inspection box and has been saved.
The type has no inspection box and has been saved.
The type has at least one inspection box and has not been saved.
The type has no inspection box and has not been saved.
This icon will appear if an image is not added under [Missing] or
[Lead] boxes. The boxes will be displayed in orange, not purple.
(3). Image Zone – Arrange inspection boxes and create library here. Use the mouse
(clicking and dragging) to select boxes.
Test Research Inc.
TR7500 Series User Guide –Software v.2.9.0 169
Figure 278: Use Mouse to Select Boxes
8.1 Component Type Command
Figure 279: Component Type Command
8.1.1 New
Use this function to create a new type and edit its library.
Figure 280: Set Component Type Dialog
8.1.2 Load..
Load existing library to the current component from the package library folder. It will load all
information except image.
