Test Research Inc.
TR7500 Series User Guide –Software v.2.9.0 171
(1). Sketch area– Show information of library including size of body, drawing of
library by type.
(2). [Type] list– List all types in library folder
(3). [Find] area– Input specific conditions, then press [Find] button to search the
library.
[Kind]– System classifies all components into IC, CHIP, Other and so on
automatically.
[Pin]– You can input the number of pins as a condition, and input “-1” to
search library with all pins.
[Name]– You can search library with keying a part of the type name.
[Path]– Input the path of library folder. The default is “C:\AOI\PackageLibrary”.
[Find]– Press to start finding.
(4). [Reload]– Press to refresh the library information.
(5). [Previous, Next]– Press to show the previous and the next library.
(6). [Icon] – Click on this option to view the real component image. The saved real
image will be shown and not the box layout. Refer to the following figure.
Test Research Inc.
172 TR7500 Series User Guide –Software v.2.9.0

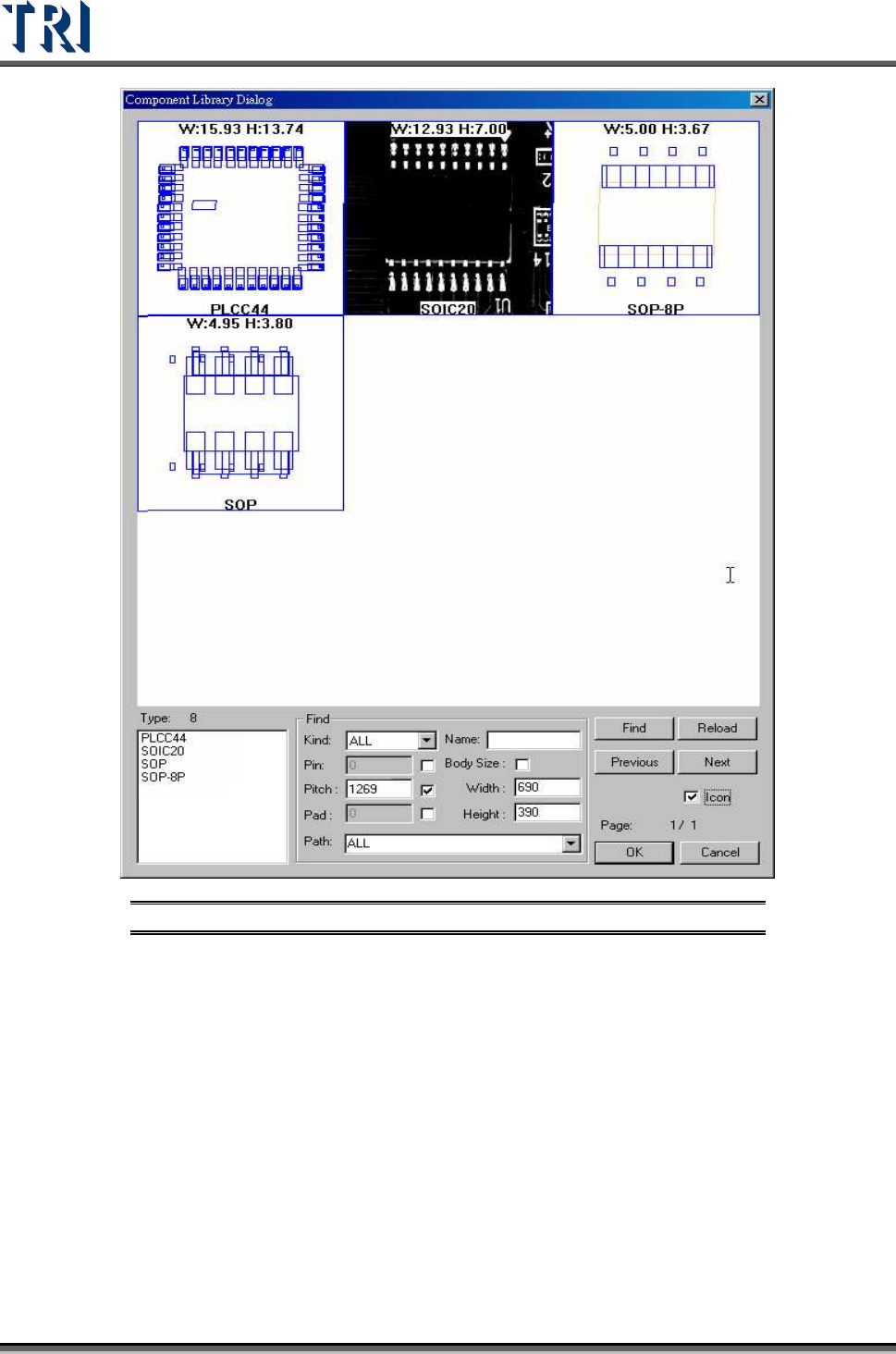

Figure 282: Component Library Icon Result
(7). [OK]– Press to load the selected library to current type. This function is the
same as double clicking the objective library on sketch area.
(8). [Cancel]– Exit the dialog.
8.1.2.1 Load Library Procedure
Step1. Input the conditions and press [Find] to search the suitable library.
Step2. Double click the sketch area or press [OK} to load the library.
Step3. Answer the question “Is the current type the same as the objective library?” If you
press [YES] (it means the current type is the same as the selected library), the
current type will be listed as a child type of the selected type. Otherwise the current
type will copy the library and build a new library with its own type name. For example,
Test Research Inc.
TR7500 Series User Guide –Software v.2.9.0 173
to load library “0805” type “R0805”, see the difference in the following figure.

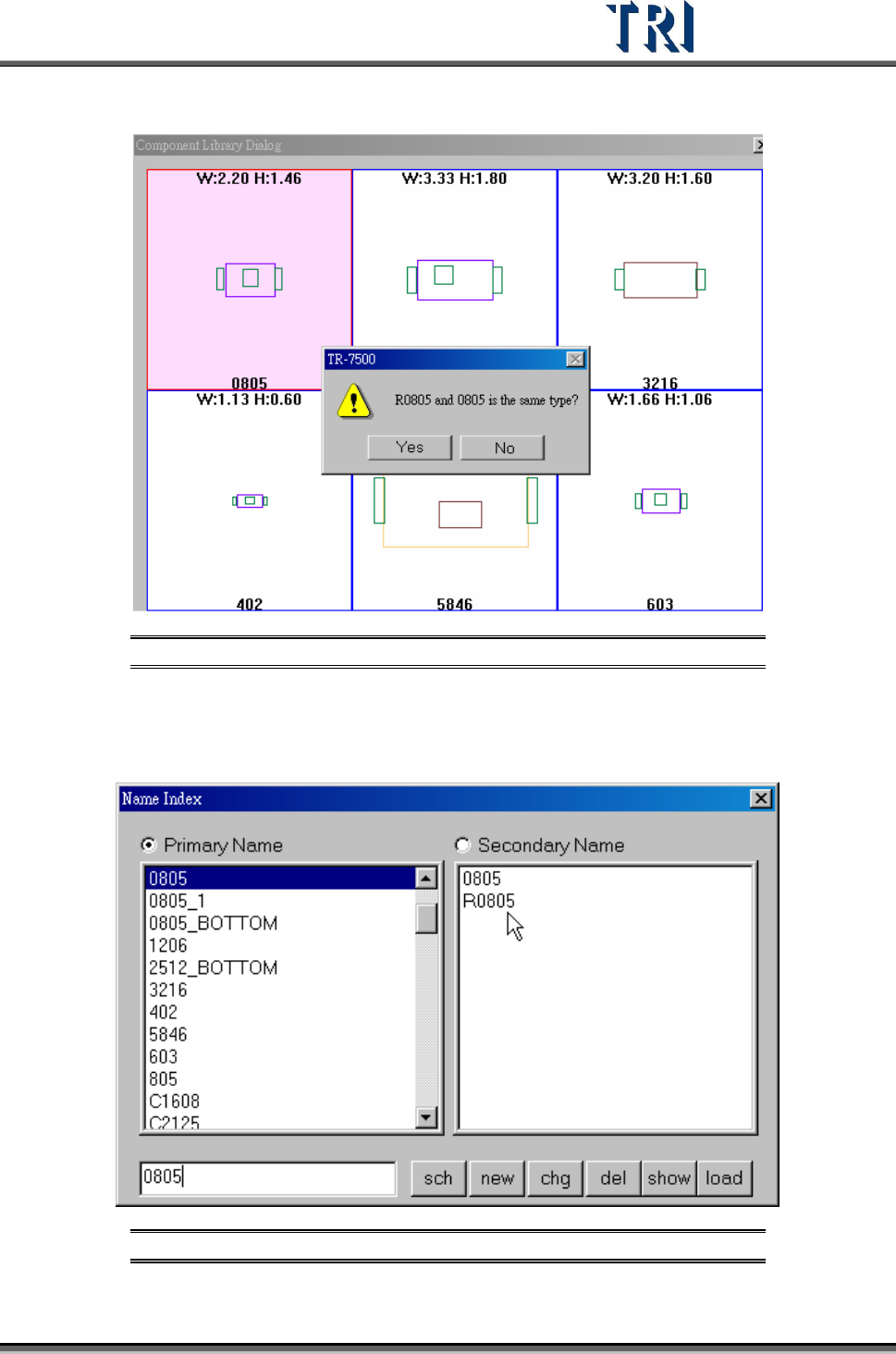

Figure 283: Confirm Components as Same Type
Select [YES]: R0805 will be saved as a secondary name and the modified library
will be saved in 0805.pgl. If you have the type “R0805” next time, the system will
use “0805.pgl” as its library automatically.
Figure 284: Primary & Secondary Component Names
