Test Research Inc.
TR7500 Series User Guide –Software v.2.9.0 177
8.2.2 Link
Assign windows that are parents and children to link. Since some kinds of inspection
windows don’t have the ability to position such as [Void] and [Pin] windows, they have to link
with other windows that have the ability to position such as [Missing], [Lead] and [Align].
Subsidiary windows linked with parents will move with parents in inspection.
The system automatically links windows that should be linked together when they are
created at the same time with the [Add All Windows] function.

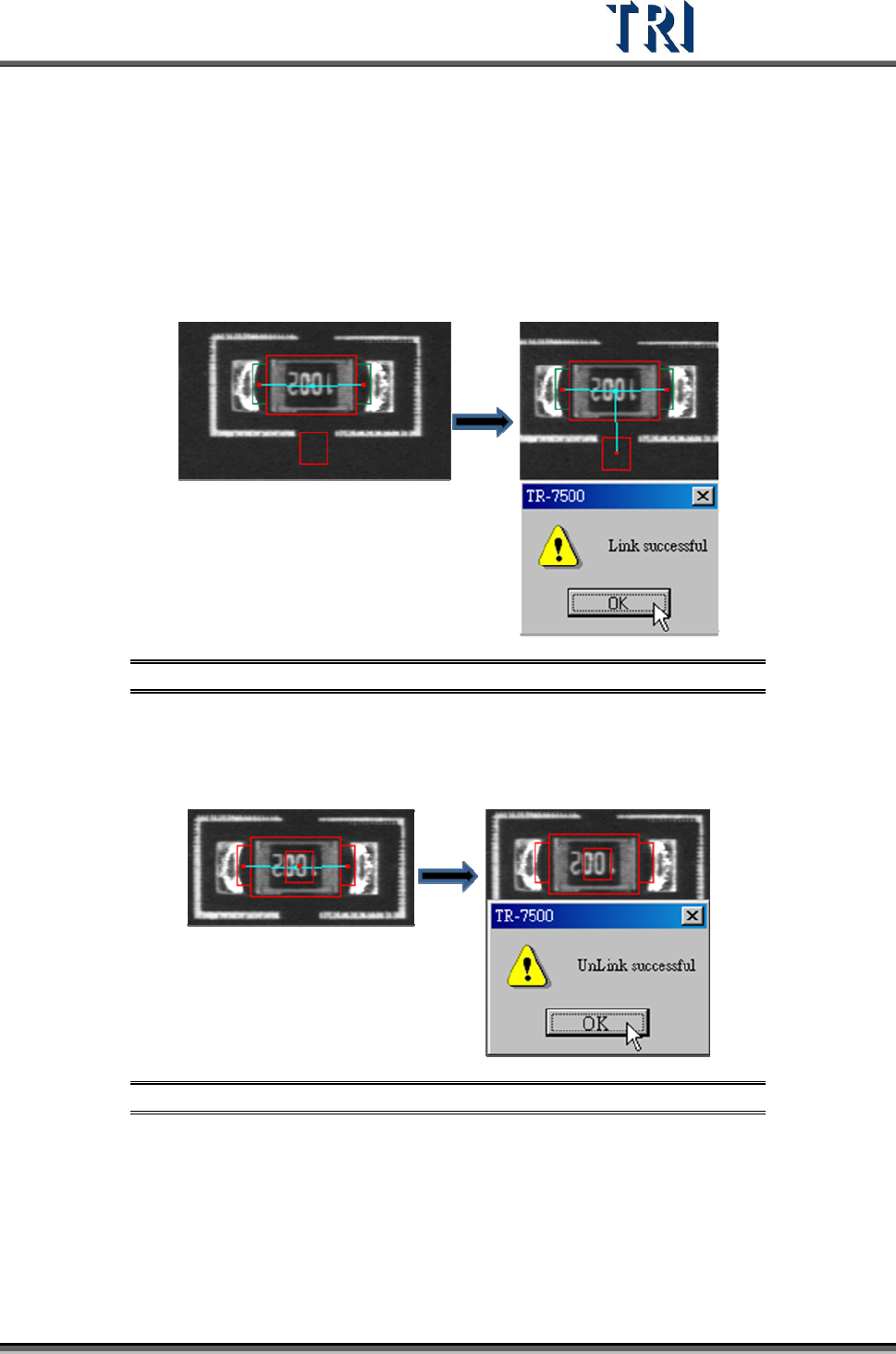

Figure 294: Link Command Result
8.2.3 Unlink
Choose [Unlink] to break the link between windows.
Figure 295: Unlink Command Result
Test Research Inc.
178 TR7500 Series User Guide –Software v.2.9.0
8.2.4 Mirror
Map and copy the inspection boxes by X direction, Y direction or the origin.
Figure 296: Mirror Command Dialog
8.2.5 Rotate Copy
Rotate and copy the inspection boxes by assigned degree.
Figure 297: Rotate Copy Command Dialog
Figure 298: Rotate Copy Command Result
Test Research Inc.
TR7500 Series User Guide –Software v.2.9.0 179
8.2.6 Rotate Side
Rotate the pin direction 90 degrees counterclockwise by clicking once.
Figure 299: Rotate Pin Direction Command Result
8.2.7 Change Shape
The function is to change the window shape from square to circle or from circle to square. It
only works for [Void] or [Solder] window.
Figure 300: Change Window Shape Command Result
