Test Research Inc. 186 TR7500 Series User Guid e –Softwa re v.2.9.0 Figure 314 : Zoom In (left) & Zoom Out 8.6 T ool Command Figure 315 : Tool Command Menu 8.6.1 Name Index Specify second name for index that the comp…
Test Research Inc.
TR7500 Series User Guide –Software v.2.9.0 185
8.4.5 Polarity Pair
Click [A
DD
>
P
OLARITY
P
AIR
], a pair of windows will be created. Move them to different
positions with a variation of gray levels. The system will show Polarity Fail if the gray level of
two windows is reversed.
Figure 312: Add Polarity Pair Function
8.5 Zoom Command
Figure 313: Zoom Command Menu
8.5.1 Zoom In
After choosing [Zoom > Zoom In], an enlarged drawing frame window is shown. The windows
enlarge10% each time [Zoom In] is selected.
8.5.2 Zoom Out
Window size is reduced after pressing [Zoom > Zoom Out]. The windows reduce 10% each
time [Zoom Out] is selected.
Test Research Inc.
186 TR7500 Series User Guide –Software v.2.9.0
Figure 314: Zoom In (left) & Zoom Out
8.6 Tool Command
Figure 315: Tool Command Menu
8.6.1 Name Index
Specify second name for index that the component has same model type but not same name.
Test Research Inc.
TR7500 Series User Guide –Software v.2.9.0 187

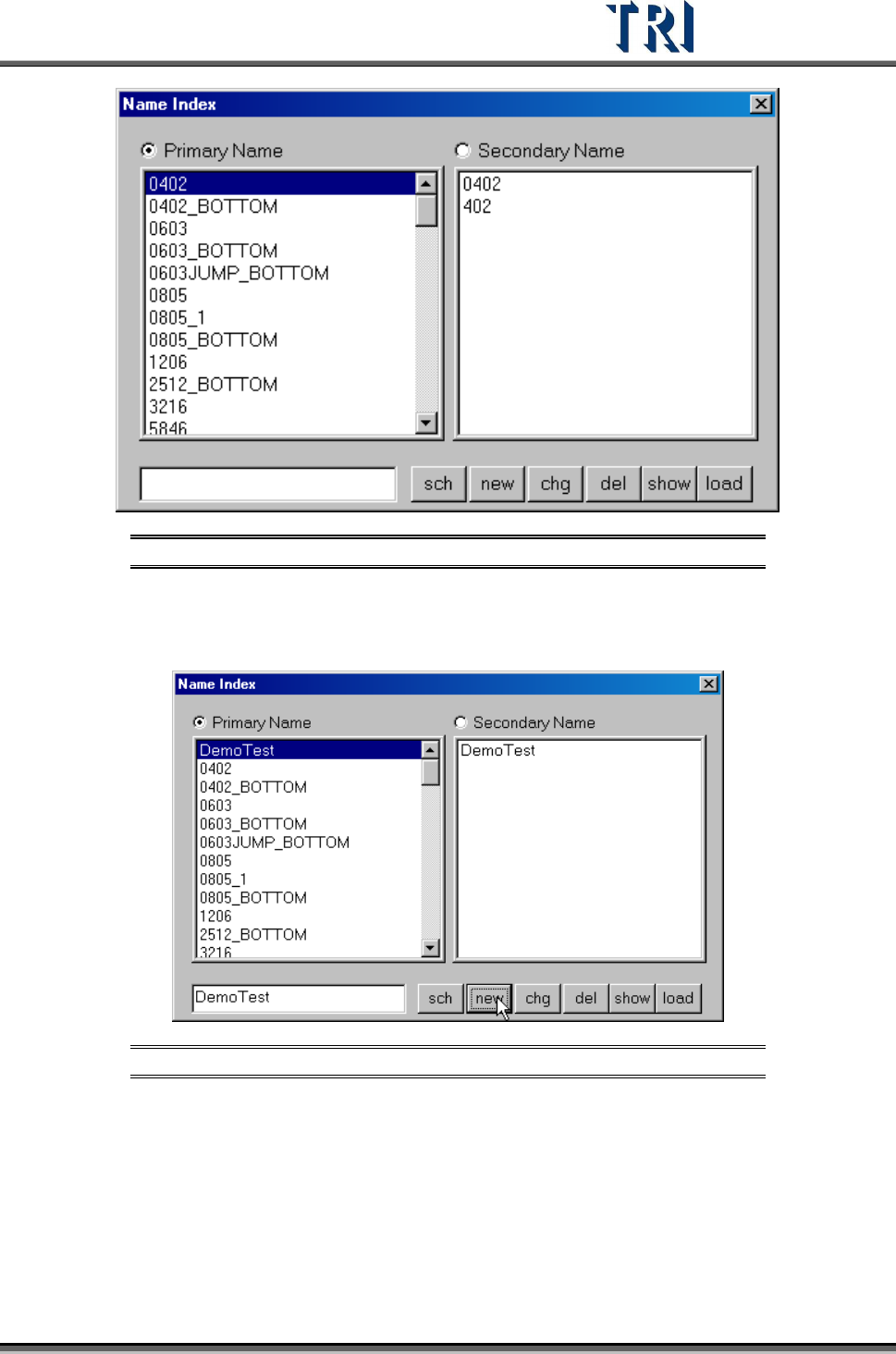

Figure 316: Name Index Dialog
[Sch] – Search the index name.
[New] – Create the primary or secondary index name.
Figure 317: Create Secondary Name, Step 1
