Test Research Inc.
TR7500 Series User Guide –Software v.2.9.0 205
8.7.2 Algorithm Dialog: Procedure for Setting Logic

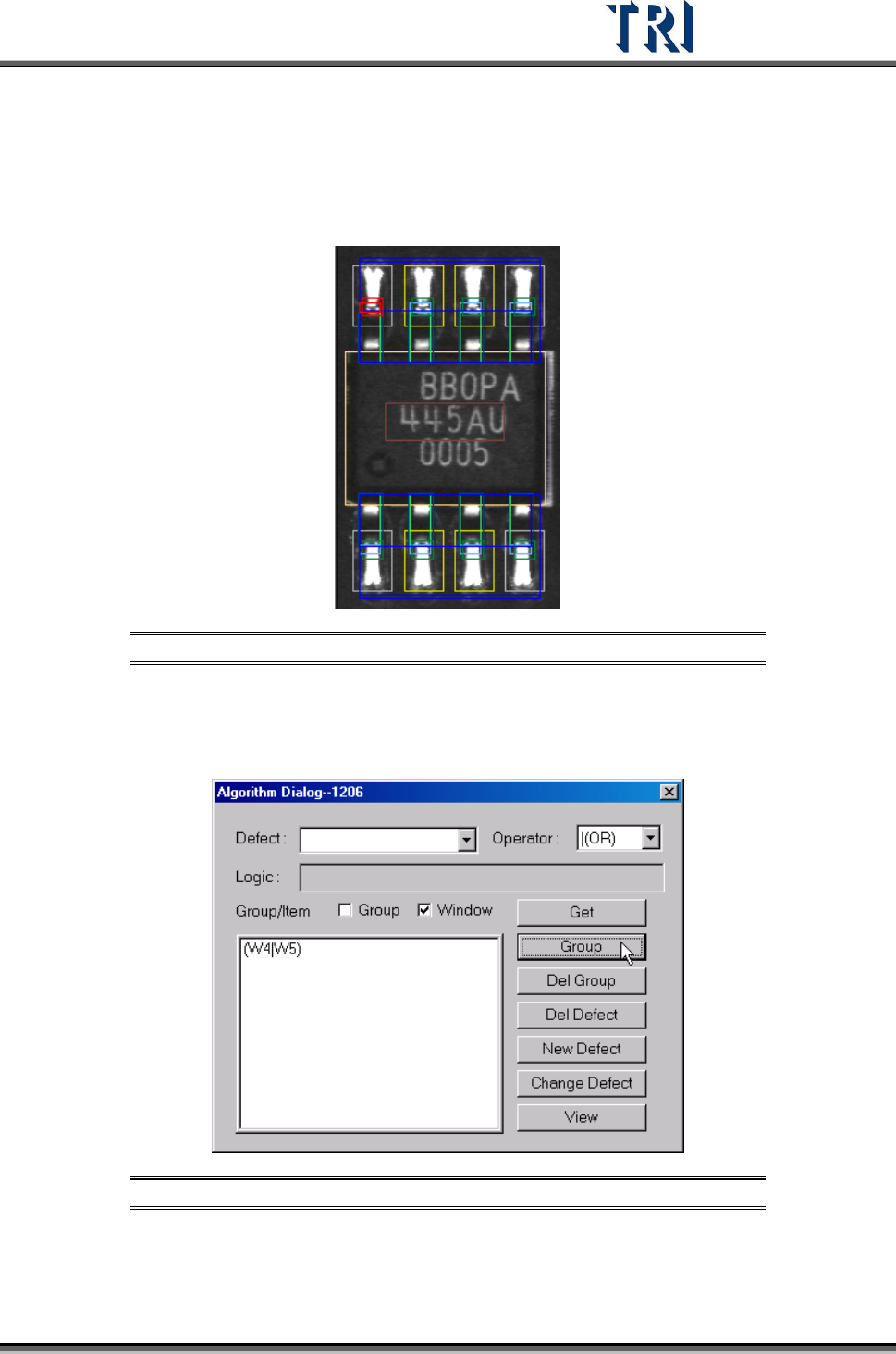

Step1. Select the inspection boxes for setting logic. (Press [Ctrl] on the
keyboard and click on the boxes to select them.)
Figure 346: Select Inspection Boxes
Step2. After selecting an [Operator], check the [Window] box and press [Group].
The inspection boxes will be composed by the specified [Operator] and
be listed in the window below.
Figure 347: Click on [Group] to Display Inspection Boxes
Step3. Double click on the formula that is listed in the window and the formula
will be copied to [Logic] field.
Test Research Inc.
206 TR7500 Series User Guide –Software v.2.9.0

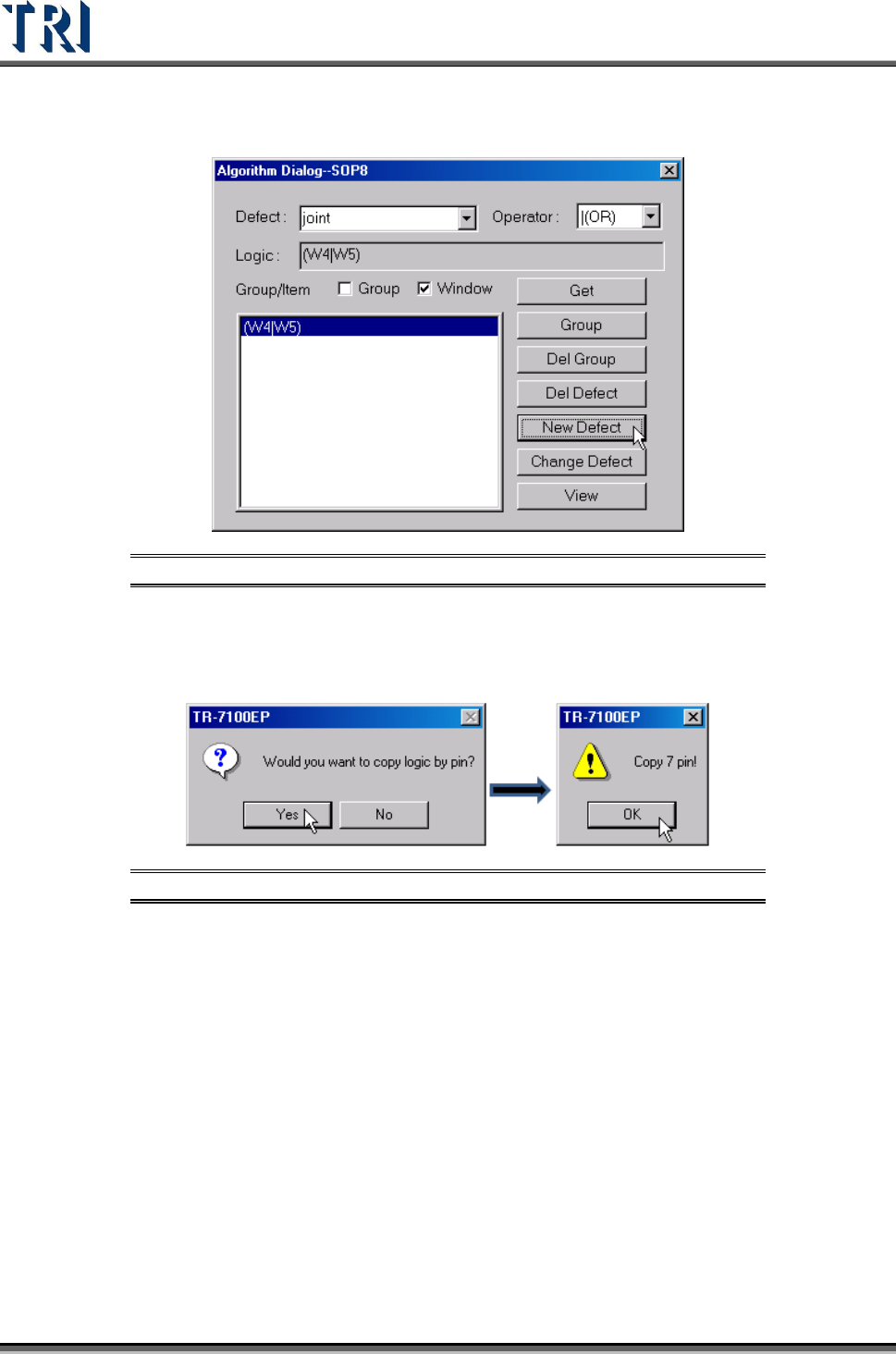

Step4. Give the new logic setting a name, and input it in [Defect] field. Then
press [New Defect] to create the new logic.
Figure 348: Add Name to [Defect] Field, Click on [New Defect]
Step5. When the logic contains an inspection box that belongs to an IC lead, the
system will ask if you want to copy the same logic to the other leads.
Select Yes or No according to the situation.
Figure 349: Copy IC Pin Logic
Test Research Inc.
TR7500 Series User Guide –Software v.2.9.0 207

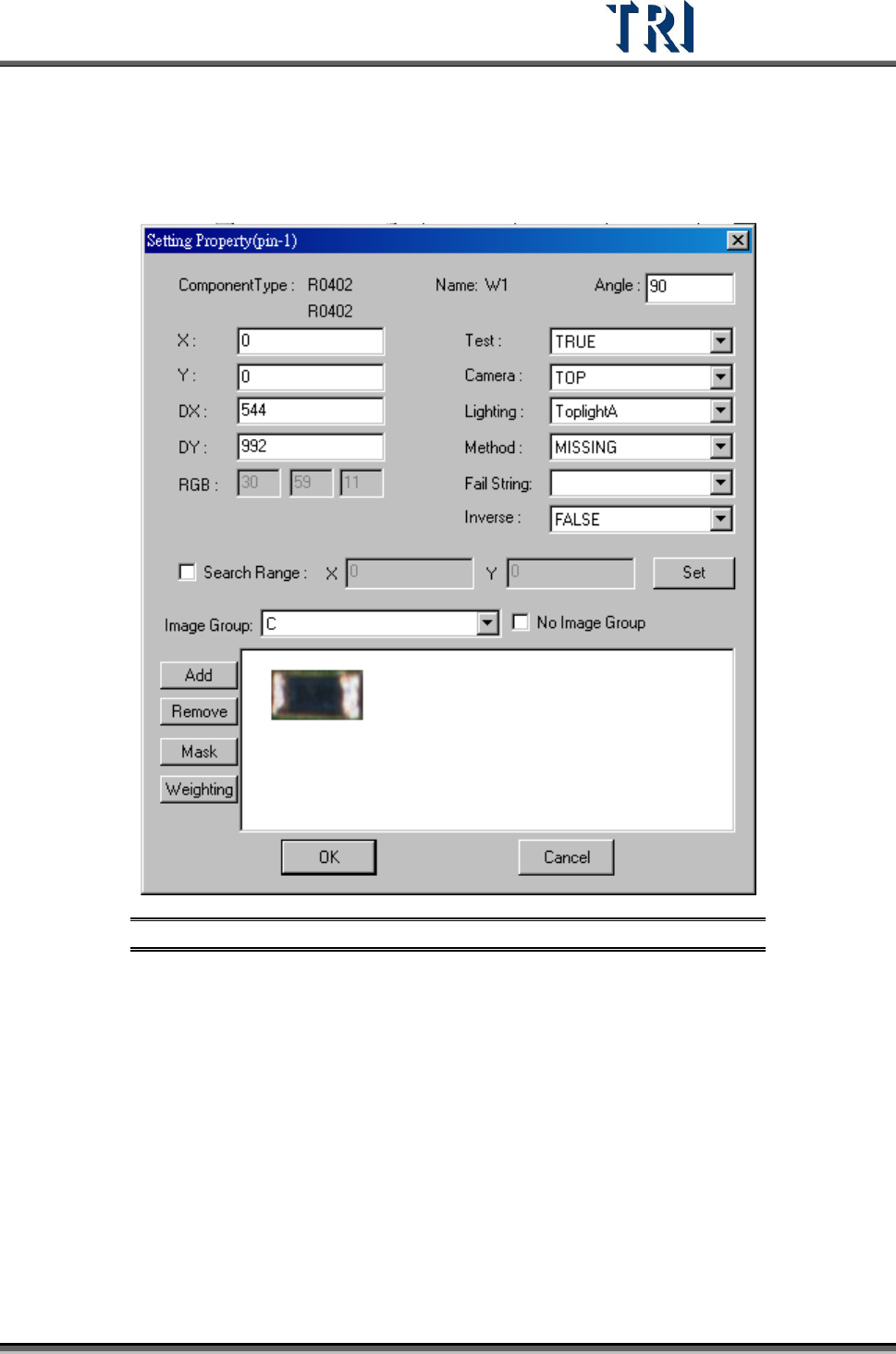

8.7.3 Property
Set the properties of the inspection box.
Figure 350: Set Inspection Box Properties Dialog
[(pin-1)] – Displays the serial number of the IC pin that the selected inspection
box inspects. When showing (pin-1), it means that the selected box doesn’t
inspect any IC pin.
[Component Type] – Displays the component type
[Name] – Displays the inspection box name
[Angle] – Displays the rotation angle of the component.
[X] – Component on the X coordinate position.
[Y] – Component on the Y coordinate position.
[DX] – The component X coordinate on the center.
[DY] –The component Y coordinate on the center.
[Test] – Select TRUE to enable inspection, FALSE to disable inspection.
