260 TR7500 Series User Guide –Software v.2.9.0
11.9.2 Component List
11.9.2.1 Set Rng
Change the search range for inspection box [Missing/Missing Polarity/Lead/Align/Warp]. The
system will find the inspection box in the search range.
Setting Steps

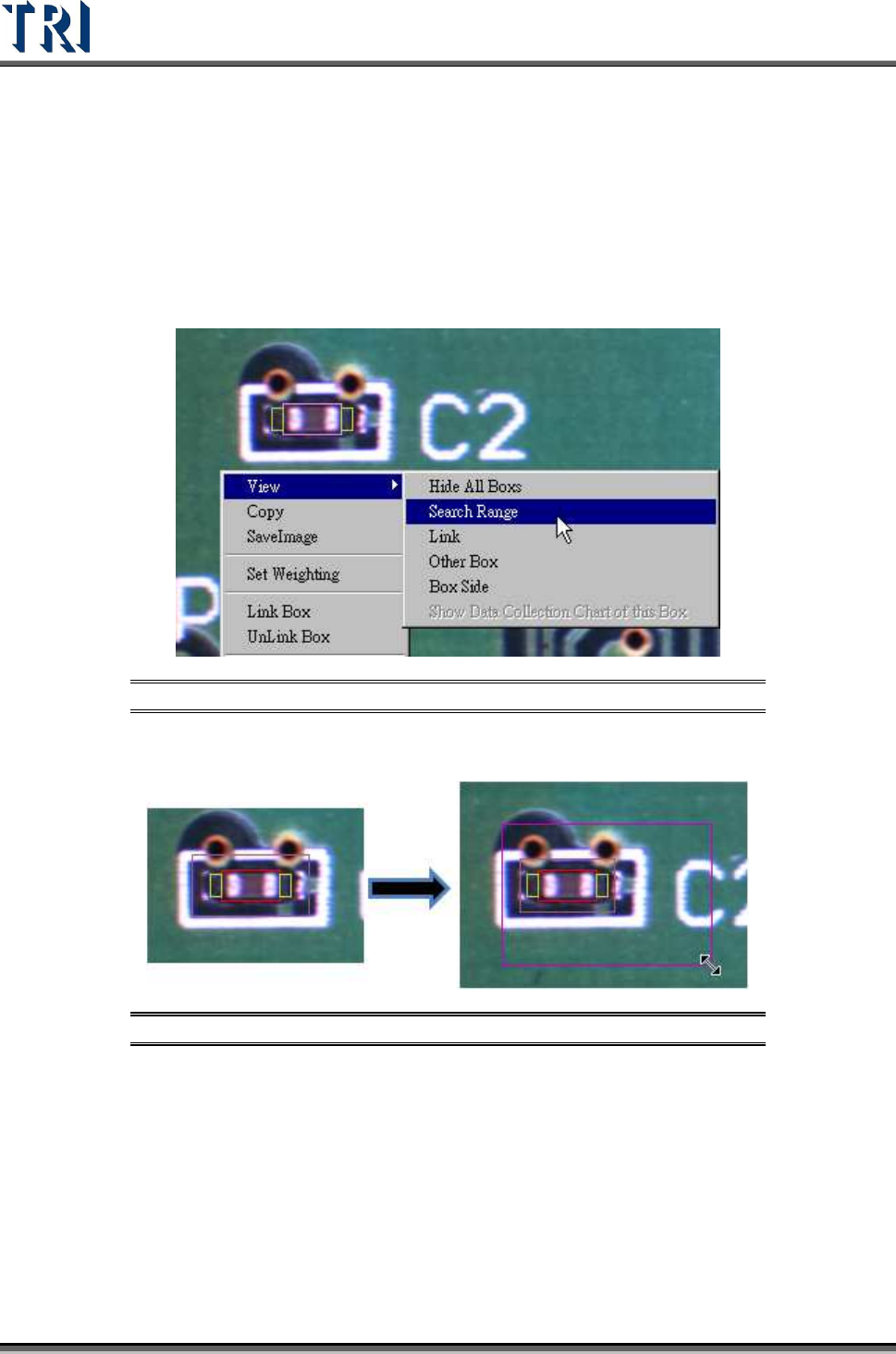

Step1. Right click on the image area and select [View/Search Range] to review the
inspection box.
Figure 433: Select View Search Range
Step2. Adjust the multi-function window to suit the search range then press [Set Rng].
Figure 434: Adjust Multi-Function Window
Step3. Select the copy condition.
Test Research Inc.
TR7500 Series User Guide –Software v.2.9.0 261
Figure 435: Select Copy Condition
[Only for this] – Only set on the selected component.
[By Board] – Apply to the active box of components with the same name on a
multi-board panel.
Figure 436: Copy Condition By Board
[By Camera] – Apply to the component with the same camera.
[By Set] – Apply to the relevant box by set.
Figure 437: Copy Condition By Set
Test Research Inc.
262 TR7500 Series User Guide –Software v.2.9.0
[By Type (Same Name)] –The component with same type will be applied at the
inspection box with same window name.
[By Type (Same Algorithm)] –The component with same type will be applied at
the same kind of inspection box.
[By Component] – Apply to all of the same kind of inspection boxes on this
component.
Step4. Select the camera to apply.
Figure 438: Camera Select Dialog
Step5. The system will search the range and measure the symmetrical arrangement of
frame position
11.9.2.2 Train
Train the selected components. It shows that applies mechanically standard image, the
parameter and other settlement on this component to train, the system will only inspect in
having component trained.
11.9.2.3 Autoalign
The system will automatically relocate the align box according to the selected and trained
align window. Select a trained align window and press [Autoalign] to relocate the other
inspection boxes with the same type. Only if the similarity is high enough can the aligned
window be trained.
[Align] is an auto positioning system that records the X, Y coordinates for graying. When you
[Train], the graying in the X (or Y) direction should be 10 pins but the search returns only 1 –
9 pins in alignment because there is no way to predict the unknown (e.g. more than 11 pins).
Therefore, when doing [Align] fixed positioning, select more pins for searching and matching
Only untrained align windows are qualified for the [Auto alignment] function.
