Test Research Inc. TR7500 Series User Guide – Software v.2.9.0 7 7. Browse AOI files Name and Path. Figure 10: Brows e File to T ranslate 8. Load AOI file. Figure 11: Load AOI File
Test Research Inc.
6 TR7500 Series User Guide –Software v.2.9.0

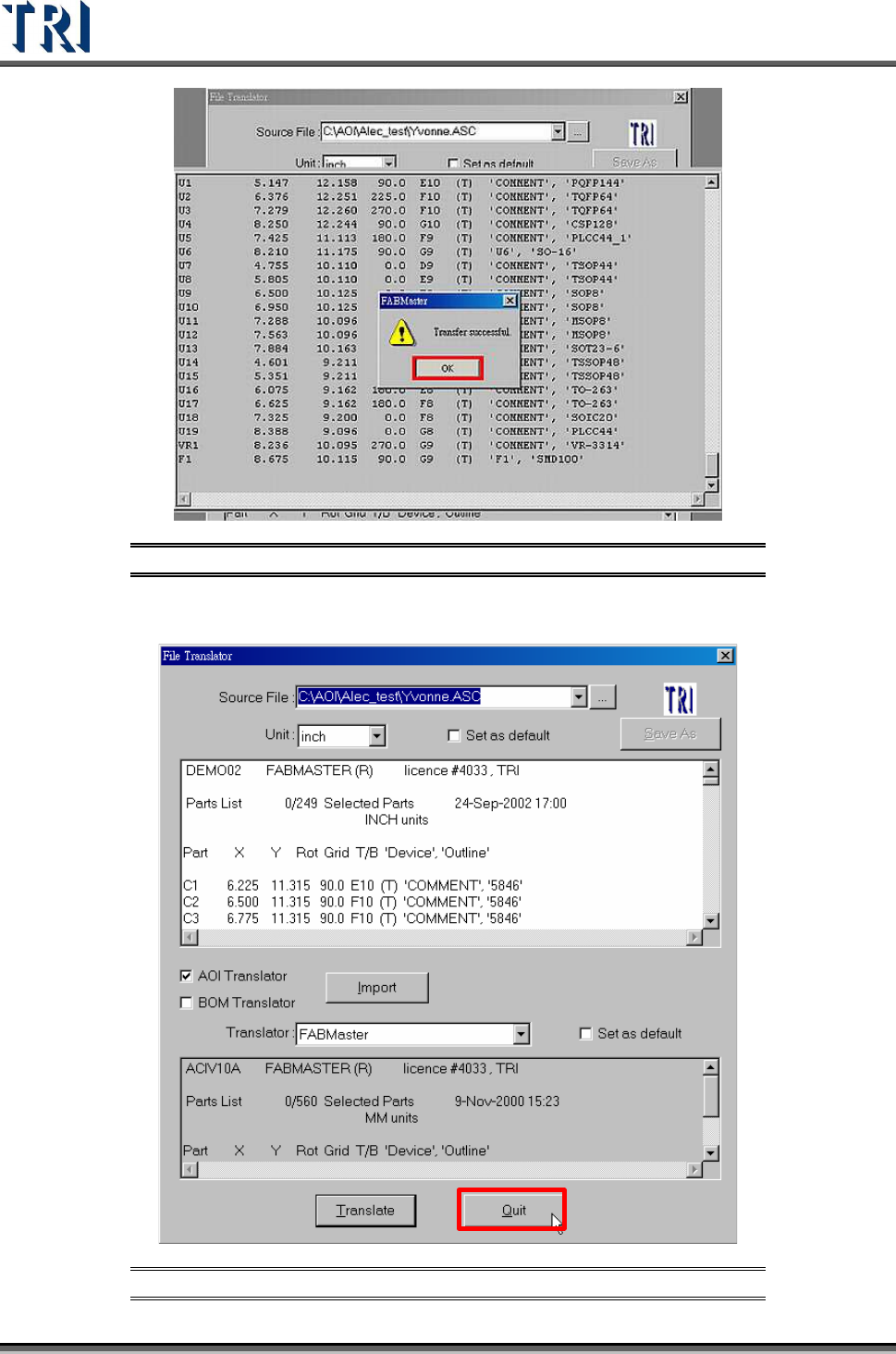

Figure 8: Transfer Successful Message
6. Quit Translator
Figure 9: Quit Translator Button
Test Research Inc.
TR7500 Series User Guide –Software v.2.9.0 7
7. Browse AOI files Name and Path.
Figure 10: Browse File to Translate

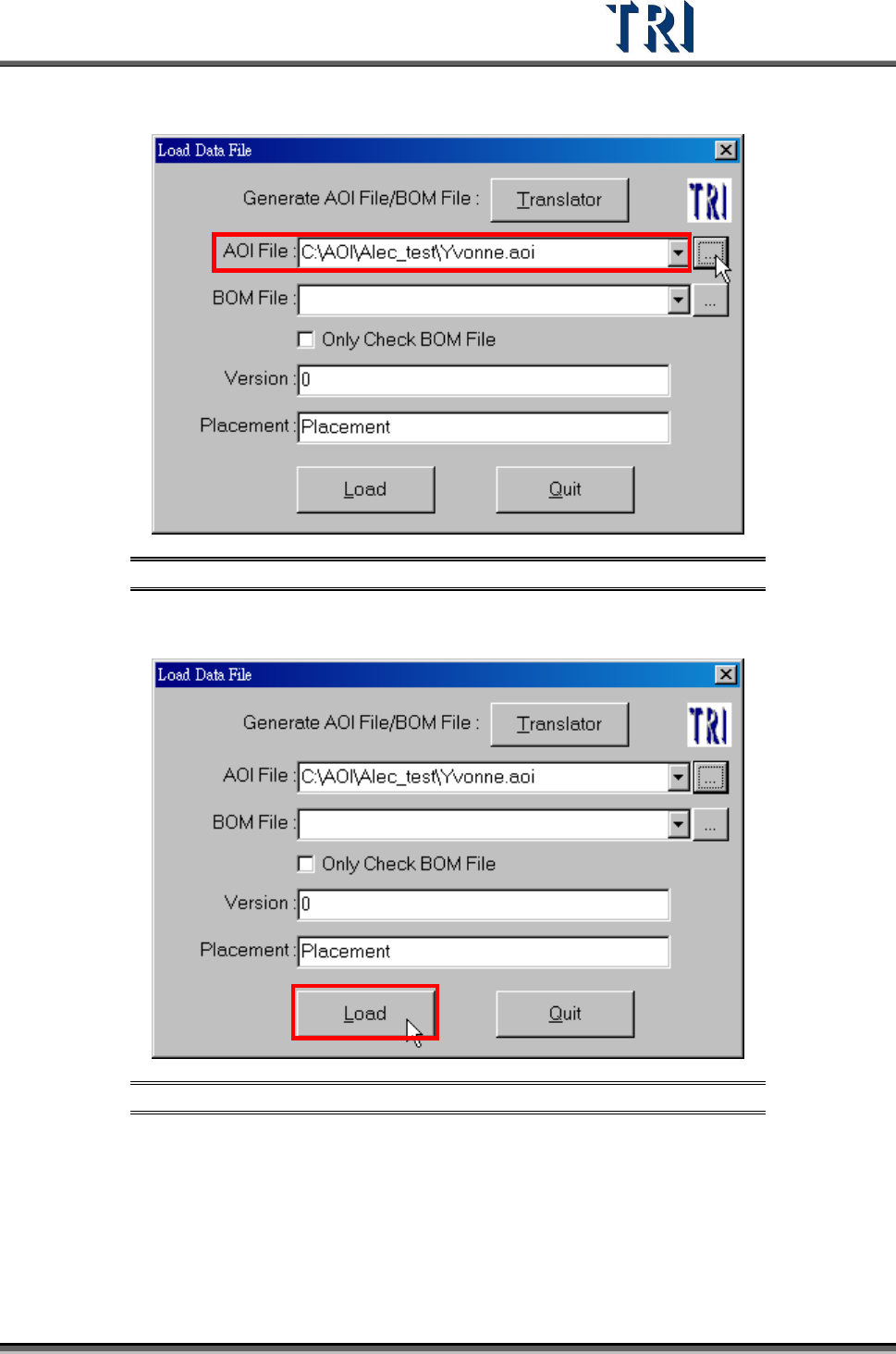

8. Load AOI file.
Figure 11: Load AOI File
Test Research Inc.
8 TR7500 Series User Guide –Software v.2.9.0
2.4 Edit Component Data
Edit the AOI file to meet the position of components in the upper left corner board of a multi-
board panel.
1. [Component Data List]

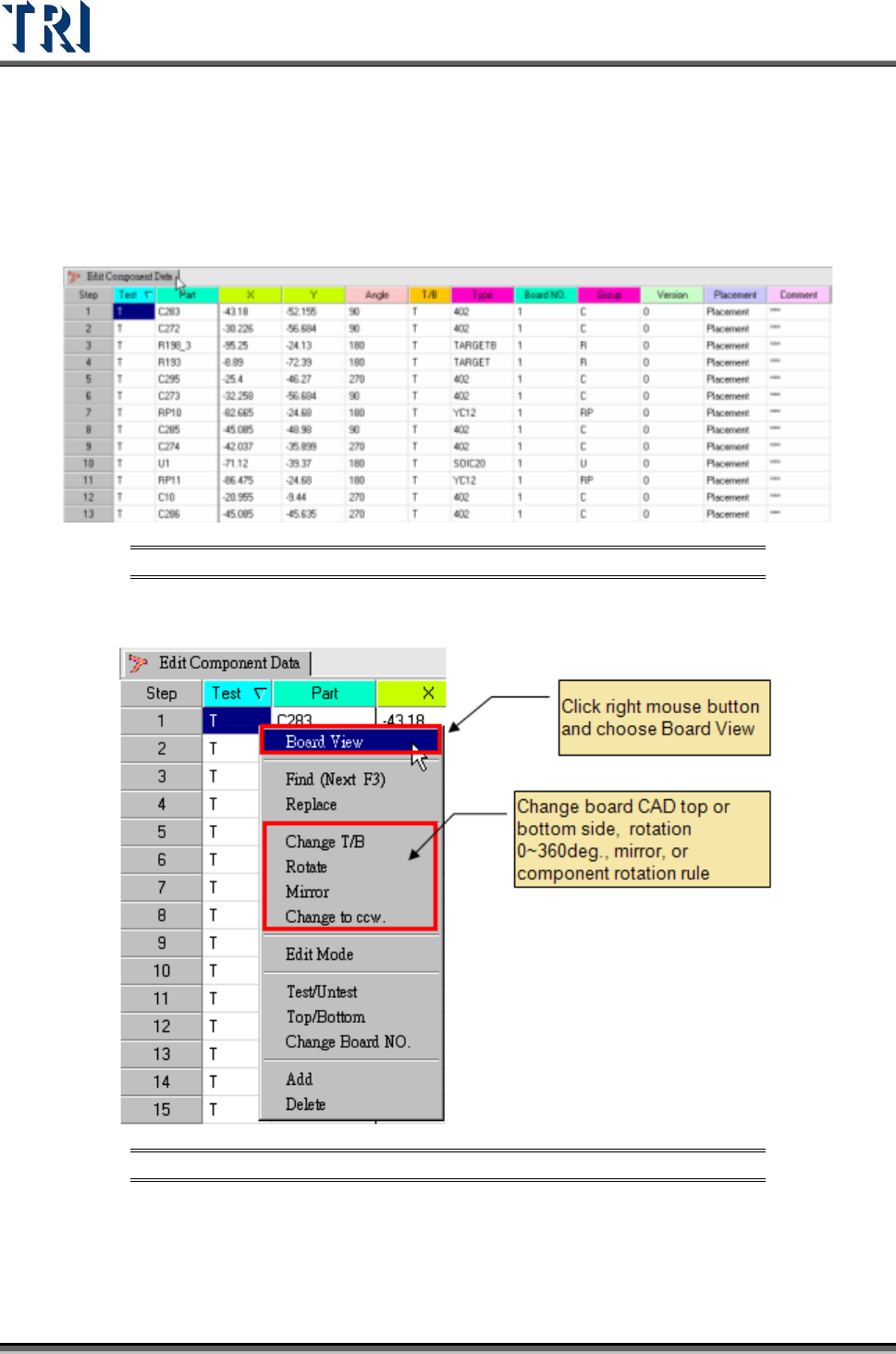

Figure 12: Component Data List
2. Board pad Viewer.
Figure 13: Select Board View
