Test Research Inc. 16 TR7500 Series User Guide – Software v.2.9.0 Figure 27: Use C amera to S et the Loca ted Component (3) It displays the position of the located component on Board 2. Press [OK]. Figure 28: Conf irm CA…
Test Research Inc.
TR7500 Series User Guide –Software v.2.9.0 15
Figure 25: Confirm Board Rotation Angle
2.5.3 Find the located component
It is to get the gap between multi-boards by the located component on every board. Right
click on the specified component and select [Locate] to find the position of the component.
Board 1 doesn’t have to be located.
User has to locate the upper-left board with 0 degree and top side first, and locate the lower-
right board with 0 degree and top side. Then all boards with 0 degree and top side will be
located automatically. Then user locates the boards with other rotate angle and side. The
board that has located will be displayed in gray.
(1) Right click on the component that is select to be located on Board 2, and select [Locate].
Figure 26: Locate Board 2
(2) Move the camera to the component center, and press [Set Dummy 1].
Test Research Inc.
16 TR7500 Series User Guide –Software v.2.9.0
Figure 27: Use Camera to Set the Located Component
(3) It displays the position of the located component on Board 2. Press [OK].
Figure 28: Confirm CAD Coordinates
(4) System display the Board 2 information as the following picture.
Test Research Inc.
TR7500 Series User Guide –Software v.2.9.0 17

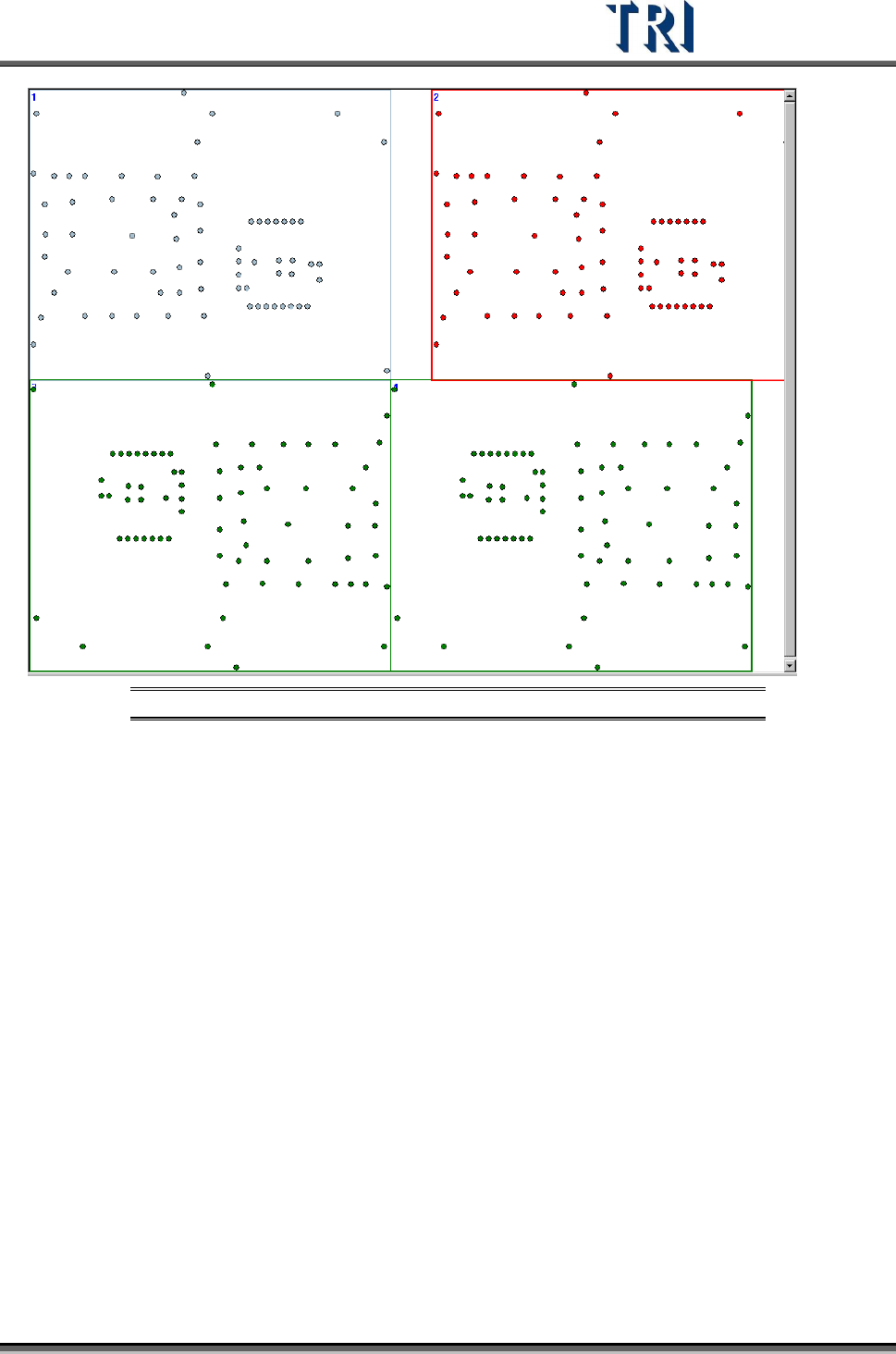

Figure 29: Display Board 2 Result
(5) Set the other multi-board information by the same way.
