Test Research Inc.

TR7500 Series User Guide –Software v.2.9.0 57

3.3.6 Multi-Board

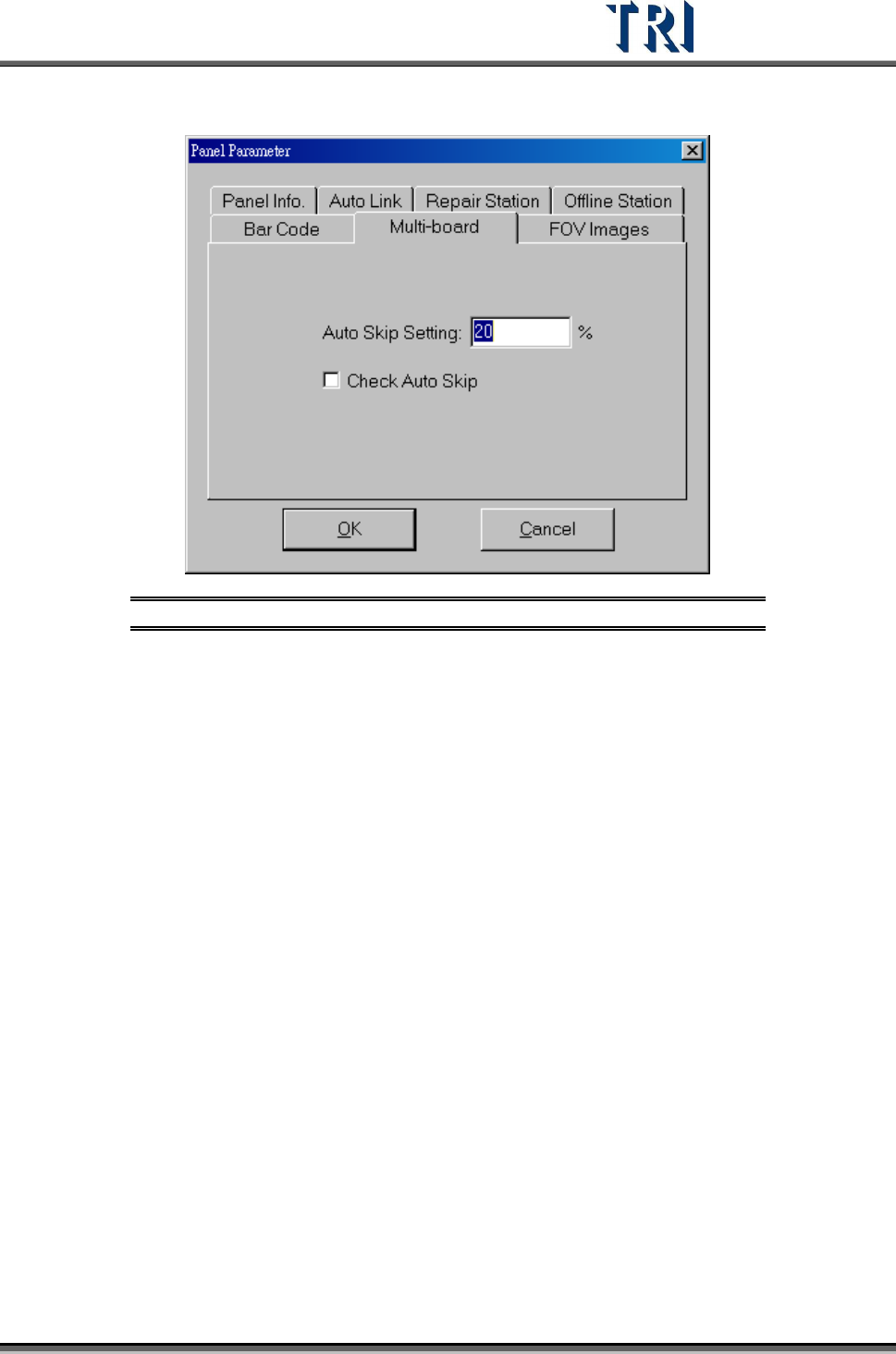

Figure 102: Panel Parameter –Multi-board Tab

 [Auto Skip Setting] – Setting the skip ratio. If the ratio of failed points for a panel is

higher than the setting, the panel will be regarded as invalid board. This value

should be set greater in a situation that there are many components and smaller in

a situation that there are few components

 [Check Auto Skip] – Enable auto skip function.

Test Research Inc.

58 TR7500 Series User Guide –Software v.2.9.0

3.3.7 Panel Info Tab

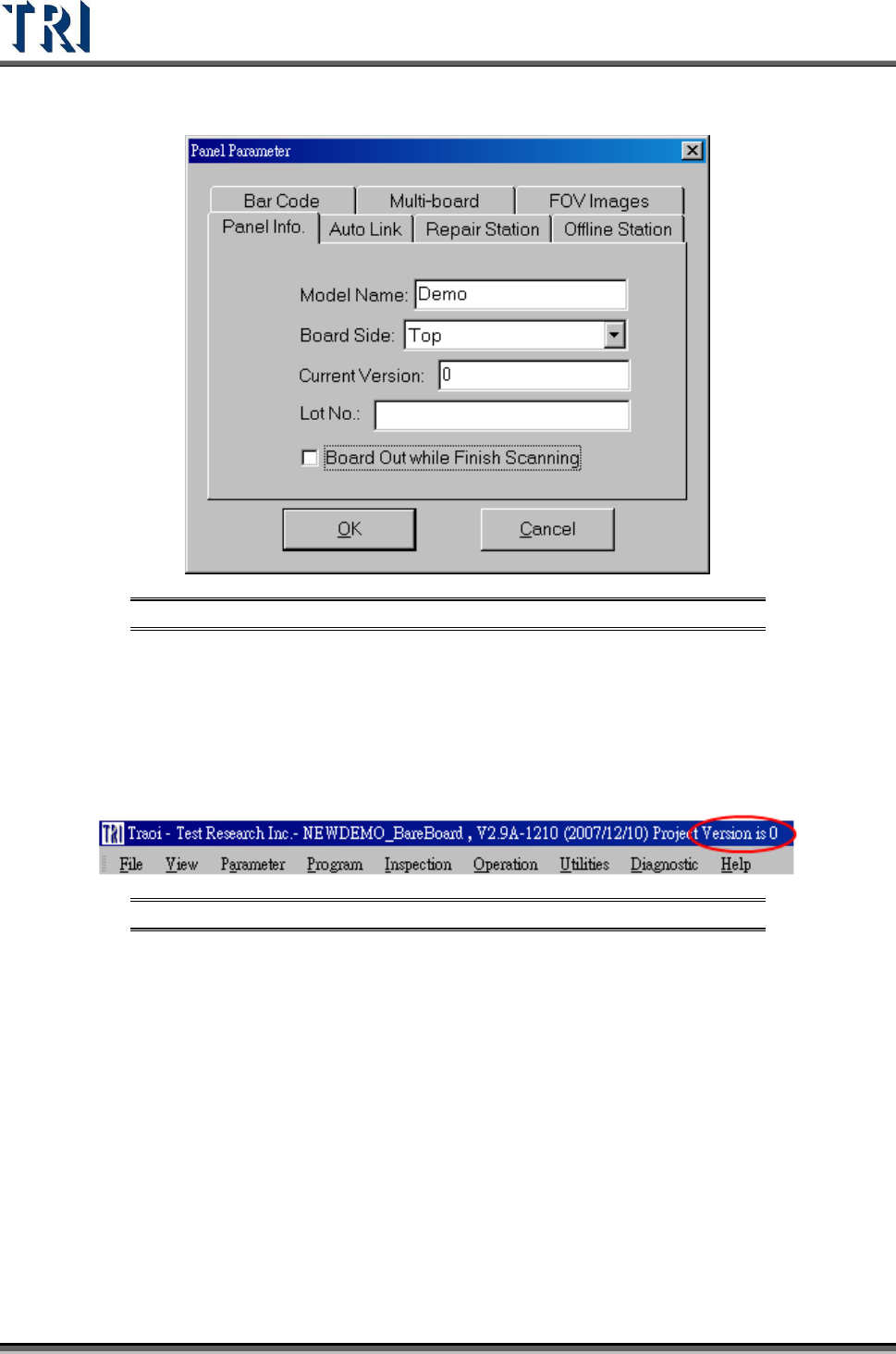

Figure 103: Panel Parameter – Panel Info Tab

 [Model Name] – The same as the original AOI file name. When you change the

project name, this isn’t changed.

 [Board Side] – Set board to [Top] or [Bottom] side.

 [Current Version] – Set current panel used component version. The current version

will appear in the top-right of the window’s title bar.

Figure 104: Project Version in Title Bar

 [Lot No.] – Input the lot number of manufacture and it will become a search

condition in repair station.

 [Board Out While Finish Scanning] – When the motion is finished, the board will be

sent out immediately.

3.3.8 Auto Link Tab

Set the path here for the auto link with ICT or ATE.

Test Research Inc.

TR7500 Series User Guide –Software v.2.9.0 59

Figure 105: Panel Parameter – AutoLink Tab

 [Enable Auto Link] – Enable link with ICT/ATE machine.

 [Test Program Link Path] – Pass *.aip test program data to ICT/ATE machine.

 [Inspection Result Link Path] – Pass *.ifp inspection result data to ICT/ATE machine.

 [ICT/ATE Input Link Path] – Pass *.afc inspection result data to ICT/ATE machine.

3.3.9 Repair Station Tab

Figure 106: Panel Parameter – Repair Station Tab
