Test Research Inc.
64 TR7500 Series User Guide –Software v.2.9.0
Check the kind of inspection boxes then press [Set This Type] or [Set All Types] to change
the parameters following the conditions.
Check boxes – Check the parameter you want to set.
[Diff] – Input the number you want to increase or decrease. The system will add or
subtract the number from the average result for all components and set the number
as new pass level.
[Min., Max] – Give new parameter a range in order not to create an unsuitable
value. If the calculated parameter is smaller than [Min.] value the system will modify
the parameter as [Min.] value; if the calculated parameter is bigger than [Max.]
value the system will modify the parameter as [Max.] value.
[Set This Type] – Calculate the checked parameters to selected type.
[Set All Types] – Calculate the checked parameters to all types.
Take [Model Image-Similarity] of 402 for example. The steps are as follows.
Check [Model Image-Similarity]
Take [Performance Curve] and [Info.] area for reference and decide the new difference.

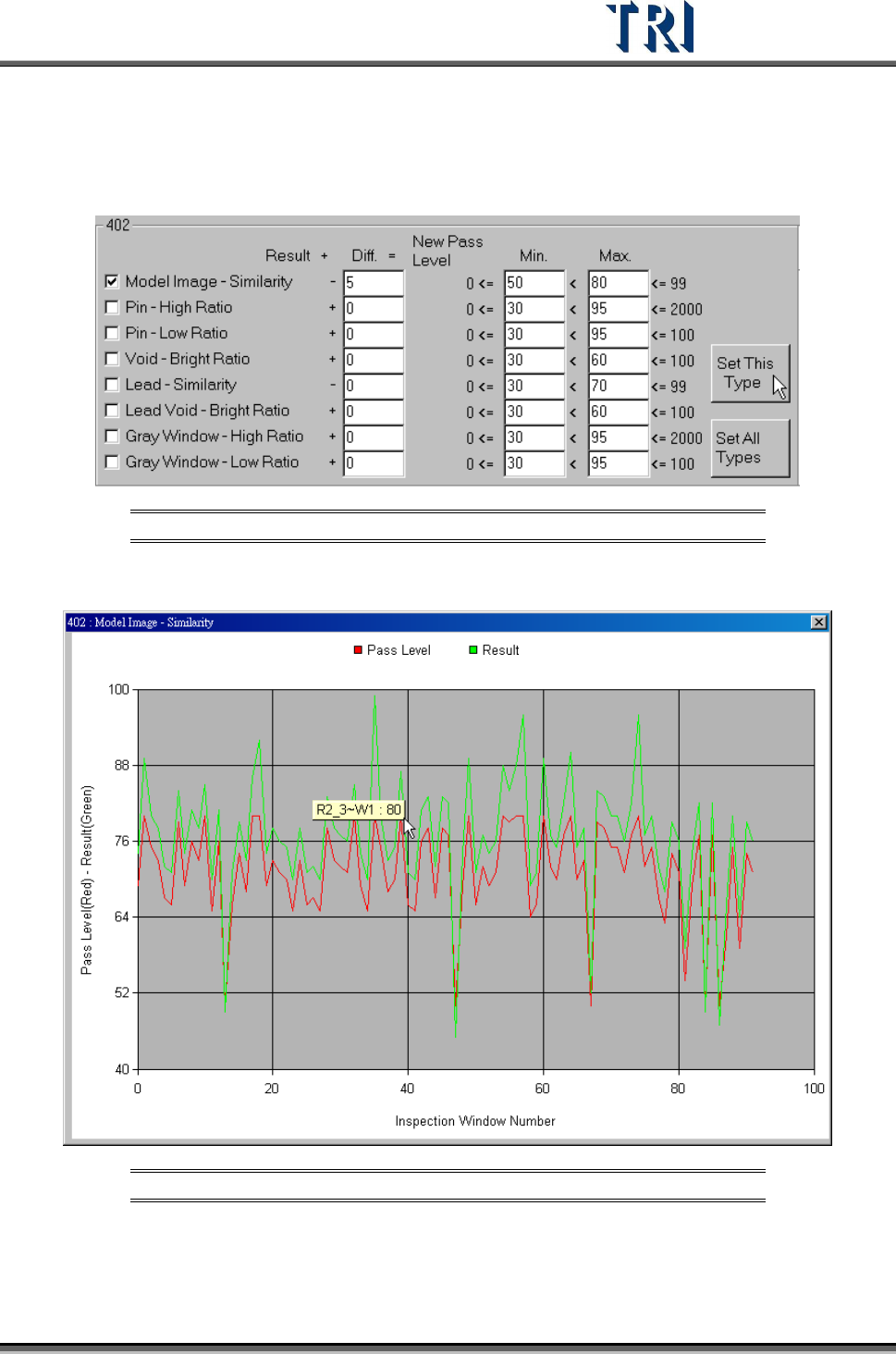

Figure 114: Example: Model Image - Similarity
Test Research Inc.
TR7500 Series User Guide –Software v.2.9.0 65
Input 5 in [Diff.] field and press [Set This Type]. The system will subtract 5 from the
average of every component in [402] type separately. The result will be set as the
new pass level.
Figure 115: Example: Changing Component Pass Level
Look at the curve again to review the change.
Figure 116: Example: Model Image – Similarity with New Pass Level
[Save] – Press to save the table as a text file. The file name is [typeSetting.txt].
Test Research Inc.
66 TR7500 Series User Guide –Software v.2.9.0
3.4.3.2 By Component Name
Choosing this item displays the component list window. The window lists all pass levels and
inspection results for every component. 0 means the component does not have that kind of
inspection box. Double click on the object component to change the parameters. Check or
uncheck the square item to test or untest the component.

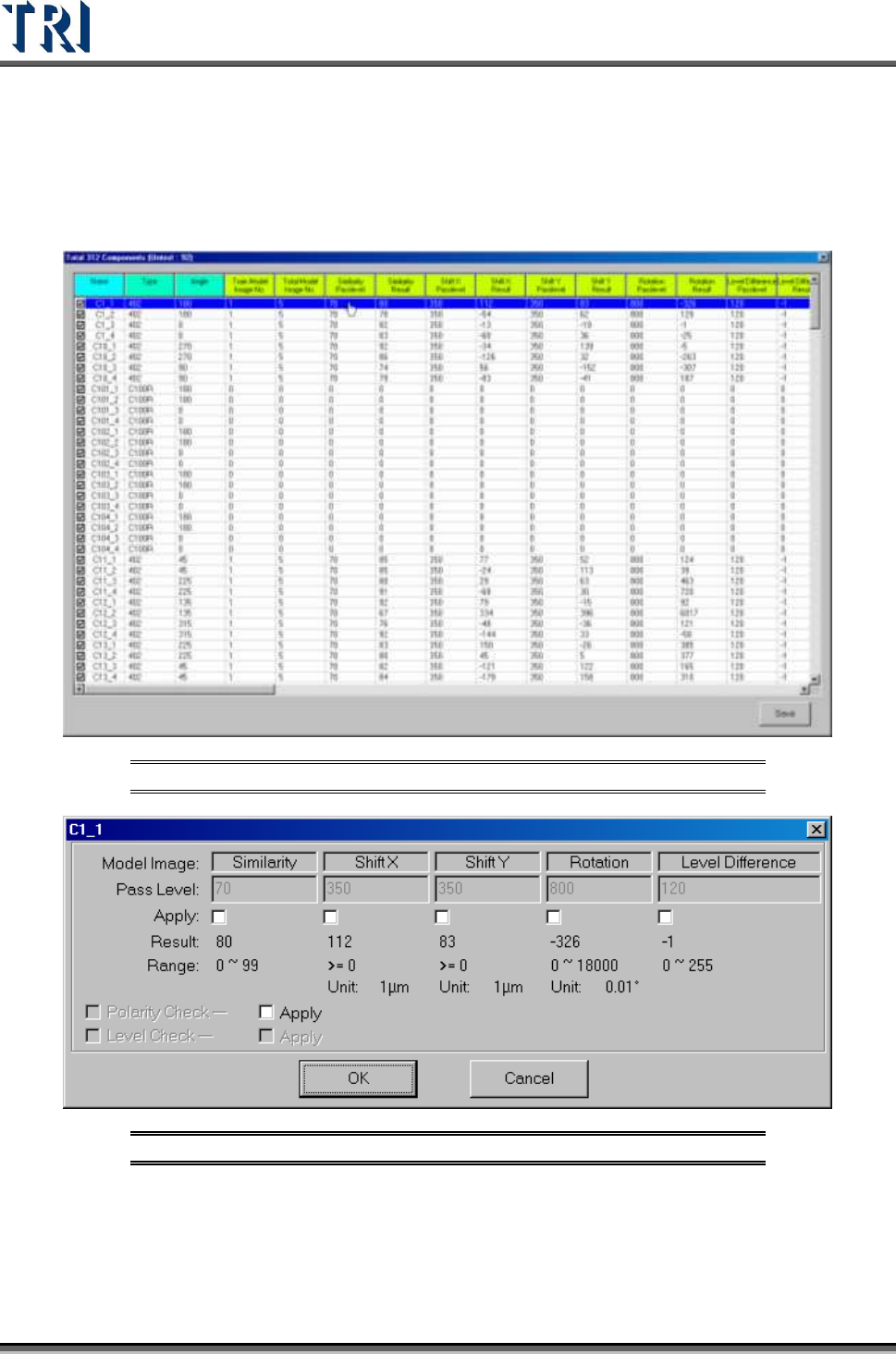

Figure 117: Component List Window
Figure 118: Model Image Pass Levels
