CHANGE IS IN THE AIR

New components. New product mixes. And now, a

fast and ﬂexible assembly line that keeps you several

steps ahead of them all. With MYPro Line assembly

solutions, there’s virtually no technology, board

design or batch size that can slow your growth.

Handle any material ﬂow. Jet any ﬂuid media. Place

any component. And eliminate every defect. All

with full vertical and horizontal connectivity. And

industry-leading planning and process control

software to make quick work of even the most

demanding build schedules.

More than the sum of their parts, MYPro Line

assembly solutions combine to form the market’s

most productive just-in-time production

environment. Allowing you to master any mix.

Turn up the volume. And embrace whatever

changes tomorrow may bring.

MYPro Line™

assembly solutions

BOOST

PRODUCTIVITY

Achieve higher throughput

at lower cost with state-

of-the-art PCB assembly

solutions that make data more

visible, processes more

automated and people

more productive.

ENHANCE QUALITY

Stop defects at their source.

Go beyond veriﬁcation to

consistently produce fewer

defects, predict variability

and dramatically reduce

repair costs.

IMPROVE

FLEXIBILITY

Respond quickly to

evolving technologies

and fast-changing market

demands with the industry’s

most agile PCB assembly

solutions for any build

schedule.

The MYPro A40™

Flex your potential

The master of high-mix just turned up the volume. All so you can handle

the widest possible range of components and batch sizes with the highest

productivity and fastest cycle times. Equipped with the all-new high-speed

MX7™ mounthead, the MYPro A40 paves a new path forward towards the

future of ﬂexible assembly.

Boost

your output

Top speed of

59,000 cph

Simplify

your workﬂow

All-new intuitive

user interface

Expand your

possibilities

6 times larger

component size with

MX7 mounthead

THE EVOLUTION OF AN ICON

Same robust frame and feeder technology. All-new

mounthead and user interface. A leap forward in

performance and versatility. Thanks to the high-

speed MX7 mounthead technology, the industry’s

most ﬂexible pick-and-place platform makes it

possible to produce more boards every day.

The MYPro A40DX, A40SX and A40LX set a

new benchmark for manufacturers with a highly

variable product mix and frequent new product

introductions. The three pick-and-place models

combine unrivalled ﬂexibility with high-accuracy

placement and the industry’s fastest changeovers,

allowing producers to shift seamlessly between

short batches to volume production runs with the

highest possible line utilization.

The result is more than just a pick-and-place

machine. It’s a fully integrated agile production

solution designed to keep manufacturers ahead of

the accelerating innovation cycles, complex board

designs and rapid prototyping demands that are

increasingly driving the evolution of electronics

assembly.

54 5

The new MX7 mounthead

Flexibility. Turbocharged.

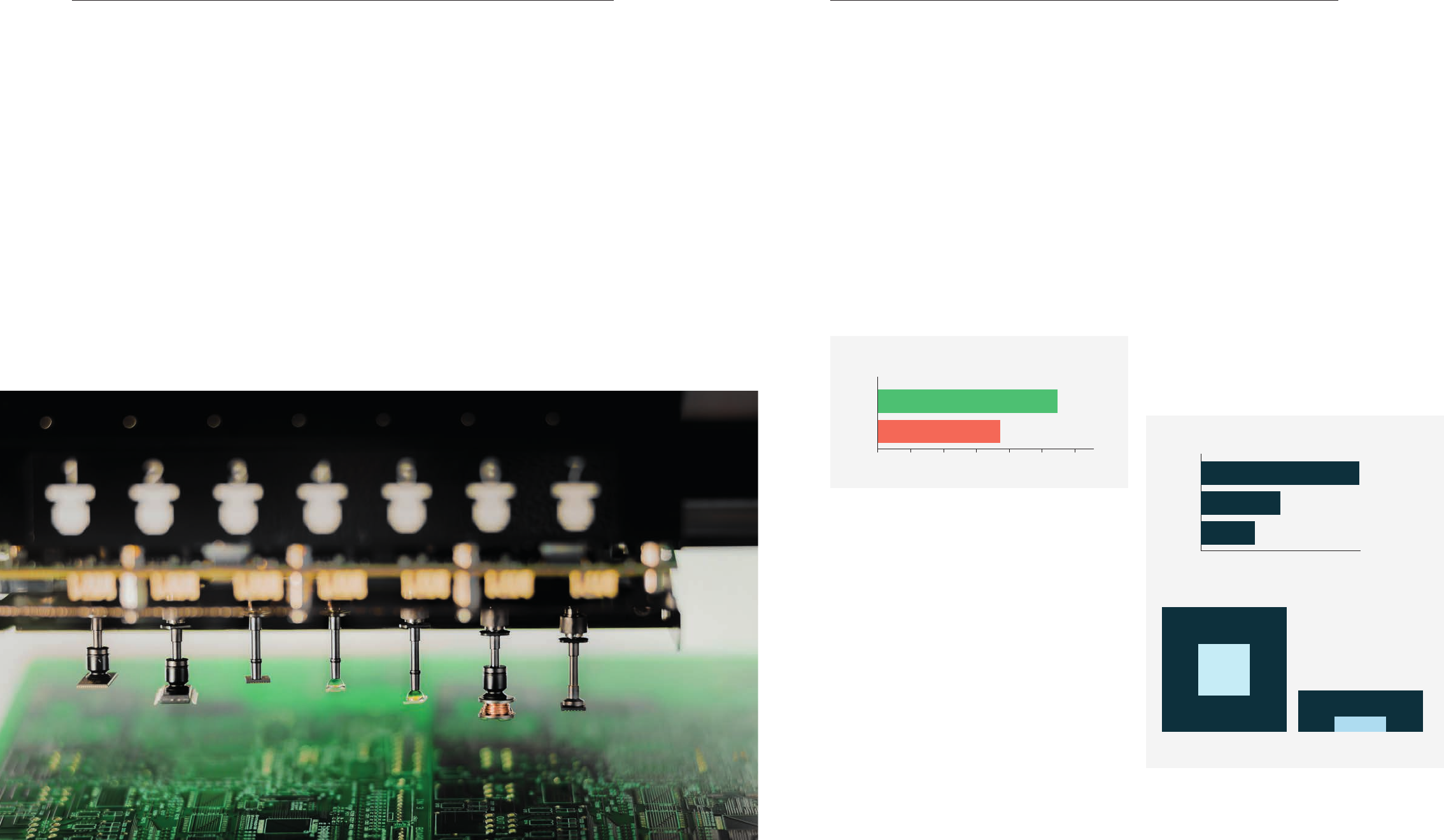

At the heart of the MYPro A40 is the next-generation MX7 mounthead

technology. The result of several years of in-house development, it packs

fourteen independent direct drive motors, along with an array of pressure

and component drop sensors and servo control technologies, into a

remarkably compact footprint. The MX7 enables an unprecedented level

of granular control, reliably handling a far wider range of component

sizes at substantially higher speeds.

Next-level ﬂexibility

• Handle component sizes up to 45x45x15 mm

and long components up to 150x40x15 mm

• Mount 6 times larger components

Precision engineering

• Low-maintenance modular design with robust

direct drive motors

• 7 high-precision vacuum sensors for high-

precision component drop detection

High-speed performance

• 48% faster top placement speeds

• 14 independent Z and Theta motors

Bigger volumes

Bigger opportunities

Looking to expand your product mix and your production volumes?

Now you can. The MYPro A40 delivers the high accuracy and fast

changeovers you expect from the icon of agility, together with a

dramatic increase in productivity. Whatever jobs tomorrow might

throw your way, there’s never been a more versatile way to scale up

production and grow your business.

Up to 59,000 cph

High-mix meets high-speed. Or rapid prototyping

meets volume production. However you look at it,

the MYPro A40DX maintains the industry’s fastest

changeovers while boosting top placement speeds

up to 59,000 cph. Compared with previous machine

generations this amounts to 20–60% higher

production output in real production conditions,

depending on technology and product mix.

For high-mix producers, the result is increased

productivity for long series production runs. For

volume manufacturers, it oers the ﬂexibility to

take on jobs of any size without compromising

overall cycle times. Thanks to seven independently

controlled pick-and-place nozzles, the MX7

mounthead optimizes every movement to cover a

vast range of applications and component sizes.

Mount 6x larger components

Because each of the seven MX7 nozzles moves

independently in theta and Z axes, they can pick,

rotate and place nearly any imaginable component

with extreme precision. Fine-pitch CSPs, FCs or

BGAs. From components as tiny as 01005 up

to those as large as 45x45x15 mm or as long as

150x40x15 mm. Or stacked, dipped and entirely new

package varieties. A high-precision linescan vision

system scans ﬁducials before placement, steering

a custom servo platform that updates 80,000

times per second to achieve the highest placement

accuracy. Whatever the next job demands, a series

of high-precision vacuum sensors and a low-impact

nozzle mass ensure you can pick and place a

signiﬁcantly broader range of parts and sizes without

damaging, mispicking or dropping components.

Component range improvement for high-speed

mounthead

Placement speed

40,000

cph

MYPro

MY300DX

59,000

cph

MYPro

A40DX

118,000

cph

MYPro

A40DX

Synergy

MX7™ Width / Length

45 x 45 mm

MX7™ Height / Width

15 x 45 mm

HYDRA

high-precision

mounthead

Width 18.6 x

Length 18.6 mm

HYDRA

H 5.6 x W 18.6 mm

Component size (top-view) Component size (side-view)

Time per board

0:03:56

0:02:44

0:00:00 0:00:43 0:01:26 0:02:10 0:02:53 0:03:36 0:04:19

MYPro™

A40

MYPro™

300

Calculations based on Industry board designed by Mycronic.

6 7
