Samsung Component Placer SM41 1 Service Manual 4-2 NO. P ART NO. P ART N AME Q’TY TYPE REMARK 1-A J90831 175A Z1 MOTOR CABLE ASS'Y SM33-MD019 1-B J90831 176A Z2 MOTOR CABLE ASS'Y SM33-MD020 1-C J90831 177A Z3 M…
Head Module
4-1
第 4 章. Head Module
4.1. Head Module 所需材料

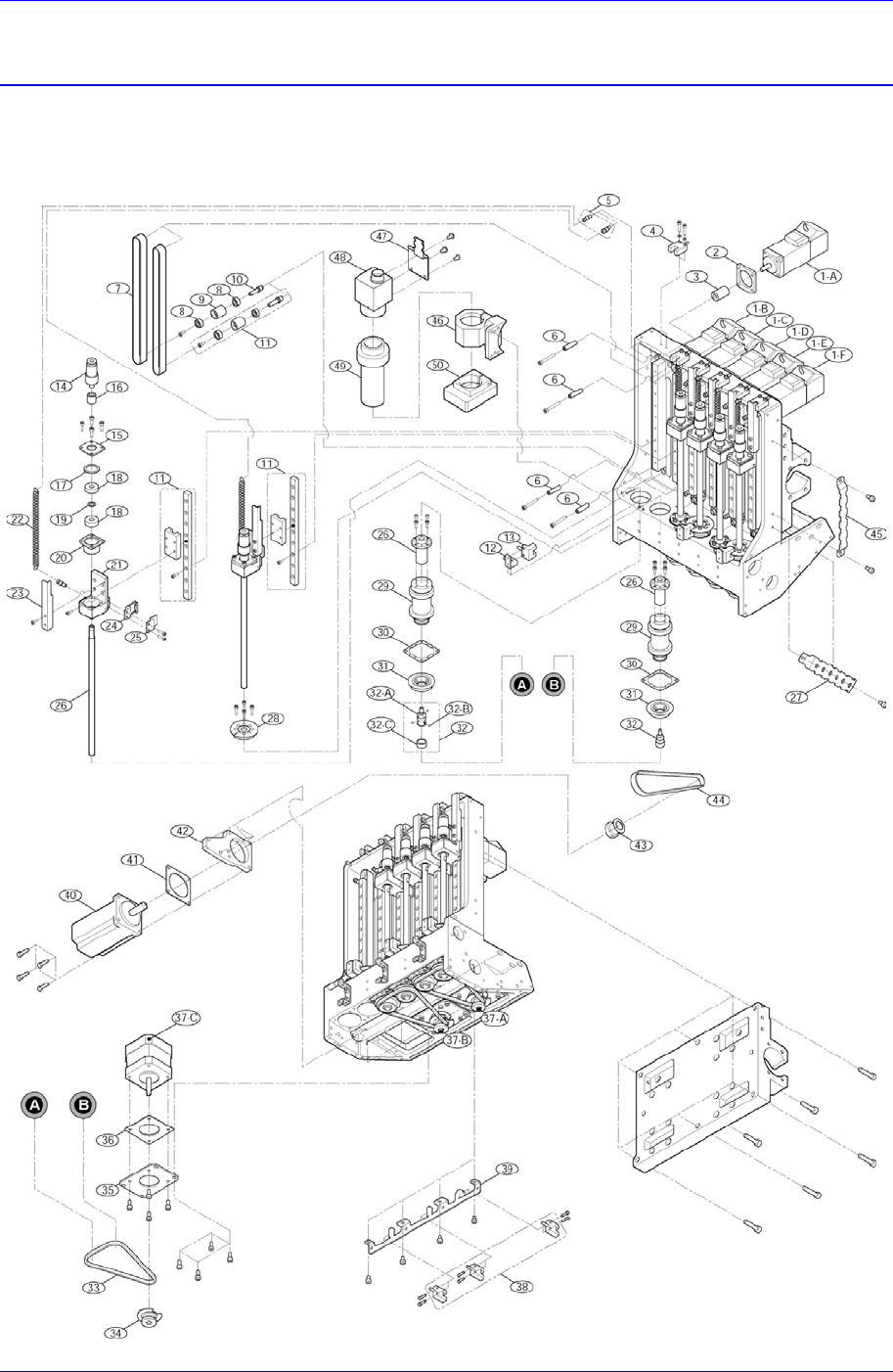

4.1.1. Head Ass’y - A
Samsung Component Placer SM411 Service Manual
4-2
NO. PART NO. PART NAME Q’TY
TYPE REMARK
1-A
J90831175A Z1 MOTOR CABLE ASS'Y
SM33-MD019
1-B
J90831176A Z2 MOTOR CABLE ASS'Y
SM33-MD020
1-C
J90831177A Z3 MOTOR CABLE ASS'Y
SM33-MD021
1-D
J90831178A Z4 MOTOR CABLE ASS'Y
SM33-MD022
1-E
J90831179A Z5 MOTOR CABLE ASS'Y
SM33-MD023
1-F
J90831180A Z6 MOTOR CABLE ASS'Y
SM33-MD024
2 J7055656A Z-TENSION BRACKET
6
J7055656A
3
J7155518A PULLEY (Z-AXIS 1) 6
J7155518A
4
J3212048A MICRO PHOTO SENSOR 6 PM-U24
5 J7155541A PIN
12
J7155541A
6
J71550511B STOPPER
12
J71550511B
7
J6602076A TIMING BELT 6 384-1.5GT-9
8 J6601140A
BALL BEARING 12
MR684ZZ
9
J7155565A PULLEY (Z-AXIS 2) 6
J7155565A
10
J7055658A PULLEY PIN
6
J7055658A
11
J6607055A LM GUIDE 6 LWLG7C1R140BT1H
12
J7055552A SENSOR BRACKET R-H 3
J7055552A
13 J3212027A MICRO PHOTO SENSOR
3
PM-L24
14 J6711180B ROTARY JOINT
6
RC3-M5M-STN
15 J7155509A SPLINE ALIGNER CAP
6
J7155509A
16 J7155510A JOINT
6
J7155510A
17 J6049000250 WASHER WAVY .62OD x .48ID x .09
6
SSR-0062
18
J6601088A BALL BEARING 12
605ZZ
19
J7055554A SPACER 6
J7055554A
20
J7055545B SPLINE ALIGNER 6
J7055545B
21
J71550508B SLIDE BODY 6
J71550508B
22
J7055548A SPRING 6
J7055548A
23
J7155512A SENSOR DOG 6
J7155512A
24
J70551002A BELT_CLAMP2 6
J70551002A
25
J70551001A
BELT_CLAMP1
6
J70551001A
26
J7055542C BALL SPLINE 6
J7055542C
27 J71551020A TIE_MOUNT_1
1
J71551020A
28
J71550513C SENSOR DOG-R 3
J71550513C
29
J90551007A SPLINE HOUSING ASS'Y 6
J90551007A
30
J7055659A BEARING PLATE 6
J7055659A
31
J7155520A PULLEY (R-AXIS 1) 6
J7155520A
32 J90550209B COMMON NOZZLE HOLDER ASSY
6
J90550209B
32-A J70550431C
NOZZLE HOLDER
1
J70550431C
32-B
J7055140A STEEL BALL 3 DIA2, SUS304
32-C
J7255021B SILICON TUBE(BLACK) 1 SA0705-100B
33
J6602077A TIMING BELT 3 236-2GT-4
34
J71551025A PULLEY-R_AXIS2
3
J71551025A
35 J7055655A
THETA MOTOR PLATE 1
J7055655A
36
J7255083A THETA MOTOR ISOLATOR 3
J7255083A
37-A
J90831189A R12_MOTOR_CABLE_ASSY 3 SM33-MD033
37-B
J90831190A R34_MOTOR_CABLE_ASSY 3 SM33-MD034
37-C
J90831191A R56_MOTOR_CABLE_ASSY 3 SM33-MD035
38
J90831039A R HOME SENSOR CABLE ASSY 1 SM33-HD007
Head Module
4-3
NO. PART NO. PART NAME Q’TY
TYPE REMARK
39 J70551040A SENSOR_BRACKET_R-M
1
J70551040A
40 J31081013A
SERVO_MOTOR 1
MSMA5AZP2A
41
J7255081A MIRROR MOTOR ISOLATOR 1
J7255081A
42
J71551017A MIRROR_MOTOR_BRACKET 1
J71551017A
43
J7155523A PULLEY (S-AXIS 2) 1
J7155523A
44
J66021004A TIMING_BETL 1 267-3GT-6
45
J71551021A TIE_MOUNT_2 3
J71551021A
46
J71551010A FIDUCIAL_CAMERA_BRACKET 1
J71551010A
47
J7155572A CAMERA CABLE HOLDER 1
J7155572A
48
J6751014A CCD CAMERA 1 VCC-G20E20
J6751015A CCD CAMERA 1 SFA-205AL
49
J9059139A R_MOVING_LENS_ASSY 1
J9059139A
50 J9060357B HEAD OUTER LED BOARD ASSY 1 REV 1.1
4.1.2. Head Ass’y - B
NO. PART NO. PART NAME Q’TY
TYPE REMARK
1
J61071010A TENSION SPRING 2 AWU6-45
2
J6071150050 E-RING 2 DIA1.5(SUS)
3
J7455026A SPRING BUSH 4
J7455026A
4 J70551041A
SPRING_POST-FIXED 2 J70551041A
5
J70551042A
SPRING_POST-MOVING
2 J70551042A
6
J70551038A MIRROR_SPRING_BRACKET 2
J70551038A
7
J71551013A MIRROR_ARM-CAMERA 1
J71551013A
8
J6601079A BALL BEARING 4 695ZZ
9
J7055557A BEARING HOUSING 1
J7055557A
10 J71551026A PULLEY-S_AXIS1
1
J71551026A
