Head Module 4-5 NO. P ART NO. P ART N AME Q'TY TYPE NO. 3 J1201033 HEX SUPPORT 5 M3*15 (BOL T -NUT) 4 J71541079A HEAD_TOP_COVER 1 J71541079A 5 J6719025A GREASE_NIPPLE 5 M6*1.0-STRAIGHT 6 J671 1 1015A ELBOW_UNION_FEM…
Samsung Component Placer SM411 Service Manual
4-4
NO. PART NO. PART NAME Q’TY
TYPE REMARK
11
J70551046A MIRROR_CAM 2
J70551046A
12 J70551118A MIRROR_SHAFT
1
J70551118A
13
J6025300036 HEX NUT 2 M3
14
J6601081A CAM FOLLOWER 2 CF3UU-A
15 J7055204A ARM JOINT
1
J7055204A
16
J6601080A BALL BEARING 4
MR148ZZ
17
J70551037A MIRROR_JOINT 1
J70551037A
18
J7055153A MIRROR SCREW 2
J7055153A
19 J71550511B STOPPER
2
J71550511B
20 J71551043A MIRROR_SENSOR_DOG
1
J71551043A
21 J71551017A MIRROR_MOTOR_BRACKET
1
J71551017A
22
J3212027A MICRO PHOTO SENSOR 3 PM-L24
23
J90551077A HEAD_ILLUM_ASSY 1
J90551077A
23-A
J71551019A SIDE_ILLUM_BODY 1
J71551019A
24-B
J72550084B SIDE_REFLECTOR 6
J72550084B
24-C
J91741024A SM330_OUTER_LED_BOARD 1
J91741024A
25-D
J71551018A FIDUCIAL_BLOCK 1
J71551018A
24-E
J71551022A OUTER_ILLUM_BODY 1
J71551022A
24-F
J91741024A OUTER_LED 1 J91741024A
24-G J70551047A ILLUM_BRACKET 2 J70551047A
4.1.3. Carrier Ass’y
NO. PART NO. PART NAME Q'TY TYPE NO.
1
J71541019A HEAD_BOARD_BRACKET 1
J71541019A
2
J6103003A HEX SUPPORT 4
M3*5 (BOLT-NUT)
Head Module
4-5
NO. PART NO. PART NAME Q'TY TYPE NO.
3 J1201033
HEX SUPPORT 5
M3*15 (BOLT-NUT)
4
J71541079A HEAD_TOP_COVER 1
J71541079A
5
J6719025A GREASE_NIPPLE 5 M6*1.0-STRAIGHT
6
J67111015A ELBOW_UNION_FEMALE 5 KQ2LF04-M6
7
J70541016A 3-NIPPLE_BRACKET 1
J70541016A
8 J71541016A
HARNESS_SUPPORT 2
J71541016A
9
J71541017A HARNESS_PLATE 1 J71541017A
10 J6004002038
BUTTON_HEAD_CAP_SCREW 1
M10*20L
11
J6119056A HANDLE 1 BG-10
12
J70541017A 2-NIPPLE_BRACKET 1 J70541017A
13
J6713022B COIL TUBE 6 UL03-B-5T-B50
14
J90551067A AIR_MODULE 1 J90551067A
14-A J71551117B MANIFOLD_NEW
1
J71551117B
14-B
J6711260A ONE TOUCH FITTING 2 FSE04-M5C
14-C
J6702048A SOLENOID VALVE 6 VA01PEP34-1U-F
14-D
J6702049A SOLENOID VALVE 1 RCS242-M3-D24NP
14-E
J7155546A INSERT 6
J7155546A
14-F J9058090A FILTER ASSY
6
J9058090A
14-G
J7458002A FILTER ELEMENT 6 LF-M5-60-Z-ELEMENT
14-H
J6711262A MINI FITTING 6 BC-03-M5
14-I J6711009A ELBOW-FITTING
6
KQ2L06-M5
14-J J7055662A
VACUUM SENSOR BRACKET 2
J7055662A
14-K J9060412A SM321 VACUUM SENSOR BOARD 1 REV 1.1
Samsung Component Placer SM411 Service Manual
4-6
4.2. Flying Vision
4.2.1. Flying Vision Camera Cover-Board Ass’y 替换代表事例
由于头部冲击, Camera Board被损坏时
Fly-Camera 影像输出出现异常时
为了安装微小部件，更换成其他FOV或者高像素照相机时
4.2.2. 必要工具
T Wrench (其他提供工具) or Hex Wrench
4.2.3. Camera Cover-Board Ass’y 替换次序
此更换步骤以Camera Cover-Board Ass’y替换时所需材料单位交替为前提条件.

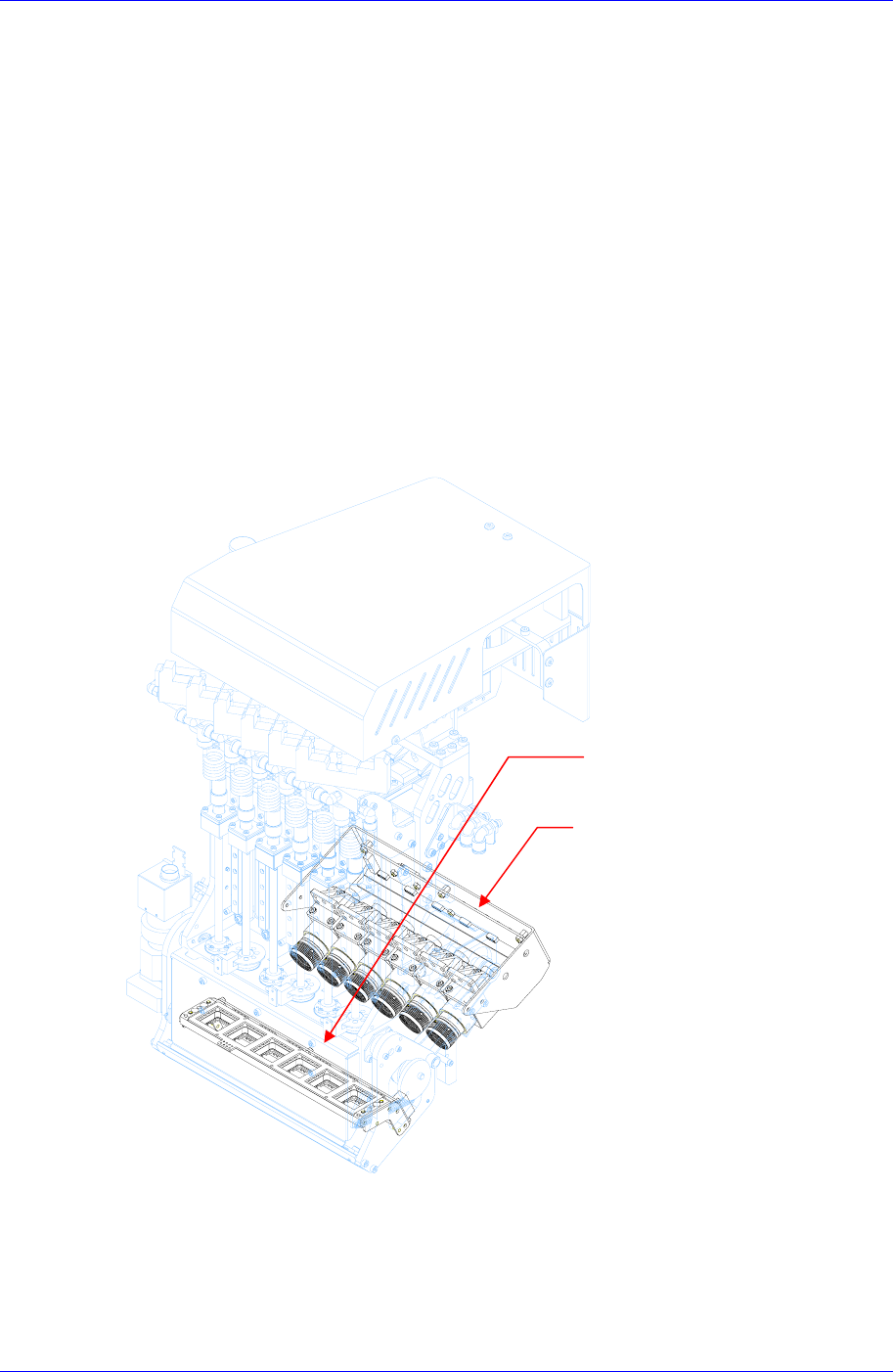

Flying Vision
Camera Cover-Board Ass’y
Flying Camera
Illumination Ass’y
