Conveyor & BUT 5-1 1 5.3.3. Exit S tation Sensor Exit St ation Sensor Setting Location
Samsung Component Placer SM411 Service Manual
5-10
5.3. Conveyor Sensor Setting
5.3.1. 必要工具
精密螺丝批套(其他提供工具)
T Wrench (其他提供工具) or Hex Wrench
+ 螺丝刀全套
Nipper 及 连接电缆
5.3.2. 传感器的位置及名称
Borad Out Sensor
Exit Sensor2
Exit Sensor1
Work Front Sensor2
Work Front Sensor1
Work Rear Sensor2
Work Rear Sensor1
Entr
y
Sensor2
Entry Sensor1
WORK ZONE
ENTRY STATION
EXIT STATION
Conveyor & BUT
5-11

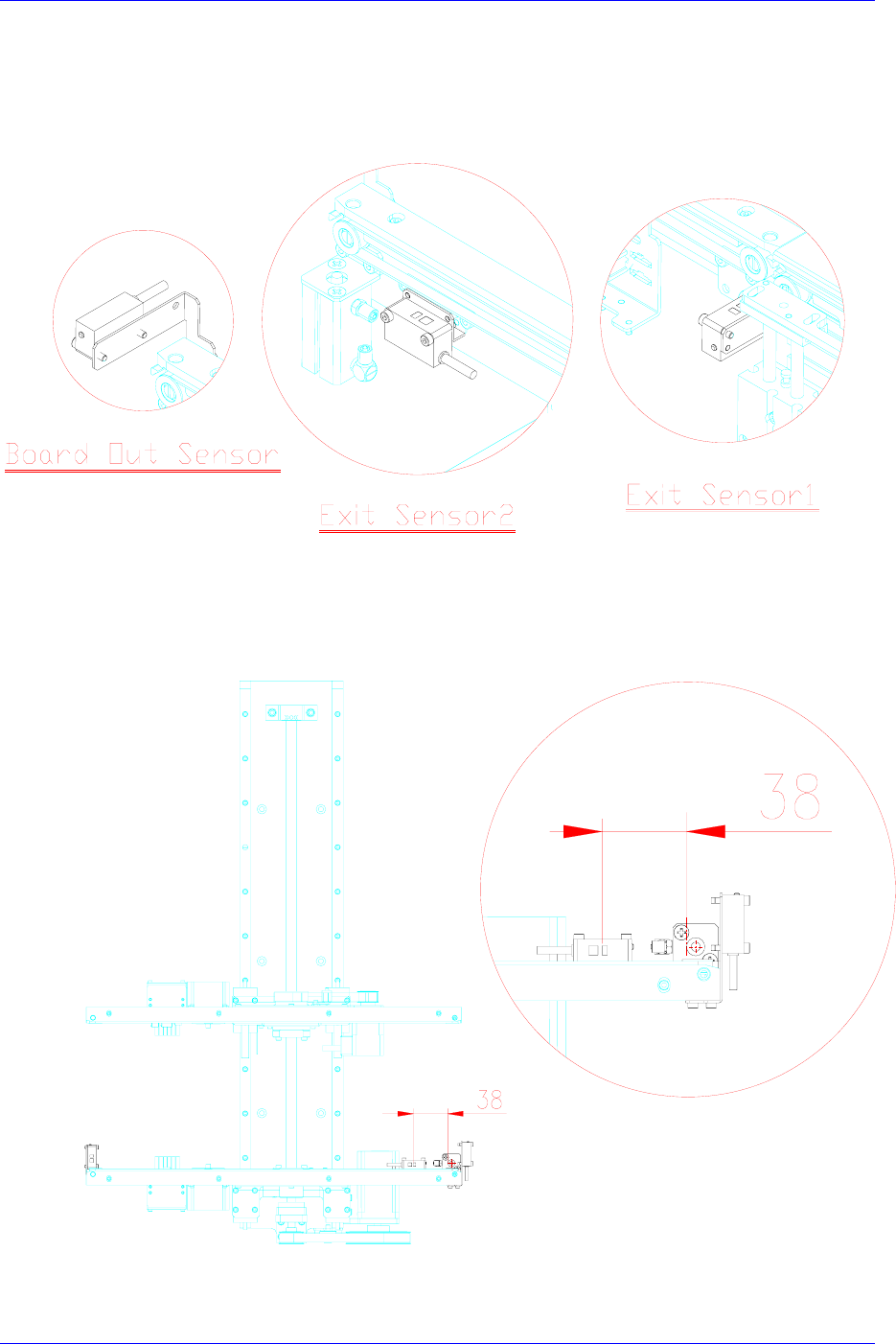

5.3.3. Exit Station Sensor
Exit Station Sensor Setting Location
Samsung Component Placer SM411 Service Manual
5-12
5.3.4. Entry Station Sensor
Entry Station Sensor Setting Location
