Samsung Component Placer SM41 1 Service Manual 5-104 拆卸 Work Zone 参考用

Conveyor & BUT

5-103

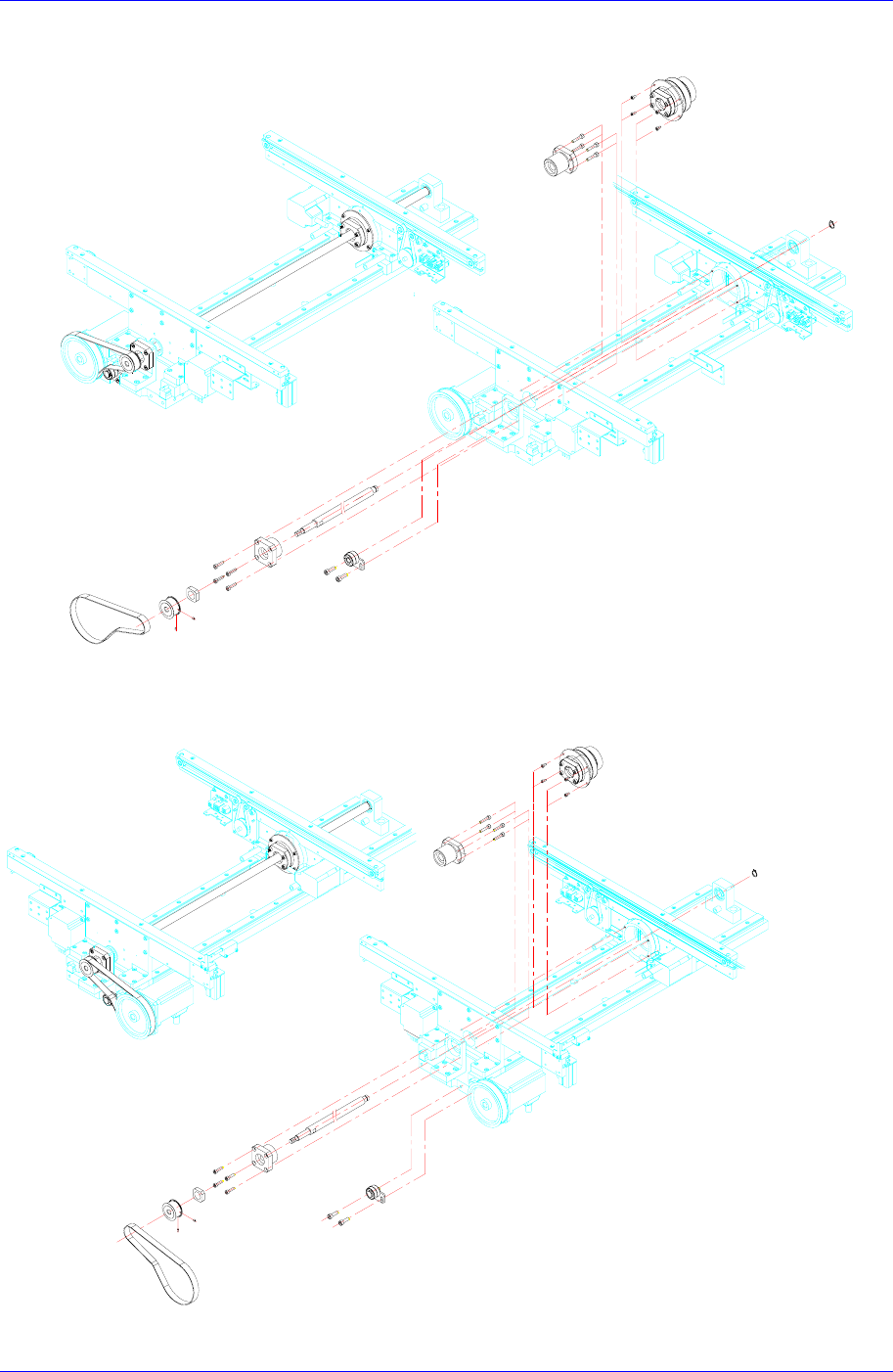

拆卸 Entry Station 参考用

Samsung Component Placer SM411 Service Manual

5-104

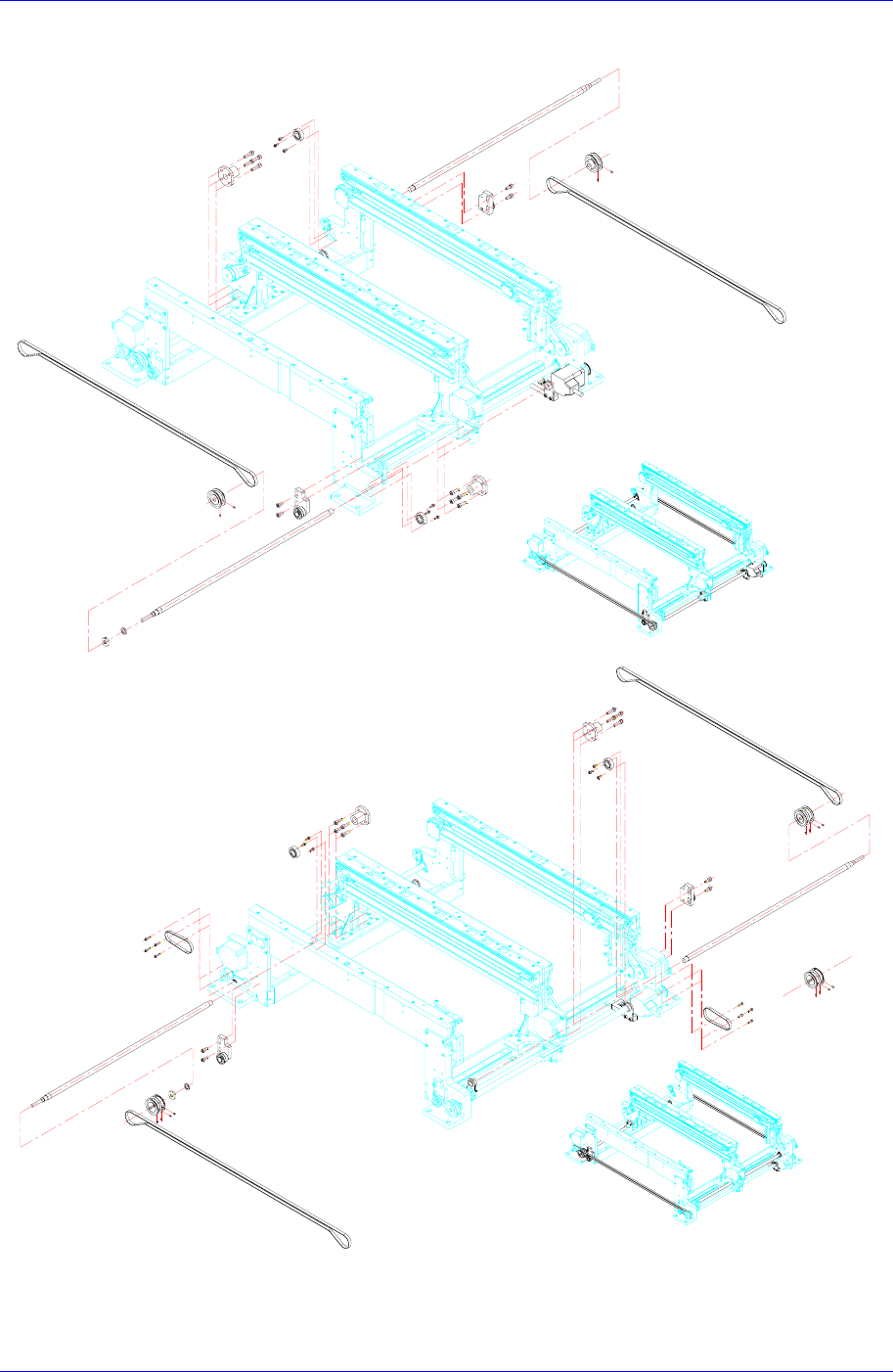

拆卸 Work Zone 参考用

Conveyor & BUT

5-105

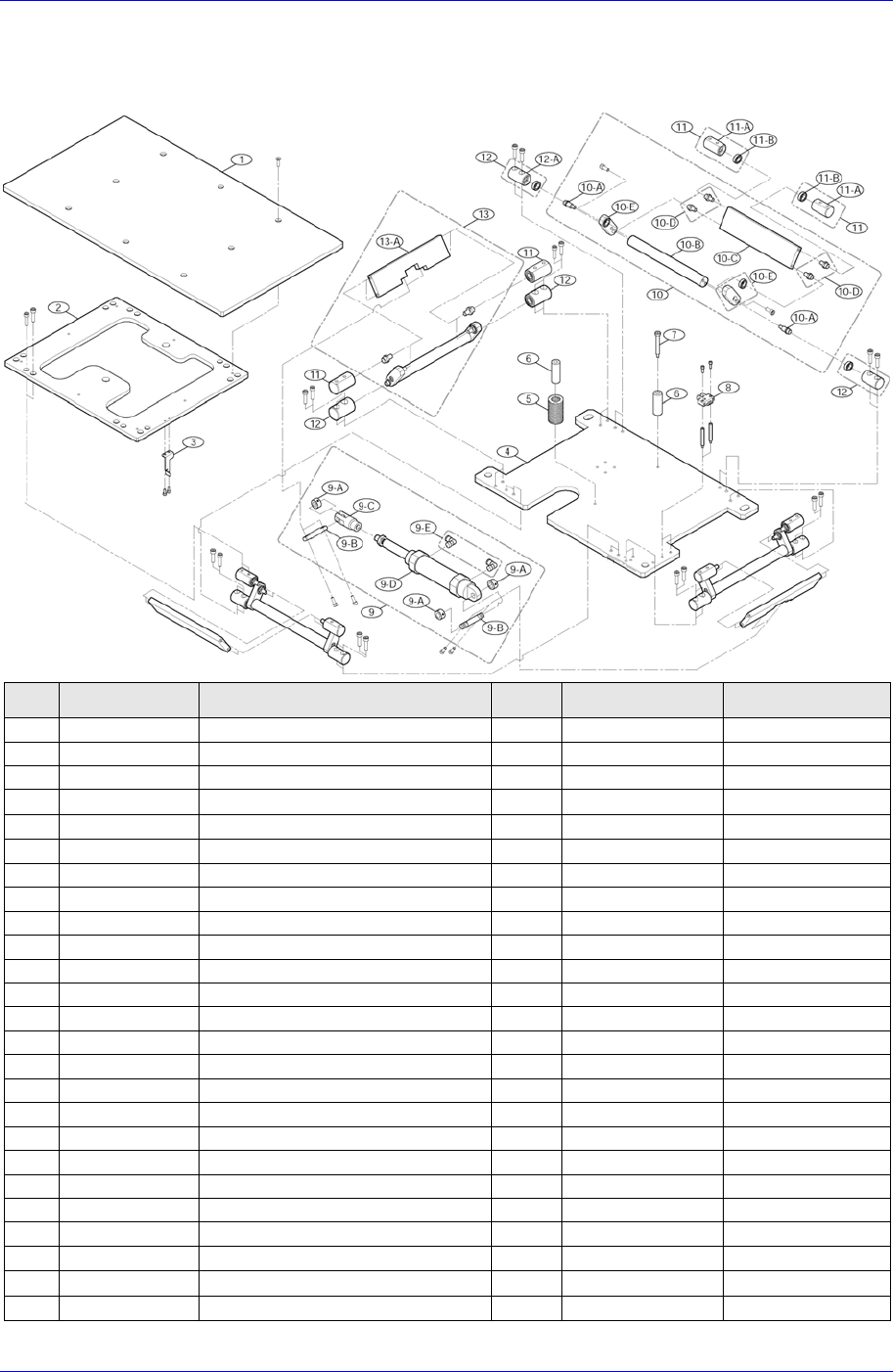

5.9. Back Up Table

5.9.1. 所需材料

NO. PART NO. PART NAME Q’TY

TYPE REMARK

1 J70531051A BACK UP PLATE 1 J70531051A

2 J70531053A UPPER PLATE 1 J70531053A

3 J70531054A BUT SENSOR DOG 1 J70531054A

4 J70531052A LOWER PLATE 1 J70531052A

5 J6107047A SPRING 1 SWU26-70

6 J6308003A URETHAN CUSHION 2 AXNSK15-40

7 J6015064000 SHOULDER SCREW 2 MSB6-40

8 J3212002A SENSOR 1 EE-SX670A

9 J90531005A BUT_CYLINDER_ASSY 1 J90531005A PS35.PRT

9-A J7053795A RING FIXER 3 J7053795A

9-B J7053794A CYLINDER JOINT PIN 2 J7053794A

9-C J6619062A CYLINDER JOINT 1 Y-032B

9-D J67010088B CYLINDER 1 CM2C32-50-XC3BB

9-E J6711028A ELBOW FITTING 2 KQ2L04-01

10 J90531003A DRIVING_LINK_ASSY 2 J90531003A

10-A J7053793A LOWER LINK PIN 8 J7053793A

10-B J7053796A LOWER LINK SHAFT 4 J7053796A

10-C J71530418B UPPER FREE LINK 2 J71530418B

10-D J7053792A UPPER LINK PIN 16 J7053792A

10-E J7053797A LOWER LINK END 8 J7053797A

11 J90531007A UPPER_BEARING_ASSY 8 J90531007A

11-A J7053791A UPPER BEARING HOLDER 8 J7053791A

11-B J6601005A BEARING 24 688ZZ

12 J90531006A LOWER_BEARING_ASSY 8 J90531006A

12-A J7053790A LOWER BEARING HOLDER 8 J7053790A
