Air Ass’y 9-5 9.1.5. Accessory & Solenoid V alve Block NO. P ART NO. P ART NAME Q’TY TYPE REMARK 1 J72531005A DUMP_BOX 2 J72531005A 2 J70531059A DUMP_BOX_SUPPORT 2 J70531059A 3 J67021005A SOLENOID_V AL VE 2 DV1 120-0…
Samsung Component Placer SM411 Service Manual
9-4

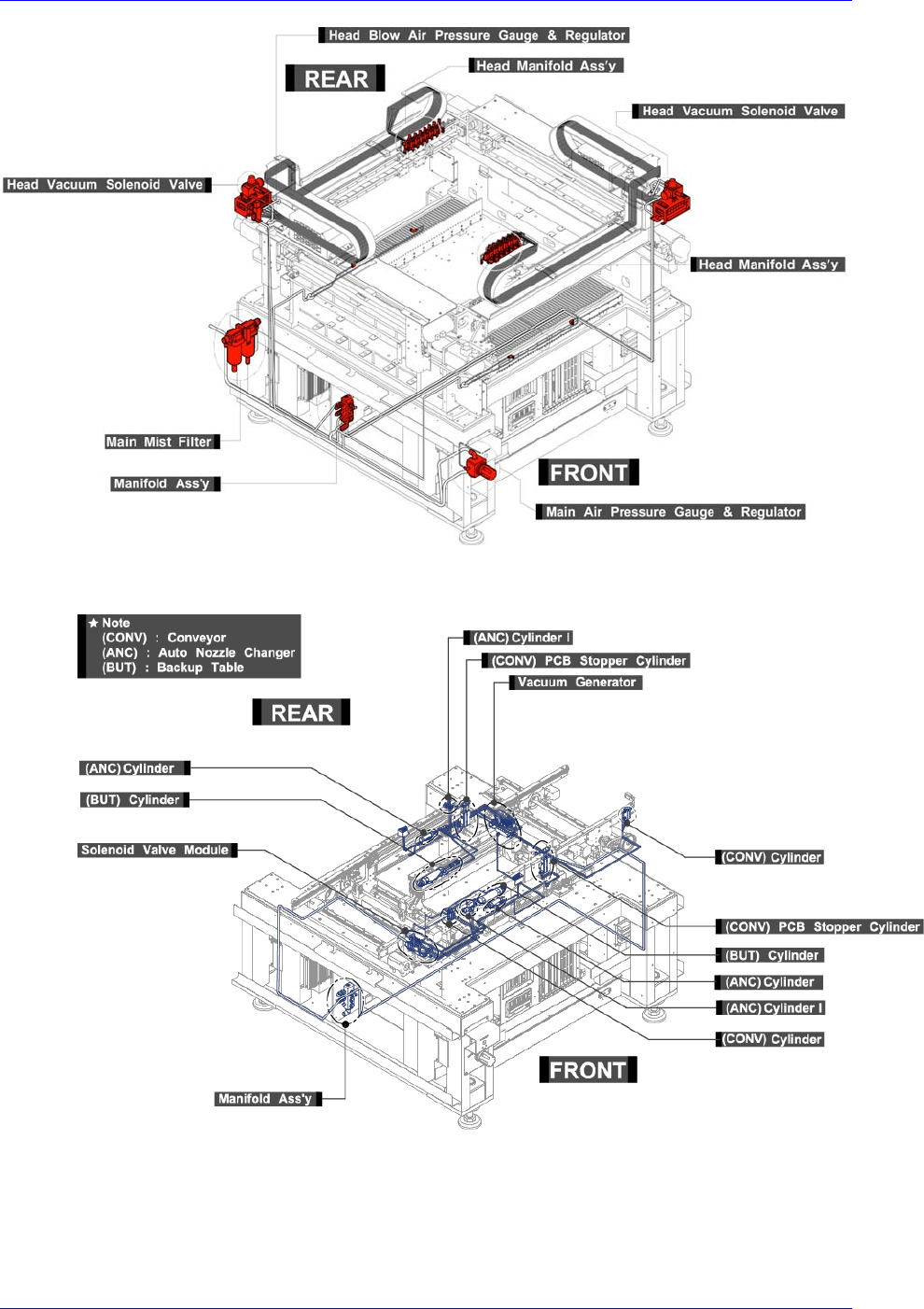

9.1.4. Air Ass’y (D) – Head
NO. PART NO. PART NAME Q’TY TYPE REMARK
1 J90551067A
AIR MODULE 1
J90551067A
1-A J6711260A
ONE TOUCH FITTING 7 FSE04-M5C
1-B J6702048A
SOLENOID VALVE 6 VA01PEP34-1U-F
1-C J6711261A
ONE TOUCH FITTING 1 FSC04-M5C
1-D J6708021A
VACUUM FILTER 6 LF-M5-60-ZK
1-E J6711262A
MINI FITTING 6 BC-03-M5
2
J6711180B ROTARY JOINT 6 RC3-M5M-STN
3
J9060412A HEAD VACUUM SENSOR SUB B/D 1 J9060412A
3-A
J3204002A PRESSURE SENSOR 6 MPX5100AP
4
J6711157A ELBOW FITTING 1 KQ2L08-01S
5
J6711140A STRAIGHT FITTING 1 SS8-1/8
6
J6712008A PLUG 3 PT 1/8
7 J90831263A
HEAD1_AIR_SOL_PWR_CABLE_ASS
Y
1
SM33-CV027-1
J91671109A
HEAD2_AIR_SOL_PWR_CABLE_ASS
Y
1
KQ2L04-M5
8
J6702021A SOLENOID VALVE 1 K180-4E1-21-DC24V
9
J67071009A VACUUM GENERATOR 1 VKMH07A-S448S2-B06
10
J6711119A UNION Y FITTING 1 KQ2U04-06
11
J6709019A REGULATOR 1 AR08-T2-D0M0-J182A
12
J6713048A MULTI TUBE 4 UML-408 (BL-BK6-BL)
13 J6711104A STRAIGHT FITTING 1 KQ2H04-00/PU4
Air Ass’y
9-5
9.1.5. Accessory & Solenoid Valve Block
NO. PART NO. PART NAME Q’TY TYPE REMARK
1 J72531005A
DUMP_BOX 2
J72531005A
2 J70531059A
DUMP_BOX_SUPPORT 2
J70531059A
3 J67021005A SOLENOID_VALVE 2 DV1120-00-R3642-3
