Samsung Component Placer SM411 Service Manual

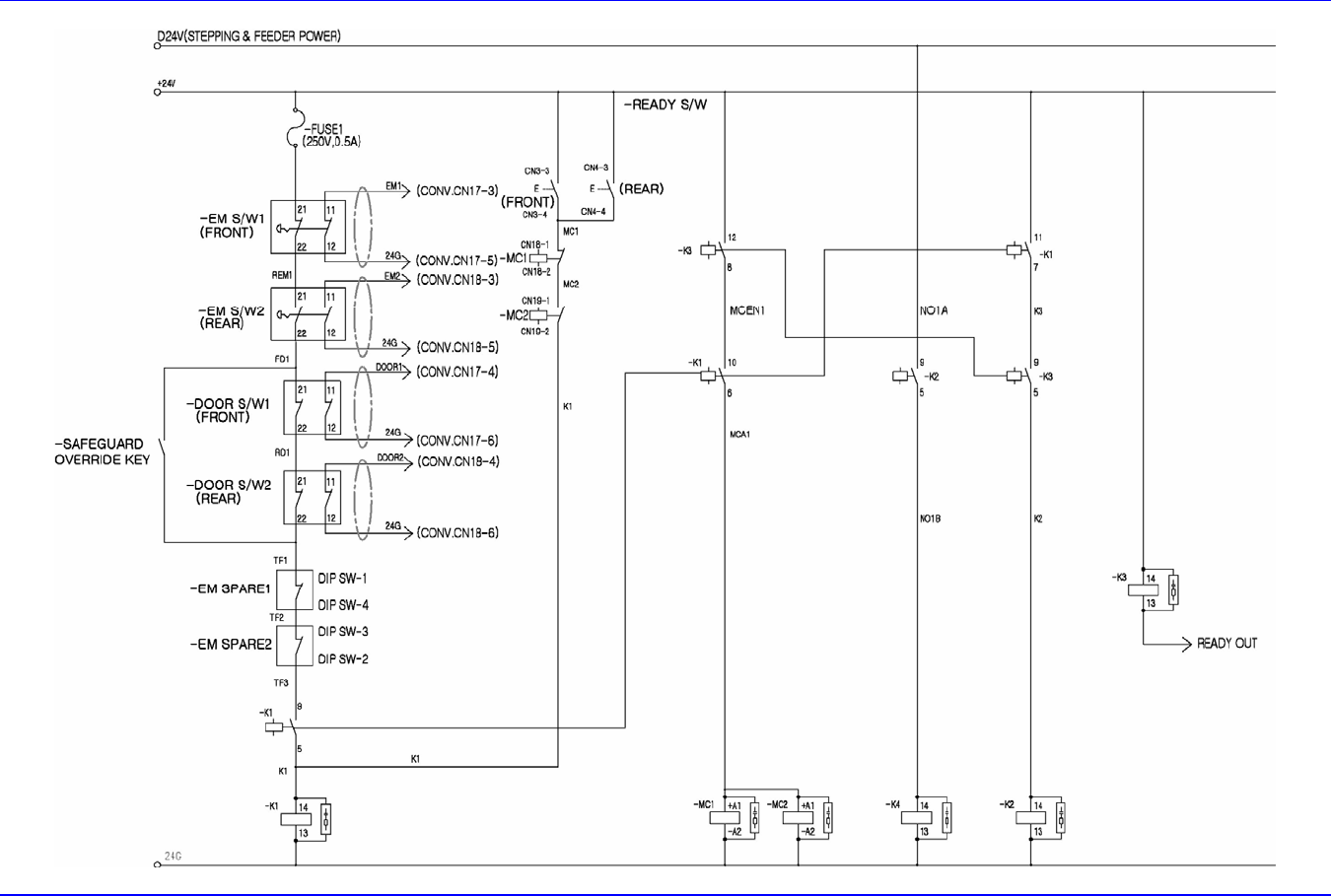

10-8
Electric Device
10-9
NO. PART NO. PART NAME Q’TY TYPE REMARK
1
J90831072A CONTROL RACK POWER CABLE ASSY
SM33-PW010
2
J90831458A FRONT MONITOR POWER CABLE ASSY
SM33_PW025-1
3
J90831459A REAR MONITOR POWER CABLE ASSY
SM33_PW025-2
4
J90831073A TB1_PS1,PS2 POWER CABLE ASSY
SM33-PW011
5
J90831089A PS1,PS2_SAFETY CONTROL B/D CABLE ASSY
SM33-PW027
6
J90831074A FAN POWER CABLE ASSY
SM33-PW012
7
J90831076A FAN CABLE ASSY
SM33-PW014
8
J90831075A SERVO FAN POWER CABLE ASSY
SM33-PW013
9
J90831088A SERVO FAN CABLE ASSY
SM33-PW026
10
J90831069A CP1_TB1,MC1 CABLE ASSY
SM33-PW007
11
J90831082A PS1_#1 DC POWER B/D CABLE ASSY
SM33-PW020
12
J90831083A PS1_#2 DC POWER B/D CABLE ASSY
SM33-PW021
13
J90831090A SHUTTLE,CONV BELT STEP POWER CABLE ASSY
SM33-PW028
14
J90831091A
SHUTTLE,CONV WIDTH STEP POWER CABLE
ASSY
SM33-PW029
15
J90831085A FZ1~FZ6 DC24V POWER CABLE ASSY
SM33-PW023
16
J90831086A RZ1~RZ6 DC24V POWER CABLE ASSY
SM33-PW024
17
J90831071A MC1_PS3,PS4 CABLE ASSY
SM33-PW009
18
J90831077A MC2_TB1 CABLE ASSY
SM33-PW015
19
J90831078A FX,FS SERVO POWER CABLE ASSY
SM33-PW016
20
J90831079A RX,RS SERVO POWER CABLE ASSY
SM33-PW017
21
J90831080A FY1,FY2 SERVO POWER CABLE ASSY
SM33-PW018
22
J90831081A RY1,RY2 SERVO POWER CABLE ASSY
SM33-PW019
23
J90831063A MAIN POWER CABLE ASSY
SM33-PW001
24
J90831252A REAR ELEC PANEL EARTH CABLE ASSY
SM33-PW003-1
25
J90831253A MCCB_NF1_EARTH CABLE ASSY
SM33-PW003-2
26
J90831254A EARTH HEAD1 CABLE ASSY
SM33-PW003-3
27
J90831255A EARTH HEAD2 CABLE ASSY
SM33-PW003-4
28
J90831456A X_AXIS_HEAD_EARTH_CABLE_ASSY
SM33-PW003-5
29
J90831063A MAIN_POWER_CABLE_ASSY
SM33-PW001
30
J90831066A NF1_MAIN SWITCH CABLE ASSY
SM33-PW004
31
J90831067A MAIN SWITCH_TB2 CABLE ASSY
SM33-PW005
32
J90831092A TRANSFORMER INPUT EXT.CABLE ASSY
SM33-PW030
33
J90831068A TRANS_CP1,2 CABLE ASSY
SM33-PW006
34
J90831069A CP1_TB1,MC1 CABLE ASSY
SM33-PW007
35
J90831070A CP2_TB1,MC2 CABLE ASSY
SM33-PW008
Samsung Component Placer SM411 Service Manual
10-10
10.3. Function Panel Ass’y 所需材料
10.3.1. Front Function Panel Ass’y
NO. PART NO. PART NAME Q’TY
TYPE REMARK
1 J3403085A READY SWITCH ASS'Y 1 61-1100.0(CLEAR)
FRONT, REAR COMMON
J3403050A ILLUMINATED PUSHBUTTON ACTUATOR
1
61-1100.0
FRONT, REAR COMMON
J0601040A
LED(DC24V,YEL)
1
10-5312.3134
FRONT, REAR COMMON
J3403051A
FRONT BEZEL-SET
1
61-9933.0
FRONT, REAR COMMON
J3403065A
SWITCHING ELEMENT (2A)
1
61-8420.12
FRONT, REAR COMMON
J34091004A
LENS PLASTIC,CLEAR
1
61-9642.7
FRONT, REAR COMMON
2 J3403078A START SWITCH ASS'Y 1 61-1100.0(GREEN)
FRONT, REAR COMMON
J3403050A ILLUMINATED PUSHBUTTON ACTUATOR
1
61-1100.0
FRONT, REAR COMMON
J0601042A
LED (DC24V,GREEN)
1 10-5312.3135 FRONT, REAR COMMON
J3403049A
SWITCHING ELEMENT
1
61-8410.12
FRONT, REAR COMMON
J3403051A
FRONT BEZEL-SET
1
61-9933.0
FRONT, REAR COMMON
J6739090A LENS PLASTIC,GREEN
1 61-9642.5 FRONT, REAR COMMON
3 J3403079A STOP SWITCH ASS'Y 1 61-1100.0(RED) FRONT, REAR COMMON
J3403050A ILLUMINATED PUSHBUTTON ACTUATOR
1
61-1100.0
FRONT, REAR COMMON
J0601041A
LED (DC24V, RED)
1 10-5312.3132 FRONT, REAR COMMON
J3403049A
SWITCHING ELEMENT
1
61-8410.12
FRONT, REAR COMMON
J3403051A
FRONT BEZEL-SET
1
61-9933.0
FRONT, REAR COMMON
J6739088A LENS PLASTIC,RED
1
61-9642.2
FRONT, REAR COMMON
4 J3403080A RESET SWITCH ASS'Y 1 61-1100.0(YEL) FRONT, REAR COMMON
J3403050A ILLUMINATED PUSHBUTTON ACTUATOR
1
61-1100.0
FRONT, REAR COMMON
J0601040A LED(DC24V,YEL)
1
10-5312.3134
FRONT, REAR COMMON
J3403049A
SWITCHING ELEMENT
1
61-8410.12
FRONT, REAR COMMON
J3403051A
FRONT BEZEL-SET
1
61-9933.0
FRONT, REAR COMMON
J3403064A
LENS PLASTIC,YELLOW 1 61-9642.4 FRONT, REAR COMMON
