Samsung Component Placer SM411 Service Manual
12-14
12.3. Head Module Board Ass’y
12.3.1. Head Module Board Ass’y 替换代表事例
MPU-STOP ERROR 发生 (CAN HEAD I/O BOARD)
头部各种传感器/摄像机起动不良 CAN HEAD I/O BOARD)
头部各种照明不良 (CAN HEAD ILL BOARD)
C
AN H
e
a
d
I
/O
B
o
ar
d
CAN Head
Illumination Board
Vacuum Sensor Board
Camera I/O Board
Board Ass’y
12-15
CAN Head Illumination Board
CAN Head I/O Board
Vacuum Sensor Board
Camera I/O Board
12.3.2. 必要工具
扳手
+ 螺丝刀全套, - 螺丝刀全套
T Wrench or Hex Wrench
12.3.3. Head Module Board 替换次序
CAN Head Illumination Board/ CAN Head I/O Board

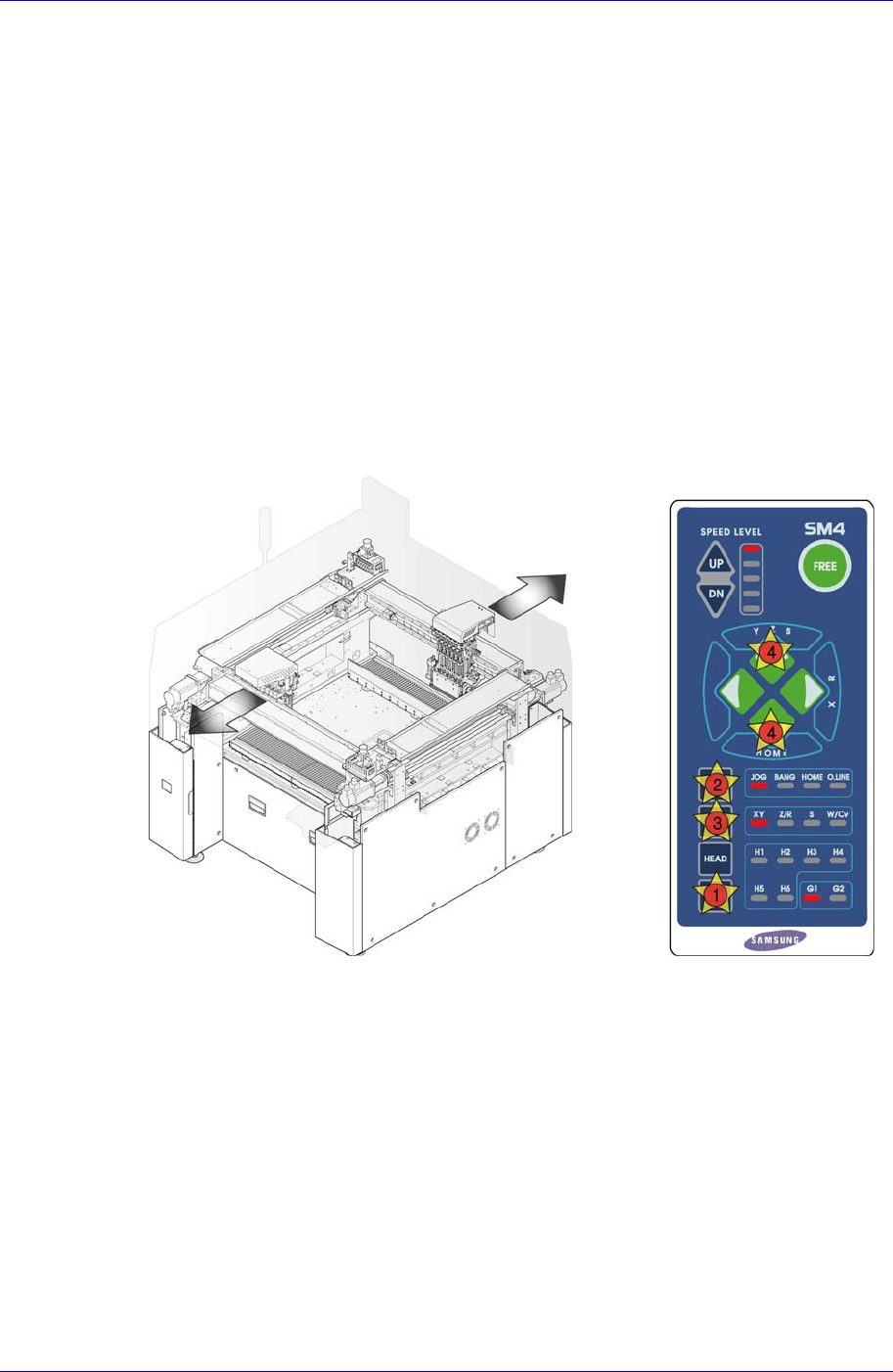

1. 操作示教框把Head Assembly最大限度地往两边移动。
2. 请正常关闭PC后，关闭设备前面的Main Switch。
Samsung Component Placer SM411 Service Manual
12-16

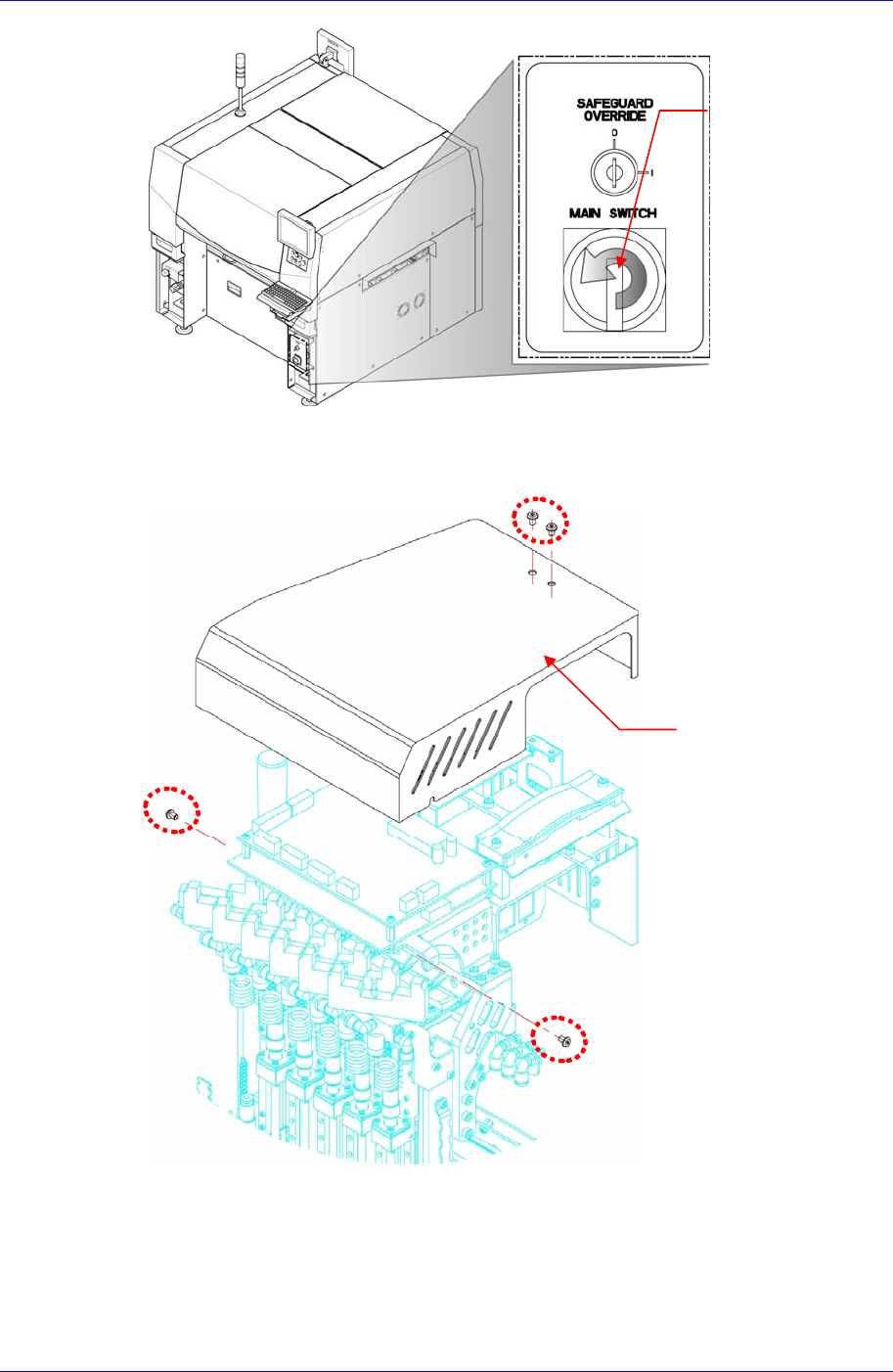

3. 为了拆卸Head Side Illuminator Board Connector，先用扳手拧开固定Head Top
Cover的固定螺丝(M2.5-4个)后拆卸盖。
4. 请分离连接在所要替换Board的电缆。
5. 用扳手拧开所要替换Board的支持部，替换Board。
6. 组装时为拆卸的倒序。
7. 如果已更换 ‘Head Illumination Board’ 打开设备正面的总开关后
， 参考
“3.2.10.3 Light Mapping (3-45
页
)” 必须执行关于Fly Camera照明的Light Mapp
Main Switch关闭方
向 (逆时针方向)
Head Top Cover
