NPM-TT2 PARTS LIST1811 - 第602页
137- B 3ノズルヘッド:NPM-W 3 NOZZLE HEAD:NPM-W パーツレイアウト Kit No. キット 品番 Kit Name キット名称 N610157754AA セクションNo. PARTS LAYOUT Section No. - - O415 ( KN610157754AA-19-2 )
Ref
No.
Remarks R
1
Q'ty
137-A
3ノズルヘッド:NPM-W
3 NOZZLE HEAD:NPM-W
ｲﾗｽﾄ
No.
Part No.
品 名品 番 数量
R
2
パーツリスト
Kit No.
キット品番
Kit Name
キット名称
N610157754AA
Part Name
備 考
セクションNo.
PARTS LIST
Section No.
R
3
HANDLE
2
1 N210147288AA
BRACKET
1
2 N210142977AB
COVER
1
3 N210142978AD
BRACKET
1
4 N210142979AC
CLAMPER
3
5 MTPB009744AA
NUT-PLATE
3
6 KXFB04N8A00
PLATE
1
7 N210142980AB
BRACKET
1
8 N210142981AB
BRACKET
1
9 N210142982AA
PLATE
1
10 N210142983AE
JOINT
1
11 N510066636AA KQ2UD04-06A
JOINT
1
12 KXF09ZBAA00 KQ2P-06
SCREW
4
13 N510045431AA
Cross recessed pan head machine screw with RPW M3X5-4.8 A2S
SCREW
6
14 N510018251AA
Cross recessed Truss head machine screw M3X5-4.8 A2J (Trivalent)
SPACER
2
15 N510029469AA ASF-317E
SPACER
2
16 N510020146AA ASF-435E
SPACER
2
17 N510015573AA ASF-448E
COUPLER
1
18 N510049778AA MA-MS-PC4-06X08(CS33420-4)
BOLT
10
19 N510002011AA SRBS-M4X10
SPACER
2
20 N510059494AA CL-330E
BOLT
2
21 N510017329AA
Hexagon socket head cap screw M3X40-10.9 A2J (Trivalent)
CUSHION
6
22 N610066203AA
SENSOR
1
23 MTKP005550AA
SENSOR
1
24 MTKP005551AA
SENSOR
1
25 MTKP005552AA
PIN
1
26 N510020609AA MMS5-20
O414
--
( KN610157754AA-19-1 )

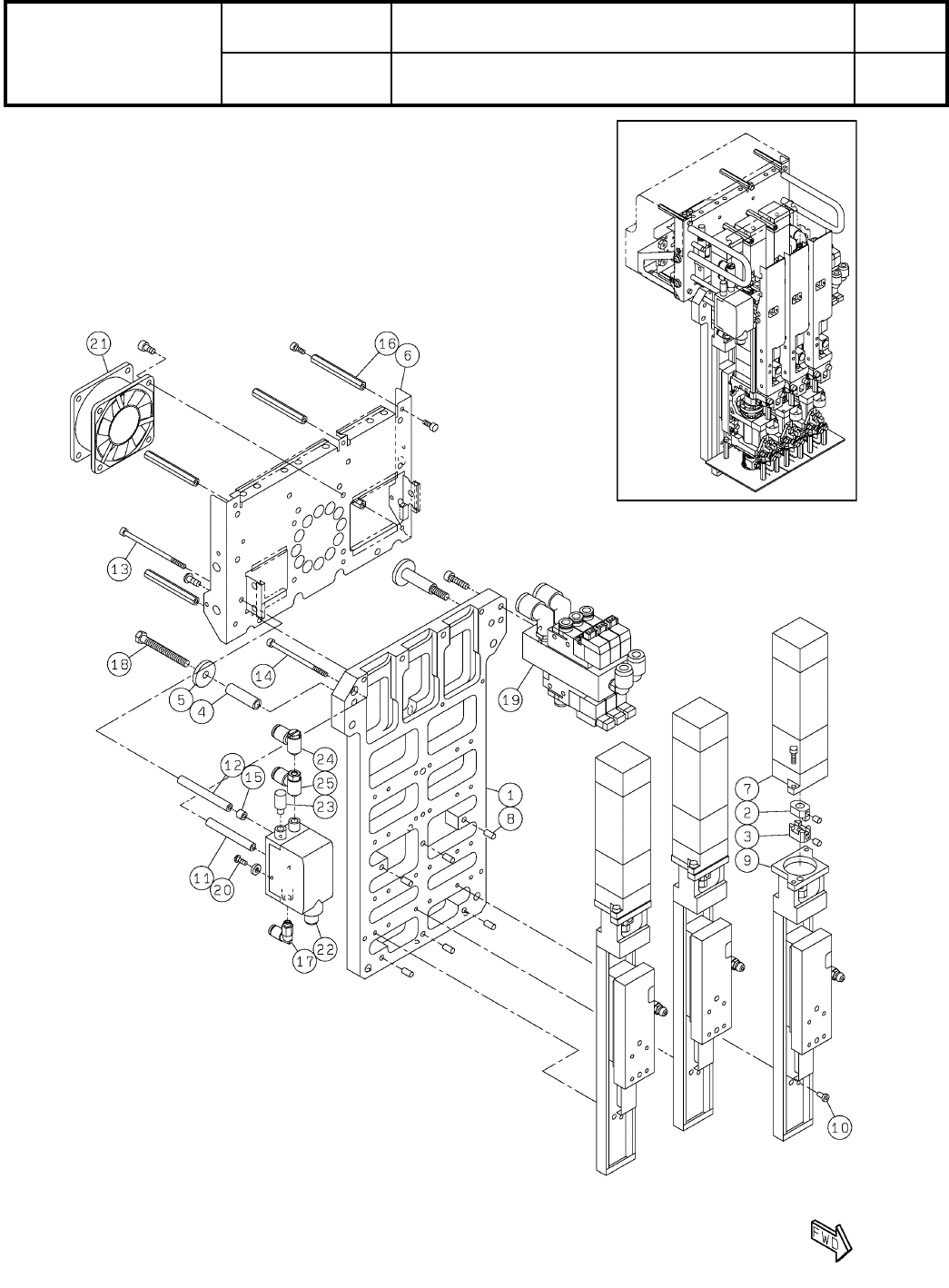

137-B
3ノズルヘッド:NPM-W
3 NOZZLE HEAD:NPM-W
パーツレイアウト
Kit No.
キット品番
Kit Name
キット名称
N610157754AA
セクションNo.
PARTS LAYOUT
Section No.
--
O415
( KN610157754AA-19-2 )
Ref
No.
Remarks R
1
Q'ty
137-B
3ノズルヘッド:NPM-W
3 NOZZLE HEAD:NPM-W
ｲﾗｽﾄ
No.
Part No.
品 名品 番 数量
R
2
パーツリスト
Kit No.
キット品番
Kit Name
キット名称
N610157754AA
Part Name
備 考
セクションNo.
PARTS LIST
Section No.
R
3
PLATE
1
1 N210186140AA
JOINT
3
2 MTPA016119AA
JOINT
3
3 MTPA016120AA
SPACER
2
4 N510065101AA CB-528E
WASHER
2
5 N210118728AA
BRACKET
1
6 N210142975AD
MOTOR
3
7 MTNM000173AA
S
P50BA2003BCSPD
PIN
6
8 N510020597AA MMS4-8
LINEAR-WAY
3
9 N510059435AB KR15QZ+0812-0015230(80015230M080)
BOLT
24
10 N510067785AA Low Head Cap Screw M3X6-8.8 SOB
SPACER
1
11 N510059490AA CL-345E
SPACER
1
12 N510059491AA CL-350E
BOLT
1
13 N510017336AA
Hexagon socket head cap screw M3X60-10.9 A2J (Trivalent)
BOLT
1
14 N510017335AA
Hexagon socket head cap screw M3X55-10.9 A2J (Trivalent)
SPACER
1
15 N510059492AA CL-305E
SPACER
6
16 N510019890AA ASF-350E
JOINT
1
17 N510066662AA KQ2L04-M5A
BOLT
2
18 N510017750AA
Hexagon head bolt Best class M5X45-6g 4T A2J (Trivalent)
MANIFOLD
1
19 N510058605AA VV3QZ12-03-X1068V
BOLT
1
20 N510017514AA
SSS 003 Hexagon socket button head screw M3X8-10.9 A2J (Trivalent)
FAN
1
21 N510044729AA 109L0624H408
REGULATOR
1
22 N510056948AA EVS2-500-1M5AV-FL431332
SILENCER
1
23 KXF00WCAA00 AN120-M5
JOINT
1
24 N510066716AA KQ2V06-M5A
JOINT
1
25 N510066724AA KQ2VF06-M5A
O416
--
( KN610157754AA-19-2 )
