A8. Spares , tools and materials Service Manual 4022 593 50571 A8-18 AX - series 06.01 A. SYSTEM A8.3.8 Base CAN module Item No. Part of Item No. Ordering Code Description Qty/ Mod Priority indicator Repair options Repla…

100%1 / 46
4022 593 50571 Service Manual
06.01 AX - series A8-17
A8. Spares, tools and materials
A. SYSTEM

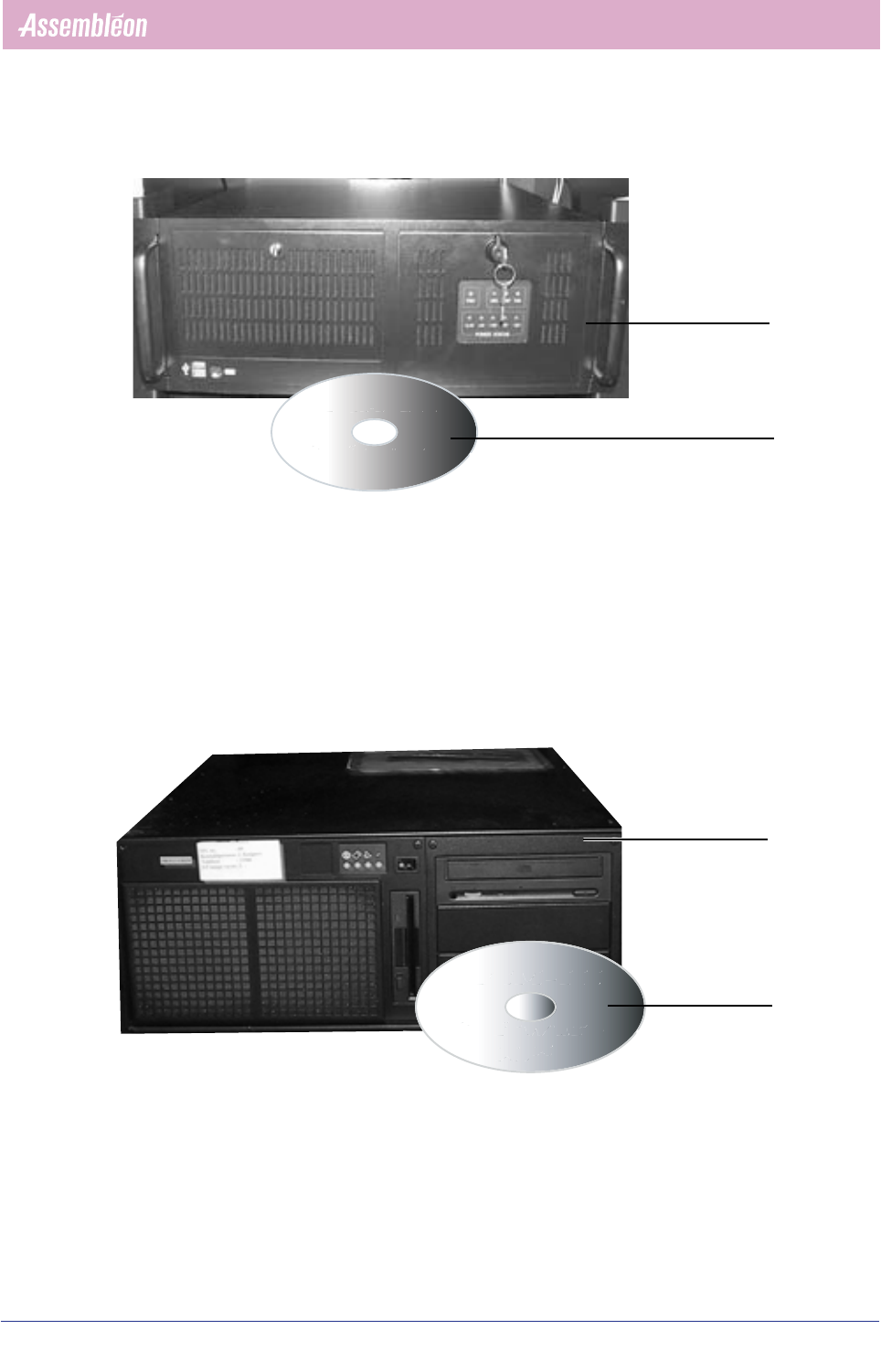

05-01
05-03
05-02
18-01
18-02
18-03
A8. Spares, tools and materials
Service Manual 4022 593 50571
A8-18 AX - series 06.01
A. SYSTEM
A8.3.8 Base CAN module
Item No.
Part of Item No.
Ordering Code
Description
Qty/ Mod
Priority indicator
Repair options
Replacement Instruction
Remarks
08-01 9498-396-00009 Can Coupler 1 Y - • Also in transport CAN
module
08-02 9498-396-00011 Dig. Input mod 4x 4 Y - • Number on part: 403
08-03 9498-396-00010 Dig. Output mod 4x 1 Y - • Number on part: 504
08-04 9498-396-00013 Potential multiplier 1 Y - • Number on part: 614
08-05 9498-396-00012 End terminal 1 Y - • Number on part: 600,
Also in transport CAN
module
4022 593 50571 Service Manual
06.01 AX - series A8-19
A8. Spares, tools and materials
A. SYSTEM
!"# $
%
&&
)
)) )
&&&&&&
%
*
)
)

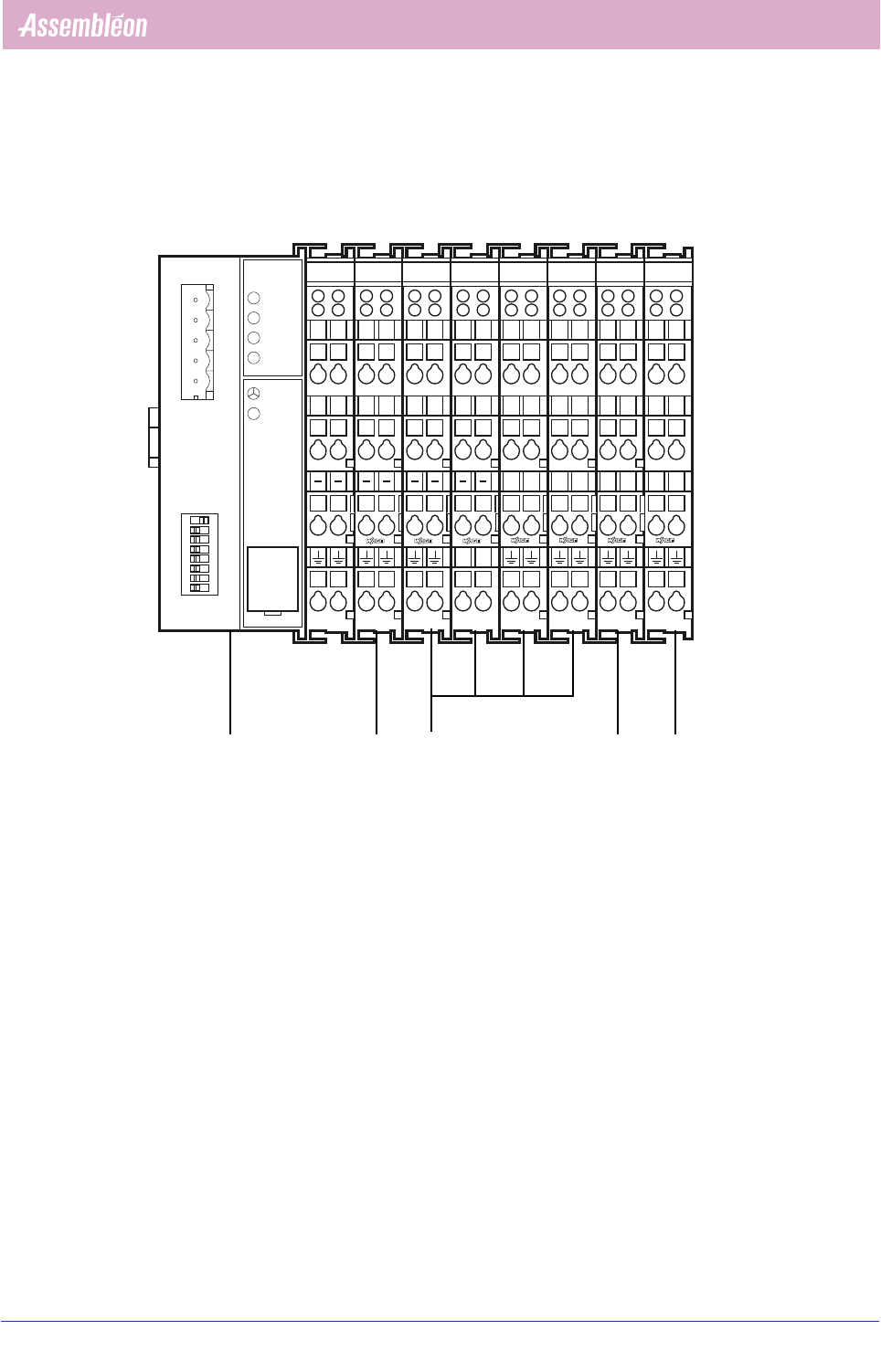

504 403 403 403 403 614 600
08-01
08-03
08-02
08-04 08-05
