A8. Spares, tools and materials
Service Manual 4022 593 50571
A8-24 AX - series 06.01
A. SYSTEM
A8.3.10 Transport controller
Transport controllers exist in different technical versions.
• Transport controller 4022-592-4225x, see A8.3.10.1
• Transport controller 4022-594-4200x, see A8.3.10.2
A8.3.10.1 Transport controller 4022-592-4225X
Item No.
Part of Item No.
Ordering Code
Description
Qty/ Mod
Priority indicator
Repair options
Replacement Instruction
Remarks
19-01 9498-396-00564 Transport controller 1 Y - •
Transport controller 4022-
592-4225X can be used as a
replacement for transport
controller 4022-594-4200x
when using software version
1.20 or higher.
19-02 9498-396-00565 X- and Z-servo amplifier 1 Y - •
19-03 9498-396-00566 Motion interface board 1 Y - •
19-04 9498-396-00017 Relay 2 Y - •
19-05 9498-396-00258 Power supply 24V 1 Y - • Also in trolley lift 4022-
510-8300x
19-06 9498-396-00027 Safety relay 24V 1 Y - • Also in mains supply unit
19-07 9498-396-00087 Fan 1 Y - • Also in placement
controller
19-08 9498-396-00081 Motion controller 1 Y - •
19-09 9498-396-00267 Embedded process
controller
1 Y - • Also in placement
controller
9498-397-00267 Embedded process
controller rep
1 Y RO • Also in placement
controller
4022 593 50571 Service Manual
06.01 AX - series A8-25
A8. Spares, tools and materials
A. SYSTEM

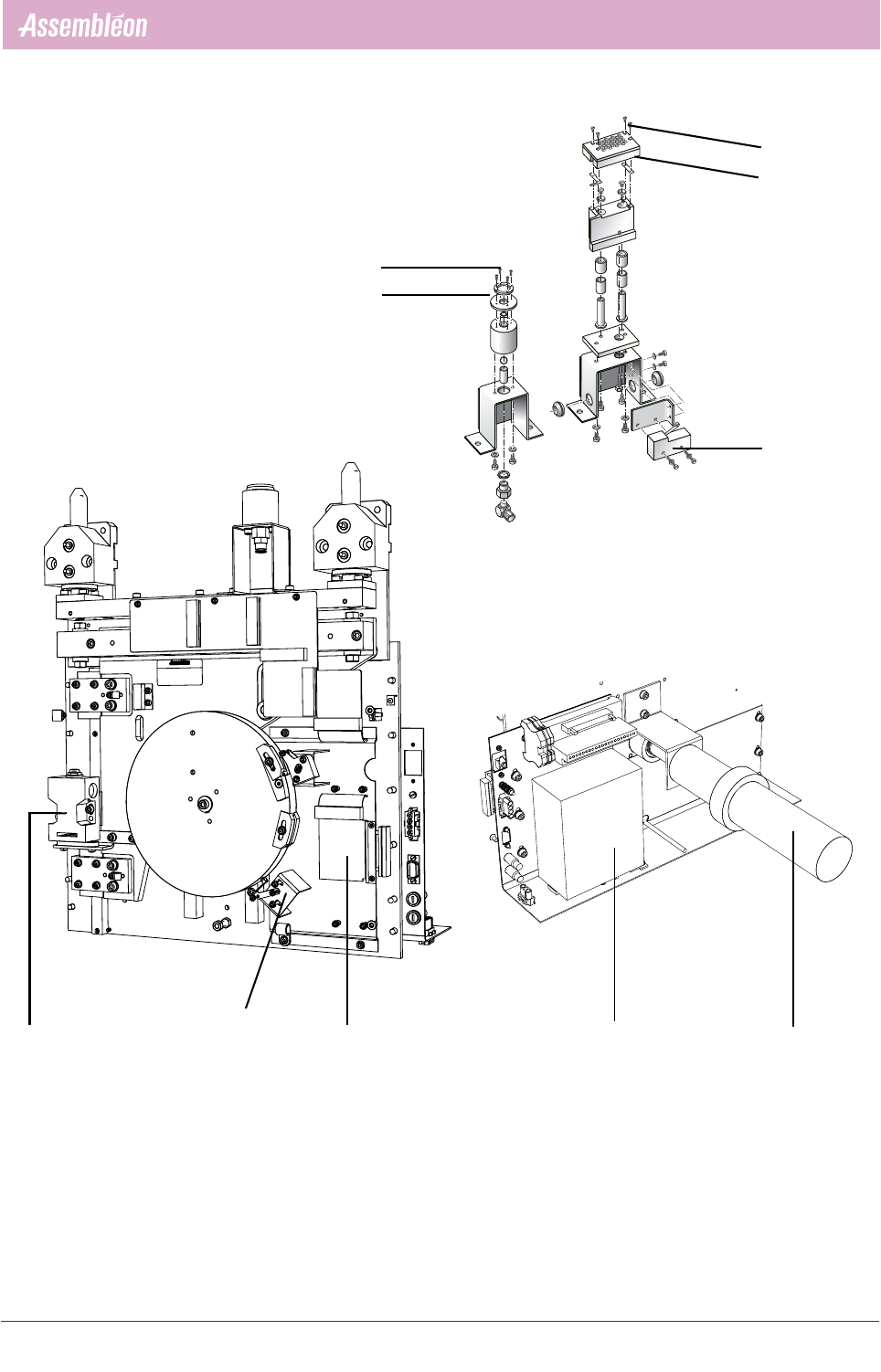

19-01
19-02
19-03
19-04
19-05
19-06
19-07
19-08
19-09
