A8. Spares , tools and materials Service Manual 4022 593 50571 A8-26 AX - series 06.01 A. SYSTEM A8.3.10.2 T ransport co ntr oller 4022-594-4200x Item No. Part of Item No. Ordering Code Description Qty/ Mod Priority indi…

100%1 / 46
4022 593 50571 Service Manual

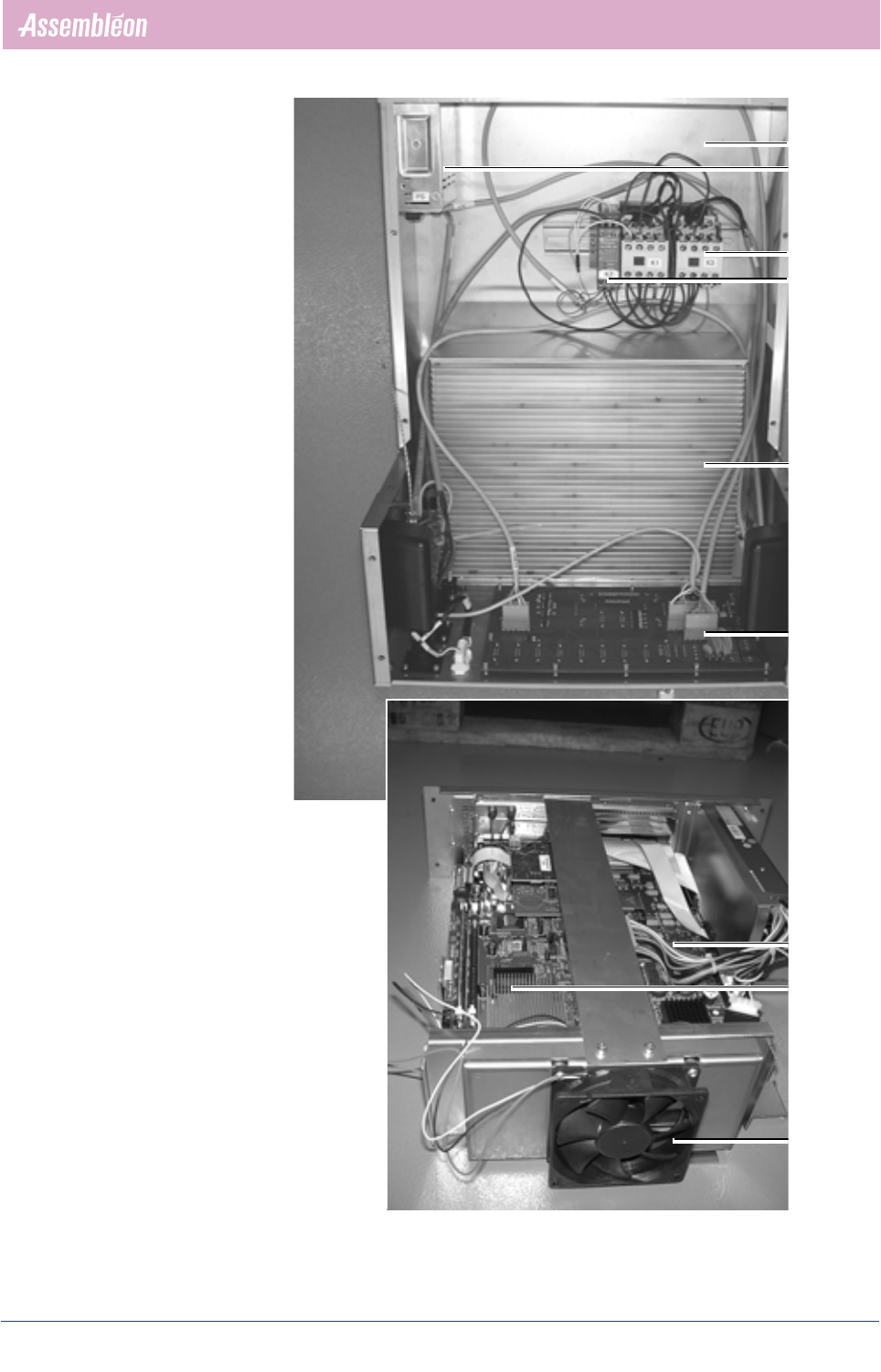

06.01 AX - series A8-25
A8. Spares, tools and materials
A. SYSTEM
19-01
19-02
19-03
19-04
19-05
19-06
19-07
19-08
19-09
A8. Spares, tools and materials
Service Manual 4022 593 50571
A8-26 AX - series 06.01
A. SYSTEM
A8.3.10.2 Transport controller 4022-594-4200x
Item No.
Part of Item No.
Ordering Code
Description
Qty/ Mod
Priority indicator
Repair options
Replacement Instruction
Remarks
06-01 9498-396-00094 Transport controller Y - •
Transport controller 4022-
592-4225X can be used as a
replacement for transport
controller 4022-594-4200x
when using software version
1.20 or higher
06-02 9498-396-00085 Motion interface board 1 Y - •
06-03 9498-396-00017 Relay 2 Y - •
06-04 9498-396-00029 Power supply 24V 1 - - • Also in mains supply unit
06-05 9498-396-00027 Safety relay 24V 1 Y - • Also in mains supply unit
06-06 9498-396-00018 Fan 3 - - •
06-07 9498-396-00083 EPC 1 - - • For transport controller
4022-594-42002 and older
06-08 9498-397-00083 EPC rep 1 Y RO • For transport controller
4022-594-42002 and older
06-09 9498-396-00016 Motion controller 1 Y - •
06-10 9498-396-00014 Ri-Ro servo driver board 2 Y - •
06-11 9498-396-00015 X-servo amplifier 1 Y - •
06-12 9498-396-00031 Z-servo amplifier 1 Y - •
06-13 9498-396-00267 Embedded process
controller
1 - - • For transport controller
4022-594-42003 and up
06-14 9498-397-00267 Embedded process
controller rep
1 Y RO • For transport controller
4022-594-42003 and up
4022 593 50571 Service Manual
06.01 AX - series A8-27
A8. Spares, tools and materials
A. SYSTEM
06-02
06-03
06-04
06-05
06-06
06-07
06-08
06-10
06-11
06-12
06-01
06-09
06-09
06-13
06-14
