A8. Spares , tools and materials Service Manual 4022 593 50571 A8-28 AX - series 06.01 A. SYSTEM A8.3.11 Tr ansport CAN module Item No. Part of Item No. Ordering Code Description Qty/ Mod Priority indicator Repair option…
4022 593 50571 Service Manual
06.01 AX - series A8-27
A8. Spares, tools and materials
A. SYSTEM

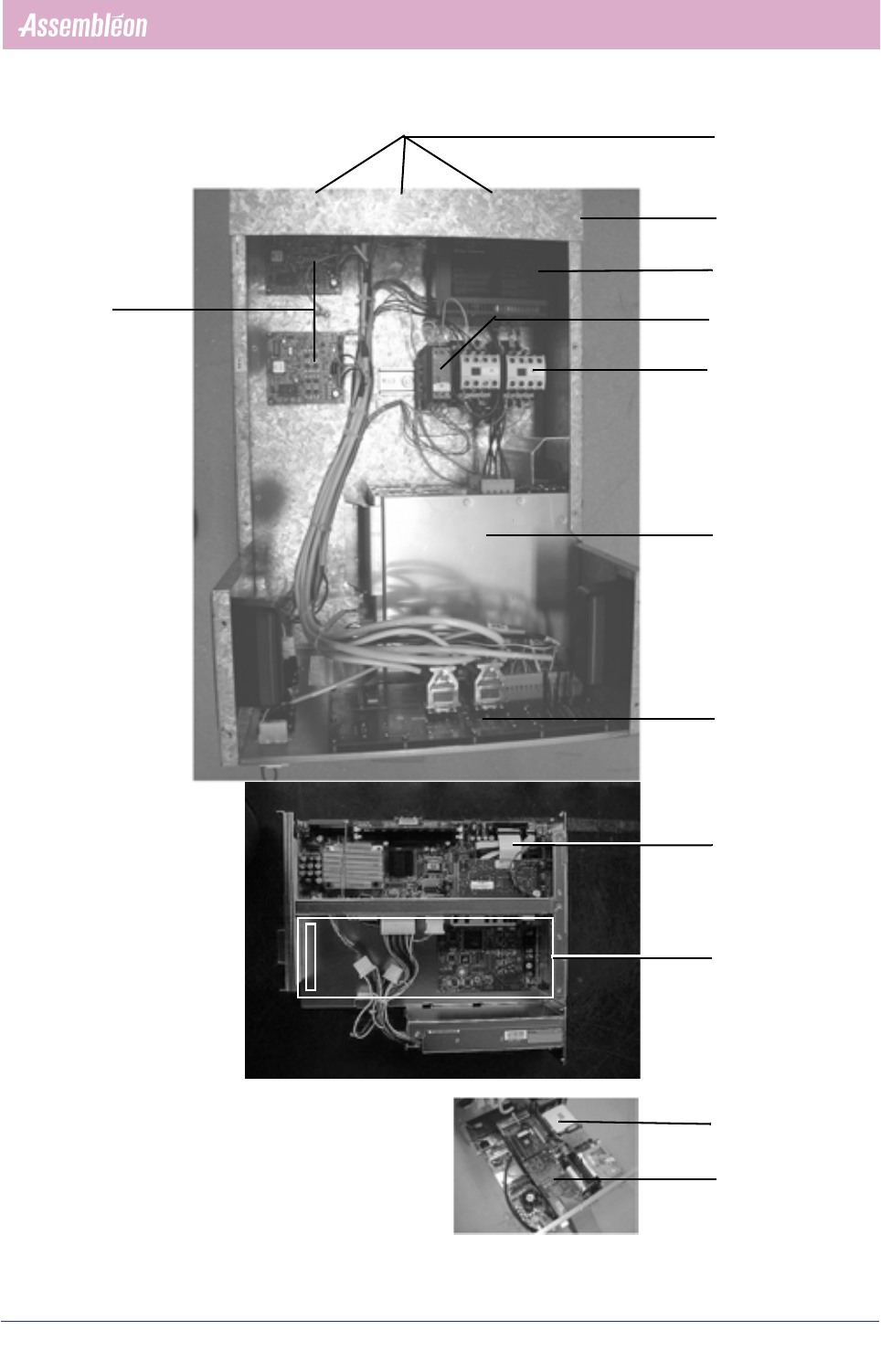

06-02
06-03
06-04
06-05
06-06
06-07
06-08
06-10
06-11
06-12
06-01
06-09
06-09
06-13
06-14
A8. Spares, tools and materials
Service Manual 4022 593 50571
A8-28 AX - series 06.01
A. SYSTEM
A8.3.11 Transport CAN module
Item No.
Part of Item No.
Ordering Code
Description
Qty/ Mod
Priority indicator
Repair options
Replacement Instruction
Remarks
07-01 9498-396-00009 Can Coupler 1 Y - • Also in base CAN module
07-02 9498-396-00086 Dig. Input mod 2x 3 Y - • Number on part: 401
07-03 9498-396-00088 Dig. Output mod 2x 1 Y - • Number on part: 502
07-04 9498-396-00089 Relay output 1 Y - • Number on part: 513
07-05 9498-396-00012 End terminal 1 Y - • Number on part: 600,
Also in base CAN module
07-06 9498-396-00074 Connection board 1 - - • Mounted underneath CAN
module
4022 593 50571 Service Manual
06.01 AX - series A8-29
A8. Spares, tools and materials
A. SYSTEM
!"# $
%
&&
)
)) )
&&&&&&
%
*
)
)

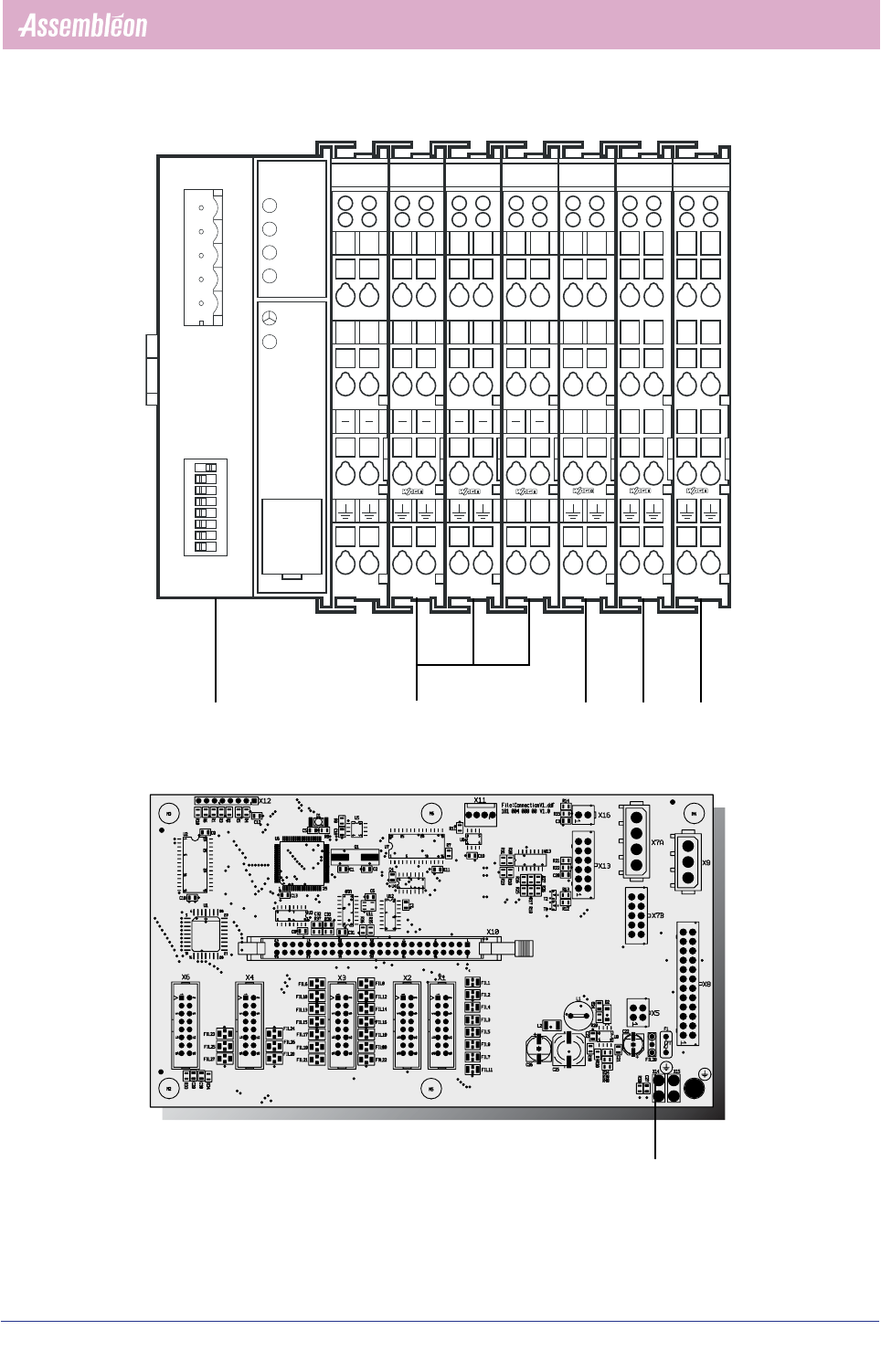

401 401 401 502 513 600
07-01
07-03
07-02
07-04 07-05
07-06
