A8. Spares , tools and materials Service Manual 4022 593 50571 A8-32 AX - series 06.01 A. SYSTEM A8.3.13 Front and r ear transport r ails Item No. Part of Item No. Ordering Code Description Qty/ Mod Priority indicator Re…
4022 593 50571 Service Manual
06.01 AX - series A8-31
A8. Spares, tools and materials
A. SYSTEM
10-04
10-05
10-06
10-07
10-08
10-09
10-11
10-10
10-01
10-02
10-03
10-12
10-13
A8. Spares, tools and materials
Service Manual 4022 593 50571
A8-32 AX - series 06.01
A. SYSTEM
A8.3.13 Front and rear transport rails
Item No.
Part of Item No.
Ordering Code
Description
Qty/ Mod
Priority indicator
Repair options
Replacement Instruction
Remarks
09-01 9498-396-00050 Transport belt motor 4 Y - •
09-02 9498-396-00002 Board sensor 2 Y - • Also in transport beam
09-03 9498-396-00052 Y-motor 1 Y - •
09-04 9498-396-00153 Protection strip 3 1 Y - • Includes sticky tape
9498-396-00265 Protection strip 5 1 Y - • Includes sticky tape
09-05 9498-396-00042 Guide strip 1 Y - -
09-06 9498-396-00038 Spring steel strip 1 Y - -
09-07 9498-396-00053 Transport belt left 2 Y - •
09-08 9498-396-00054 Transport belt right 2 Y - •
09-09 9498-396-00049 Wheel 12 Y - -
4022 593 50571 Service Manual
06.01 AX - series A8-33
A8. Spares, tools and materials
A. SYSTEM

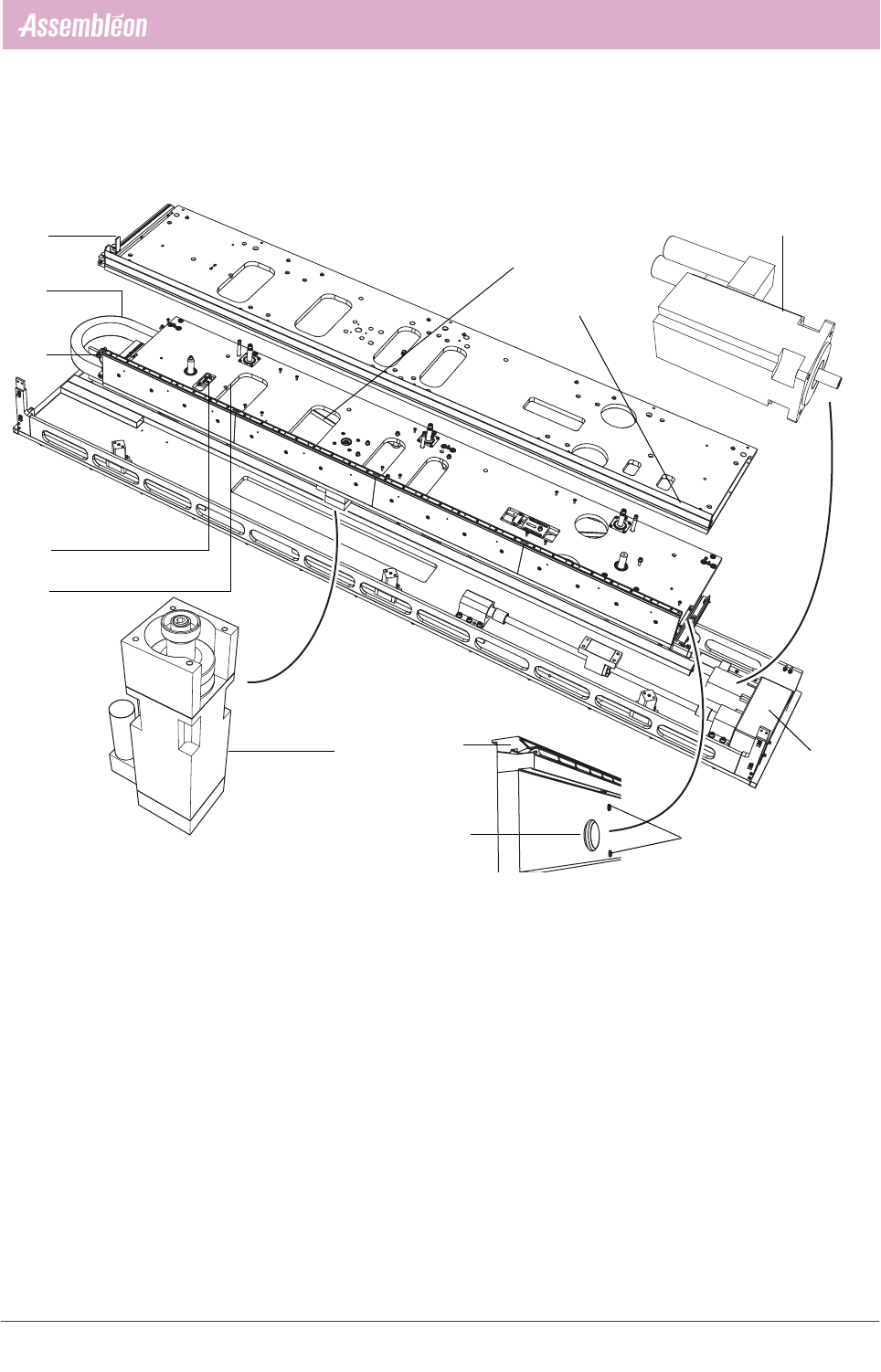

09-01
09-01
09-02
09-03
09-07
09-04
09-01
09-06
09-05
09-08
09-09
