A8. Spares , tools and materials Service Manual 4022 593 50571 A8-34 AX - series 06.01 A. SYSTEM A8.3.14 Board support Item No. Part of Item No. Ordering Code Description Qty/ Mod Priority indicator Repair options Replac…
4022 593 50571 Service Manual
06.01 AX - series A8-33
A8. Spares, tools and materials
A. SYSTEM

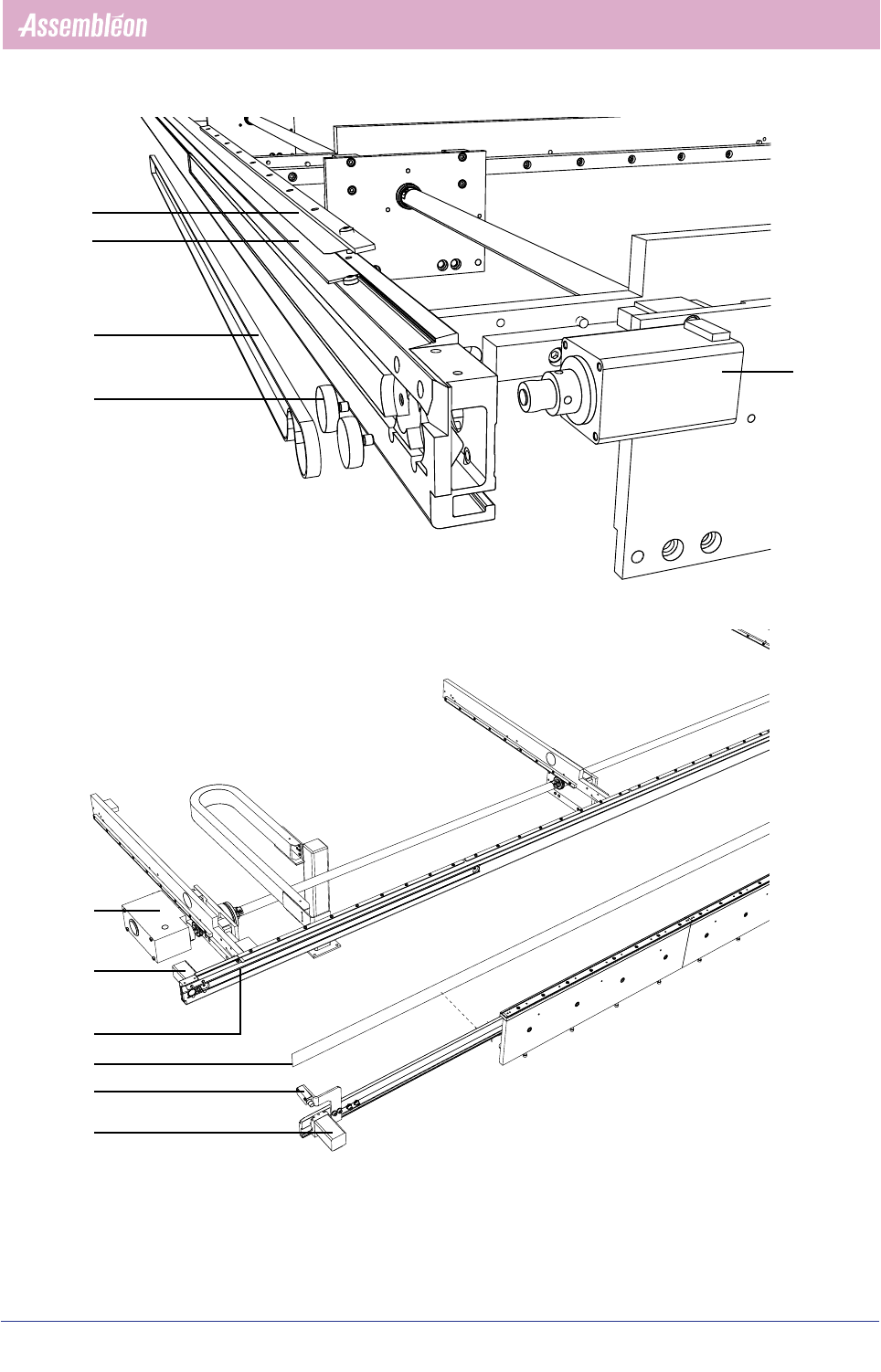

09-01
09-01
09-02
09-03
09-07
09-04
09-01
09-06
09-05
09-08
09-09
A8. Spares, tools and materials
Service Manual 4022 593 50571
A8-34 AX - series 06.01
A. SYSTEM

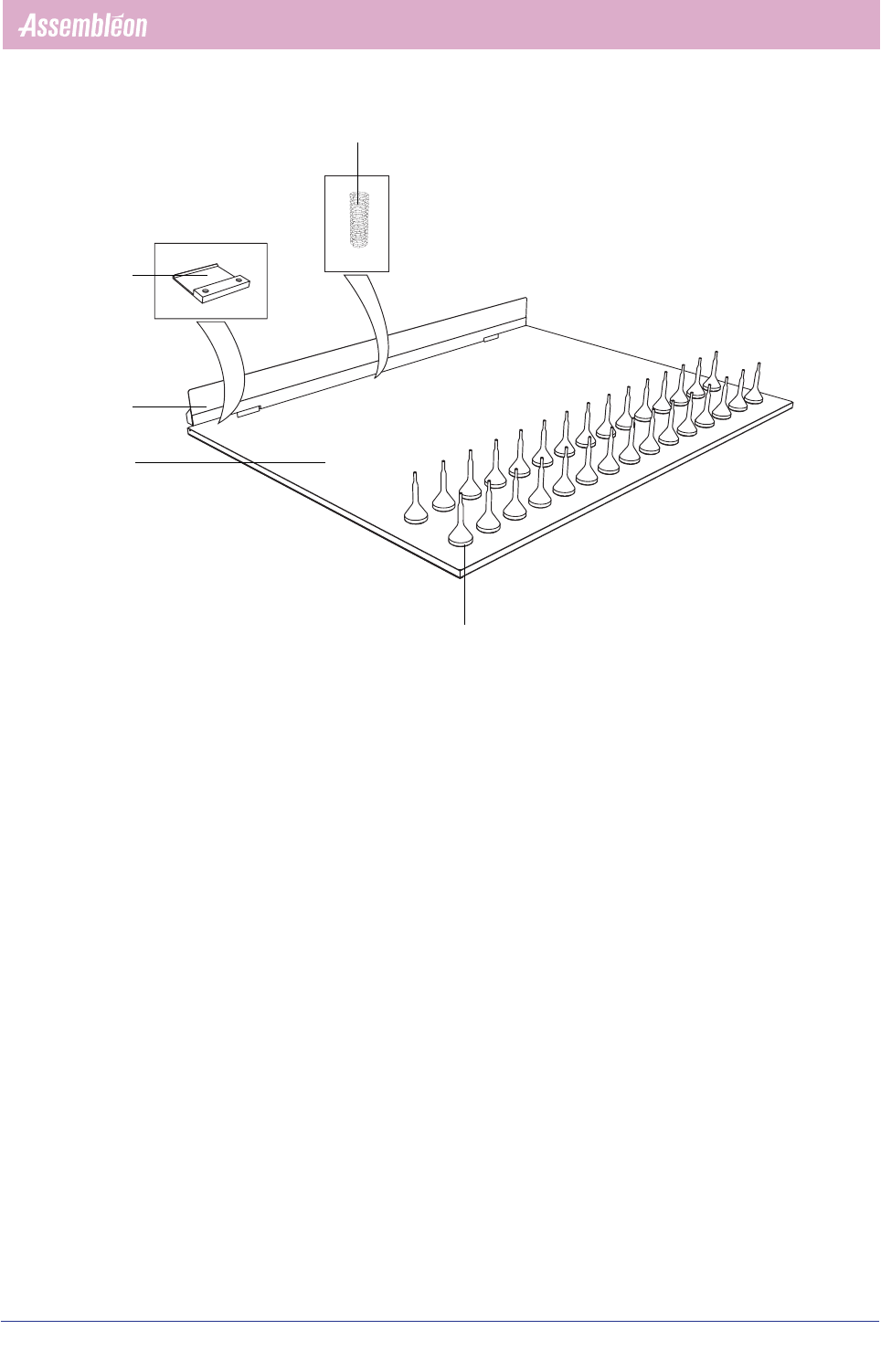

A8.3.14 Board support
Item No.
Part of Item No.
Ordering Code
Description
Qty/ Mod
Priority indicator
Repair options
Replacement Instruction
Remarks
11-01 9498-396-00036 AX Board support strip 4/6 Y - - Equals PA 1122/30,
contains 1 assembled
support strip
11-02 9498-396-00030 Support plate 4/6 Y - -
11-03 9498-396-00069 Support pins - - - Ordering per piece
11-04 9498-396-00687 Support strip connect
block
1 - - Part of 11-01
11-05 9498-396-00695 ESD Compr. spring 1 - - Part of 11-01
4022 593 50571 Service Manual
06.01 AX - series A8-35
A8. Spares, tools and materials
A. SYSTEM
11-01
11-02
11-03
11-04
11-05
