A8. Spares , tools and materials Service Manual 4022 593 50571 A8-38 AX - series 06.01 A. SYSTEM A8.3.16 Robots Item No. Part of Item No. Ordering Code Description Qty/ Mod Priority indicator Repair options Replacement I…

100%1 / 46

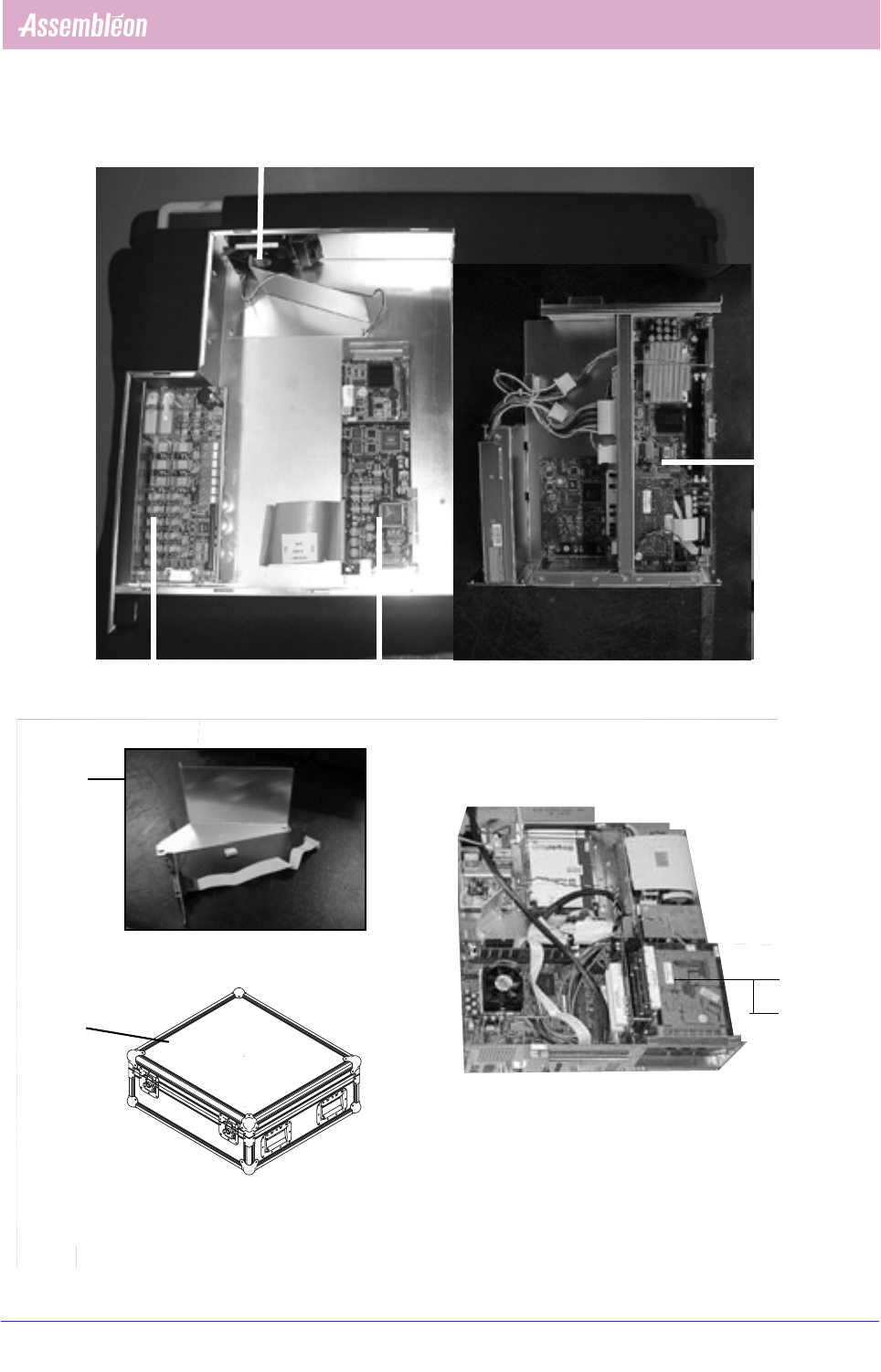

4022 593 50571 Service Manual
06.01 AX - series A8-37
A8. Spares, tools and materials
A. SYSTEM
14-08
14-01
14-04
14-06
14-07
14-05
14-11
14-09
14-10
14-03
14-02
A8. Spares, tools and materials
Service Manual 4022 593 50571
A8-38 AX - series 06.01
A. SYSTEM
A8.3.16 Robots
Item No.
Part of Item No.
Ordering Code
Description
Qty/ Mod
Priority indicator
Repair options
Replacement Instruction
Remarks
15-01 9498-396-00139 AX safety cap - Y - - Equals PA 2875/00
15-02 9498-396-00127 AX compact placem. robot - - - • Equals PA 1118/00
15-03 9498-397-00127 AX compact placem. robot
rep
- Y RO • Same as 15-02 but repaired
15-04 9498-396-00128 AX standard placement
robot
- - - • Equals 1118/15
15-05 9498-397-00128 AX standard placement
robot rep
- Y RO • Same as 15-04 but repaired
15-06 9498-396-00073 Flight case CPR - Y - - For 15-01,02,03
15-07 9498-396-00072 Flight case PR - Y - - For 15-04,05
15-08 9498-396-00075 Safety interlock 1 Y - •
15-09 9498-396-00071 Tilt switch 1 Y - •
15-10 9498-396-00070 Flexible cable guide 1 Y - •
15-12 9498-396-00142 Cable set 1 Y - -
15-13 9498-396-00047 Pneumatic controller 1 Y - •
15-14 9498-396-00046 Pneum. Controller board 1 Y - •
15-15 9498-396-00065 Silencer 1 Y - •
15-16 9498-396-00066 Valve 2 Y - •
15-17 Temperature sensor 1 • Part of Assortment kit, see
A8.4.3.
15-18 9498-396-00496 Bracket safety interlock 1 Y - •
15-19 9498-396-01026 Handle compact
placement robot
1 - - •
15-20 9498-396-01027 Handle standard
placement robot
1 - - •

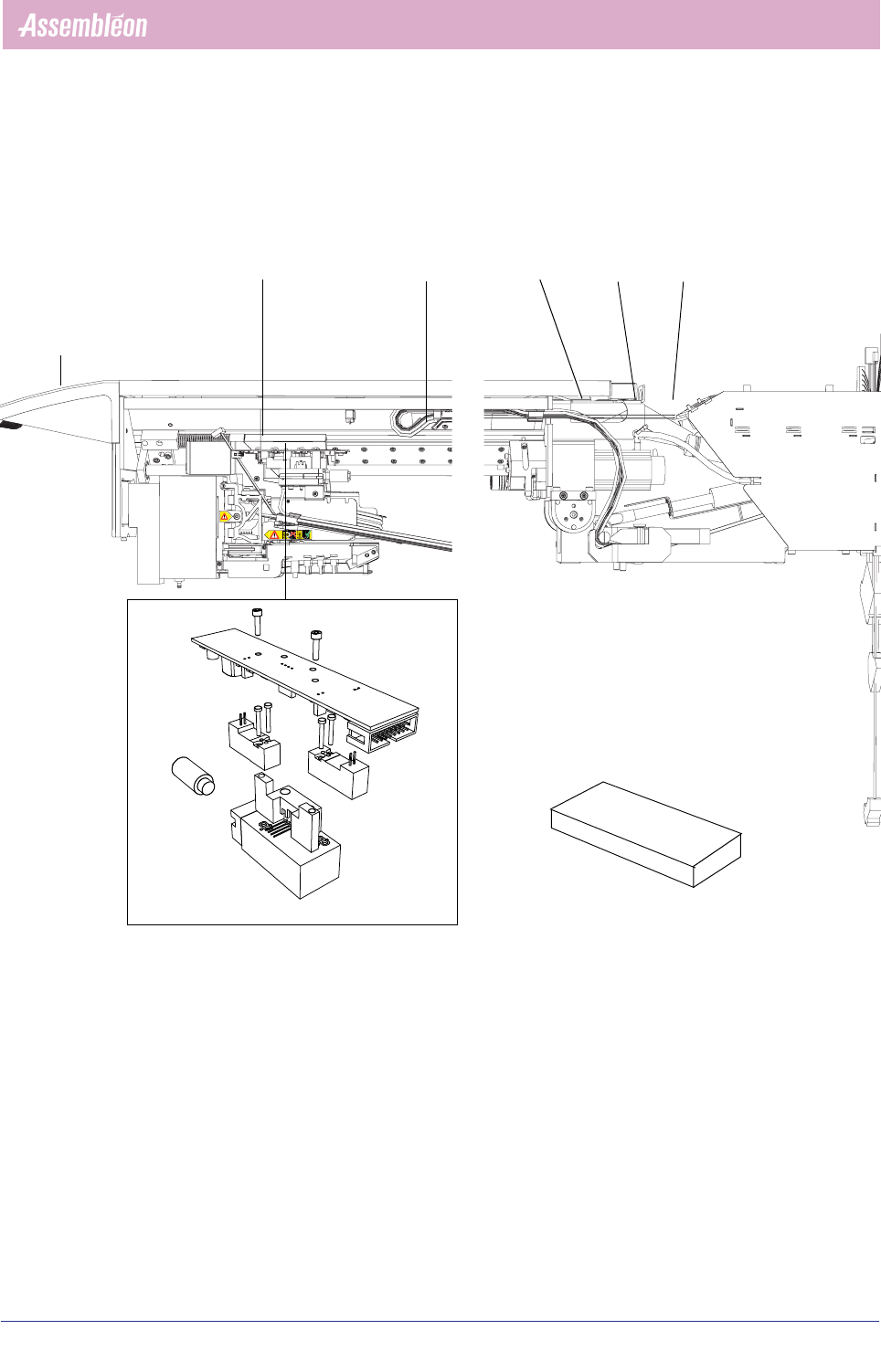

4022 593 50571 Service Manual
06.01 AX - series A8-39
A8. Spares, tools and materials
A. SYSTEM
15-01
15-02
15-03
15-04
15-05
15-07
15-0815-0915-10
15-12
15-13
15-14
15-15
15-17
15-16
15-06
15-16
15-18
15-19
15-20
