A8. Spares , tools and materials Service Manual 4022 593 50571 A8-46 AX - series 06.01 A. SYSTEM A8.3.19.2 F C M t r o l l e y f o r A X ( P A 2631/10) / Upgraded FCM-II feeder tr olley (P A 2631/00) Item No. Part of Ite…

100%1 / 46

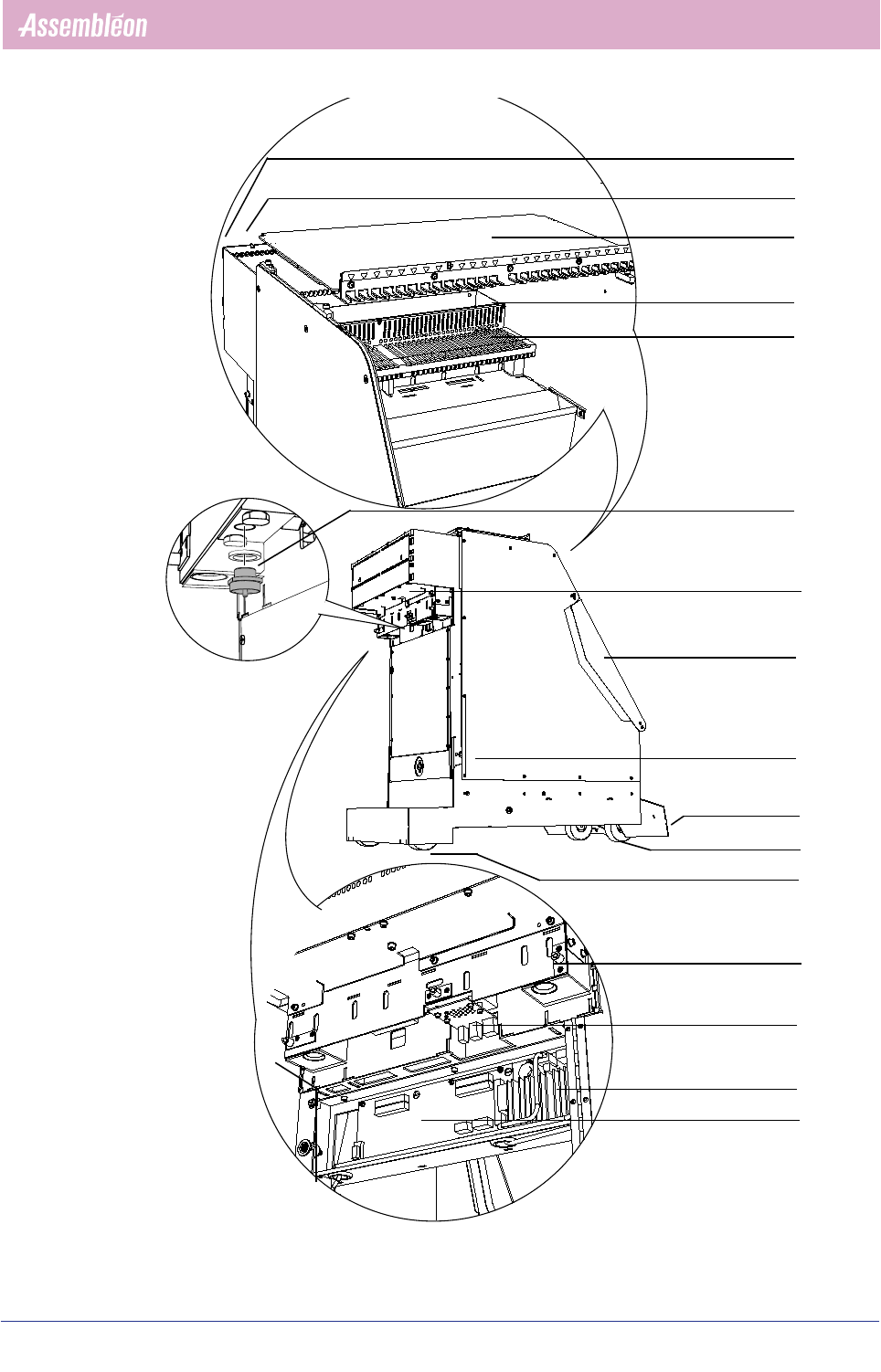

4022 593 50571 Service Manual
06.01 AX - series A8-45
A8. Spares, tools and materials
A. SYSTEM
19-01
19-02
19-03
19-04
19-05
19-06
19-07
19-08
19-09
19-11
19-13
19-10
19-12
19-14
19-15
19-16
A8. Spares, tools and materials
Service Manual 4022 593 50571
A8-46 AX - series 06.01
A. SYSTEM
A8.3.19.2 FCM trolley for AX (PA 2631/10) / Upgraded FCM-II feeder trolley (PA 2631/00)
Item No.
Part of Item No.
Ordering Code
Description
Qty/ Mod
Priority indicator
Repair options
Replacement Instruction
Remarks
13-01 9498-396-00117 Bumper strip 1 Y - -
13-02 9498-396-00120 Swivelling roller 2 Y - -
13-03 9498-396-00119 Wheel 2 Y - -
13-04 9498-396-00121 Air ram 1 Y - -
13-05 9498-396-00100 Trolley interface board 1 Y - -
13-06 9498-396-00124 O-ring 13.4x18x2.0 pvc 1 Y - -
13-07 9498-396-00099 Feeder interface board 4 Y - -
13-08 9498-396-00101 Assy power converter 1 Y - - Behind lid.
13-09 9498-396-00125 Contact pin 3 Y - -
13-10 9498-396-00106 Rocker switch aml24 2 Y - -
13-11 9498-396-00114 Rocker switch operator l 1 Y - -
13-12 9498-396-00115 Rocker switch operator r 1 Y - -
13-13 9498-396-00108 Air valve 8 Y - -
13-14 9498-397-00589 FCM trolley for AX
refurbished
1 - RO - Only for trolleys without
SVS-PRO
13-15 9498-398-00589 FCM trolley for AX
customized repair
1 - RC - For alle trolleys
4022 593 50571 Service Manual

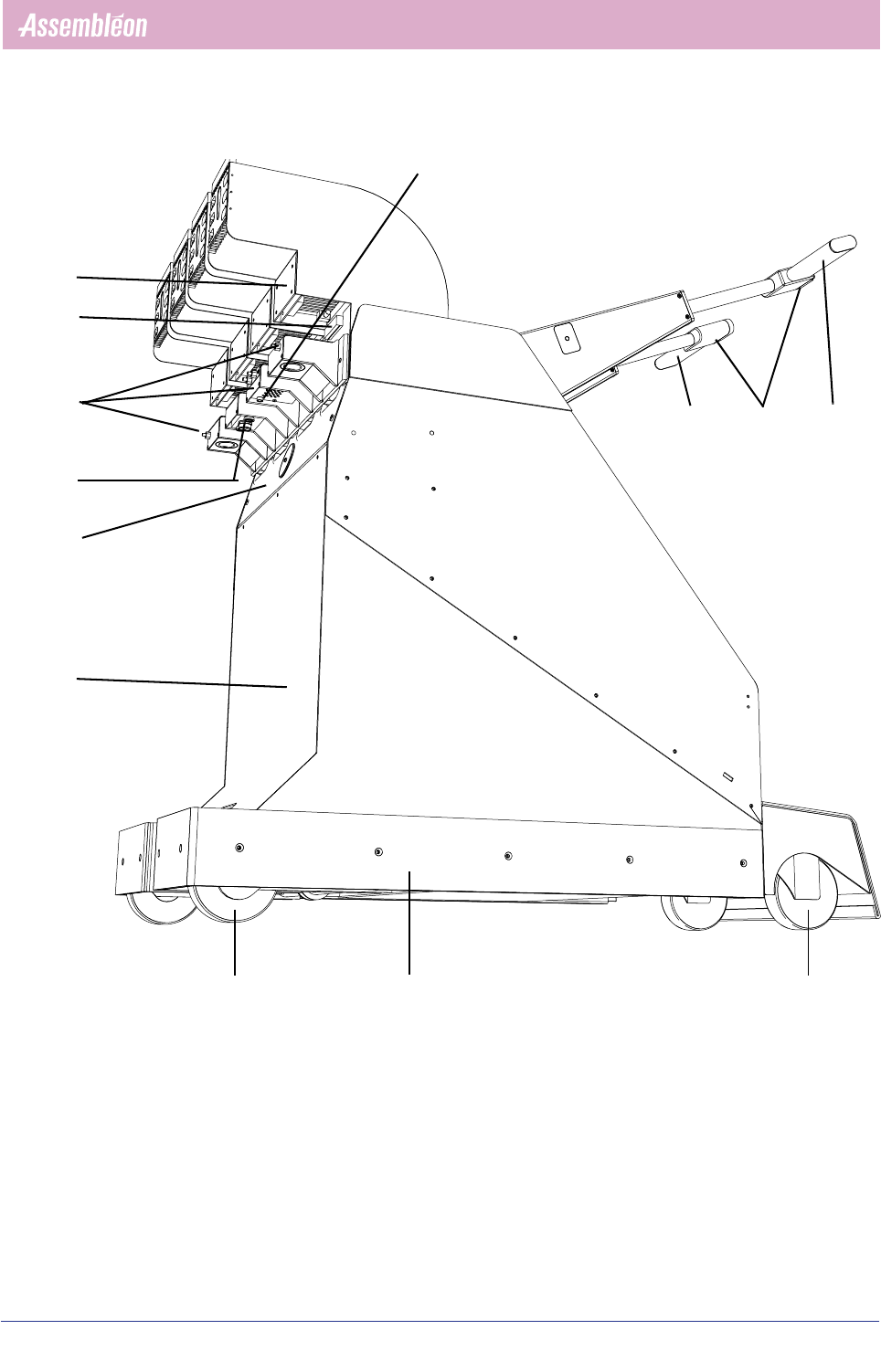

06.01 AX - series A8-47
A8. Spares, tools and materials
A. SYSTEM
13-02
13-03
13-04
13-05
13-06
13-07
13-08
13-09
13-10
13-11
13-12
13-13
13-01
13-14
13-15
