8 New Functionality SIPLACE Software Guide SR.503.xx
8.1 Software Version 503.01 Issue 12/01 EN
104
8.1.3 Synchronous Dual Transport
8.1.3.1 Purpose
Synchronous dual transport allows you to treat printed circuit boards that simultaneously
engage on both transport input conveyors as a logical printed board. This serves the purpose to
increase the transfer rate for cluster which requires a different pipette configuration. 8
8.1.3.2 Description
NOTE:
Please refer to the UNIX Line Computer Operating Guide and the Software Guide for the
respective machine for a detailed description. 8
8.1.4 Synchronous Restart
8.1.4.1 Purpose
If the connection between line computer and station is disrupted during running operation,
a dialog containing the corresponding information is displayed. After reboot of the line computer
under a running station, the communication between line computer and station is resumed,
and the dialog closes automatically. 8
8.1.5 Description
NOTE:
Please refer to the UNIX Line Computer Operating Guide and the Online Help for a detailed
description. 8
8
8
SIPLACE Software Guide SR.503.xx 9 Software installation
Issue 12/01 EN 9.1 General definitions
105
9 Software installation
9.1 General definitions
9.1.1 Initial installation
The first time the station software is installed on the computer system of a SIPLACE machine is
known as the „initial installation“. During this installation the following items are installed on the
hard disk of the station computer: The individual software components for the „SC“ (station com-
puter) and „MC“ (machine controller), and also sample machine data. 9
9.1.2 Update
If an initial installation has already been carried out, and you subsequently wish to install a later
version of the station software, this process is known as an "Update". The update process does
not overwrite the saved machine data!
You are able to tell which version of the software you have by looking at the last two characters of
the software version.
Example
SR.503.01 SR = System components 503 = Version number 01 = Release status
(station computer)
NOTE
Software versions which have later release numbers are versions where errors have been cor-
rected. In terms of function, these versions are NOT different to older release versions and are in
principle compatible. 9
9.1.3 Upgrade
The installation of a software version with a version number higher than the existing, installed
version is known as an „Upgrade“.
When upgrading, the machine data is maintained and is automatically converted to the new data
format.
The range of functions of the station software is identified by the three-figure number (version
number) which gives the complete software version identification.
Example
SR.503.xx 503 = Version number Identifies the range of functions of the software.
9 Software installation SIPLACE Software Guide SR.503.xx
9.2 Installing the 503.xx station software Issue 12/01 EN
106
9.2 Installing the 503.xx station software
NOTE
Time required to install: Approximately 30 minutes. 9
– Switch on the station.
– Log on as the administrator (hold down the Shift key, as soon as the NT logo appears).
– Put the CD into the CD drive. The installation begins by asking you to select a language.
9.2.1 Select a language
The first screen asks you to select the language you wish to use for the installation. Choose be-
tween German and English. 9
9

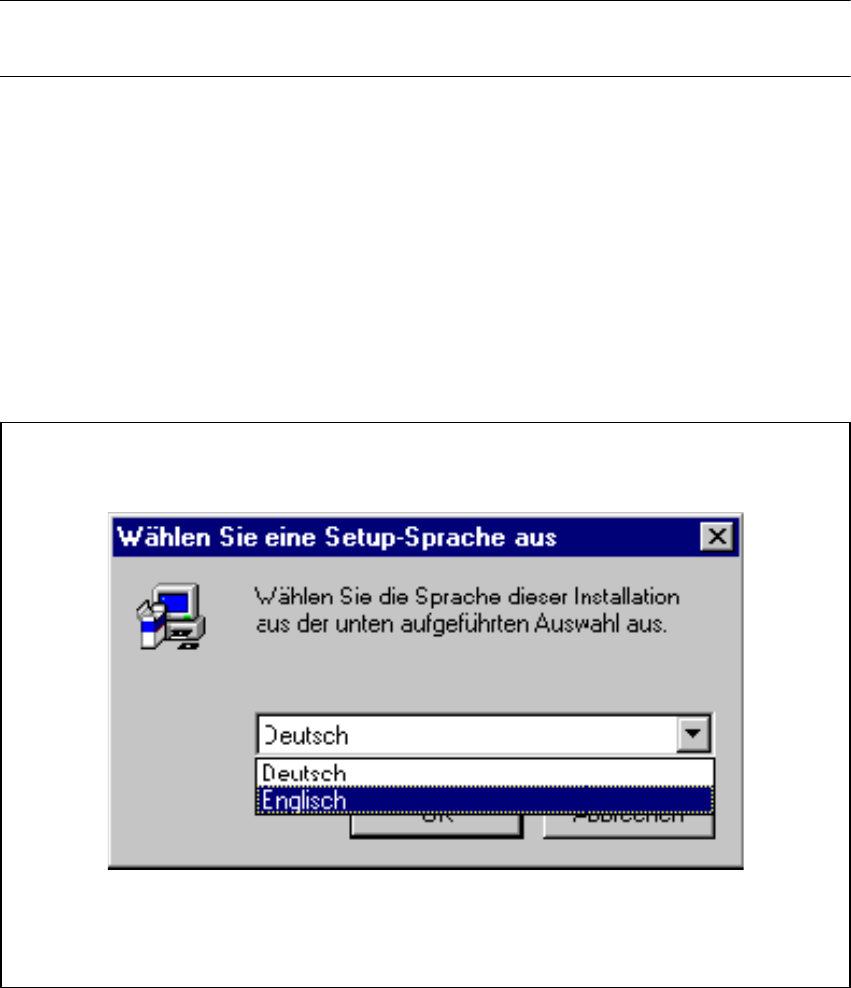

Fig. 9.2 - 1 "Language selection" dialog box
Use OK to move on to the Welcome screen. 9
