9 Software installation SIPLACE Software Guide SR.503.xx

9.2 Installing the 503.xx station software Issue 12/01 EN

108

9.2.3 Registration

Here you are asked to enter your name and the company you work for. This information is saved

to a protocol file created by the installation program. 9

Fig. 9.2 - 3 "Registration" dialog box

SIPLACE Software Guide SR.503.xx 9 Software installation

Issue 12/01 EN 9.2 Installing the 503.xx station software

109

9.2.4 Confirmation of registration

This screen allows you to double-check your entries. Depending whether you choose Yes or No

the entries may be corrected or the actual query procedure triggered. 9

Fig. 9.2 - 4 Confirmation of registration details

9 Software installation SIPLACE Software Guide SR.503.xx

9.2 Installing the 503.xx station software Issue 12/01 EN

110

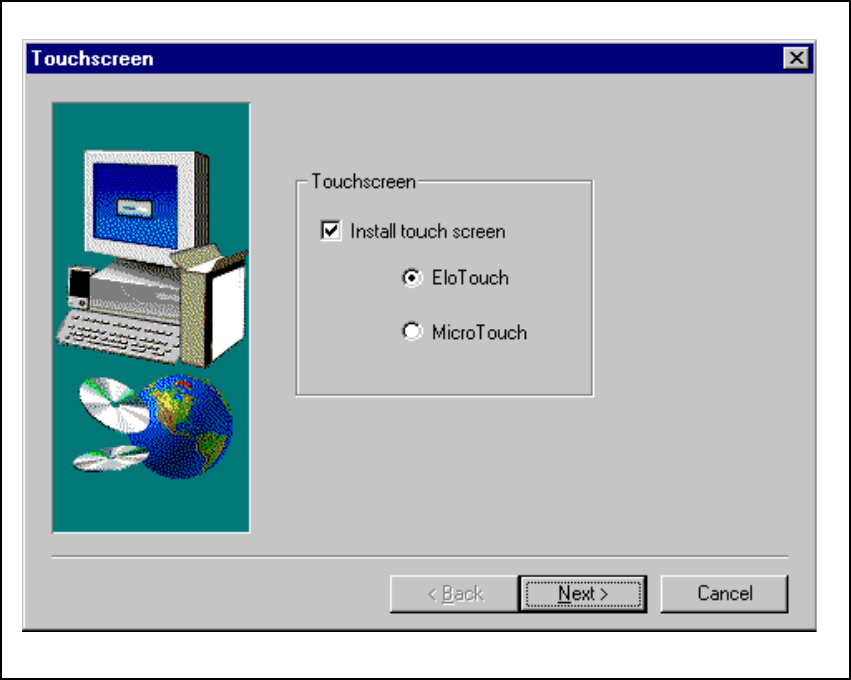

9.2.5 Selecting a touch screen

In the following screen, you will be asked to enter the type of touch screen. Based on the entry

you make here the appropriate touch screen drivers will be installed on your computer. If the cur-

rent installation is an update you will not be required to make any specifications here. 9

Fig. 9.2 - 5 Selecting a touch screen
