3 Graphical user interface SIPLACE Software Guide SR.503.xx
3.3 User interface - views and menus Issue 12/01 EN
46
Line computer
If a cluster has been prespecified at the station, all the necessary associated data is loaded from
the line computer. The data must be located on the line computer’s hard disk. 3
Synchronous Restart 3
If the connection between line computer and station is disrupted during running operation,
a dialog containing the corresponding information is displayed. After reboot of the line
computer under a running station, the communication between line computer and station is re-
sumed, and the dialog closes automatically. 3
3
SIPLACE Pro
Establishes the connection to the SIPLACE Pro programming system. 3
3
Activate the radio button for the required control mode.
Click OK to make your settings active.
New cluster... 3
In „Stand alone“ mode, you can load the data for a selected cluster from the station computer’s
hard disk. 3
Click the New cluster... menu item. When using a single conveyor, the following dialog ap-
pears:
3

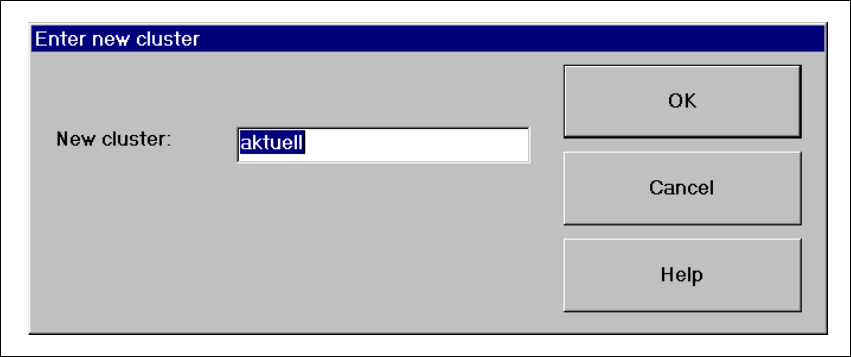

Fig. 3.3 - 11 „Enter new cluster“ dialog box for single conveyor
Now enter the name of the required cluster in the displayed text box and click OK to confirm.
The cluster data is now loaded.
SIPLACE Software Guide SR.503.xx 3 Graphical user interface
Issue 12/01 EN 3.3 User interface - views and menus
47
NOTE
The data, including the fiducial and component package form data, of the last cluster successfully
specified by the line computer, is now saved on the station computer’s hard disk under the cluster
name „AKTUELL“ and can be loaded by entering this name. 3
3 Graphical user interface SIPLACE Software Guide SR.503.xx
3.3 User interface - views and menus Issue 12/01 EN
48
When using a dual conveyor, the following dialog appears:
3
Fig. 3.3 - 12 "Enter new cluster" dialog box for dual conveyor
Now enter the name of the required cluster in the displayed text box and click OK to confirm.
The cluster data is now loaded.
NOTE
The data, including the fiducial and component package form data, of the last cluster successfully
specified by the line computer, is now saved on the station computer’s hard disk under the cluster
name „AKTUELL“ and can be loaded by entering this name. 3
Software options 3
This menu item is used to activate the test commands (test functions) for checking a variety of
machine components. 3
NOTE
This menu item can only be called from the "Service" access level. 3
DANGER
Settings for test commands and test command execution should be performed by service engi-
neers only. 3
Click the Software options menu item.
The following window is opened.
