5 Error information and TSS SIPLACE Software Guide SR.503.xx
5.2 Calling error information Issue 12/01 EN
72
Click on the Error information button.
The main Help system window is opened and displays information on the currently selected
error (see Fig. 5.2 - 4).
5
Fig. 5.2 - 4 Example: Error information on the current error
Meaning of the colors in the error information display 5
– Red text Error number and error message
– Black text Possible cause(s) of the error
– Blue text Instructions on how to eliminate the error
– Green, underlined text Click to call up additional information
5
SIPLACE Software Guide SR.503.xx 5 Error information and TSS
Issue 12/01 EN 5.2 Calling error information
73
5.2.2.1 Inserting or editing comments on errors
In all the error information views you are able to enter comments which you can then subsequently
edit if necessary. In this way, you can, for example, document the operations which you have per-
formed. If a comment has been created in a view, this is indicated by the presence of a paper clip
icon. 5
5
Inserting a comment
Click the Annotate button in the view in question.
The following window is displayed.

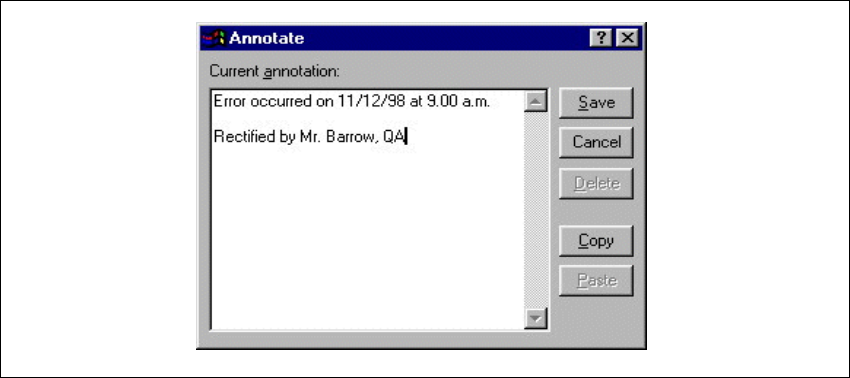

Fig. 5.2 - 5 Inserting a comment
Enter the text of your comment in the edit field.
Click the Save button to confirm your input.
The dialog box is closed.
The paper clip icon is now displayed in the current help system view (see Fig. 5.2 - 4). Click this
icon if you want to open a window in which you can edit this comment.
Deleting a comment
Click the paper clip symbol in the appropriate view.
The dialog box is opened with the stored comment.
Click the Delete button.
The dialog box is closed. The paper clip icon is no longer displayed in the current view.
5 Error information and TSS SIPLACE Software Guide SR.503.xx
5.3 Clear error Issue 12/01 EN
74
5.3 Clear error
Once an error has been eliminated, it can be cleared. This is not necessary in the case of errors
which cause a machine stoppage since they are automatically cleared when placement is re-
sumed. 5
Once cleared, the error message is no longer displayed in the status bar. However, it is still en-
tered in the error table for the corresponding error type (see example in Fig. 5.2 - 2). 5
5
After eliminating the current error, click the button in the Main view.
The error message is deleted from the status bar and placement operation can be continued.
