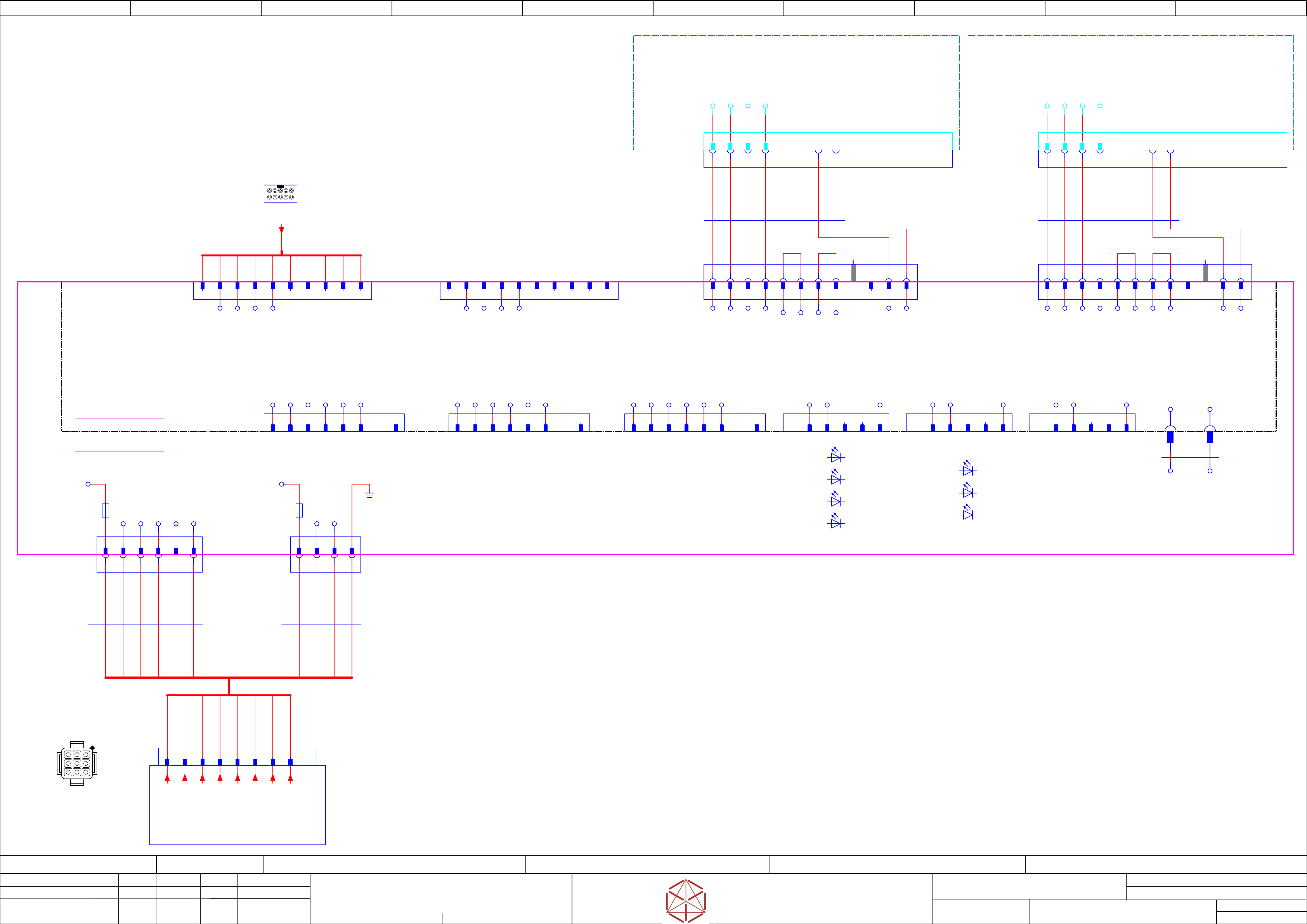

Function: Single Conveyor right SX1/2
==CO001=SX12_V3+L1/100
drawing number:
03089181-010401LX3
single_conveyor_SX12a_right
GmbH & Co KG
ASM
Assembly Systems
Copyright reserved
Ed.
Original
schnedlitz
Date
Date
Modification
Appr
30.04.2020
Name
starting MC-Nr.: 2018/Q3 G. Pingist
Size DIN A2
Sheet
100
/
5
Control-unit TSP-420-IO (daughter-board)
<----------- not used ----------->
CONTROL - POWER MOTOR - POWER
-X22
Machine-Canbus
1 2 3 4 5 6 7 8 9 10
-X29
1 2 3 4 5 6
-X28
1 2 3 4
Power-unit TSP-420-M (main-board)
-X23
Internal-Canbus
1 2 3 4 5 6 7 8 9 10
-X3
1 2 3 4 5 6 7 8 10 11 129
BN +24V
2__GND(42)
1__+42V
WH PWROK
GN GND(24)
GY Pass.T
YE BRK(24V)
GN GND(24)
YE BRK(24V)
GY Pass.T
WH PWROK
1__+42V
2__GND(42)
YEGN PE
BN +24V
YEGN PE
-X28
Mate-N-Lok
(A1)
1 2 3 4
-X29
Mini-Mate-N-Lok
(A1)
1 2 3 4 65
<-- not used -->
-X9d:1 64
daughter-board
-X9m:1
main-board
64
64x
Bus-Connection
-X9
1 . . . .
64
-X52
1 2 3 4 5 6 87
-X53
1 2 3 4 5 6 87
-X54
1 2 3 4 5 6 87
-X58
2 3 4 5 61
-X59
2 3 4 5 61
-X60
2 3 4 5 61
1 2 3 4 5 7 8 9 106
==CH+-X7ao
-X22(A1)
Machine-Canbus-2
BK-MOD female 10pol.
Key
9
Key
10
-XL1-upstream
N+1
1 2 3 4 5 6 7 8 9 10 11 12 13 14
-XL1-downstream
N-1
1 2 3 4 5 6 7 8 9 10 11 12 13 14
Bridge-J2Bridge-J1 Bridge-J2Bridge-J1
-X3 (A1)
1 2 3 4 5 6 7 8 11 12
5 6 9 10 11 12 13 14
-XL1
CPC round-plug 14pol
SMEMA Interface
Lane-1 upstream
(upstream)
1 2 3 4 7 8
-X4 (A1)
1 2 3 4 5 6 7 8 11 12
5 6 9 10 11 12 13 14
-XL1
CPC round-plug 14pol
SMEMA Interface
Lane-1 downstream
(downstream)
1 2 3 4 7 8
-X79 (CO)
Mate-N-Lok 9pol.
1 2 3 4 5 6 7 8 9
13
9
6
03087641-030101le3
03087640-030101le2
IN2
+24V
GND
IN5
+24V
GND
-A1
PCB: "Lane-1"
TSP-420-xx
03087642-02
IN1
+24V
GND
IN4
+24V
GND
OUT2
+24V
GND
IN0
+24V
GND
IN3
+24V
GND
OUT1
+24V
GND
OUT0
+24V
GND
GND
CAN1-H
CAN1-L
GND
PWROK
P-BRK(24V)
GND2(24)
Pass-Trough
GND1(24)
1
2
-F2
2AT
GND(42)
nc
1
2
-F1
6,3AT
+42V
PE
+24V
GND
CAN1-H
CAN1-L
GND
>+READY-RECEIVE
>-READY-RECEIVE
<+AVAILABLE
<-AVAILABLE
N_GND
GND
>+AVAILABLE
>-AVAILABLE
/N_SMEMA
GND
<+READY-RECEIVE
<-READY-RECEIVE
V_GND
GND
/V_SMEMA
GND
-X4
1 2 3 4 5 6 7 8 9 11 1210
820 mm
3G1,5
ÖLFLEX 150CY UL
03088906-02
-W1.2
1
2
GNYE
600 mm
5x0,5
UNITONIC LiYY
03088906-02
-W1.1
WH
BN
GN
YE
GY
-H5
D(4) Control +48V
GN
-H6
D(5) Control +24V
GN
-H7
D(6) Control P_Brake
GN
-H3
D(2) CAN-Bus extern
YE
-H4
D(3) CAN-Bus intern
YE
-H1
D(O) Processor boot
RD
-H2
D(1) Processor ready
GN
>+FAILED-BOARD
>-FAILED-BOARD
<+FAILED-BOARD
<-FAILED-BOARD
>+READY-RECEIVE
>-READY-RECEIVE
<+AVAILABLE
<-AVAILABLE
<+READY-RECEIVE
<-READY-RECEIVE
>+AVAILABLE
>-AVAILABLE
+INP1
Interface N+1
Lane-1
+INM1
Interface N-1
Lane-1
10
2400 mm
3x2x0,23
UNITRONIC LiYCY (TP) UL/CSA
03058260-02
-W5
WH BN GN YE GY PK
9
2400 mm
3x2x0,23
UNITRONIC LiYCY (TP) UL/CSA
03058259-02
-W6
WH BN GN YE GY PK
-X79
Conveyor
Main-Power
Conveyor power-supply input
==CO+-CAN_r
==CH+CAN/61.6
+-GND42
+-42V
+-BRAKE.
+-PASST.
+-PE.
+-PWROK.
+-24V
+-GND24
