ASM贴片机SX2机型电路图 - 第13页
electric_schematic_SX12_V3 90013315-010101LE3 Replaced by Assembly overview, CPP head Replaced by Weitergabe sowie Vervielfältigung dieser Unterlage, Verwertung und Mitteilung des Inhalts nicht gestattet, soweit nicht au…
electric_schematic_SX12_V3
90013315-010101LE3
Replaced by
Assembly overview, CP20-P2 Head
Replaced by
Weitergabe sowie Vervielfältigung dieser Unterlage, Verwertung und
Mitteilung des Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden.
Proprietary Data, company confidential.
All rights reserved
Copying of this document, giving it to others and the use or
communication of the contents thereof, are forbidden without express authority.
Doc. No.
Privileged business information.
Do not release
Offenders are liable to payment of damages. All rights are reserved in the
event of the grant or the registration of a utility model or design.
Zuwiederhandlungen verpflichten zu Schadenersatz. Alle Rechte vorbehalten,
insbesondere für den Fall der Patenterteilung oder GM-Eintragung vorbehalten.
Page:
Function: Overview Graphics
==OVGR=SX12_V3/7
drawing number:
03126608-010102LE3
GmbH & Co KG
ASM
Assembly Systems
Copyright reserved
Ed.
Original
Schnedlitz
Date
Date
Modification
Appr
12.12.2019
Name
Size DIN A2
Sheet
7
/
7

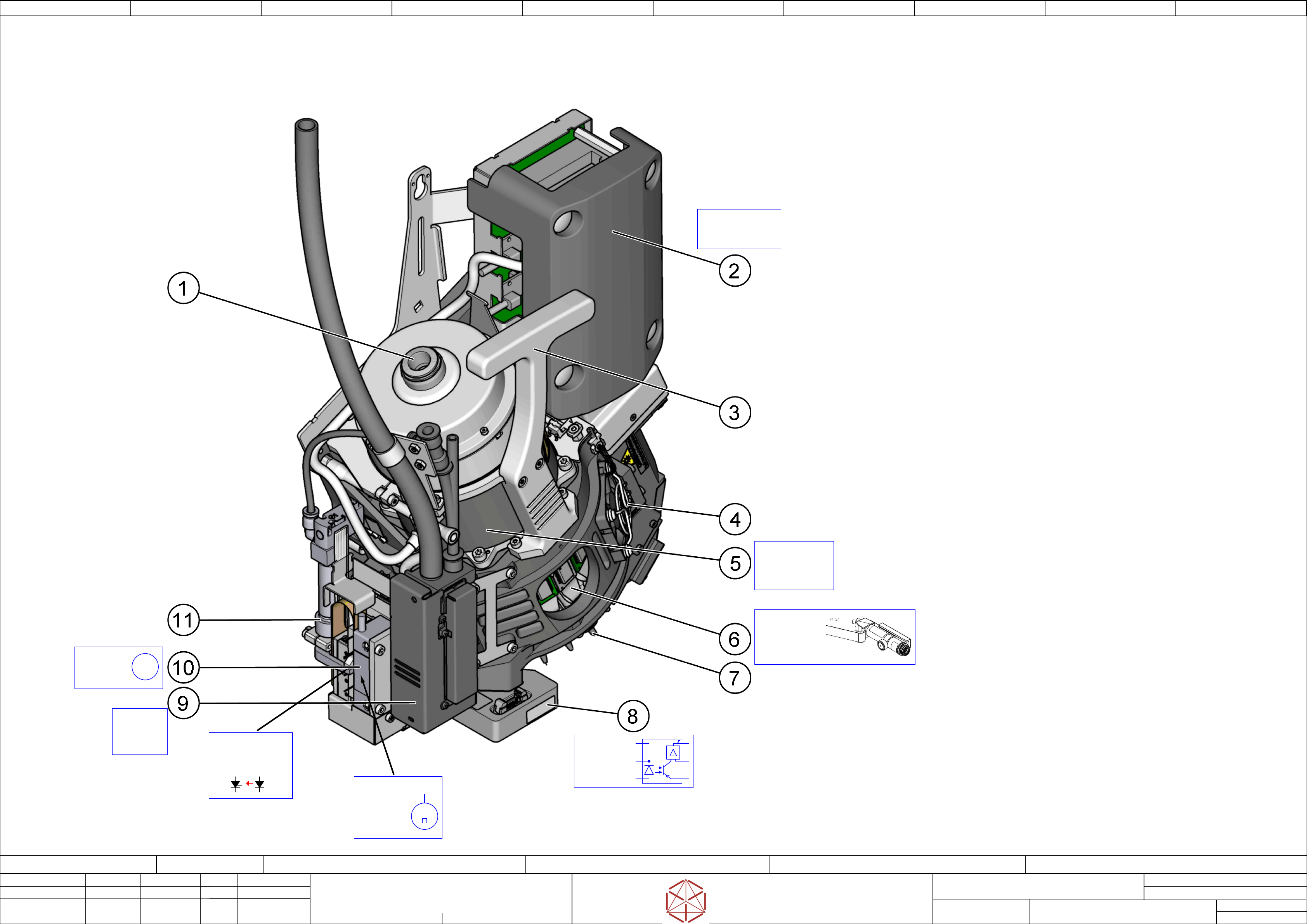

1. Connector to the interception circuit of the vacuum pump
(Screwed joint cpl. / CP20 P2)
2. Adapter board C&P 20 P2 (03134908-xx) (under the cover)
3. Handle
4. Fan
5. Star motor
6. 20x DP drive (03102532-xx)
7. Star with nozzles, holding circuit and silencer
8. Component sensor CP20 P2 (03133310-xx)
9. Pressure regulator valve (03136795-xx)
10. Z-motor (linear drive)
11. Return unit (03007696-xx)
Overview of C&P20 P2 Parts
M
~
-B5
Component
sensor CP20-P2
03133310
==HD+CP20_P2/92.2
+
+
--
-
-A4
Adapter board CP20 P2
03134908
==HD+CP20_P2/91.0
-M1
CP20-P2 star drive cpl.
03131704
==HD+CP20_P2/91.0
-M1.DP
DP-Drive
Faulhaber
Type:0850.K0040
03102532
==HD+CP20_P2/92.1
-Y1
Pressur
control valve
03136795
==HD+CP20_P2/92.4
-M2
Z-Motor
03154149
==HD+CP20_P2/91.4
-B2
Linear encoder
03106022
==HD+CP20_P2/91.3
-B3
Sensor / Z-below
bottom position
03102296
==HD+CP20_P2/91.6
electric_schematic_SX12_V3
90013315-010101LE3
Replaced by
Assembly overview, CPP head
Replaced by
Weitergabe sowie Vervielfältigung dieser Unterlage, Verwertung und
Mitteilung des Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden.
Proprietary Data, company confidential.
All rights reserved
Copying of this document, giving it to others and the use or
communication of the contents thereof, are forbidden without express authority.
Doc. No.
Privileged business information.
Do not release
Offenders are liable to payment of damages. All rights are reserved in the
event of the grant or the registration of a utility model or design.
Zuwiederhandlungen verpflichten zu Schadenersatz. Alle Rechte vorbehalten,
insbesondere für den Fall der Patenterteilung oder GM-Eintragung vorbehalten.
Page:
Function: Overview Graphics
==OVGR=SX12_V3/8
drawing number:
CPP_head
GmbH & Co KG
ASM
Assembly Systems
Copyright reserved
Ed.
Original
Schnedlitz
Date
Date
Modification
Appr
12.12.2019
Name
starting MC-Nr.: 2018/Q3 G. Pingist
Size DIN A2
Sheet
8
/
7
M

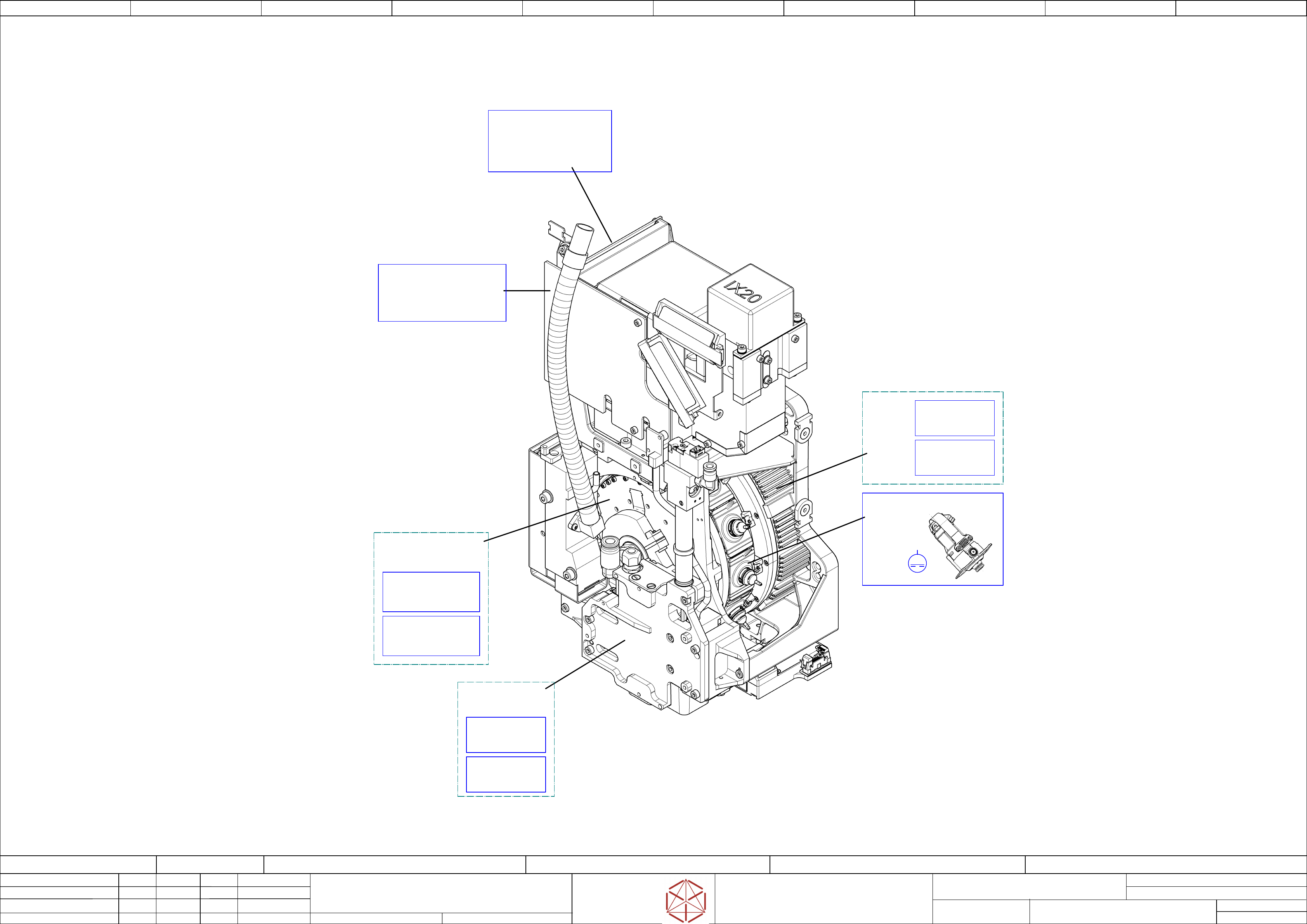

==HD+CPP_2-M2
CPP star motor
03061531
==HD+CPP_2/93.3
==HD+CPP_2-B2
Rotary encoder
03039363
==HD+CPP_2/93.0
M2
03063184
CPP star drive
==HD+CPP_2-M1.DP
DP-Drive CPP
03050314
==HD+CPP_2/95.0
==HD+CPP_2-M3
CPP Z-axis
03079054
==HD+CPP_2/93.7
==HD+CPP_2-B3
Z axis encoder
03039873
==HD+CPP_2/93.4
M3
Front panel with Z Drive CPP
03061102
==HD+CPP_2-A10
Board Power Unit SCS /CPP
03054771
==HD+CPP_2/95.0
==HD+CPP_2-A11
Board Control Unit SCS /CPP
03054784
==HD+CPP_2/95.5
A6
Star complete CPP
03015702
-A4
Intermediate Distributor 1
ZV1 CPP
03065295
==HD+CPP_2/93.4
-A5
Intermediate Distributor 2
ZV2 CPP
03052586
==HD+CPP_2/94.0
electric_schematic_SX12_V3
90013315-010101LE3
Replaced by
Assembly overview, TwinHead
Replaced by
Weitergabe sowie Vervielfältigung dieser Unterlage, Verwertung und
Mitteilung des Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden.
Proprietary Data, company confidential.
All rights reserved
Copying of this document, giving it to others and the use or
communication of the contents thereof, are forbidden without express authority.
Doc. No.
Privileged business information.
Do not release
Offenders are liable to payment of damages. All rights are reserved in the
event of the grant or the registration of a utility model or design.
Zuwiederhandlungen verpflichten zu Schadenersatz. Alle Rechte vorbehalten,
insbesondere für den Fall der Patenterteilung oder GM-Eintragung vorbehalten.
Page:
Function: Overview Graphics
==OVGR=SX12_V3/9
drawing number:
03097233-010601LX3
Twin_head
GmbH & Co KG
ASM
Assembly Systems
Copyright reserved
Ed.
Original
schnedlitz
Date
Date
Modification
Appr
30.04.2020
Name
starting MC-Nr.: 2018/Q3 G. Pingist
Size DIN A2
Sheet
9
/
7
M
M
Optional:
VHF Twin Head
(High force option)
==HD+TWIN2-A5-A6
Force measurement board-centering
03104142
==HD+TWIN_3/99.2
==HD+TWIN2-M1
Z-axis linear drive
P&P module 1
03092655
==HD+TWIN_3/99.2
==HD+TWIN2-A4
Head mainpoard P+P head
inter-distribution
00352833
==HD+TWIN_3/98.0
==HD+TWIN1-A4
Head mainboard P+P head
inter-distribution
00352833
==HD+TWIN_3/96.0
==HD+TWIN2-B1
Z-axis-encoder
03090205
==HD+TWIN_3/98.5
==HD+TWIN1-A5-A6
Force measurement board-centering
03104142
==HD+TWIN_3/97.2
-M2
DP-Unit P+P - Modul
03014683
-DM2
P310 disc
magnet motor
03014681
==HD+TWIN_3/99.4
-B2
Encoder
P&P module
03000046
==HD+TWIN_3/99.5
-DM2
P310 disc
magnet motor
03014681
==HD+TWIN_3/97.4
-B2
Encoder
P&P module
03000046
==HD+TWIN_3/97.5
-M2
DP-Unit P+P - Modul
03014683
==HD+TWIN1-K1
Pressure
control valve
03058802
==HD+TWIN_3/96.0
==HD+TWIN2-K1
Pressur
control valve
03058802
==HD+TWIN_3/98.0
