ASM贴片机SX2机型电路图 - 第19页

electric_schematic_SX12_V3 90013315-010101LE3 Replaced by Block_diagram IC & FC stationary cameras Replaced by Weitergabe sowie Vervielfältigung dieser Unterlage, Verwertung und Mitteilung des Inhalts nicht gestattet…

electric_schematic_SX12_V3

90013315-010101LE3

Replaced by

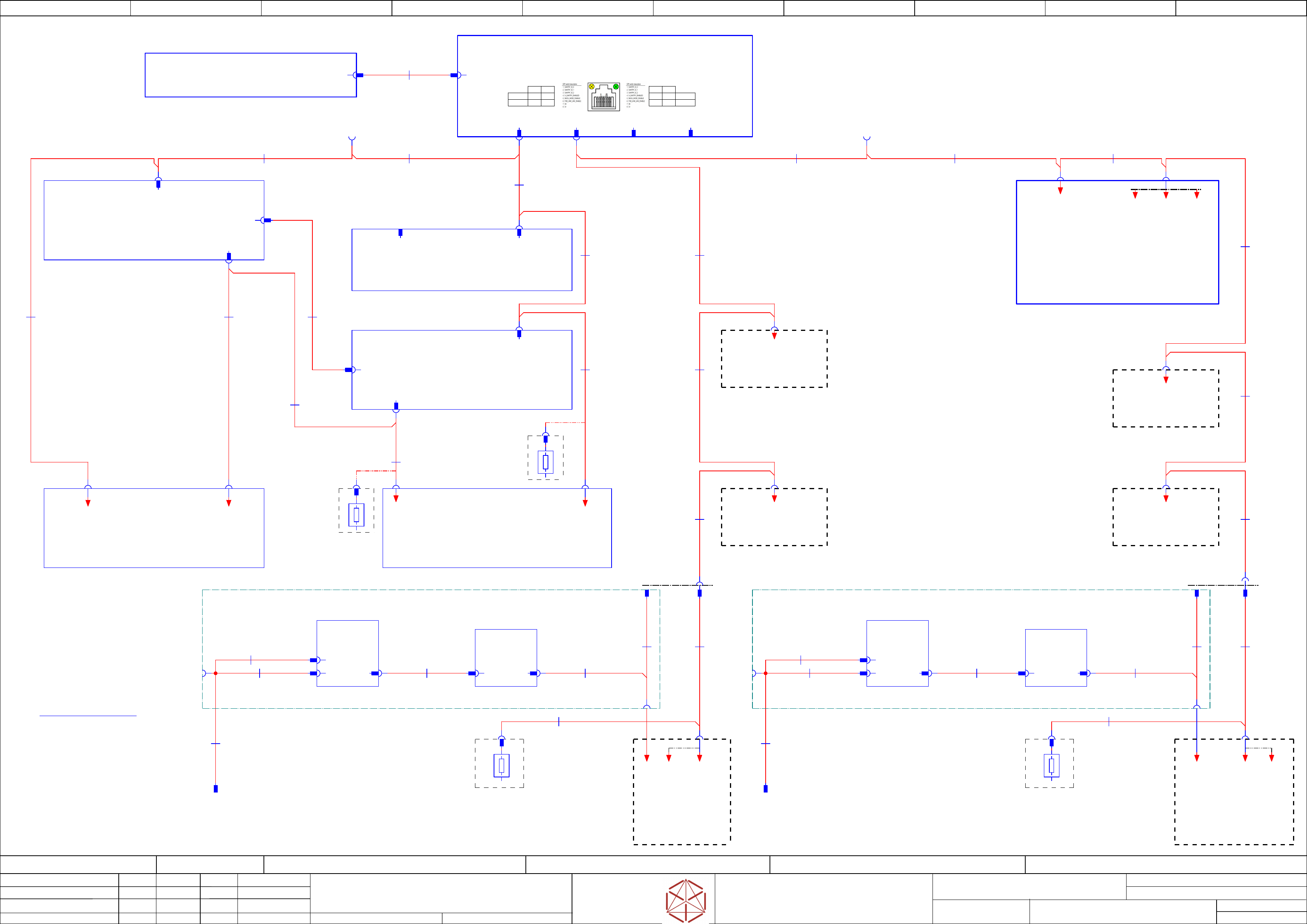

Block_diagram CAN-BUS 1 & 2

Replaced by

Weitergabe sowie Vervielfältigung dieser Unterlage, Verwertung und

Mitteilung des Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden.

Proprietary Data, company confidential.

Copying of this document, giving it to others and the use or

communication of the contents thereof, are forbidden without express authority.

Doc. No.

00 01 02 03 04 05 06 07 08 09

Privileged business information.

Do not release

Offenders are liable to payment of damages. All rights are reserved in the

event of the grant or the registration of a utility model or design.

insbesondere für den Fall der Patenterteilung oder GM-Eintragung vorbehalten.

Page:

Function: Overview

==OV=SX12_V3+CH/13

drawing number:

03200800-010301LE3

Cable_harness CAN

GmbH & Co KG

ASM

Assembly Systems

Ed.

Original

maettig

Date

Modification

Appr

29.04.2020

Name

starting MC-Nr.: 2018/Q3 G. Pingist

Size DIN A2

Sheet

CAN-BUS-1

CAN-BUS-2

not used

Optional-connection

CAN2-WPT1

Optional-connection

CAN2-WPT2

CAN bus wiring

wire no. wiring SUB-D pin

free

GND

CAN_L

CAN_H

GND

free

Note:

CAN Terminating Resistor (120 Ohm)

Set the DIP-switches to

ON-position (= terminated).

1 2

ON ON

OFF OFF

X-Ser S

SX1/2

3 4

ON ON

OFF OFF

X-Ser S

SX1/2

LAN120Ohm 120Ohm

120R

TR2

03027646

one_Gantry_version only

Terminating

Resistor

120R

TR2

03027646

one_Gantry_version only

Terminating

Resistor

-MGCU1

Position controller gantry axis MGCU-3

03103477

Gantry 1

==CH+GA/62.00

-X74Usc

-X1Usc

GCAN

-ao

CAN2_in_out

==CH+CAN/61.03

Optional =

single-Conveyor-right

single-Conveyor/left

-PC

Control computer BoxPC-427D i3 2xPCIe

03114177

==CH+CTRL/58.00

-X2 -X1

MCAN-BUS 1

03112114

-W1.4

MCAN-BUS 2

03099372

-W2.1

-MGCU2

Position controller gantry axis MGCU-3

03103477

Gantry 2

assembly two_Gantry_version only

==CH+GA/64.00

-X1_q

-aa

Trailing-Interface SX1/2 (GigE)

03215039

MCAN-BUS 1

03112114

-W1.3

MCAN-BUS 1

03112114

-W1.2

-CAN2.CIN-CAN1.CIN-CAN1.SERVICE

MCAN 1

-X1qb

-X2pn2

MCAN 2 Service

-X1Osc

-X17aa

-X1Ouc

-X1Usc

-X115

-X1_p

MCAN-BUS 1

03112114

-W1.1

MCAN-BUS 1

03112114

-W1.5

-ca

Trailing-Interface SX1/2 (GigE)

03215039

two_Gantry_version only

-X17ca

MCAN-BUS 1

03112114

-W1.6

MCAN-BUS 2

03099372

-W2.3

-X10am

Location-1

Stationary IC-cameras

MCAN-BUS 2

03099372

-W2.5

MCAN-BUS 2

03099372

-W2.6

-X7ap -X7ao

MCAN-BUS 2

03099372

-W2.2

MCAN-BUS 2

03099372

-W2.4

-X10bm

Location-2

Stationary IC-cameras

MCAN-BUS 2

03099372

-W2.8

MCAN-BUS 2

03099372

-W2.9

MCAN-BUS 2

03099372

-W2.7

-X135

-X18aa

-X1Uuc

GCAN

-X1Uuc

-X18ca

-X115

-X31p

MCAN-BUS 2

03060471

-W2.11

-X116

-W2.12

MCAN-BUS 2

03060471

120R

/13.08

-A

Terminating

Resistor

03027646

120R

/13.03

-A

Terminating

Resistor

03027646

-X1_5

-X3_p

03072093

-W1.2

-CAN_SW1

Can-switch

==COTi30+Loc1_2/72.05

-X74Uuc

MGCU1 - MGCU2 bus

-X2_q

-W1.1

03072093

==COTi30+CAN-CAN_WPC1

Machine-Can-Bus-2 extention for WPC1

==COTi30+CAN/68.00

-X1 -X1.1

-CAN_TERM1

Ca-Bus-terminator

==COTi30+Loc1_2/72.03

-X2

-W1

03072098

-X21p

-X2

-W3

03072097

-X200.(WPC1)

-X135

-X32p

MCAN-BUS 2

03060471

-W2.21

-X136

-W2.22

MCAN-BUS 2

03060471

03055207

-W1

-X74Usc

MGCU1 - MGCU2 bus

GCAN-BUS

03112107

-W3.4

GCAN-BUS

03112107

-W3.3

GCAN-BUS

03112107

-W3.1

-X1qs.(WPC1)

-X14pa Distributor

Safety + Signaling

Cable

Interface WPC

Safety + Signaling

03072097

-W1

-X3-X3

-W2

03072097

-X1_q -X1_p

-X125

-X32p

03072093

-W1.2

-CAN_SW2

Can-switch

==COTi30+CAN/68.05

-X2_q

-W1.1

03072093

==COTi30+CAN-CAN_WPC2

Machine-Can-Bus-2 extention for WPC2

==COTi30+CAN/68.05

-X1 -X1.1

-CAN_TERM2

Ca-Bus-terminator

==COTi30+CAN/68.05

-X2

-W1

03072098

-X21p

-X2

-W3

03072097

-X200.(WPC2)

-X3-X3

-W2

03072097

-X1qt.(WPC2)

-X16pa Distributor

Safety + Signaling

Cable

Interface WPC

Safety + Signaling

03072097

-W1

==CH+CTRL/58.07

03108598

CAN Interface CIN

-CIN

-LAN

-LAN.CIN

-CAN4-CAN1 -CAN2 -CAN3

-X1P1

LAN1

-X1.PC

-W1

03112243

Patch cable CAT.5e S-FTP

-X1Osc

MCAN 1

-X1Ouc

MCAN 1

-X10cm

Location-2

Stationary FC-cameras

-X10dm

Location-1

Stationary FC-cameras

==CO+-CAN.Lane2

dual-Conveyor

==CO+-CAN.Lane1

+CO003/36.12

dual-Conveyor

==COTi60+Loc1-MCAN.1

+COTi60/18.02

FCU COTi_Loc1

==GA1+-MCAN

+GA/24.08

End-Termination

==GA1+-GCAN

+GA/24.07

End-Termination

==CO+-CAN.CO_r

+CO001/32.12

single-Conveyor/right

==CO+-CAN.CO_l

+CO002/34.12

single-Conveyor/left

==GA2+-MCAN

+GA/25.08

End-Termination

==GA2+-GCAN

+GA/25.07

End-Termination

==IC=+Loc1-CAN.2

+stCAM/14.03

==IC=+Loc2-CAN.2

+stCAM/14.08

==COTi60+Loc2-MCAN.2

+COTi60/20.02

FCU COTi_Loc2

==MT60+Loc1-MCAN.1

alternative MT60

==MT60+Loc2-MCAN.2

alternative MT60

==COTi30+Loc2-MCAN.2

+COTi30/15.02

==COTi30+Loc1-MCAN.1

+COTi30/15.02

==FC=+Loc2-CAN.2

+stCAM/14.06

==FC=+Loc1-CAN.1

+stCAM/14.02

electric_schematic_SX12_V3

90013315-010101LE3

Replaced by

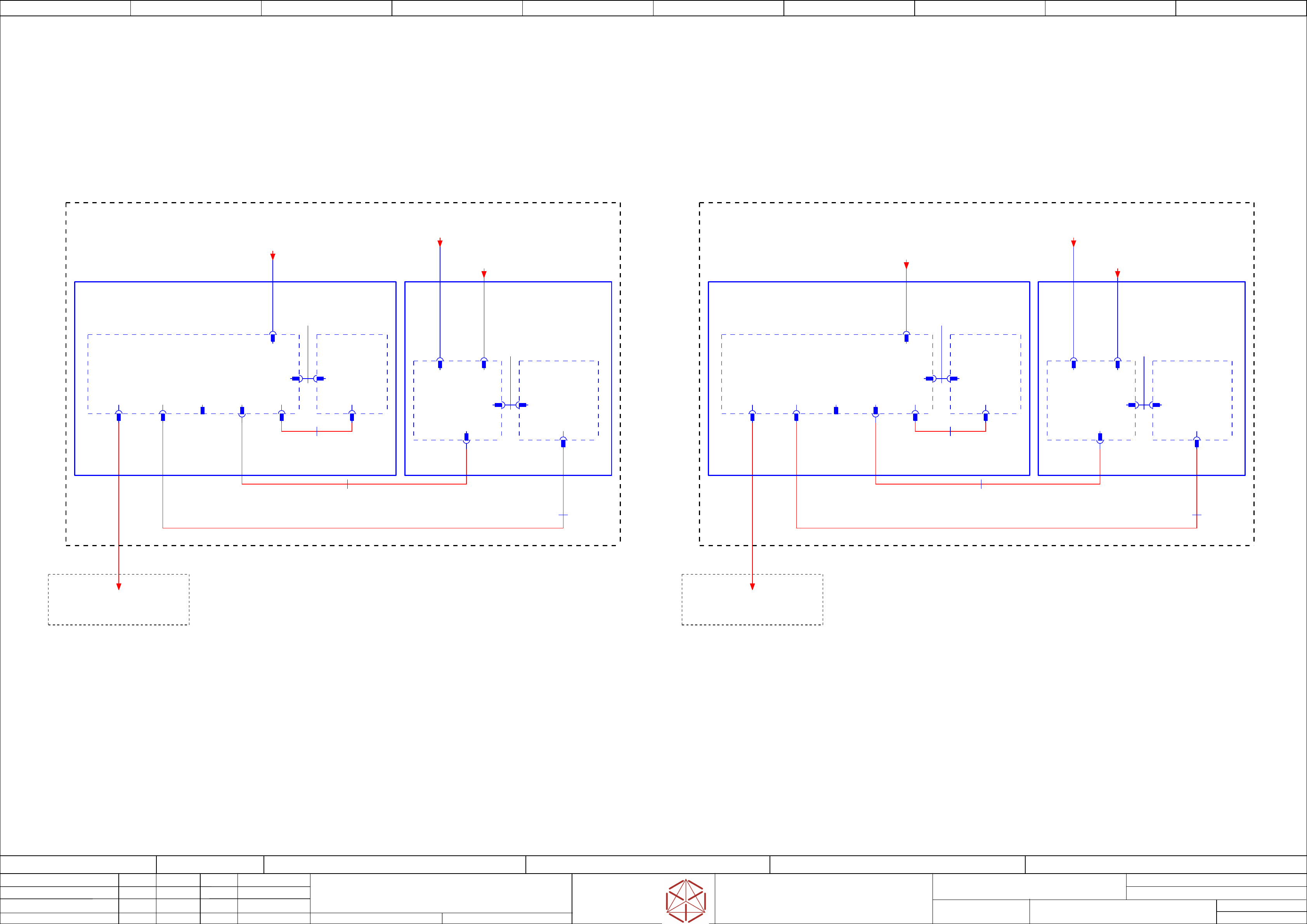

Block_diagram IC & FC stationary cameras

Replaced by

Weitergabe sowie Vervielfältigung dieser Unterlage, Verwertung und

Mitteilung des Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden.

Proprietary Data, company confidential.

Copying of this document, giving it to others and the use or

communication of the contents thereof, are forbidden without express authority.

Doc. No.

00 01 02 03 04 05 06 07 08 09

Privileged business information.

Do not release

Offenders are liable to payment of damages. All rights are reserved in the

event of the grant or the registration of a utility model or design.

insbesondere für den Fall der Patenterteilung oder GM-Eintragung vorbehalten.

Page:

Function: Overview

==OV=SX12_V3+stCAM/14

drawing number:

03055284-030401LE3

Cable_harness IC&FC Camera

GmbH & Co KG

ASM

Assembly Systems

Ed.

Original

Schnedlitz

Date

Modification

Appr

12.12.2019

Name

starting MC-Nr.: 2018/Q3 G. Pingist

Size DIN A2

Sheet

Wiring example for

IC camera stationary and

FC camera stationary

Location 1

Wiring example for

IC camera stationary and

FC camera stationary

Location 2

-FC2-cm

Vision LED controller

VLC25 GigE

03117587-xx

-X4

Power in

-X10

MCAN

-IC2-bm

Vision LED controller

VLC33/36 GigE

03117981-xx

-X5

Power out

-X10

MCAN

-IC2

CO camera stat. P+P

(Type 33) 55x45 GigE

03105198

-FC2

CO camera stat. P+P

(Type 25) 16x16 GigE

03105205

-X4

Power in

-X22.2

RJ45

-X22.1

RJ45

-X5

Power out

-X22.2_FC2

-X5bm

-X4cm

Extension power FC camera

03106368

-W1.2

4G1,0

-X10cm

-IC2-CAM

CCD-Camera

Baumer GSX20

03103549-xx

-X2

RJ45

-X2

-X1-X31

-FC2-CAM

CCD-Camera

Baumer GSX20

03103549-01

-X1

-X2

RJ45

-X31

-X21

RJ45

-X21.mm

-X2

I/O-cable

VLC25/33-GXS20 GigE

03106364

-FC2-W1

I/O-cable

VLC25/33-GXS20 GigE

03106364

-IC2-W1

Extension camera bus IC FC camera

03106367

-W1.2

Extension camera bus IC FC camera

03106367

-W1.1

-FC1-dm

Vision LED controller

VLC25 GigE

03117587-xx

-X4

Power in

-X10

MCAN

-IC1-am

Vision LED controller

VLC33/36 GigE

03117981-xx

-X5

Power out

-X10

MCAN

-IC1

CO camera stat. P+P

(Type 33) 55x45 GigE

03105198

-FC1

CO camera stat. P+P

(Type 25) 16x16 GigE

03105205

-X4

Power in

-X22.2

RJ45

-X22.1

RJ45

-X5

Power out

-X22.2_FC1

-X5am

-X4dm

Extension power FC camera

03106368

-W1.2

4G1,0

-X10dm

-IC1-CAM

CCD-Camera

Baumer GSX20

03103549-xx

-X2

RJ45

-X2

-X1-X31

-FC1-CAM

CCD-Camera

Baumer GSX20

03103549-01

-X1

-X2

RJ45

-X31

-X21

RJ45

-X21.mm

-X2

I/O-cable

VLC25/33-GXS20 GigE

03106364

-FC2-W1

I/O-cable

VLC25/33-GXS20 GigE

03106364

-IC2-W1

Extension camera bus IC FC camera

03106367

-W1.2

Extension camera bus IC FC camera

03106367

-W1.1

-X10am -X10bm-X4am -X4bm

-X22.1_FC2-X22.1_FC1

==stCAM=+Loc2-Power

+CH/12.03

==stCAM=+Loc1-Power

+CH/12.03

==stCAM+Loc2-CAN.VLC25

Vision Base Interface (VBI_2)

+GA/25.09

==stCAM+Loc1-CAN.VLC25

Vision Base Interface (VBI_1)

+GA/24.09

==IC=+Loc1-CAN.2

+CH/13.08

==IC=+Loc2-CAN.2

+CH/13.05

==FC=+Loc2-CAN.2

+CH/13.05

==FC=+Loc1-CAN.1

+CH/13.08

electric_schematic_SX12_V3

90013315-010101LE3

Replaced by

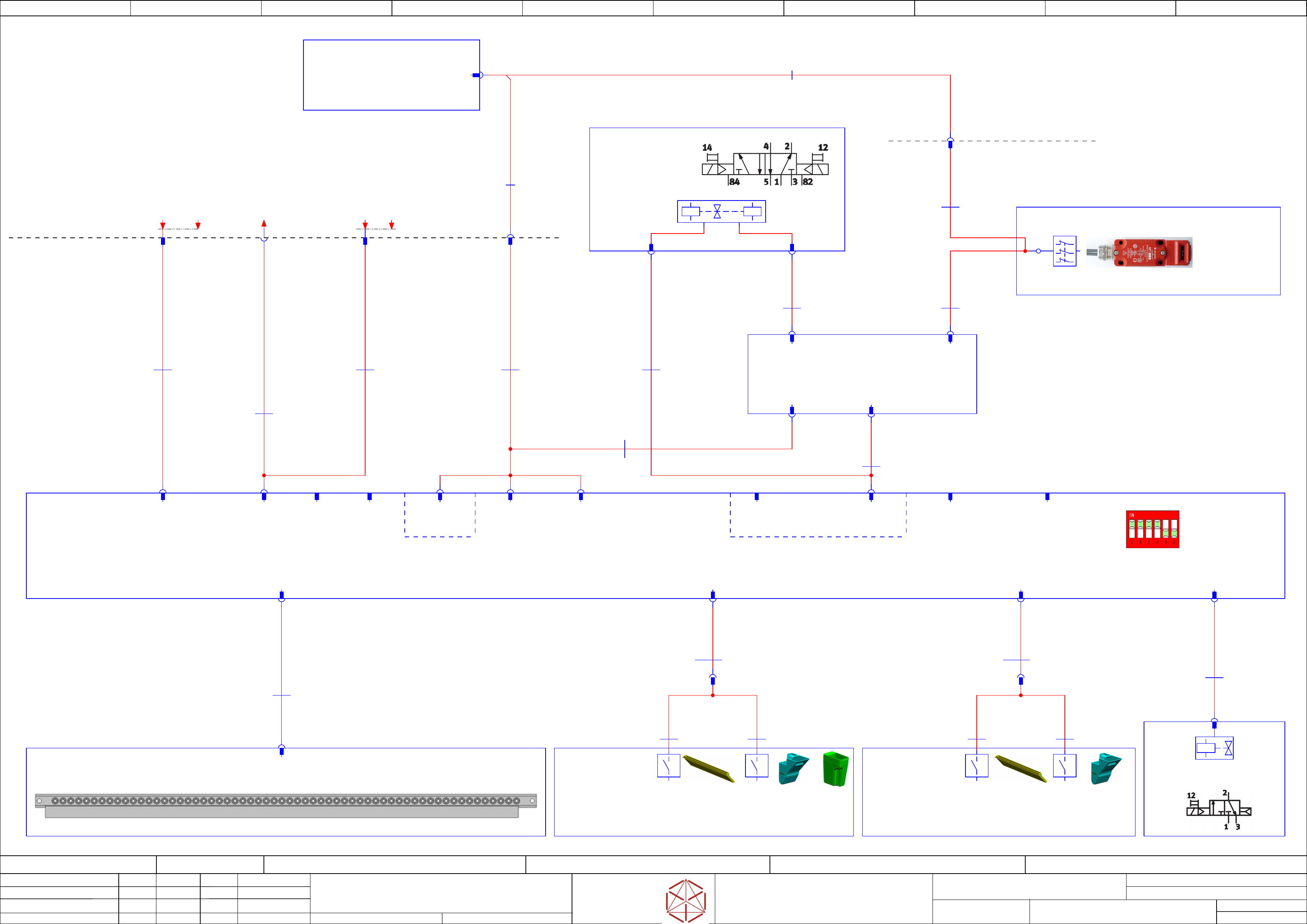

Block_diagram COT-i 30 _Loc1_2

FCU_Gerneral / Docking_unit / reject_box

Replaced by

Weitergabe sowie Vervielfältigung dieser Unterlage, Verwertung und

Mitteilung des Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden.

Proprietary Data, company confidential.

Copying of this document, giving it to others and the use or

communication of the contents thereof, are forbidden without express authority.

Doc. No.

00 01 02 03 04 05 06 07 08 09

Privileged business information.

Do not release

Offenders are liable to payment of damages. All rights are reserved in the

event of the grant or the registration of a utility model or design.

insbesondere für den Fall der Patenterteilung oder GM-Eintragung vorbehalten.

Page:

Function: Overview

==OV=SX12_V3+COTi30/15

drawing number:

03078847-020301LX3

COT-i 30 + WPC

GmbH & Co KG

ASM

Assembly Systems

Ed.

Original

Schnedlitz

Date

Modification

Appr

12.12.2019

Name

starting MC-Nr.: 2018/Q3 G. Pingist

Size DIN A2

Sheet

location 1_2

(WPC / SPS)

Cable-harness

Reject bin

03081265

Reject bin

03063238

Reject bin

03003719

Reject bin

03062378

Reject bin

03062378

COTi_30

location 1_2

DIP-Switch position for:

> COT-insert 30_WPC

-Y1

SP1_X..

-fp

-hp = Location 2

X-FCU (80MHz), 60 slots

03170631-xx

Location 1_2 (WPC)

03170631

-X11

Feeder

unlock device

-X21

Sensors

reject box

[left]

-X22

Sensors

reject box

[right]

-X23

Nozzle

station

-X24

24V-switched

[Tape cutter]

-X1

-X7

Power

-X3

CAN_1

[Base machine]

-X16

CAN_2

[IrDA-CAN]

-X17

CAN_3

[CAN-Open]

-X11

Location addressing

and Identification

-X1

-X25

S_Hood

[COT-insert control]

-X4

Feeder unlock

push-button

-X13

COT-insert control

-X26

24V output

-X19

FCU-Ready

-le

Feeder unlock device 60-way

03057772-01

-X1

Feeder

unlock device

20x0.09

03072088

-W1

Cable COT_insert_30

Feeder_unlock_device

-X11_p

-X1

5x0,23

03079413

-W1

Cable COT-insert 30

Sensors reject box

-X21_p

-X1_n

-X21*a

-X23_p

-X1_1

Power

-X7_p

5G1,5

03072087

-W1

Cable COT-insert 30 _ Power

-X1_5

CAN1_In

10x0,09

03072093

-W1.1

Cable COT-insert 30 _ CAN

-X3_p -X11_p(X1) -X25_p -X24_p

-X1_2

Signaling

7x0,34

03079167

-W1.1

Cable COT-insert 30 _ Signaling

-lc

PCB /Insert-Control SX12

03118186

-X2

S_Hood

-X3

S_Retracted

Valve_out

-X4

Valve_out

-X1

S_Retracted

2x0,23

03079167

-W1.2

Cable COT-insert 30 _ Signaling

3x0,34

03079166

-W1.2

Cable COT-insert 30 _ Insert control in/out

-Y1

Double solenoid valve

03002003

FESTO _ CPE14-M1BH-5J-1/8-SA

-X1_out_14

Y1_out

-X1_in_12

Y1_in

-X1_out_14

-X4lc

2x0,25

03079165

-W1

Cable COT-insert 30

Insert control out

-X1_in_12

2x0,25

03079166

-W1.1

Cable COT-insert 30

Insert control in/out

-S1p

Safety switch MT-GD2

with separate actuator

03075831-01

440K-MT55002

4x0,34

03079164

-W1.1

Cable COT-insert 30 _ Safety

2x0,34

03079164

-W1.2

Cable COT-insert 30 _ Safety

-X1lc

-X1_3

Safety

-X13_p(X1)

-X2lc -X3lc

-X1-n

-S2

S2_component

Operation from the front

03053232

2x0,25

03077546

-W1.2

Cable COT-insert 30

Sensors reject box

2x0,25

03077546

-W1.1

Cable COT-insert 30

Sensors reject box

2x0,25

03072090

-W1

Cable Manual Table 30

Valve nozzle station

-S1_S2

Cable SX

Sensors reject box “left” CP20/CPP

03077546

-S1

S1_component

Operation from the front

03053232

FESTO-Ventil

557577

03051469

-Y2

Valve

nozzle station

03051469

-X1_p

CAN1_Out

10x0,09

03072093

-W1.2

Cable COT-insert 30 _ CAN

5x0,23

03079413

-W2

Cable COT-insert 30

Sensors reject box

-X22_p

-X2_n

2x0,25

03060826

-W1.2

Cable COT-insert 30

Sensors reject box

2x0,25

03060826

-W1.1

Cable COT-insert 60

Sensors reject box

-S1_S2

Cable SX

Sensors reject box “right” CP20/CPP

03060826

-S1

S1_component

Operation from the front

03053232

-S2

S2_nozzle

Operation from the front

03053232

-X13qa

Component_Table_1 (COTi1)

safety and signalling

COT-insert 1

-X13qa

7x0,5

03052268

-W1.2

7x0,5

Single core

03052268

-W1.2

-X112

-X113

-qa

==PS002+VAC_P/45.01

==COTi30+Loc1_2-MTC

/17.06

CAN-IN to MTC1 + optional MTC2

==COTi30+Loc1-POWER_COTi.30

+CH/11.08

from Power-supply -qp-PS1/X4qp

==COTi30+Loc2-POWER_COTi.30

+CH/11.09

from Power-supply -qp-PS1/X5qp

==COTi30+Loc1-MCAN.1

+CH/13.09

==COTi30+Loc2-MCAN.2

+CH/13.04
