Function: Overview
==OV=SX12_V3+COTi60/21
drawing number:
03079375-020301LX4
COT-i 60 _ SX12
GmbH & Co KG
ASM
Assembly Systems
Copyright reserved
Ed.
Original
Schnedlitz
Date
Date
Modification
Appr
12.12.2019
Name
starting MC-Nr.: 2018/Q3 G. Pingist
Size DIN A2
Sheet
21
/
4
location 2

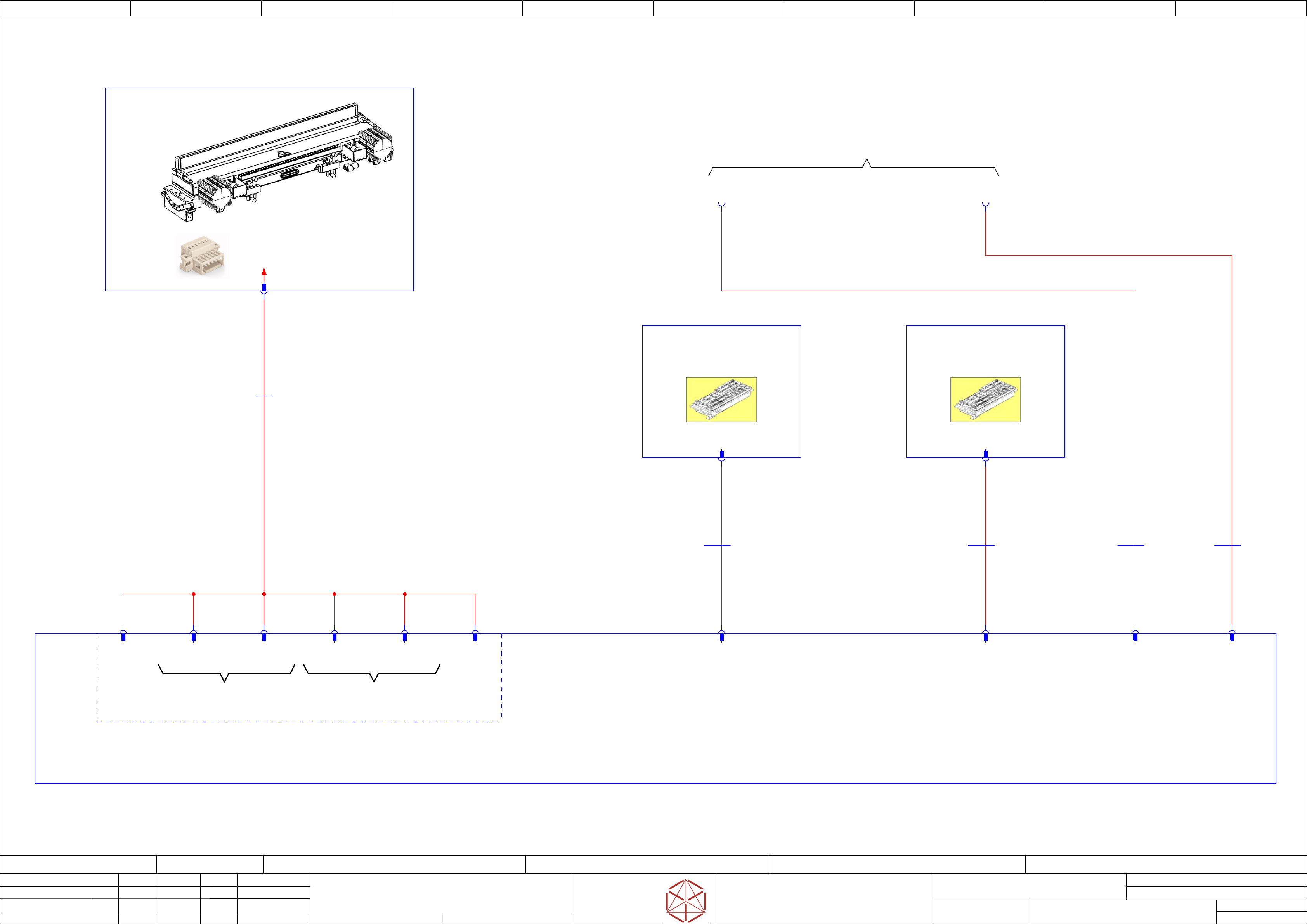

First row -->
End position sensor Cylinder 2 End position sensor Cylinder 1
Not used
Second row -->
-hp
X-FCU (80MHz), 60 slots
03170631-xx
Location 2
03170631
-X12
Nozzle changer 1
-X13
Nozzle changer 2
SPS 1
-X14
Nozzle changer 3
-X18
Nozzle changer 4
SPS 2
-ha
Nozzle changer basic assembly
CPx short
03062463-02
-X6
NC 2 / SPS 1
-X12hp -X13hp -X14hp -X18hp
10x0.14
03060472
-W1
Cable-Nozzle changer
10x0.14
03060472
-W2
Cable-Nozzle changer
10x0.14
03060473
-W2
Cable-Nozzle changer
-X5hp(X1)
-X1ha
-X1hc
NC 3
-X1hd
NC 4 / SPS 2
-X5
-X1
Tape cutter interface and SPS mounting place identification
-X8 -X7 -X9 -X10 -X6
-X8hp(X1) -X7hp(X1) -X9hp(X1) -X10hp(X1) -X6hp(X1)
-X1hb
-hb
Nozzle changer basic assembly
CPx short
03062463-02
-X6
NC 1
-ch
Tape cutter
03063781
==COTi60+Loc2/78.00
-X1ch
16x0,25
03060474
-W1
Cable COT-insert 60 Tape-cutter
10x0.14
03060473
-W1
Cable-Nozzle changer
-X1
CONTR_Tape_Cutter
intern_wiring
+TC/23.04
electric_schematic_SX12_V3
90013315-010101LE3
Replaced by
Block_diagram_Nozzle changer CPx short
Replaced by
Weitergabe sowie Vervielfältigung dieser Unterlage, Verwertung und
Mitteilung des Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden.
Proprietary Data, company confidential.
All rights reserved
Copying of this document, giving it to others and the use or
communication of the contents thereof, are forbidden without express authority.
Doc. No.
0 1 2 3 4 5 6 7 8 9
Privileged business information.
Do not release
Offenders are liable to payment of damages. All rights are reserved in the
event of the grant or the registration of a utility model or design.
Zuwiederhandlungen verpflichten zu Schadenersatz. Alle Rechte vorbehalten,
insbesondere für den Fall der Patenterteilung oder GM-Eintragung vorbehalten.
Page:
Function: Overview
==OV=SX12_V3+NC/22
drawing number:
03062463-020201LX3
Nozzle_changer
GmbH & Co KG
ASM
Assembly Systems
Copyright reserved
Ed.
Original
Schnedlitz
Date
Date
Modification
Appr
12.12.2019
Name
starting MC-Nr.: 2018/Q3 G. Pingist
Size DIN A2
Sheet
22
/
1

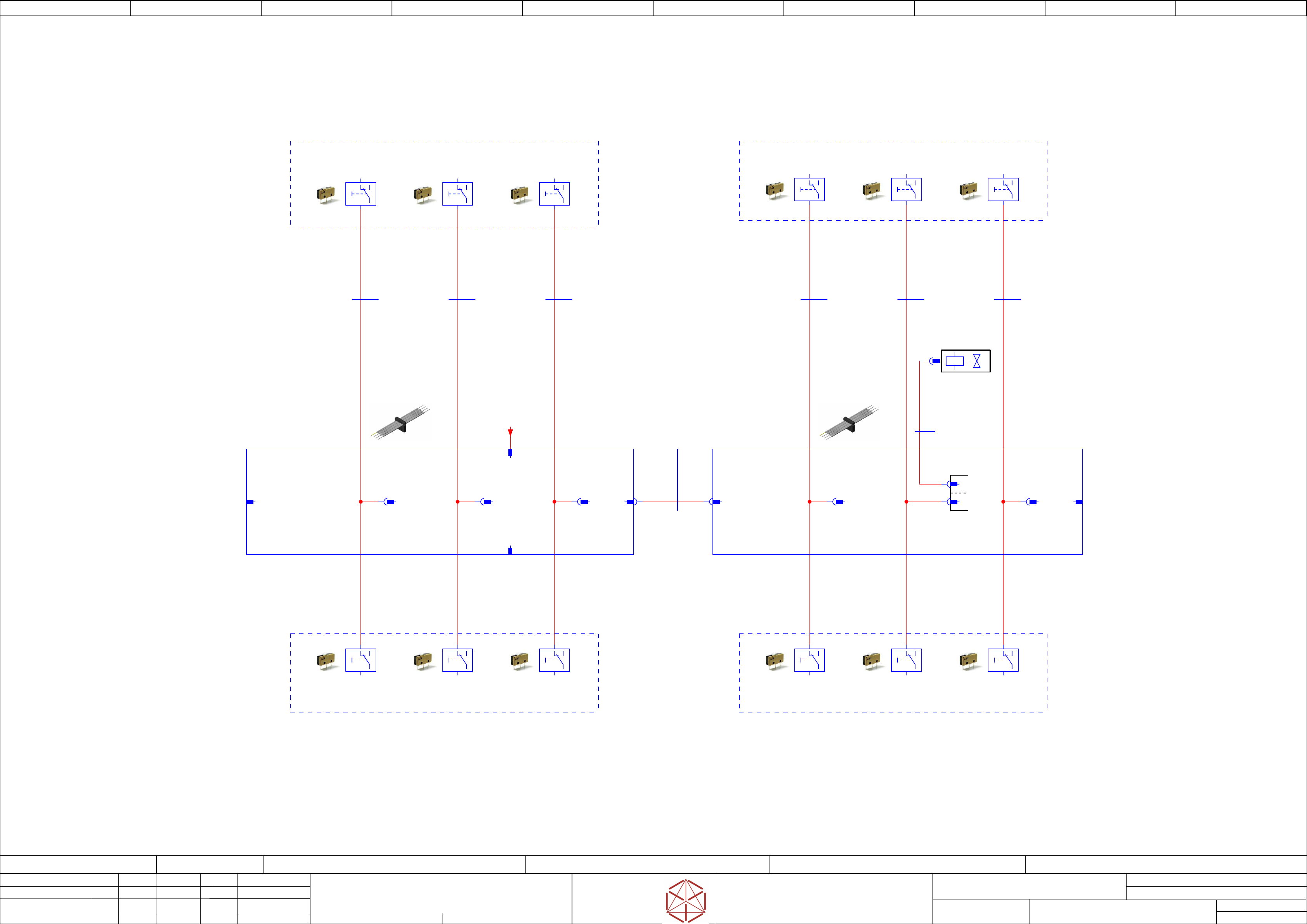

Nozzle changer basis assembly CPx short 03062463-xx
not usednot used
Service
-X6
-X3 -X5 -X4 -X1
-X8
JTAG-Interface
-X1-X3 -X5 -X4 -X3 -X4 -X2-X3 -X5 -X4-X1.A2-X1.A1
164 mm
20x0,057
Flat ribbon cable
03072807-02
-W1
4x AWG 28 / Socket: IDS-04-G
Flat ribbon cable with IDC-Socket
03069327 -01
-W3-MAG1_3
4x AWG 28 / Socket: IDS-04-G
Flat ribbon cable with IDC-Socket
03069327 -01
-W2-MAG1_3
-X6
-X2
-Y1
NC-clamp
Valve SYJ3143
00334200
==NC+short/80.5
-X1
-X1
-X2
FPGA_TEST
4x AWG 28 / Socket: IDS-04-G
Flat ribbon cable with IDC-Socket
03069327 -01
-W1-MAG1_3
4x AWG 28 / Socket: IDS-04-G
Flat ribbon cable with IDC-Socket
03069327 -01
-W3-MAG2_4
4x AWG 28 / Socket: IDS-04-G
Flat ribbon cable with IDC-Socket
03069327 -01
-W2-MAG2_4
4x AWG 28 / Socket: IDS-04-G
Flat ribbon cable with IDC-Socket
03069327 -01
-W1-MAG2_4
-MAG3
Magazine 3
==NC+short/79.1
-MAG4
Magazine 4
==NC+short/80.1
-S1
Switch_M2A
==NC+short/79.6
Microswitch
XCH 10-81
03019563
-MAG1
Magazine 1
==NC+short/79.1
-A2
Sub-PCB CPx cplt.
03069337-02
==NC+short/80.1
-A1
NC Main-PCB CPx cplt.
03069324-03
==NC+short/79.0
86 mm
2x0,25
SY100-68-A-10
00334212 -01
-W1
-S2
Switch_M2B
==NC+short/79.3
Microswitch
XCH 10-81
03019563
-S3
Switch_M2C
==NC+short/79.2
Microswitch
XCH 10-81
03019563
-S1
Switch_M4A
==NC+short/80.6
Microswitch
XCH 10-81
03019563
-S2
Switch_M4B
==NC+short/80.4
Microswitch
XCH 10-81
03019563
-S3
Switch_M4C
==NC+short/80.2
Microswitch
XCH 10-81
03019563
-S1
Switch_M1A
==NC+short/79.6
Microswitch
XCH 10-81
03019563
-S2
Switch_M1B
==NC+short/79.3
Microswitch
XCH 10-81
03019563
-S3
Switch_M1C
==NC+short/79.2
Microswitch
XCH 10-81
03019563
-S3
Switch_M3C
==NC+short/80.2
Microswitch
XCH 10-81
03019563
-S2
Switch_M3B
==NC+short/80.4
Microswitch
XCH 10-81
03019563
-S1
Switch_M3A
==NC+short/80.6
Microswitch
XCH 10-81
03019563
-MAG2
Magazine 2
==NC+short/80.1
==+-NC_LOC.1(2)_short
Cable-NC _ 03083154 - MT 40
Cable-NC _ 03091009 - COT-i 40
