electric_schematic_SX12_V3 90013315-010101LE3 Replaced by board-placement-A1/A2 Replaced by Weitergabe sowie Vervielfältigung dieser Unterlage, Verwertung und Mitteilung des Inhalts nicht gestattet, soweit nicht ausdrück…
electric_schematic_SX12_V3
90013315-010101LE3
Replaced by
cabling board-A2
Replaced by
Weitergabe sowie Vervielfältigung dieser Unterlage, Verwertung und
Mitteilung des Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden.
Proprietary Data, company confidential.
All rights reserved
Copying of this document, giving it to others and the use or
communication of the contents thereof, are forbidden without express authority.
Doc. No.
10 11 12 13 14 15 16 17 18 19
Privileged business information.
Do not release
Offenders are liable to payment of damages. All rights are reserved in the
event of the grant or the registration of a utility model or design.
Zuwiederhandlungen verpflichten zu Schadenersatz. Alle Rechte vorbehalten,
insbesondere für den Fall der Patenterteilung oder GM-Eintragung vorbehalten.
Page:

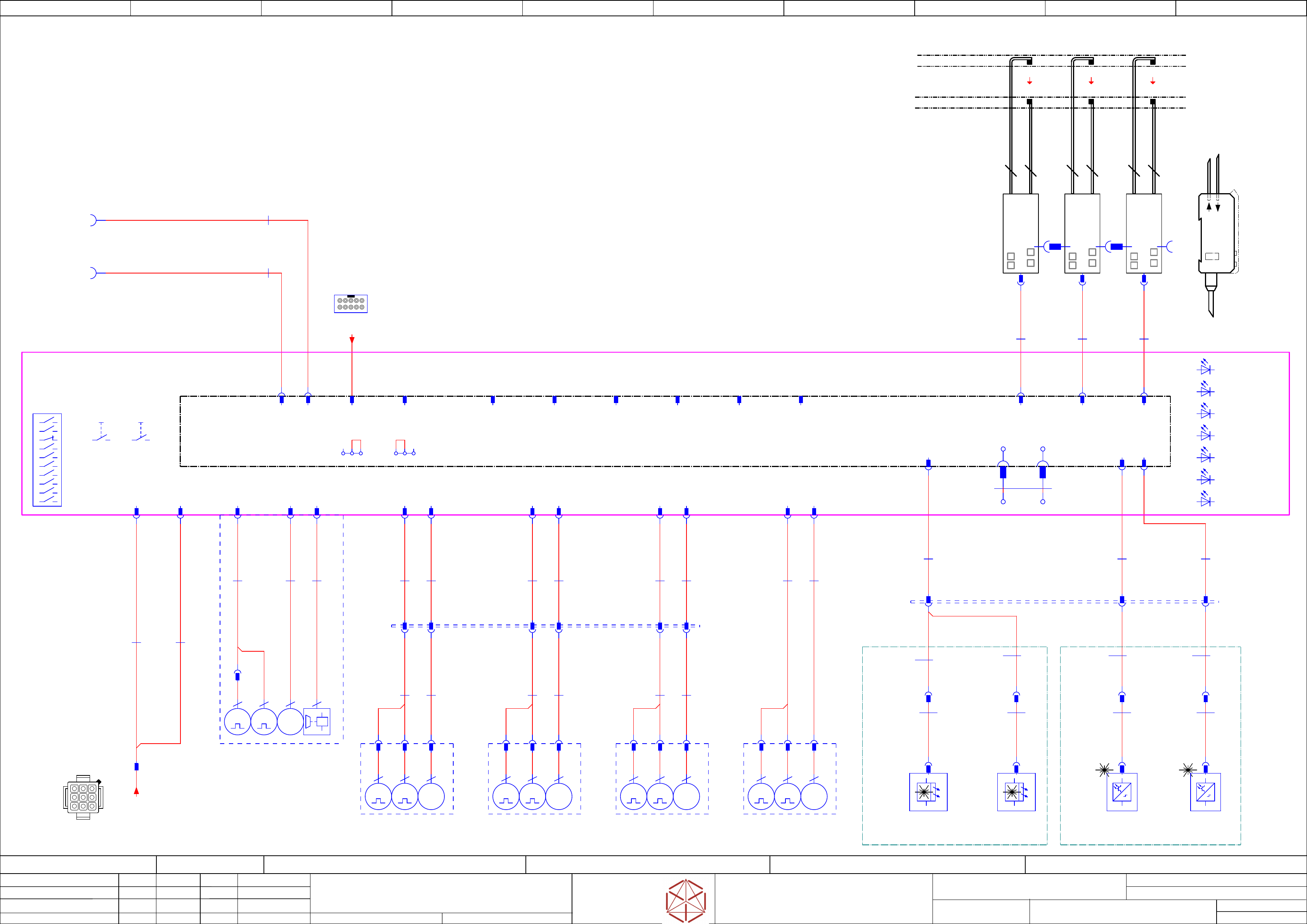

Function: Overview
==OV=SX12_V3+CO002/34
drawing number:
03093490-010201LX3
single_conveyor_SX12a_left
GmbH & Co KG
ASM
Assembly Systems
Copyright reserved
Ed.
Original
Schnedlitz
Date
Date
Modification
Appr
12.12.2019
Name
starting MC-Nr.: 2018/Q3 G. Pingist
Size DIN A2
Sheet
34
/
2
side-panel-D (transmit)
side-panel-C (receive)
-LB21
board-control
input-position
-LB22
board-control
placement-area
board-control
-LB23
output-position
board-transfer >
RED-LED
-LB23
WWL180T-F434
LB23-r
LB23-t
not used
RED-LED
-LB22
WWL180T-F434
LB22-r
LB22-t
RED-LED
CONTROL & MOTION- POWER < MOTOR-6 > < MOTOR-7 > < MOTOR-8 > < MOTOR-9 >
Control-unit TSP-420-IO
(daughter-board)
HE M
~
-M7
Motor Conveyor-input
03087636-
==CO002+L2/109.5
-ENC
A,B,I
-Hall
1,2,3
-MOT
A,B,C
-XH
-XM
-XE
HE M
~
-M8
Motor Conveyor placement-area
03087636-
==CO002+L2/110.1
-ENC
A,B,I
-Hall
1,2,3
-MOT
A,B,C
-XH
-XM
-XE
HE M
~
-M9
Motor Conveyor-output
03087636-
==CO002+L2/110.5
-ENC
A,B,I
-Hall
1,2,3
-MOT
A,B,C
-XH
-XM
-XE
64x
Bus-Connection
-X9
1 . . . . 64
-X9d:1 64
daughter-board
-X9m:1
main-board
64
INPUT
OUTPUT
LBxx-r
LBxx-t
fibre-optics LL3-TV05: 03092407
HE M
~
-Brake-ENC
A,B,I
-Hall
1,2,3
-MOT
A,B,C
-XE
Amplifier WWL 180T-M434(preconfigure): 03093294 (only LB21)
Amplifier WWL 180T-F434(preconfigure): 03093295
not used
Interanal CAN-BUS
HE M
~
-M5
Motor Conveyor breadth-adjusting
03087636-
==CO002+L2/111.3
-ENC
A,B,I
-Hall
1,2,3
-MOT
A,B,C
-XH
-XM
-XE
-Master-
-LB21
WWL180T-M434
LB21-r
LB21-t
< MOTOR-5 >
not used not usednot used not used not used not used
<<< Sensoric width-adjust = not-used >>>
13
9
6
==CH+-X7ap
-X22(A2)
Machine-Canbus-2
BK-MOD female 10pol.
2
-LLBr1
place-position
==CO002+L2/108.7
Laser-receiver ES04
03098281-
2
-LLBr2
(place-position)
***optional-pos.**
==CO002+L2/108.8
Laser-recive ES04
03098281-
2
-LLBt2
(place-position)
**optional-pos.**
==CO002+L2/108.5
Laser-ES04
(force- Nr.2)
03098280-
2
-LLBt1
place-position
==CO002+L2/108.4
Laser-ES04
(force- Nr.2)
03098280-
4x0,14
03088852
-W32
4x0,14
03088853
-W33
4x0,14
03088854
-W34
==CO002
S-BUS
S-BUS
-XLB22
-XLB21
-XLB23
-A2
PCB: "Lane-1"
TSP-420-xx
03087642-02
-H2
D(1) Processor ready
GN
-H3
D(2) CAN-Bus extern
YE
-H4
D(3) CAN-Bus intern
YE
-H6
D(5) Control +24V
GN
-H7
D(6) Control P_Brake
GN
-H5
D(4) Control +48V
GN
-X29 -X28 -X15 -X10 -X20 -X16 -X11 -X17 -X12 -X18 -X13
-X40 (A2)
-X42 (A2)
-X40 -X42
-X61 (A2)
-X62 (A2)
-X63 (A2)
-X2(M7)
-X3(M7)
-X1(M7)
-X2(M8)
-X3(M8)
-X1(M8)
-X2(M9)
-X3(M9)
-X1(M9)
-X22-X4-X3 -X61 -X62 -X63
-X16 (A2)
-X11 (A2)
-X17 (A2)
-X12 (A2)
-X18 (A2)
-X13 (A2)
-X.16(PD)
-X.11(PD)
-X.16(PD)
-X.11(PD)
14x0,14
03092030
-W61
3x0,34
03092036
-W62
-X.17(PD)
-X.12(PD)
-X.17(PD)
-X.12(PD)
14x0,14
03092031
-W63
3x0,34
03092037
-W64
-X.18(PD)
-X.13(PD)
-X.18(PD)
-X.13(PD)
14x0,14
03092032
-W65
3x0,34
03092038
-W66
3x0,34
03088864
-W38
16x0,1
03088872
-W37
16x0,1
03088873
-W39
3x0,34
03088865
-W40
16x0,1
03088871
-W35
3x0,34
03088863
-W36
5x0,14
03088523
-W46
5x0,14
03088524
-W47
-X.40(PD) -X.40(PD)
-X.41(PD) -X.41(PD)
-PDConnector-panel
-X.42(PD) -X.42(PD)
5x0,14
03088525
-W48
-X41 (A2)
-X41
-PDConnector-panel
-W2.M6
-W1.M6
-W3.M6
-X15 (A2)
-X2.1
-X10 (A2)
-X20 (A2)
-M6
Motor lifting-table
03088241-
==CO002+L2/109.1
< assemply: Motor with Cable >
5x0,5
03088906
-W1.1
3G1,5
03088906
-W1.2
-X29 (A1)
-X28 (A1)
-X23
-X3(M5)
-X1(M5)
3x0,34
03089049
-W29
14x0,14
03089050
-W28
-X.19(A1)
-X14 (A1)
-X19 -X14
-X52 -X53 -X54 -X58 -X59 -X60
-X79
==CO002+L2/105.1
Mate-N-Lok 9pol.
-XL1 (upstream)
SMEMA Interface
Lane-1 upstream
-XL1 (downstream)
SMEMA Interface
Lane-1 downstream
3x2x0,23
UNITRONIC LiYCY (TP) UL/CSA
03058260
-W5
3x2x0,23
UNITRONIC LiYCY (TP) UL/CSA
03058259
-W6
-X4(A2)
-X3(A2)
-X2(M5)
-C
==CO002+L2/108.3
side-panel
-D
==CO002+L2/108.6
side-panel
-X1
-X2
3x0,14
03088856
-W49.1
3x0,14
03088856
-W49.2
-X1
-X2
5X0,14
03088527
-W50
5X0,14
03088528
-W51
1
2
4
5
6
7
8
-S3
ON
3
9
10
RESET
-S1
BOOT
-S2
-JP1
CAN bus (ext)
Termination 120R
1 2 3
OFF
-JP2
CAN bus (int)
Termination 120R
1 2 3
ON
-H1
D(O) Processor Fail
RD
5x0,14
03098205
-W2.LB_
1
5x0,14
03098205
-W2.LB__
2
3x0,14
03098204
-W1.LB_
1
3x0,14
03098204
-W1.LB__
2
-XLBt_
-XLBt__
-XLBr_
-XLBr__
==CO+-CAN.CO_l
+CH/13.9
+CH/11.8
==CO+-POWER.l
Conveyor power-supply input
electric_schematic_SX12_V3
90013315-010101LE3
Replaced by
board-placement-A1/A2
Replaced by
Weitergabe sowie Vervielfältigung dieser Unterlage, Verwertung und
Mitteilung des Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden.
Proprietary Data, company confidential.
All rights reserved
Copying of this document, giving it to others and the use or
communication of the contents thereof, are forbidden without express authority.
Doc. No.
Privileged business information.
Do not release
Offenders are liable to payment of damages. All rights are reserved in the
event of the grant or the registration of a utility model or design.
Zuwiederhandlungen verpflichten zu Schadenersatz. Alle Rechte vorbehalten,
insbesondere für den Fall der Patenterteilung oder GM-Eintragung vorbehalten.
Page:
Function: Overview
==OV=SX12_V3+CO003/35
drawing number:
03088106-010502LX3
dual_conveyor_SX12a
GmbH & Co KG
ASM
Assembly Systems
Copyright reserved
Ed.
Original
Schnedlitz
Date
Date
Modification
Appr
12.12.2019
Name
starting MC-Nr.: 2018/Q3 G. Pingist
Size DIN A2
Sheet
35
/
3
placement-area Lane2
placement-area Lane1
<< Cable-laying >>
X19
X18
X17
X16
X15
F2
X29
X20
X10
X11
X12
X13
X14
X61
X63
X52
X53
X58
X62
X59
X22
X23
X82 X84
X83X81
*** Option ***
barcode-reader-1
barcode-reader-2
X7
Lane-1 (upstream)
X1
*** Option ***
Siemens-Interface
Lane-1 (upstream)
X3
F1
42VDC
(6,3AT)
24VDC
(2AT)
X28
Lane-1 (upstream)
Smema-Interface
-A1
X17
X16
X15
F2
X29
X20
X10
X11
X12
X61
X62
X22
X23
F1
42VDC
(6,3AT)
24VDC
(2AT)
X28
TSP-420-IO (daughter-board)
TSP-420-M (main-board)
<< Cable-laying >>
-A2
TSP-420-IO (daughter-board)
TSP-420-M (main-board)
CAN(int)
CAN(ext)
CAN(ext)
CAN(int)
<< fiber-optics
WWL180T-F434
X61(A1) >>
X4
Lane-1 (downstream)
X2
Lane-1 (downstream)
X8
*** Option ***
Syncron-Interface
Lane-1 (downstream)
X7
Lane-2 (upstream)
X1
*** Option ***
Siemens-Interface
Lane-2 (upstream)
X3
Lane-2 (upstream)
Smema-Interface
X4
Lane-2 (downstream)
X2
Lane-2 (downstream)
X8
*** Option ***
Syncron-Interface
Lane-2 (downstream)
X13
X18
X63
<< Cable-laying >>
<< Cable-laying side-panel A & B >>
<< Cable-laying side-panel C & D >>
Chain width-adust-1
Chain width-adust-1
Motor-5 width-adust
Chain side-panel-B
Chain side-panel-C
Chain side-panel-D
WWL180T-M434
LB11
-MASTER-
LB12
WWL180T-F434
LB13
WWL180T-F434
LB21
WWL180T-F434
LB22
WWL180T-F434
LB23
X62(A1) >>
X63(A1) >>
X61(A2) >>
X62(A2) >>
X63(A2) >>
X17(PA)
X12(PA)
X16(PA)
X11(PA)
X42(PA)
X40(PA)
X41(PA)
X18(PA)
X13(PA)
Connector-Panel -PDConnector-Panel -PA
Chain side-panel-A
LBxx-r = down-clamp
LBxx-t = up-clamp
X40
X41
X42
X42
X41
X40
X52
X53
X1(M5)
X3(M5)
X2(M5)
X58(Y11) X59(Y12)
X17(PD)
X12(PD)
X16(PD)
X11(PD)
X42(PD)
X40(PD)
X41(PD)
X18(PD)
X13(PD)
03087642-02
03087642-02
Label
Y11
Y11
BU
BK
30 mm
Y12
Y12
BU
BK
< PNEUMATICS >
Y11
Y11
BU
BK
Y12
Y12
BU
BK
PUN 3x0,5
-Y11
width-adjust-unit-1
Valve 5/2
==CO003+L1/112.7
-Y12
width-adjust-unit-2
Valve 5/2
==CO003+L1/112.8
-Y11/12
ASCO Valve-cluster 2-slot
03092666-
==CO003+L1/112.6
electric_schematic_SX12_V3
90013315-010101LE3
Replaced by
cabling board-A1 "Lane-1"
Replaced by
Weitergabe sowie Vervielfältigung dieser Unterlage, Verwertung und
Mitteilung des Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden.
Proprietary Data, company confidential.
All rights reserved
Copying of this document, giving it to others and the use or
communication of the contents thereof, are forbidden without express authority.
Doc. No.
10 11 12 13 14 15 16 17 18 19
Privileged business information.
Do not release
Offenders are liable to payment of damages. All rights are reserved in the
event of the grant or the registration of a utility model or design.
Zuwiederhandlungen verpflichten zu Schadenersatz. Alle Rechte vorbehalten,
insbesondere für den Fall der Patenterteilung oder GM-Eintragung vorbehalten.
Page:
Function: Overview
==OV=SX12_V3+CO003/36
drawing number:
03088106-010502LX3
dual_conveyor_SX12a
GmbH & Co KG
ASM
Assembly Systems
Copyright reserved
Ed.
Original
Schnedlitz
Date
Date
Modification
Appr
12.12.2019
Name
starting MC-Nr.: 2018/Q3 G. Pingist
Size DIN A2
Sheet
36
/
3
Internal CAN-BUS
Interanal CAN-BUS (Service)
board-transfer Lane-1 >
side-panel-A (receive)
side-panel-B (transmit)
-LB11
board-control
input-position
-LB12
board-control
placement-area
board-control
-LB13
RED-LED RED-LED
output-position
RED-LED
CONTROL & MOTION- POWER < MOTOR-1 > < MOTOR-2 > < MOTOR-3 > < MOTOR-4 >
Control-unit TSP-420-IO
(daughter-board)
not used not used
< MOTOR-5 >
64x
Bus-Connection
-X9
1 . . . . 64
-X9d:1 64
daughter-board
-X9m:1
main-board
64
HE M
~
-Brake-ENC
A,B,I
-Hall
1,2,3
-MOT
A,B,C
-XE
HE M
~
-M2
Motor Conveyor-input Lane-1
03087636-
==CO003+L1/114.5
-ENC
A,B,I
-Hall
1,2,3
-MOT
A,B,C
-XH
-XM
-XE
HE M
~
-M3
Motor Conveyor placement-area L1
03087636-
==CO003+L1/115.1
-ENC
A,B,I
-Hall
1,2,3
-MOT
A,B,C
-XH
-XM
-XE
HE M
~
-M4
Motor Conveyor-output Lane-1
03087636-
==CO003+L1/115.5
-ENC
A,B,I
-Hall
1,2,3
-MOT
A,B,C
-XH
-XM
-XE
HE M
~
-M5
Motor Conveyor breadth-adjusting
03087636-
==CO003+L1/116.3
-ENC
A,B,I
-Hall
1,2,3
-MOT
A,B,C
-XH
-XM
-XE
INPUT
OUTPUT
LBxx-r
LBxx-t
fibre-optics LL3-TV05: 03092407
2
Amplifier WWL 180T-M434(preconfigure): 03093294 (only LB11)
Amplifier WWL 180T-F434(preconfigure): 03093295
-Master-
-LB11
WWL180T-M434
LB11-r
LB11-t
-LB12
WWL180T-F434
LB12-r
LB12-t
-LB13
WWL180T-F434
LB13-r
LB13-t
to LB21
13
9
6
==CH+-X7ao
-X22(A1)
Machine-Canbus-2
BK-MOD female 10pol.
2 2
1
3
4
5
6
7
8
-S3
ON
2
9
10
2
-LLBt2
board-centering
placement-area (optional-pos.)
==CO003+L1/113.5
-LLBr1
board-centering
placement-area
==CO003+L1/113.7
Laser-light-barrier receiver ATC
ASM: 02-J00142
03098281-
-LLBt1
board-centering
placement-area
==CO003+L1/113.4
Laser-light-barrier transmitter ATC
ASM: 02-J00141
03098280-
5x0,5
03088834
-W1.3
-X5_
2
3G1
03088834
-W1.4
5x0,5
03088834
-W1.1
3G1
03088834
-W1.2
-B1
03093306
==CO003+L1/112.2
width-adjust-unit-1
-X5_
3
7x0,25
03088843
-W9
7x0,25
03088844
-W10
-B1.2
03100139-
cylinder-switch
-B1.1
00304908-
Sensor side-panel
2x0,25
03088845
-W12
2x0,25
03088847
-W13
10x0,09
Rund Jacketed Flatcable
03088836
-W4.1
-X23.S
-Y11/12
FESTO-Valve 2er-block
03092666-
-B2.2
03100139-
cylinder-switch
-B2.1
00304908-
Sensor side-panel
-B2
03093306
==CO003+L1/112.4
width-adjust-unit-2
-XL1 (upstream)
SMEMA Interface
Lane-1 upstream
-XL1 (downstream)
SMEMA Interface
Lane-1 downstream
5x0,14
03088855
-W20
5x0,14
03088857
-W30
3x2x0,23
UNITRONIC LiYCY (TP) UL/CSA
03058260
-W5
3x2x0,23
UNITRONIC LiYCY (TP) UL/CSA
03058259
-W6
S-BUS
3x0,14
03098204
-W1.LB_
1
-A
==CO003+L1/113.3
side-panel
-B
==CO003+L1/113.6
side-panel
-X_
1
-A1
PCB: "Lane-1"
TSP-420-xx
03087642-02
-H1
D(O) Processor Fail
RD
-H2
D(1) Processor ready
GN
-H3
D(2) CAN-Bus extern
YE
-H4
D(3) CAN-Bus intern
YE
-H6
D(5) Control +24V
GN
-H7
D(6) Control P_Brake
GN
-H5
D(4) Control +48V
GN
-X52-X22
-X4(A1)
-X3(A1)
-X4-X3 -X23 -X53 -X54 -X58 -X59 -X60 -X61 -X62 -X63
-X29 -X28 -X15 -X10 -X20 -X16 -X11 -X17 -X12 -X18 -X13 -X19 -X14
-X40 (A1)
-X41 (A1)
-X40 -X41
-M1
Motor lifting-table Lane-1
03088241-
==CO003+L1/114.1
< assemply: Motor with Cable >
-W2.M1
-W1.M1
-W3.M1
-X2(M2)
-X3(M2)
-X1(M2)
-X2(M3)
-X3(M3)
-X1(M3)
-X2(M4)
-X3(M4)
-X1(M4)
-X20 (A1)
-X15 (A1)
-X10 (A1)
-X2.1
-X29 (A1)
-X28 (A1)
4x0,14
03088849
-W17
4x0,14
03088850
-W18
4x0,14
03088851
-W19
-X61 (A1)
-X62 (A1)
-X63 (A1)
-XLB11
-XLB12
-XLB13
-X23 (A1)
-X52 (A1)
-X53 (A1)
-X58 (A1)
-X59 (A1)
-X52
-X53
-X58 (Y11)
-X59 (Y12)
-X.40(PA) -X.40(PA)
3x0,14
03088520
-W41.1
3x0,14
03088520
-W41.2
-X1
-X2
-X.41(PA) -X.41(PA)
5X0,14
03088521
-W42
5x0,14
03088522
-W43
-X2(M5)
-X3(M5)
-X1(M5)
3x0,34
03088860
-W25
16x0,1
03088867
-W24
16x0,1
03088868
-W26
3x0,34
03088861
-W27
16x0,1
03088866
-W22
3x0,34
03088859
-W23
-X16 (A1)
-X11 (A1)
-X17 (A1)
-X12 (A1)
-X18 (A1)
-X13 (A1)
3x0,34
03089049
-W29
14x0,14
03089050
-W28
-X.19(A1)
-X14 (A1)
-X.16(PA)
-X.11(PA)
-X.16(PA)
-X.11(PA)
14x0,14
03092025
-W55
3x0,34
03092033
-W56
-X.17(PA)
-X.12(PA)
-X.17(PA)
-X.12(PA)
14x0,14
03092027
-W57
3x0,34
03092034
-W58
-X.18(PA)
-X.13(PA)
-X.18(PA)
-X.13(PA)
14x0,14
03092029
-W59
3x0,34
03092035
-W60
-X.42(PA) -X.42(PA)
-X42
-X42 (A1)
5x0,14
03088858
-W31
-PAConnector-panel
-X1
-X2
-PAConnector-panel
-Y12
Valve 5/2
##MISSING##
-Y11
Valve 5/2
##MISSING##
-X79
==CO003+L1/112.1
Mate-N-Lok 9pol.
-XLBt_
1
3x0,14
03098204
-W1.LB__
2
-X__
2
-XLBt__
2
-XLBr_
1
-X_
1
5x0,14
03098205
-W2.LB_
1
-XLBr__
2
-X__
2
5x0,14
03098205
-W2.LB__
2
-LLBr2
board-centering
placement-area (optional-pos.)
==CO003+L1/113.8
S-BUS
RESET
-S1
BOOT
-S2
-JP1
CAN bus (ext)
Termination 120R
1 2 3
OFF
-JP2
CAN bus (int)
Termination 120R
1 2 3
ON
+L1-CAN(intern)
/37.10
-A2-48V
/37.11
-A2-24V
/37.11
==CO+-X79.POWER
Conveyor power-supply input
==CO+-CAN.Lane1
+CH/13.8
