electric_schematic_SX12_V3 90013315-010101LE3 Replaced by COT-i 30 _ Loc1_2 1x NC Replaced by Weitergabe sowie Vervielfältigung dieser Unterlage, Verwertung und Mitteilung des Inhalts nicht gestattet, soweit nicht ausdrü…

100%1 / 135
electric_schematic_SX12_V3
90013315-010101LE3
Replaced by
COT-i 30 _ Loc1_2
Unlock device / reject_box / nozzle station
Replaced by
Weitergabe sowie Vervielfältigung dieser Unterlage, Verwertung und
Mitteilung des Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden.
Proprietary Data, company confidential.
All rights reserved
Copying of this document, giving it to others and the use or
communication of the contents thereof, are forbidden without express authority.
Doc. No.
0 1 2 3 4 5 6 7 8 9
Privileged business information.
Do not release
Offenders are liable to payment of damages. All rights are reserved in the
event of the grant or the registration of a utility model or design.
Zuwiederhandlungen verpflichten zu Schadenersatz. Alle Rechte vorbehalten,
insbesondere für den Fall der Patenterteilung oder GM-Eintragung vorbehalten.
Page:
Function: Change over Table insert, 30 tracks (WPC addon)
==COTi30=SX12_V3+Loc1_2/70
drawing number:
03078847-020301LX3
COT-i 30 + WPC
GmbH & Co KG
ASM
Assembly Systems
Copyright reserved
Ed.
Original
Schnedlitz
Date
Date
Modification
Appr
12.12.2019
Name
starting MC-Nr.: 2018/Q3 G. Pingist
Size DIN A2
Sheet
70
/
4
-X1_n
PP / nozzle 1
GND 2
GND 3
BE / Component 4
Used 5
6
7
8
GND 9
531
62
-X21_p
-X21*a
1 3
-X1_n
GN
5
2
3
BN
4
6
7
YE
8
GY
9
-X11
Feeder
unlock device
1
2
3 5
4 6
7
8
9 11
10 12
13
14
15 17
16 18
19
20
201816141210864
191715131197531
-X11_p
2
191715131197531
2018161412108642
-X1
-X21*a
1 3
-X21
Sensors
reject box
[left]
1 3 5
2 6
4
1
2
5
4
6
3
-X23
Nozzle
station
location 1_2 (WPC)
2
51
-X23_p
4
-X2_n
BE / Component 1
GND 2
GND 3
BE / Component 4
Used 5
6
7
8
GND 9
531
62
-X22_p
-X2_n
GN
5
2
3
BN
4
6
7
YE
8
GY
9
-X22
Sensors
reject box
[right]
1 3 5
2 6
4
Reject bin
03003719
Reject bin
03062378
OR
Reject bin
03062378
Reject bin
03063238
Reject bin
03081265
Jumper-J2
Jumper-J1
Jumper-J4
Jumper-J3
Jumper-J1 Jumper-J1
Jumper J1 - J4
00369751
Single core 0.5 BK UL-CSA-HAR PVC
LAPP.4180401R
Jumper J1
03052136
Single core 0.25 BK LiY wire PVC
LAPP.4126001S
Key3
3
Key6
6
Key4
4
Key4
4
Jumper J1 - J4
00369751
Single core 0.5 BK UL-CSA-HAR PVC
LAPP.4180401R
-fp
-hp = Location 2
X-FCU (80MHz), 60 slots
03170631-xx
Location 1_2 (WPC)
03170631
reserve
reserve
P24_EXT
Addr0
P24_EXT
Addr1
Addr2
Addr3
Addr4
/On_Off
Addr5
LGND
/Strobe
LGND
/PWM
/Res1
LGND
LGND
P3V3
P3V3
Valve
NC
GND
NC
PP / Nozzle
24V
BE / component
GND
used
-le
-nc = Location-2
Feeder unlock device 60-way
03057772-01
Feeder
unlock device
-X1
1
2
reserve
reserve
P24_EXT
3
Addr0
5
P24_EXT
4
Addr1
6
Addr2
Addr3
Addr4
/On_Off
Addr5
LGND
7
8
9 11
10 12
/Strobe
LGND
/PWM
/Res1
LGND
LGND
13
14
15 17
16 18
P3V3
P3V3
19
20
500 mm
20x0.09
rounded flat-ribon-cable
03072088-01
-W1
2018161412108642 191715131197531
WH
GY
YE
BN
GN
1000 mm
2x0,25
Reed sensor MK02/0-1A66
03077546-01
-W1.2
250 mm
2x0,25
Reed sensor MK02/0-1A66
03077546-01
-W1.1
1000 mm
2x0,25
UNITONIC LiYY
03072090-01
-W1
BKRD
GND
Valve
FESTO-Ventil
557577
03051469
2
-S1_S2
Cable SX
Sensors reject box “left” CP20/CPP
03077546
-S1
Readsensor_MK02/0 _ NO contact
03053232
S1_component
Operation from the front
440 mm
5x0,23
Unitronic
03079413-01
-W1
-Y2
Valve
nozzle station
03051469
-S2
Readsensor_MK02/0 _ NO contact
03053232
S2_component
Operation from the front
250 mm
2x0,25
Reed sensor MK02/0-1A66
03060826-01
-W1.2
250 mm
2x0,25
Reed sensor MK02/0-1A66
03060826-01
-W1.1
-S1_S2
Cable SX
Sensors reject box “right” CP20/CPP
03060826
-S1
Readsensor_MK02/0 _ NO contact
03053232
S1_component
Operation from the front
-S2
Readsensor_MK02/0 _ NO contact
03053232
S2_nozzle
Operation from the front
PP / Nozzle
24V
BE / component
GND
used
1000 mm
5x0,23
Unitronic
03079413-01
-W2
electric_schematic_SX12_V3
90013315-010101LE3
Replaced by
COT-i 30 _ Loc1_2
1x NC
Replaced by
Weitergabe sowie Vervielfältigung dieser Unterlage, Verwertung und
Mitteilung des Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden.
Proprietary Data, company confidential.
All rights reserved
Copying of this document, giving it to others and the use or
communication of the contents thereof, are forbidden without express authority.
Doc. No.
0 1 2 3 4 5 6 7 8 9
Privileged business information.
Do not release
Offenders are liable to payment of damages. All rights are reserved in the
event of the grant or the registration of a utility model or design.
Zuwiederhandlungen verpflichten zu Schadenersatz. Alle Rechte vorbehalten,
insbesondere für den Fall der Patenterteilung oder GM-Eintragung vorbehalten.
Page:
Function: Change over Table insert, 30 tracks (WPC addon)
==COTi30=SX12_V3+Loc1_2/71
drawing number:
03078847-020301LX3
COT-i 30 + WPC
GmbH & Co KG
ASM
Assembly Systems
Copyright reserved
Ed.
Original
Schnedlitz
Date
Date
Modification
Appr
12.12.2019
Name
starting MC-Nr.: 2018/Q3 G. Pingist
Size DIN A2
Sheet
71
/
4
location 1_2 (WPC)
End position sensor Cylinder 2 End position sensor Cylinder 1
PK
RD
YE
GY
WH
GN
BN
BN GN
YE BN
GY PK
WH GN
RD BU
BK
WH YE
BN
GN
YE
GY
PK
BU
RD
BK
VT
GY PK
RD BU
WH GN
BN GN
WH YE
YE BN
WH
BU
VT
-X1ah
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
-X5
Valve 2
[left]
2
3 5
4
1
6
-X8
Sensor 1
[extended position]
2
3
4 6
1 5
2
3
4 6
-X7
Sensor 2
[retracted position]
1 5
2
3
4 6
-X9
Sensor 4
[retracted position]
51
2
3
4 6
-X10
Sensor 3
[extended position]
1 5
-X6
Valve 1
[right]
2
3 5
4
1
6
Key1X8
1
Key5X7
5
Key1X9
1
Key5X9
5
Key5X10
5
Key1X6
1
42
53
-X5_p(X1)
642
3
-X8_p(X1)
642
3
-X7_p(X1)
642
3
-X9_p(X1)
642
3
-X10_p(X1)
42
53
-X6_p(X1)
Key1X10
1
Key5X8
5
Key1X7
1
Key1X5
1
Tape cutter interface and SPS mounting place identification
Proximity Switch S2
"Retracted" position
Proximity Switch S1
"Extended" position
Proximity Switch S3
"Extended" position
Proximity Switch S4
"Retracted" position
Plag X1
Valve 2 (left)
Cylinder 2
Plag X2
Valve 1 (right)
Cylinder 1
-X1
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
-X12
Nozzle changer 1
1
2
3 5
4 6
7
8
9
10
-X13
Nozzle changer 2
1
2
3 5
4 6
7
8
9
10
1
2
3 5
4 6
7
8
9
-X14
Nozzle changer 3
10
-X18
Nozzle changer 4
1
2
3 5
4 6
7
8
9
10
32 4 5 7 81 1096
86
97
42
531
10
-X13_p
First row -->
2 3 4 6 7 81 5 109
1 2 3 4 5 6 7 8 9
-X1_b
NC 2 / SPS 1
-X1
NC 2 / SPS 1
1 2 3 4 5 6 7 8 9
Pin 10: Key
Not used Not used
Key6X5
6
Key6X6
6
Not used
P5
GS_BERO1_1_EXT
B1_2/MAGTYPE_1
LGND
P5
GS_BERO2_1_EXT
B2_2/MAGTYPE_2
LGND
P5
GS_BERO3_1_EXT
GS_BERO3_2_EXT
LGND
P5
GS_BERO4_1_EXT
GS_BERO4_2_EXT
LGND
-fp
-hp = Location 2
X-FCU (80MHz), 60 slots
03170631-xx
Location 1_2 (WPC)
03170631
LGND
GS_VENTIL2_3_24V
GS_VENTIL2_1_24V
GS_VENTIL2_2_24V
-X1
1815 mm
16x0,25
UNITONIC LiYCY
03072095-01
-W1
WH
BN
GN
YE
GY
PK
BU
RD
BK
VT
GY PK
RD BU
WH GN
BN GN
WH YE
YE BN
LGND
GS_VENTIL1_3_24V
GS_VENTIL1_1_24V
GS_VENTIL1_2_24V
-ah
-ch = Location-2
Tape cutter
03063781
S2+
S2-
S2 Output
S1+
S1-
S1 Output
X1+
X1-
X2+
X2-
S3+
S3-
S3 Output
S4+
S4-
S4 Output
PPW2_NC2_24V_LB
P24
PPW2_NC2_INT
PPW2_NC2_CLOSED
PPW2_NC2_OPEN
PPW2_NC2_CS0
PPW2_NC2_CS1
LGND
PPW2_NC2_VALVE
PPW1_NC1_24V_LB
P24
PPW1_NC1_INT
PPW1_NC1_CLOSED
PPW1_NC1_OPEN
PPW1_NC1_CS0
PPW1_NC1_CS1
LGND
PPW1_NC1_VALVE
P24
LGND
PPW4_NC4_24V_LB
PPW4_NC4_INT
PPW4_NC4_OPEN
PPW4_NC4_CLOSED
PPW4_NC4_CS0
PPW4_NC4_CS1
PPW4_NC4_VALVE
P24
LGND
PPW3_NC3_24V_LB
PPW3_NC3_INT
PPW3_NC3_OPEN
PPW3_NC3_CLOSED
PPW3_NC3_CS0
PPW3_NC3_CS1
PPW3_NC3_VALVE
1100 mm
10x0.14
Flat ribbon cable
03072094-01
-W1
32 4 5 7 81 1096
-nc
-fb
Nozzle changer basic assembly
CPx short
03062463-02
(-hb)
NC_SENSOR_24V
NC_INT_MAGAZINE
NC_OPEN_MAGAZINE
NC_CS1
NC_VALVE
+24V
NC_CLOSE_MAGAZINE
NC_CS0
DGND
electric_schematic_SX12_V3
90013315-010101LE3
Replaced by
Cable harness interface WPC
Cableset: 03072096 and CAN-Switch
03083844
Replaced by
Weitergabe sowie Vervielfältigung dieser Unterlage, Verwertung und
Mitteilung des Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden.
Proprietary Data, company confidential.
All rights reserved
Copying of this document, giving it to others and the use or
communication of the contents thereof, are forbidden without express authority.
Doc. No.
0 1 2 3 4 5 6 7 8 9
Privileged business information.
Do not release
Offenders are liable to payment of damages. All rights are reserved in the
event of the grant or the registration of a utility model or design.
Zuwiederhandlungen verpflichten zu Schadenersatz. Alle Rechte vorbehalten,
insbesondere für den Fall der Patenterteilung oder GM-Eintragung vorbehalten.
Page:
Function: Change over Table insert, 30 tracks (WPC addon)
==COTi30=SX12_V3+Loc1_2/72
drawing number:
03078847-020301LX3
COT-i 30 + WPC
GmbH & Co KG
ASM
Assembly Systems
Copyright reserved
Ed.
Original
Schnedlitz
Date
Date
Modification
Appr
12.12.2019
Name
starting MC-Nr.: 2018/Q3 G. Pingist
Size DIN A2
Sheet
72
/
4
Key
10
Harting HAN-D
Key
6
-X1
1 6 2 7 3 8 4 9 5
-X2_q
CAN2
1
6 2 7 3 8 4 9 5
-X3_q
Power
1
2 3 4

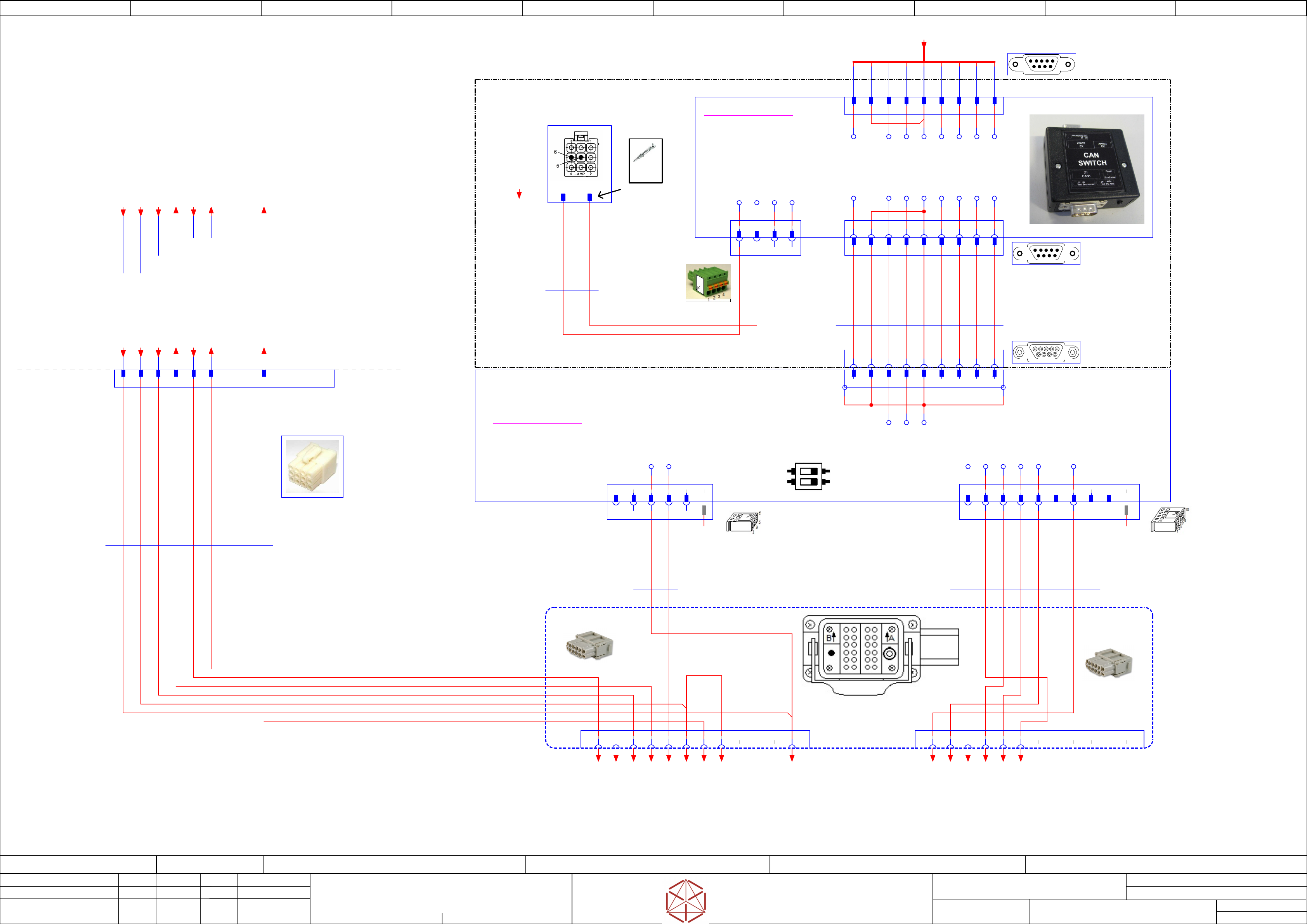

-- WPC - Interface --
DIP-Switch S1
Location addressing
Han DD-module
female insert
Han DD-module
female insert
location 1_2
Overview
for WPC1 (WPC2)
==CH+-X1qs
Machine WPC_1
Mini-Mate-N-Lok
Connector 12pol.
Crimp
contacts
Cable-harness
1 2 3 4 7 8 965
---Optional --
Add-on kit for two WPC
TN: 03085518-xx:
03046863-010101ld4
-X3
Relay CAN-Bus
Terminator (120 Ohm)
1 2 3 4 5
6
-X2
CAN + Location addressing
1 2 3 4 5 7
10
6 8 9
-X3
Safetry +
Signaling
1
2 3 4 5
-X2
CAN +
Addressing
1
2 3 4 5 7
8 96
-X1_2
CAN
1
6 2 7 3 8 4 9 5
-X1qs.(WPC1)
Safetry +
Signaling WPT1
7 8 10 11 12
1 2 3 4 5 6 9
1
6 2 7 3 8 4 9 5
-X1_q
CAN1
03083844-020101ld4
-X1
CAN
1
6 2 7 3 8 4 9 5
-G1-G2
-X3_q
Power
1
2 3 4
-X200.B
Module_B
CAN +
Location
addressing
7b 8b 9b 10b 11b 12b
-X200.A
Module_A
Safetry +
Signaling
9a 10a 11a
-CAN_TERM1
CAN-Bus Terminator
03046863
GND
24V_Switched
ADR_1
GND
CAN_L
CAN_H
ADR_24V
ADR_0
270 mm
2x0,34
UNITONIC LiYY
03072097-01
-W2
BN WH
280 mm
7x0,34
Unitronic
03072097-W3
-W3
WHBNYE GYPKGN
2050 mm
10x0,09
rounded flat-ribon-cable
03072098-01
-W1
1 2 3 4 5 6 7 8 9
CAN_L
CAN_H
GND
Bridge-J1
2200 mm
7x0,5
OELFLEX CLASSIC 110
03072097-01
-W1
1 23 45 67
24V
-P5
GND
-P6
24V
GND
NC
NC
CAN_L
CAN_H
GND
NC
NC
NC
NC
NC
CAN_L
CAN_H
NC
500 mm
2x0,34
UNITONIC LiYY
03085519-01
-W1
WHBN
NC
NC
NC
NC
NC
12a2a 3a 4a 5a 6a 7a1a 8a 1b 2b 3b 4b 5b 6b
-X1_2
/72.4
Connector
Signaling
Pin 5 and Pin 6
Sub-D 9pol. male
Sub-D 9pol. female
Sub-D 9pol. male
-CAN_SW1
CAN-Switch
** Optional secound_WPC_only **
03083844
==WPC2+-GND_10c
==CH+DI/56.8
Signaling_WPC2
==WPC2+-24V_18a
==CH+DI/56.8
==WPC2+-Safety_Loop_X15
==CH+DI/56.8
==WPC2+-Safety_Loop_End_28b
==CH+DI/56.8
==WPC2+-Safety_Loop_WPC2in
==CH+DI/56.8
==WPC2+-Safety_Loop_WPC2out
==CH+DI/56.8
==WPC2+-Safety_Stop_WPC_25d
==CH+DI/56.9
=+-Power_CAN_Switch
-- Optional with two WPC --
/69.5
+-MCAN2.WPC1_2
/69.2
==WPC1+-24V_17c
==CH+DI/56.3
==WPC1+-Safety_Loop_X13
==CH+DI/56.3
==WPC1+-Safety_Loop_X14
==CH+DI/56.3
==WPC1+-Safety_Loop_WPC1in
==CH+DI/56.3
==WPC1+-Safety_Loop_WPC1out
==CH+DI/56.4
==WPC1+-Safety_Stop_WPC_25c
==CH+DI/56.4
==WPC1+-GND_9c
==CH+DI/56.3
Signaling_WPC1
==WPC=+-GND.B
==WPC=+-CAN_H
==WPC=+-CAN_L
==WPC=+-ADR_1
==WPC=+-ADR.24V
==WPC=+-ADR_0
==WPC=+-24V.Sw
==WPC=+-GND.12a
==WPC=+-24V.8a
==WPC=+-EMG_L_WPCout
==WPC=+-EMG_L_WPCin
==WPC=+-GND.7a
==WPC=+-24V.6a
==WPC=+-EMG_Loop_in
==WPC=+-EMG_Loop_out
