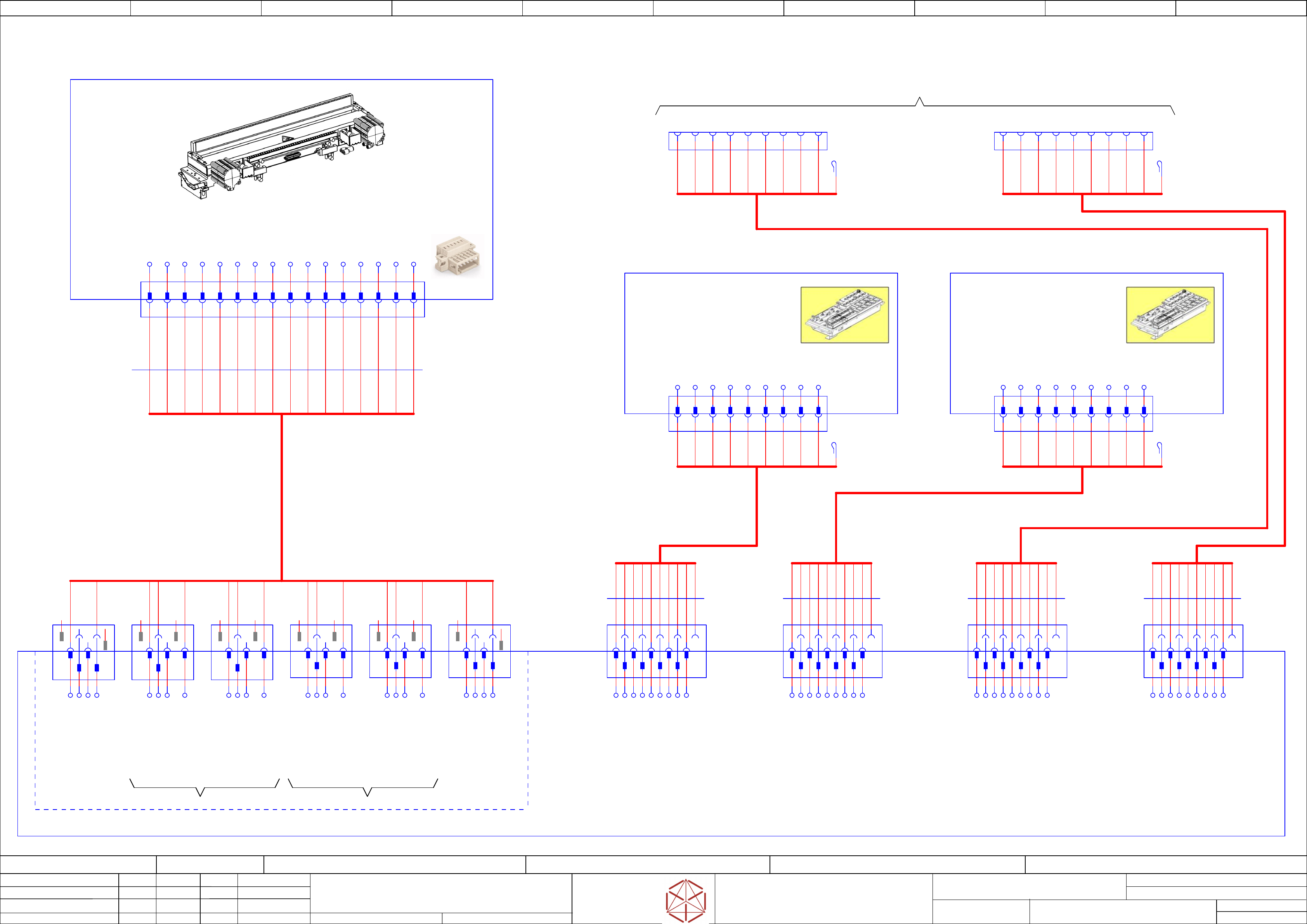

Function: Change Over Table insert, 60 tracks
==COTi60=SX12_V3+Loc2/78
drawing number:
03079375-020301LX4
COT-i 60 _ SX12
GmbH & Co KG
ASM
Assembly Systems
Copyright reserved
Ed.
Original
Schnedlitz
Date
Date
Modification
Appr
12.12.2019
Name
starting MC-Nr.: 2018/Q3 G. Pingist
Size DIN A2
Sheet
78
/
3
location 2
2 3 4 6 7 81 5
32 4 5 7 81 109
109 2 3 4 6 7 81 5 109
32 4 5 7 81 109
End position sensor Cylinder 2 End position sensor Cylinder 1
Proximity Switch S2
"Retracted" position
Proximity Switch S1
"Extended" position
Proximity Switch S3
"Extended" position
Proximity Switch S4
"Retracted" position
Plag X1
Valve 2 (left)
Cylinder 2
Plag X2
Valve 1 (right)
Cylinder 1
PK
RD
YE
GY
WH
GN
BN
BN GN
YE BN
GY PK
WH GN
RD BU
BK
WH YE
BN
GN
YE
GY
PK
BU
RD
BK
VT
GY PK
RD BU
WH GN
BN GN
WH YE
YE BN
WH
BU
VT
-X1ha
NC 1
1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9
-X1hb
NC 2 / SPS 1
-X6
NC 1
1 2 3 4 5 6 7 8 9
6
-X6
NC 2 / SPS 1
1 2 3 4 5 6 7 8 9
6
-X1
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
-X1ch
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
-X5
Valve 2
[left]
2
3 5
4
1
6
-X8
Sensor 1
[extended position]
2
3
4 6
1 5
2
3
4 6
-X7
Sensor 2
[retracted position]
1 5
2
3
4 6
-X9
Sensor 4
[retracted position]
51
2
3
4 6
-X10
Sensor 3
[extended position]
1 5
-X6
Valve 1
[right]
2
3 5
4
1
6
-X12
Nozzle changer 1
1
2
3 5
4 6
7
8
9
10
-X13
Nozzle changer 2
SPS 1
1
2
3 5
4 6
7
8
9
10
1
2
3 5
4 6
7
8
9
-X14
Nozzle changer 3
10
-X18
Nozzle changer 4
SPS 2
1
2
3 5
4 6
7
8
9
10
86
97
42
531
10
Pin 10: Key
-X13hp
86
97
42
531
10
Pin 10: Key
-X12hp
32 4 5 7 81 109
2 3 4 6 7 81 5 109
6 32 4 5 7 81 109
2 3 4 6 7 81 5 109
6
86
97
42
531
10
Pin 10: Key
-X14hp
86
97
42
531
10
Pin 10: Key
-X18hp
Key6X5
6
Key1X8
1
Key5X7
5
Key1X9
1
Key5X9
5
Key5X10
5
Key1X6
1
Key6X6
6
42
53
-X5hp(X1)
642
3
-X8hp(X1)
642
3
-X7hp(X1)
642
3
-X9hp(X1)
642
3
-X10hp(X1)
42
53
-X6hp(X1)
Key1X10
1
Key5X8
5
Key1X7
1
Key1X5
1
First row -->
Second row -->
Not used
PPW2_NC2_24V_LB
P24
PPW2_NC2_INT
PPW2_NC2_CLOSED
PPW2_NC2_OPEN
PPW2_NC2_CS0
PPW2_NC2_CS1
LGND
PPW2_NC2_VALVE
PPW1_NC1_24V_LB
P24
PPW1_NC1_INT
PPW1_NC1_CLOSED
PPW1_NC1_OPEN
PPW1_NC1_CS0
PPW1_NC1_CS1
LGND
PPW1_NC1_VALVE
P5
GS_BERO1_1_EXT
B1_2/MAGTYPE_1
LGND
P5
GS_BERO2_1_EXT
B2_2/MAGTYPE_2
LGND
P5
GS_BERO3_1_EXT
GS_BERO3_2_EXT
LGND
P5
GS_BERO4_1_EXT
GS_BERO4_2_EXT
LGND
P24
LGND
PPW4_NC4_24V_LB
PPW4_NC4_INT
PPW4_NC4_OPEN
PPW4_NC4_CLOSED
PPW4_NC4_CS0
PPW4_NC4_CS1
PPW4_NC4_VALVE
P24
LGND
PPW3_NC3_24V_LB
PPW3_NC3_INT
PPW3_NC3_OPEN
PPW3_NC3_CLOSED
PPW3_NC3_CS0
PPW3_NC3_CS1
PPW3_NC3_VALVE
-hp
X-FCU (80MHz), 60 slots
03170631-xx
Location 2
03170631
-nc -nc
LGND
GS_VENTIL2_3_24V
GS_VENTIL2_1_24V
GS_VENTIL2_2_24V
-X1
-ch
Tape cutter
03063781
S2+
S2-
S2 Output
S1+
S1-
S1 Output
X1+
X1-
X2+
X2-
S3+
S3-
S3 Output
S4+
S4-
S4 Output
1715 mm
16x0,25
UNITONIC LiYCY
03060474-03
-W1
WH
BN
GN
YE
GY
PK
BU
RD
BK
VT
GY PK
RD BU
WH GN
BN GN
WH YE
YE BN
LGND
GS_VENTIL1_3_24V
GS_VENTIL1_1_24V
GS_VENTIL1_2_24V
-ha
Nozzle changer basic assembly
CPx short
03062463-02
NC_SENSOR_24V
NC_INT_MAGAZINE
NC_OPEN_MAGAZINE
NC_CS1
NC_VALVE
+24V
NC_CLOSE_MAGAZINE
NC_CS0
DGND
-hb
Nozzle changer basic assembly
CPx short
03062463-02
NC_SENSOR_24V
NC_INT_MAGAZINE
NC_OPEN_MAGAZINE
NC_CS1
NC_VALVE
+24V
NC_CLOSE_MAGAZINE
NC_CS0
DGND
750 mm
10x0.14
Flat ribbon cable
03060473-01
-W1
1 2 3 4 5 6 7 8 9
-nc
10
-X1hc
NC 3
1 2 3 4 5 6 7 8 9
-X1hd
NC 4 / SPS 2
1 2 3 4 5 6 7 8 9
1250 mm
10x0.14
Flat ribbon cable
03060473-01
-W2
1 2 3 4 5 6 7 8 9
-nc
10
750 mm
10x0.14
Flat ribbon cable
03060472-01
-W1
32 4 5 7 81 1096
1250 mm
10x0.14
Flat ribbon cable
03060472-01
-W2
32 4 5 7 81 1096

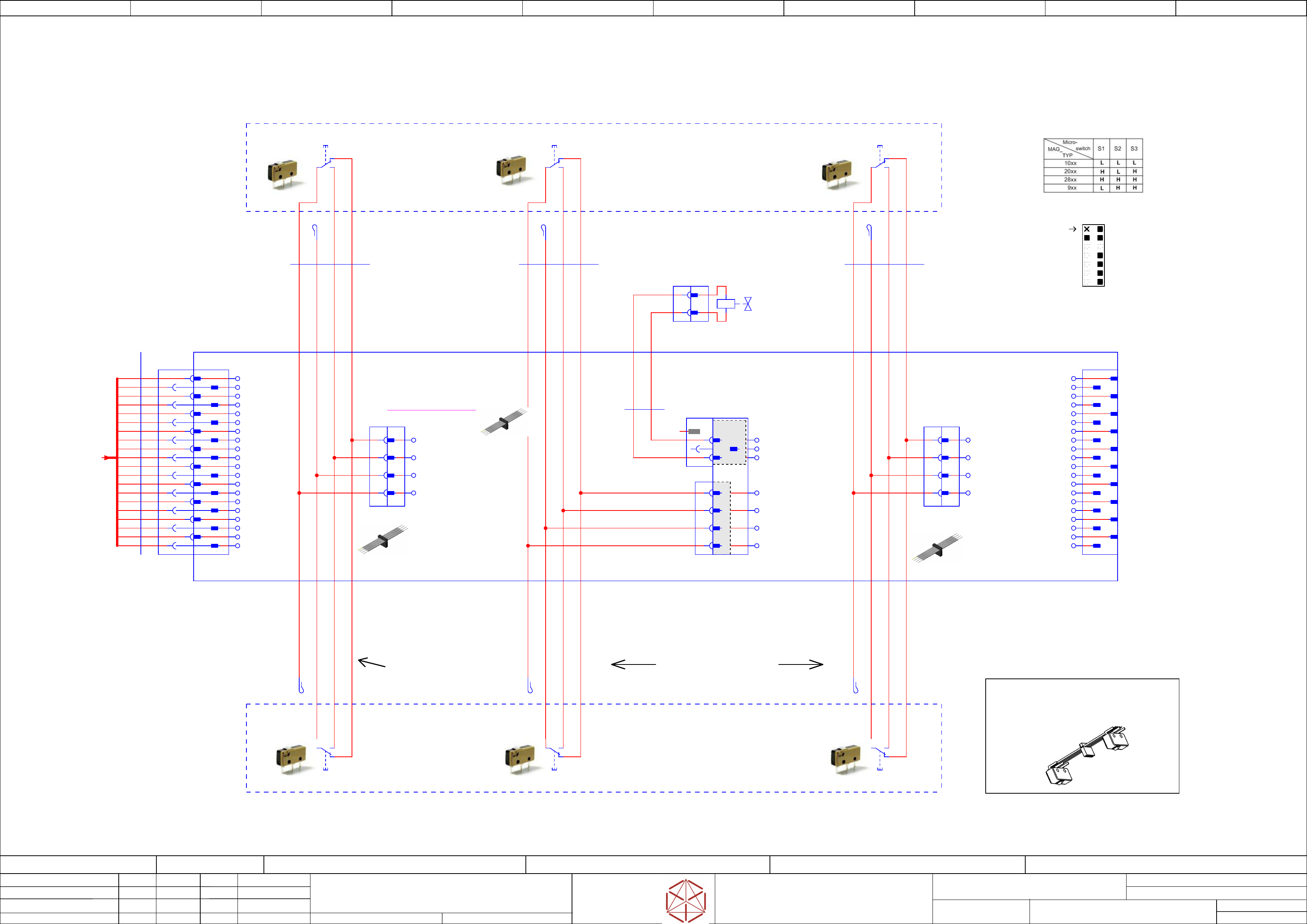

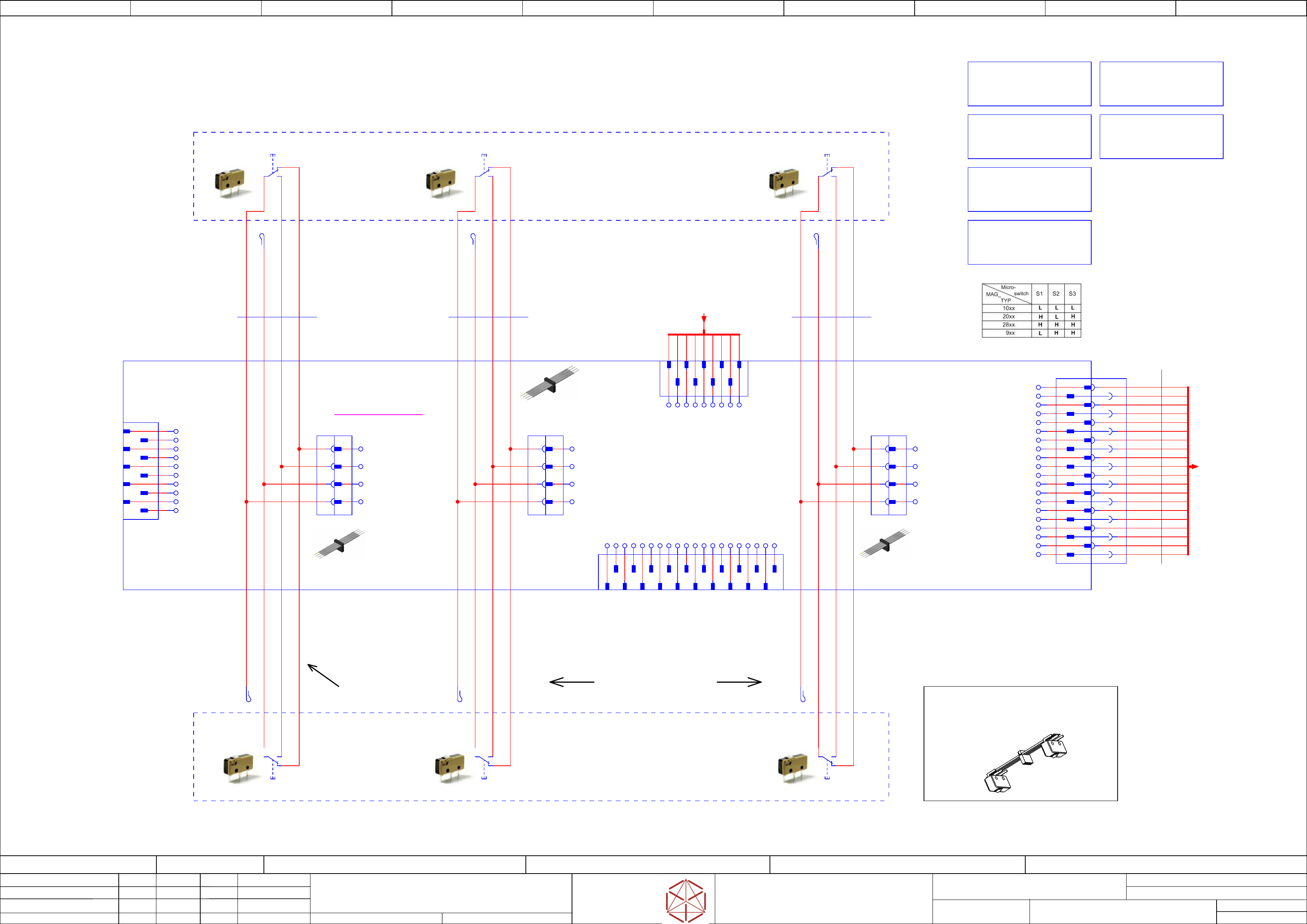

electric_schematic_SX12_V3
90013315-010101LE3
