182052 Mechanical Drawings - 第20页
18 Mechanical Drawings 156753 Issue 1 Light Shroud GA, Box Section
Mechanical Drawings 17

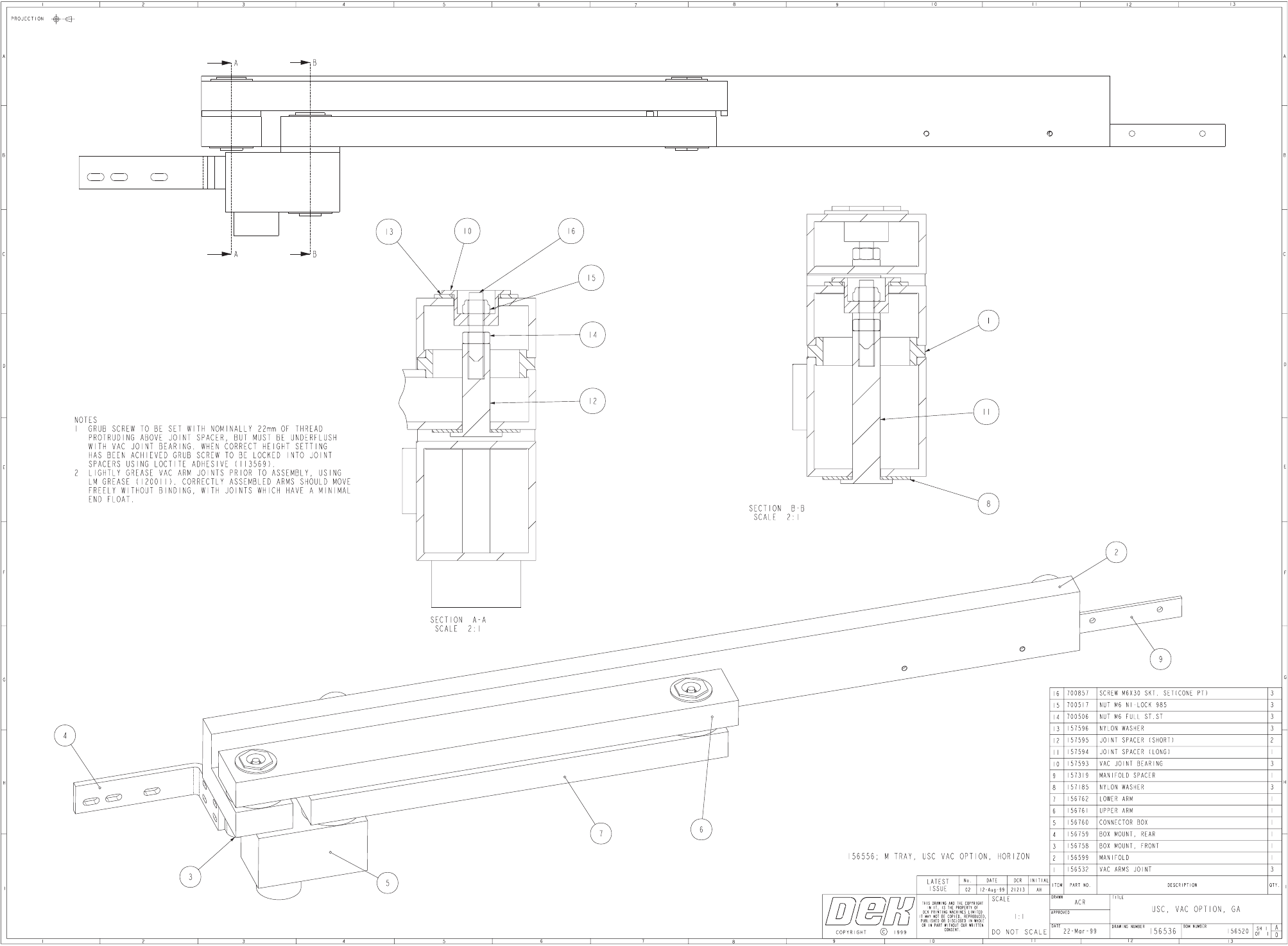

156536 Issue 2 USC Vacuum Option GA
18 Mechanical Drawings
156753 Issue 1 Light Shroud GA, Box Section
Mechanical Drawings 19
156792 Issue 1 265 Venturi Vacuum Kit GA
F
E
D
C
B
A
654321
E
F
987
123456789
PROJECTION
D
C
B
A
DRAWN
APPROVED
DATE
C
COPYRIGHT
DO NOT SCALE
SCALE
TITLE
DRAWING NUMBER
2001
BOM NUMBER
ITEM PART NO. DESCRIPTION QTY.
1
107526 ELBOW (KQL 08-01) 1
2
112414 CABLE TIE CLAMP 2
3
113822 CABLE TIE CLAMP (M5) 1
4
145259 VENTURI VACUUM PUMP (M50) 1
5
145261 VACUUM CONNECTOR 1
6
145268 SOLENOID ASSY (VENTURI VAC. KIT) 1
7
145324 SPEED CONTROLLER ASSY (VENTURI VAC. KIT) 1
8
156791 SUPPORT BRKT, SOLENOID AND PUMP 1
LATEST
ISSUE
No. DATE DCR INITIAL
02 11-Aug-99 21498 NS
THIS DRAWING AND THE COPYRIGHT
IN IT, IS THE PROPERTY OF
DEK PRINTING MACHINES LIMITED
IT MAY NOT BE COPIED, REPRODUCED,
PUBLISHED OR DISCLOSED IN WHOLE
OR IN PART WITHOUT OUR WRITTEN
CONSENT.
1:1
A HAMLIN
265 VENTURI VACUUM KIT G.A.
11-Aug-99
156792
156790
SH 1
OF 1
A
1
1
2
3
4
5
6
7
8
SCALE 1:2
