Page 2
How to Search for Unit No. and Kit No. of Tape Feeder

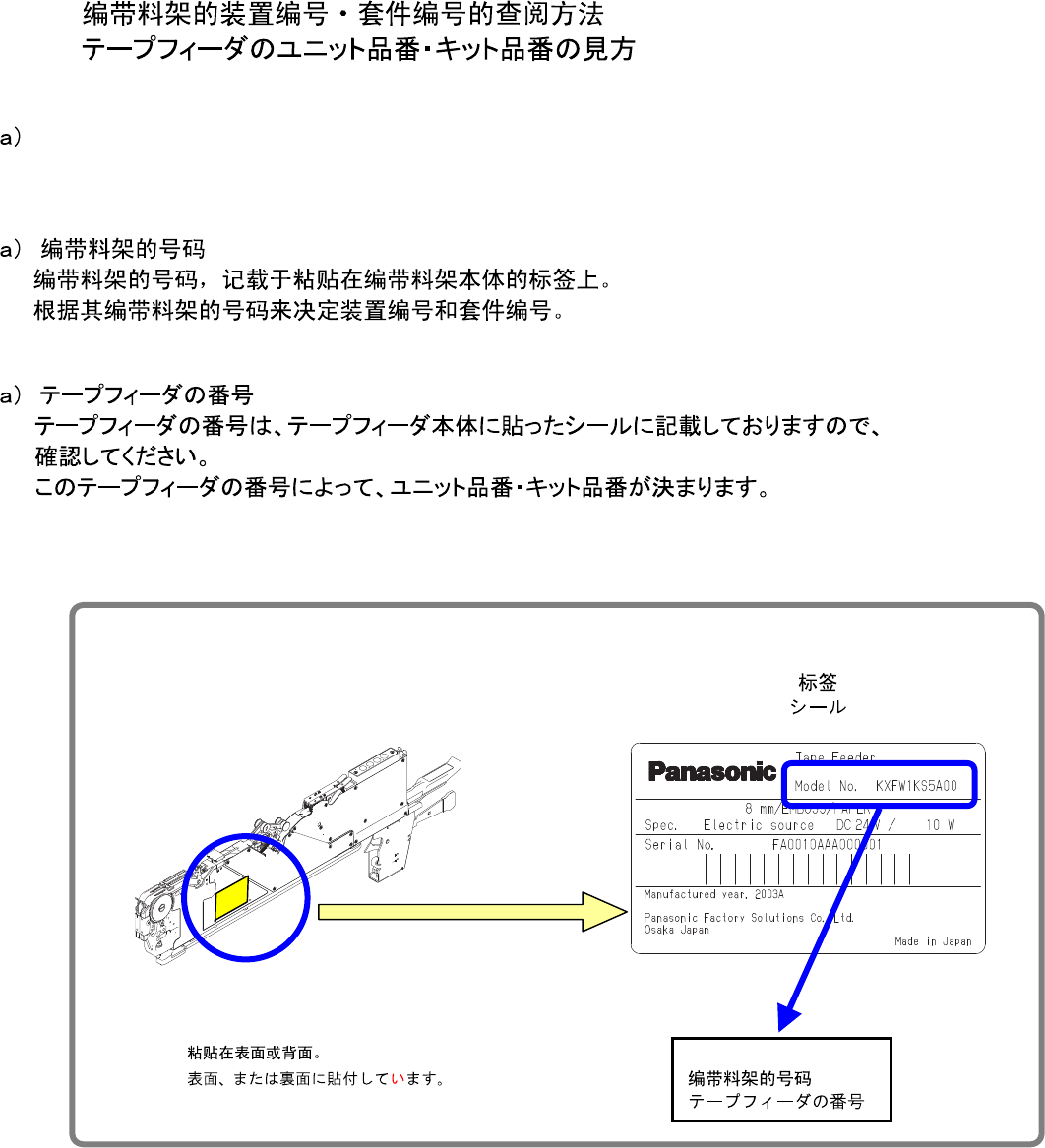

Checking Tape Feeder No.
The tape feeder No. is indicated on the label pasted on the tape feeder main body.
The unit No. and the kit No. are determined by this tape feeder No.
A
ttached on the front
side or reverse side.
Tape feeder No.
Label
Page 3
Searching for Unit No.
Refer to the column “PART NUMBER” in the unit list for the tape feeder that you checked in
a) above.
The number that corresponds with the tape feeder No. checked in a) above is the unit No. of
the desired tape feeder.
b
a)
a)
a) Part
a)
Unit List
Label
Page 4
Searching for Kit No.
Check the symbol (A,B, ) for the desired kit in the parts layout.
In the parts list, you will find the corresponding kit No. in the row of that symbol.
c
(A,B, )
(A B )
NO P ART NUMBER RANK REMARKS
A N 610002833AB
B N 610025477AB
C N 610007640AB
D N 610025484AA
E N 610025485AA
F N610071897AA
1 KXFA1MLAA00
2 KXF0DYAZA00
3 XXE25C3FP
4 N210005449AA
5 N210017141AA
6 N210071635AA
7 KXF0DK1AA00
8 N210047118AB
9 KXFA1KPAA00
10 KXFA1KQAA00
11 KXFA1KRAA00
12 KXFA1PSSA00
13 XSS3+6VW
14 N510002400AA
15 KXFA1KFAA00
16 KXFA1KHBA00
17 KXF0DK4AB00
18 N210045625AA
19 KXFA1MJAA00
20 KXFA1MKAA00
21 KXF0B88AA00
22 XVE4B8FYA
23 N210071634AA
FULCRUM SPRING 2(1)
SP(DA KXF0DK4AB00) 2(1)
1(0)
PIN 2(1)
2(1)
2(1)
1(0)
LEVER
BOLT
2
2(1)
Hexagon socket set screw M2.5×3 Flat point Steel Parker black 2
PART NAME TYPE Q'TY
PRESSER-COVER 2(1)
1
UNIT NAME
Tape Feeder,8mm,Splicensing,TypeA
Hexagon socket head cap screw M4×8-10.9 A2 J 0(1)
2(1)
WASHER Thick washer for M4(SUS) 0(1)
PIN 1(0)
LEVER 1
SPRING
SCREW SUSB Taptite pan head 2.6 8
ROLLER
4(2)
PIN 2(1)
2(1)
SCREW Cross recessed countersunk head M3 6 SUS304 2(1)
PIN 1
PIN
COMB
COVER
PIN
PIN
GEAR
2(1)
SPRING SP(DA KXF0DK1AA00) 2(1)
LEVER 1(0)
SPRING 2(1)
MAGNET 2
SCREW
COVER
TENSIONER 1(0)
TENSIONER 0(1)
LEVER 1
No.
MODULE NUMBER UNIT NUMBER
PART LIST
KXFW1KS5A00/KXFW1KSBA00/
N610003476AA/N610003478AA
- 4 - ( 02 - 0006 )
