Ref No. Remarks R 1 Q't y Tape Feeder; 8 mm single; Splice sensing; Type A; For 0402 Part No. R 2 Kit No. Kit Name N610031079AA Part Name PARTS LIST Section No. R 3 Spring type botto m plate 1 1 N610014970AE COVER 1…

100%1 / 154
Tape Feeder; 8 mm single; Splice sensing; Type A; For 0402
Kit No.
Kit Name
N610031079AA

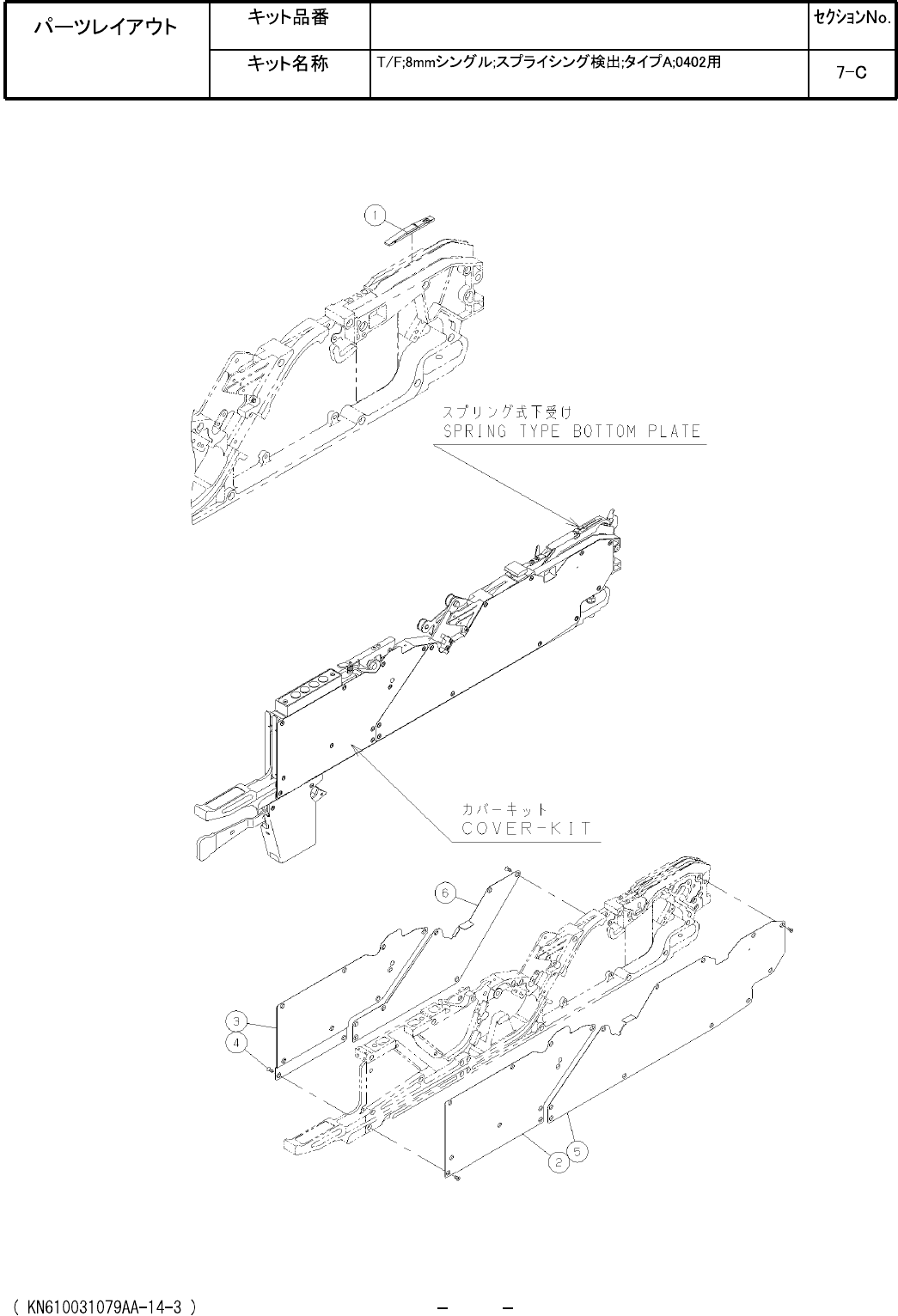

PARTS LAYOUT
Section No.
M41
Ref
No.
Remarks
R
1
Q't
y
Tape Feeder; 8 mm single; Splice sensing; Type A; For 0402
Part No.
R
2
Kit No.
Kit Name
N610031079AA
Part Name
PARTS LIST
Section No.
R
3
Spring type bottom plate
1
1 N610014970AE
COVER
1
2 KXFA1MPBA01
COVER
1
3 N210109641AA
SCREW
38
4 XSS25+6VW
Cross recessed Countersunk head machine screw M2.5X6-A2-70
COVER
1
5 KXFA1PQ9A00
COVER
1
6 KXFA1PR0A00
M42
Tape Feeder; 8 mm single; Type A; For 0402
Kit No.
Kit Name
N610031081AA
PARTS LAYOUT
Section No.
M43
