Ref No. Remarks R 1 Q't y Tape Feeder; 8 mm single; Type A; For 0402 Part No. R 2 Kit No. Kit Name N610031081AA Part Name PARTS LIST Section No. R 3 PRESSER-COVER 1 1 N610092921AA TENSIONER 1 3 N610007640AB LEVER 1 …

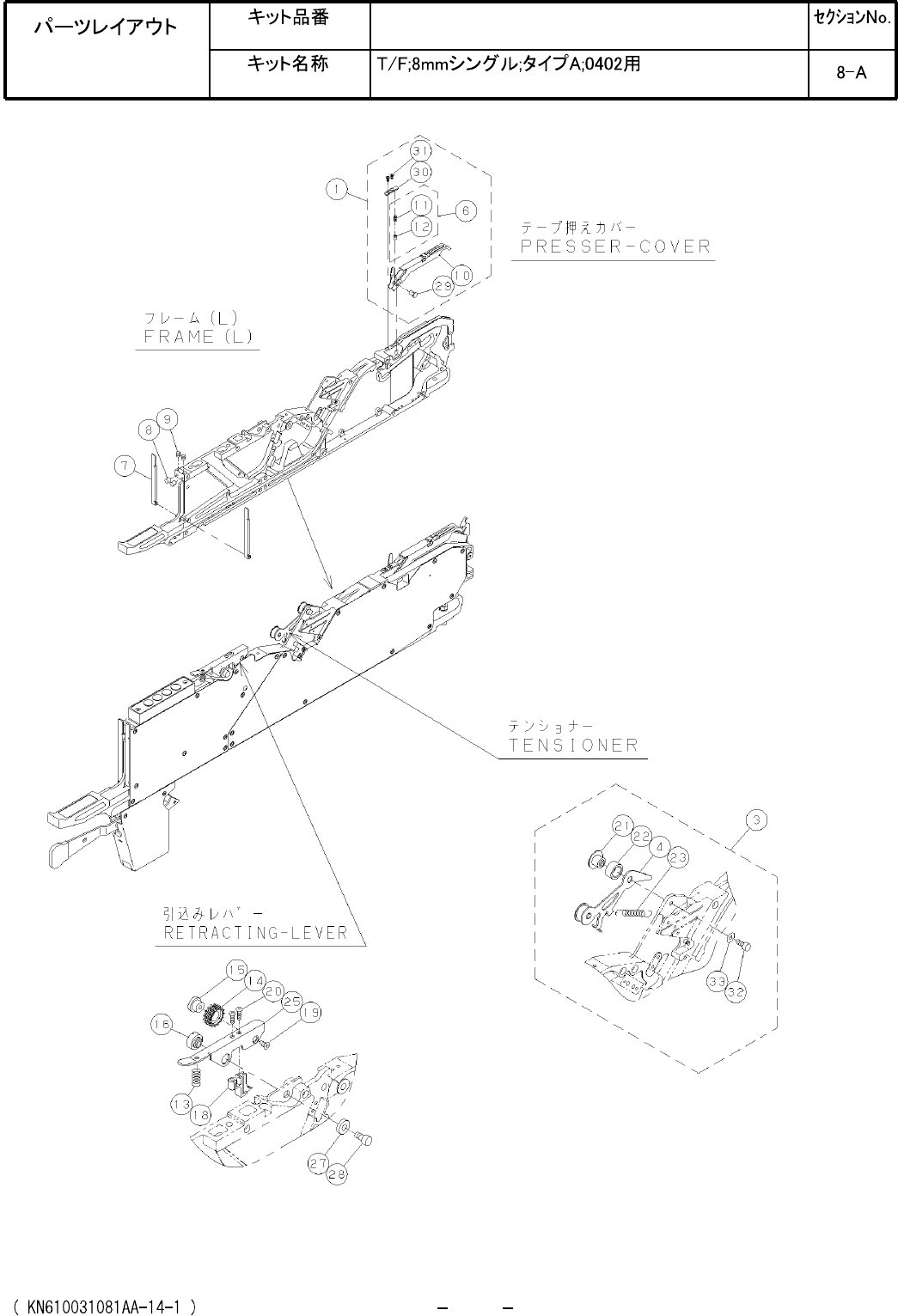

Tape Feeder; 8 mm single; Type A; For 0402
Kit No.
Kit Name
N610031081AA
PARTS LAYOUT
Section No.
M43
Ref
No.
Remarks
R
1
Q't
y
Tape Feeder; 8 mm single; Type A; For 0402
Part No.
R
2
Kit No.
Kit Name
N610031081AA
Part Name
PARTS LIST
Section No.
R
3
PRESSER-COVER
1
1 N610092921AA
TENSIONER
1
3 N610007640AB
LEVER
1
4 N610025484AB
Fulcrum spring
1
6 N610071897AA
COVER
2
7 N210123197AA
MAGNET
2
8 KXF0DYAZA00 NEO33
SCREW
2
9 XXE25C3FP
Hexagon socket set screw Flat point M2.5X3-45H SCHP
COVER
1
10 N210099708AC
SPRING
1
11 N210017141AA
PIN
1
12 N210071635AA
SPRING
1
13 N210114131AA
GEAR
1
14 N210047118AB
PIN
1
15 KXFA1KPAA00
PIN
1
16 KXFA1KQAA00
COMB
1
18 N210116209AA
SCREW
1
19 XSS3+6VW
Cross recessed Countersunk head machine screw M3X6-A2-70
SCREW
2
20 N510002400AA SUSB Taptite pan head 2.6 8
PIN
1
21 KXFA1KFAA00
ROLLER
1
22 KXFA1KHBA00
SPRING
1
23 N210067680AA
LEVER
1
25 N210120308AA
WASHER
1
27 KXF0B88AA00 Thick washer for M4(SUS)
BOLT
1
28 N510017381AA
Hexagon socket head cap screw M4X8-10.9 A2J (Trivalent)
PIN
1
29 N210071634AA
PLATE
1
30 N210124272AA
SCREW
2
31 XSS25+6VW
Cross recessed Countersunk head machine screw M2.5X6-A2-70
BOLT
1
32 N510017341AA
Hexagon socket head cap screw M3X8-10.9 A2J (Trivalent)
WASHER
1
33 N510018494AA
Round finish plain washer 3 10H A2J (Trivalent)
M44

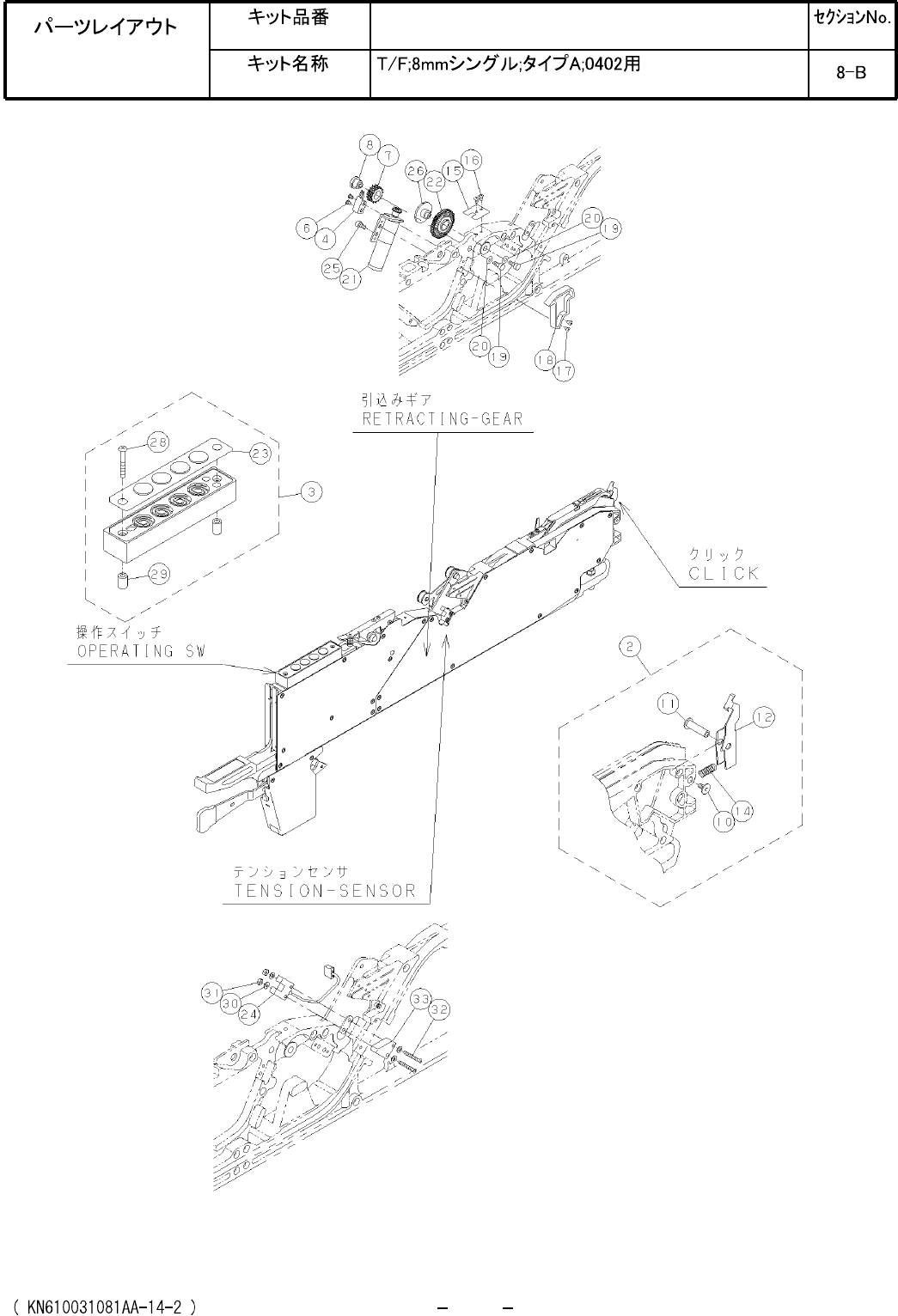

Tape Feeder; 8 mm single; Type A; For 0402
Kit No.
Kit Name
N610031081AA
PARTS LAYOUT
Section No.
M45
