Tape Feeder; 12;16 mm; Splice sensing; Type A Kit No. Kit Name KXFW1KS6A00 PARTS LAYOUT Section No. M1

100%1 / 154
Kit Name
RankQ'tyPart No. PageNo.
Intelligent Tape Feeder
Model No.
Model Name
KXF-INTF
KIT LIST
1
1
KXFW1KS6A00
Tape Feeder; 12;16 mm; Splice sensing; Type A
M1
1
2
KXFW1KSCA00 Tape Feeder; 12;16 mm; Type A
M5
U2
Tape Feeder; 12;16 mm; Splice sensing; Type A
Kit No.
Kit Name
KXFW1KS6A00

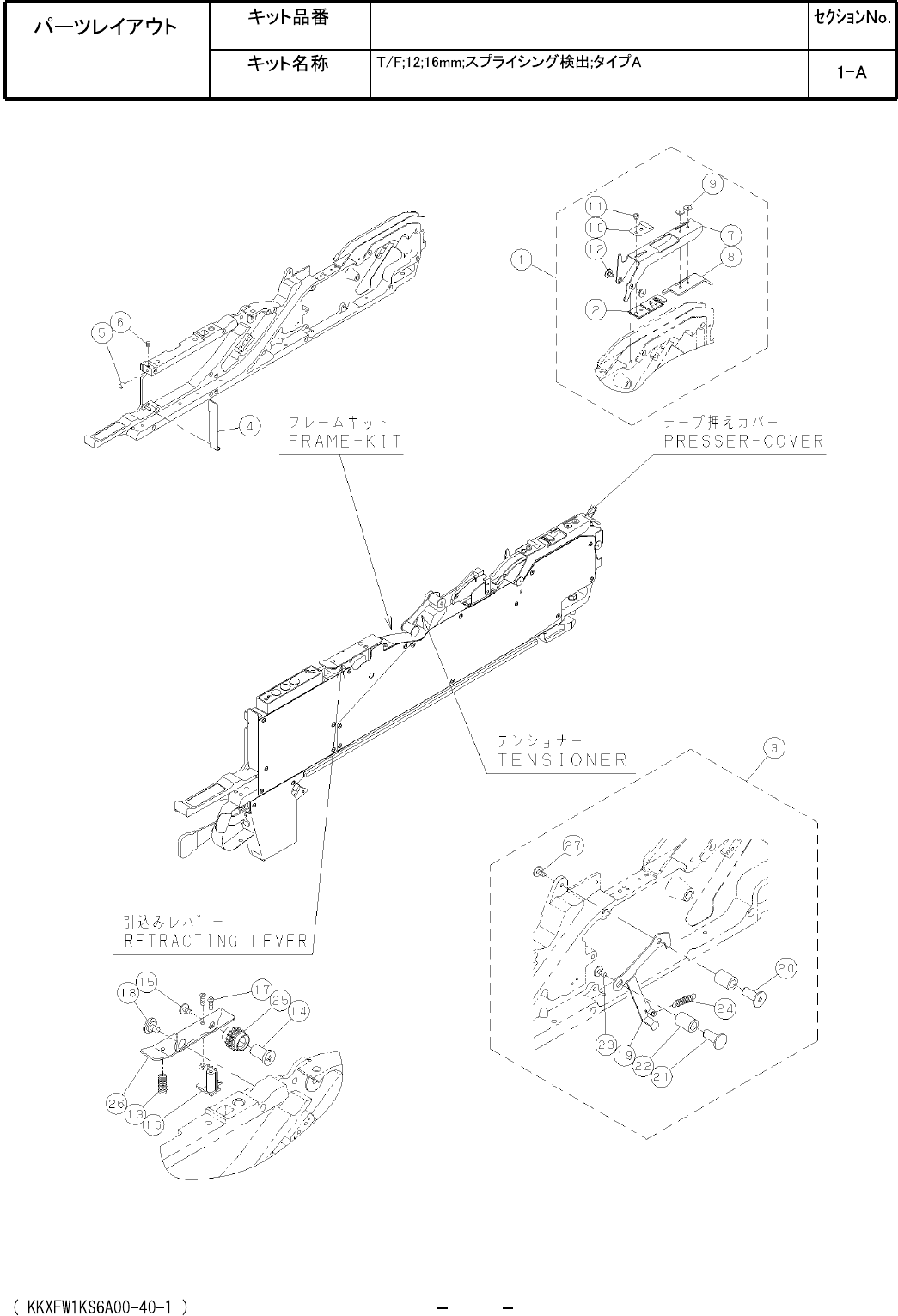

PARTS LAYOUT
Section No.
M1
Ref
No.
Remarks
R
1
Q't
y
Tape Feeder; 12;16 mm; Splice sensing; Type A
Part No.
R
2
Kit No.
Kit Name
KXFW1KS6A00
Part Name
PARTS LIST
Section No.
R
3
PRESSER-COVER
1
1 N610090958AA
SLIT-PLATE
1
2 N610081167AB
TENSIONER
1
3 N610025478AD
COVER
1
4 N210123198AA
MAGNET
1
5 KXF0DYAZA00 NEO33
SCREW
1
6 XXE25C3FP
Hexagon socket set screw Flat point M2.5X3-45H SCHP
COVER
1
7 N210089630AB
GUIDE
1
8 N210006455AA
PIN
2
9 KXFA1PQ5B00
GUIDE
1
10 KXFA1NBAA00
SCREW
2
11 KXF0DYAJA00 S020659-2001(DDA)
PIN
2
12 KXFA1LHAA00
SPRING
1
13 KXF0DYUFA01 (DA KXF0DYUFA01)
PIN
1
14 KXFA1LGAA00
PIN
1
15 KXFA1KAAA00
COMB
1
16 KXFA1PSXA00
SCREW
2
17 N510002400AA SUSB Taptite pan head 2.6 8
PIN
1
18 KXFA1KRAA00
LEVER
1
19 N210029789AA
PIN
1
20 KXFA1LJAA00
PIN
1
21 KXFA1LEAA00
ROLLER
2
22 KXFA1LDAA00
PIN
1
23 KXFA1KAAA00
SPRING
1
24 N210064344AC
GEAR
1
25 N210050454AA
LEVER
1
26 KXFA1N4AA00
PIN
1
27 N210044529AA
M2
