INTF-E-MP0.pdf - 第82页
Tape Feeder; 24;32 mm; T ype A Kit No. Kit Name KXFW1KSDA00 PARTS LAYOUT Section No. M7
Ref
No.
Remarks
R
1
Q't
y
Tape Feeder; 24;32 mm; Type A
Part No.
R
2
Kit No.
Kit Name
KXFW1KSDA00
Part Name
PARTS LIST
Section No.
R
3
PRESSER-COVER
1
1 N610090959AA
SLIT-PLATE
1
2 N610072585AC
TENSIONER
1
3 N610025479AB
COVER
1
4 N210123199AA
MAGNET
1
5 KXF0DYAZA00 NEO33
SCREW
1
6 XXE25C3FP
Hexagon socket set screw Flat point M2.5X3-45H SCHP
COVER
1
7 N210020703AA
COVER
1
8 KXFA1PR5B01
GUIDE
1
9 N210081356AB
PIN
2
10 KXFA1PQ5B00
PIN
2
11 KXFA1LHAA00
GUIDE
1
12 KXFA1NNAA00
SCREW
2
13 KXF0DYAJA00 S020659-2001(DDA)
SPRING
1
14 KXF0DYUFA01 (DA KXF0DYUFA01)
SCREW
2
15 N510002400AA SUSB Taptite pan head 2.6 8
GEAR
2
16 N210050456AB
PIN
1
17 KXFA1LSAA00
PIN
1
18 KXFA1KAAA00
COMB
1
19 KXFA1PT0A00
SCREW
1
20 XSN25+6VW
Cross recessed Pan head machine screw M2.5X6-A2-70
PIN
2
21 KXFA1KRAA00
LEVER
1
22 N210029790AA
PIN
1
23 KXFA1LTAA00
PIN
1
24 KXFA1LQAA00
LEVER
1
25 N210038151AA
ROLLER
2
26 KXFA1LPBA00
PIN
2
27 KXFA1KAAA00
SPRING
1
28 KXF0DK6AA00 (DA 0DK6A)
LEVER
1
29 KXFA1NKAA00
LEVER
1
30 KXFA1NSAA00
PIN
1
31 KXFA1Q0LA00
PLATE
1
32 N210081355AB
PIN
1
33 N210044529AA
M6
Tape Feeder; 24;32 mm; Type A
Kit No.
Kit Name
KXFW1KSDA00

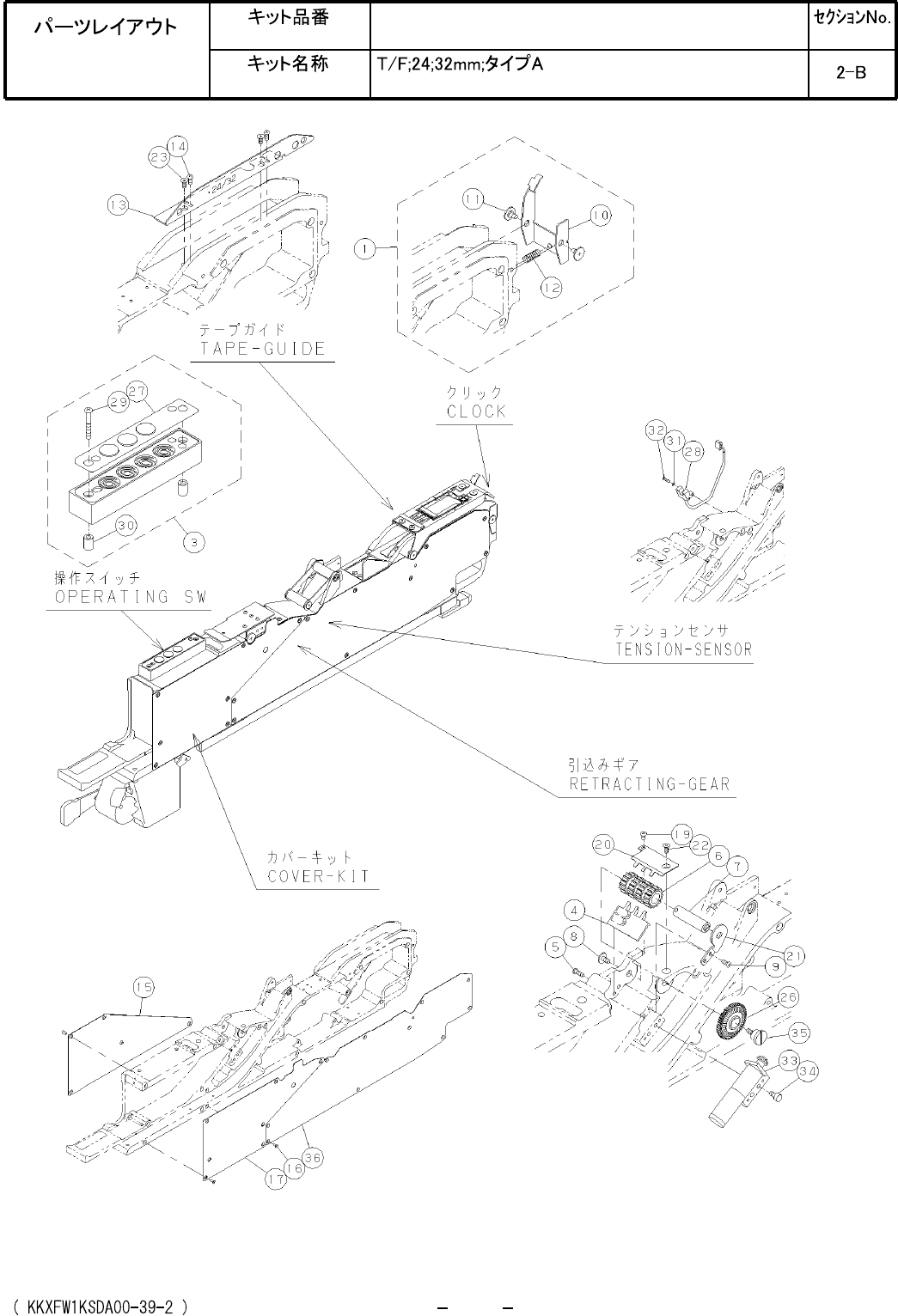

PARTS LAYOUT
Section No.
M7
Ref
No.
Remarks
R
1
Q't
y
Tape Feeder; 24;32 mm; Type A
Part No.
R
2
Kit No.
Kit Name
KXFW1KSDA00
Part Name
PARTS LIST
Section No.
R
3
CLICK
1
1 KXFW1KWLA00
OPERATING-SW
1
3 N610033141AA
COMB
1
4 KXFA1PT1A02
SCREW
2
5 N510002400AA SUSB Taptite pan head 2.6 8
GEAR
1
6 N210050455AB
PIN
1
7 KXFA1LSAA00
PIN
1
8 KXFA1KAAA00
SCREW
2
9 XSN25+6VW
Cross recessed Pan head machine screw M2.5X6-A2-70
CLICK
1
10 KXFA1PTAA00
PIN
2
11 KXFA1LHAA00
SPRING
1
12 KXF0DRSAA00 (DA 0DRSA)
GUIDE
1
13 KXFA1PTDA01
SCREW
2
14 XSN25+6VW
Cross recessed Pan head machine screw M2.5X6-A2-70
COVER
1
15 KXFA1N6BA00
SCREW
22
16 XSS25+6VW
Cross recessed Countersunk head machine screw M2.5X6-A2-70
COVER
1
17 KXFA1N8BA01
SCREW
1
19 XSN25+4VW
Cross recessed Pan head machine screw M2.5X4-A2-70
PLATE
1
20 KXFA1PZKB01
BRACKET
1
21 KXFA1NTAA00
SCREW
1
22 XSS25+6VW
Cross recessed Countersunk head machine screw M2.5X6-A2-70
SCREW
2
23 XSS25+6VW
Cross recessed Countersunk head machine screw M2.5X6-A2-70
GUIDE
1
24 N210005463AB
SCREW
2
25 XSS25+6VW
Cross recessed Countersunk head machine screw M2.5X6-A2-70
GEAR
1
26 N210050452AA
SEAL
1
27 KXF0DWTLA00 (DA KXF0DWTLA00)
SENSOR
1
28 N510037013AA PM-F24-M3
SCREW
2
29 N510018959AA
Cross recessed Pan head machine screw M2.5X18-4.8 A2J (Trivalent)
SPACER
2
30 KXF08WXAA00 C-2607
WASHER
1
31 N510018477AA
Small round-plain washer 2 10H A2J (Trivalent)
SCREW
1
32 N510002401AA SUS M2x8+TB2430
RETRACTING-MOTOR
1
33 N510043589AA
BOLT
2
34 N510017337AA
Hexagon socket head cap screw M3X6-10.9 A2J (Trivalent)
PIN
1
35 KXFA1L0AA00
COVER
1
36 KXFA1PR1A00
M8
