INTF-E-MP0.pdf - 第90页
Tape Feeder; 44; 56 mm; Splice sensing;Type A Kit No. Kit Name KXFW1KS8A00 PARTS LAYOUT Section No. M3
Ref
No.
Remarks
R
1
Q't
y
Tape Feeder; 44; 56 mm; Splice sensing;Type A
Part No.
R
2
Kit No.
Kit Name
KXFW1KS8A00
Part Name
PARTS LIST
Section No.
R
3
PRESSER-COVER
1
1 N610090960AA
TENSIONER
1
2 N610025480AB
PIN
1
3 KXFA1M2AA00
COVER
1
4 N210123200AA
MAGNET
1
5 KXF0DYAZA00 NEO33
SCREW
1
6 XXE25C3FP
Hexagon socket set screw Flat point M2.5X3-45H SCHP
COVER
1
7 N210020703AA
COVER
1
8 KXFA1PR5B01
GUIDE
1
9 N210006457AA
PIN
2
10 KXFA1PQ5B00
PRESSER-PLATE
1
11 N610072586AB
GUIDE
1
12 KXFA1P3AA00
SCREW
2
13 KXF0DYAJA00 S020659-2001(DDA)
PIN
2
14 KXFA1LHAA00
PIN
1
15 KXFA1Q0LA00
PLATE
1
16 KXFA1Q0PA00
SPRING
2
17 N210114131AA
SCREW
6
18 XSN25+6VW
Cross recessed Pan head machine screw M2.5X6-A2-70
BUSH
2
19 KXF0CWGAA00 80F-0610
PIN
1
20 KXFA1KAAA00
PIN
2
21 KXFA1KRAA00
PIN
1
22 KXFA1M1AA00
GEAR
1
23 KXFA1PQ7A02
LEVER
1
24 N210029790AA
PIN
1
25 KXFA1M3AA00
PIN
1
26 KXFA1LZAA00
LEVER
1
27 N210038151AA
ROLLER
2
28 KXFA1LYAA00
PIN
2
29 KXFA1KAAA00
SPRING
1
30 KXF0DK6AA00 (DA 0DK6A)
LEVER
1
31 KXFA1P0AA00
LEVER
1
32 KXFA1NSAA00
COMB
1
33 KXFA1PR8B00
PIN
1
34 N210044529AA
M2
Tape Feeder; 44; 56 mm; Splice sensing;Type A
Kit No.
Kit Name
KXFW1KS8A00

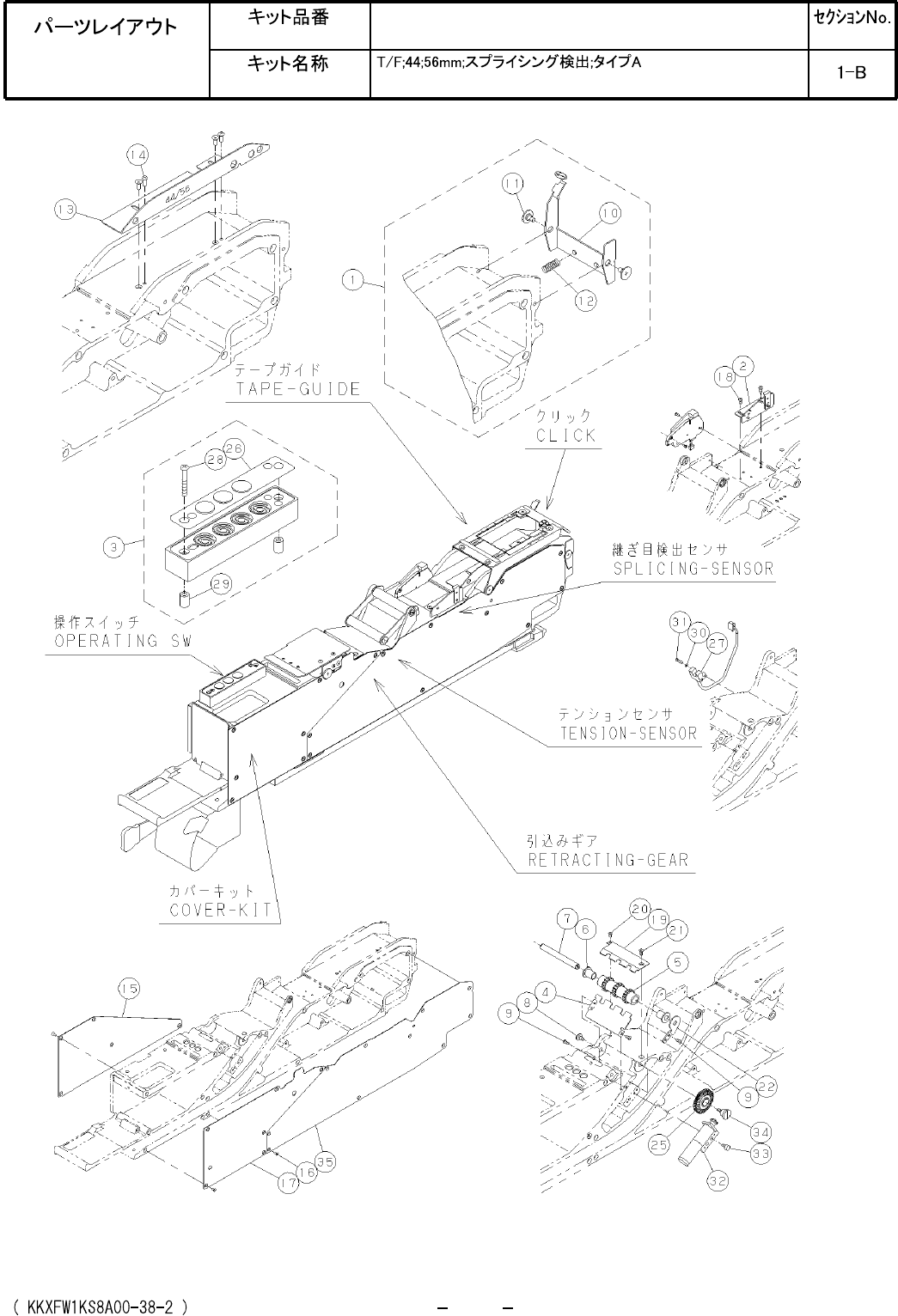

PARTS LAYOUT
Section No.
M3
Ref
No.
Remarks
R
1
Q't
y
Tape Feeder; 44; 56 mm; Splice sensing;Type A
Part No.
R
2
Kit No.
Kit Name
KXFW1KS8A00
Part Name
PARTS LIST
Section No.
R
3
CLICK
1
1 KXFW1KWMA00
TAPE-GUIDE(SENS)
1
2 KXFW1KXLA00
OPERATING-SW
1
3 N610033141AA
COMB
1
4 KXFA1PR9B00
GEAR
1
5 KXFA1PQ7A02
BUSH
2
6 KXF0CWGAA00 80F-0610
PIN
1
7 KXFA1M1AA00
PIN
1
8 KXFA1KAAA00
SCREW
5
9 XSN25+6VW
Cross recessed Pan head machine screw M2.5X6-A2-70
CLICK
1
10 KXFA1PTEA00
PIN
2
11 KXFA1LHAA00
SPRING
1
12 KXF0DRSAA00 (DA 0DRSA)
GUIDE
1
13 KXFA1PTGA00
SCREW
2
14 XSN25+6VW
Cross recessed Pan head machine screw M2.5X6-A2-70
COVER
1
15 KXFA1N6BA00
SCREW
22
16 XSS25+6VW
Cross recessed Countersunk head machine screw M2.5X6-A2-70
COVER
1
17 KXFA1N8BA01
SCREW
2
18 XSN25+6VW
Cross recessed Pan head machine screw M2.5X6-A2-70
PLATE
1
19 KXFA1PZLB02
SCREW
1
20 XSN25+4VW
Cross recessed Pan head machine screw M2.5X4-A2-70
SCREW
1
21 XSS25+6VW
Cross recessed Countersunk head machine screw M2.5X6-A2-70
BRACKET
1
22 KXFA1NTAA00
GEAR
1
25 N210050452AA
SEAL
1
26 KXF0DWTLA00 (DA KXF0DWTLA00)
SENSOR
1
27 N510037013AA PM-F24-M3
SCREW
2
28 N510018959AA
Cross recessed Pan head machine screw M2.5X18-4.8 A2J (Trivalent)
SPACER
2
29 KXF08WXAA00 C-2607
WASHER
1
30 N510018477AA
Small round-plain washer 2 10H A2J (Trivalent)
SCREW
1
31 N510002401AA SUS M2x8+TB2430
RETRACTING-MOTOR
1
32 N510043589AA
BOLT
2
33 N510017337AA
Hexagon socket head cap screw M3X6-10.9 A2J (Trivalent)
PIN
1
34 KXFA1L0AA00
COVER
1
35 KXFA1PR1A00
M4
