MODEL FB-G300 1004-004 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE B-5 GXH-3J 2Unit/1Machine GXH-3 4Unit/1Machine B-5 list-1 451 6301615837 ASSY ,CORD 1 873B--100-151 0W201841 451 -02 6301260686 CASE,CONN 1…
MODEL FB-G300
0909-003
フィーダベース部
FEEDER BASE SECTION

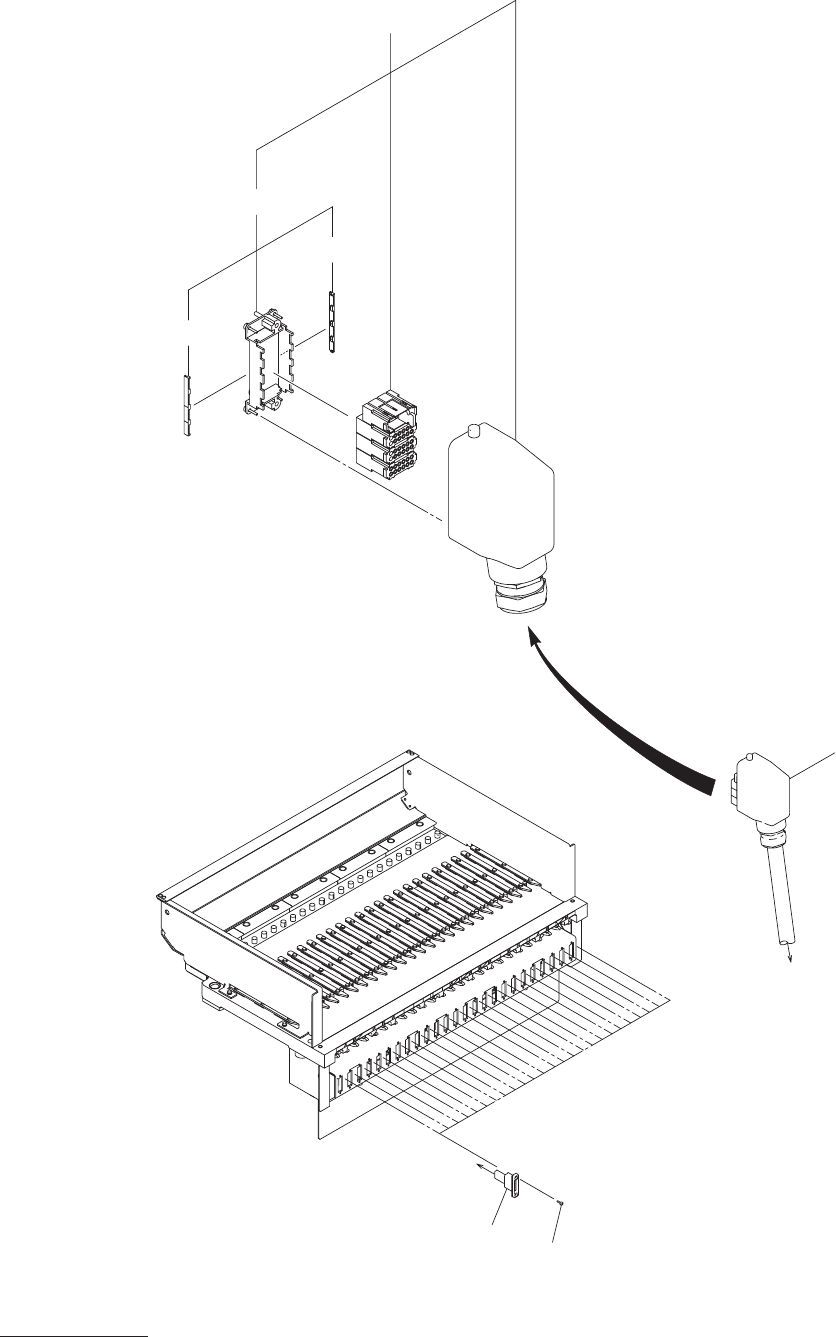

Fig. B-5
コネクタ
ASSY
Assy Connector
X30
X68100
X6970
X6940
X6960
X6961
X68101
X6727
X6729
X01 - X25
X6701 - X6725
X6801 - X6825
X6901 - X6925
X6980
DETAIL
451
451-12
451-12
451-02
451
474
455
B-5 illust-1
MODEL FB-G300
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
B-5 GXH-3J 2Unit/1Machine
GXH-3
4Unit/1Machine
B-5 list-1
451 6301615837 ASSY,CORD 1 873B--100-151 0W201841
451 -02 6301260686 CASE,CONN 1 23K10335
451 -12 6301613291 ACCESSORY,CONN 2 23K20132
455 6301275956 BOLT 50 873B--100-055 221E0298
474 6301263359 CORD 25 873B--100-174 4W202803
